MCM6209P20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MCM6209P20

MCM6209P20: Description64KX4 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28; Categorystorage storage; File Size159KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM6209P20 Overview

64KX4 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28

MCM6209P20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP28,.3
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	20 ns
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	34.67 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

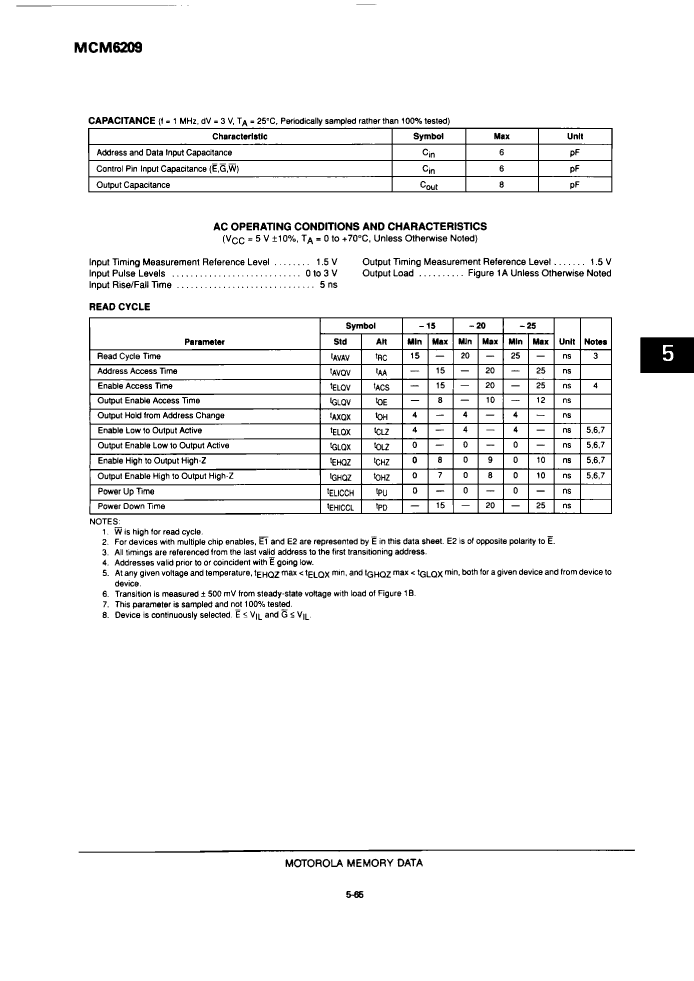

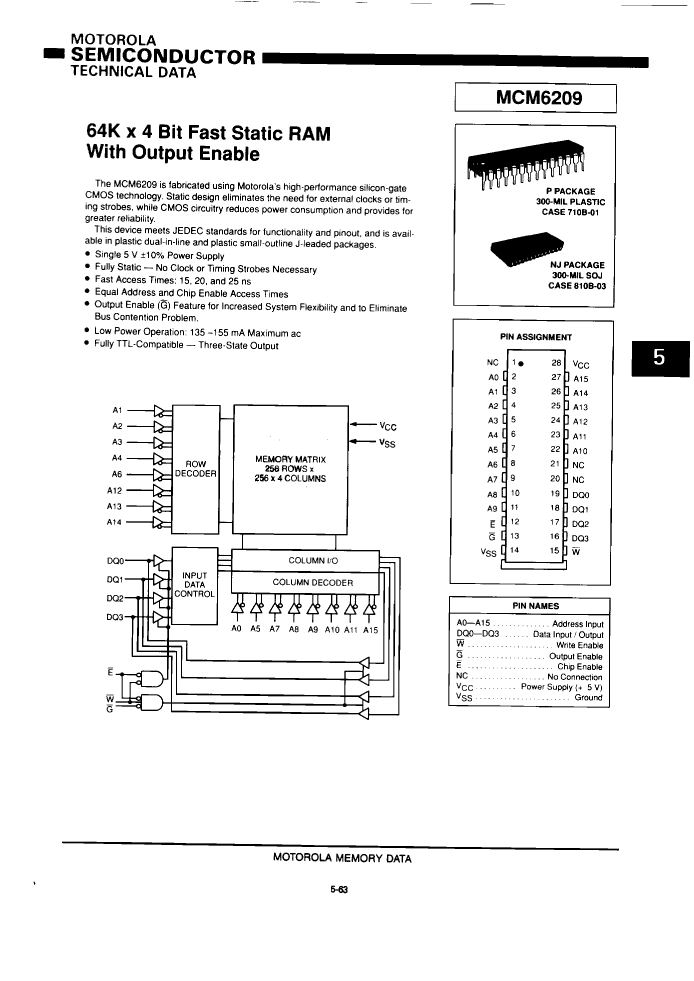

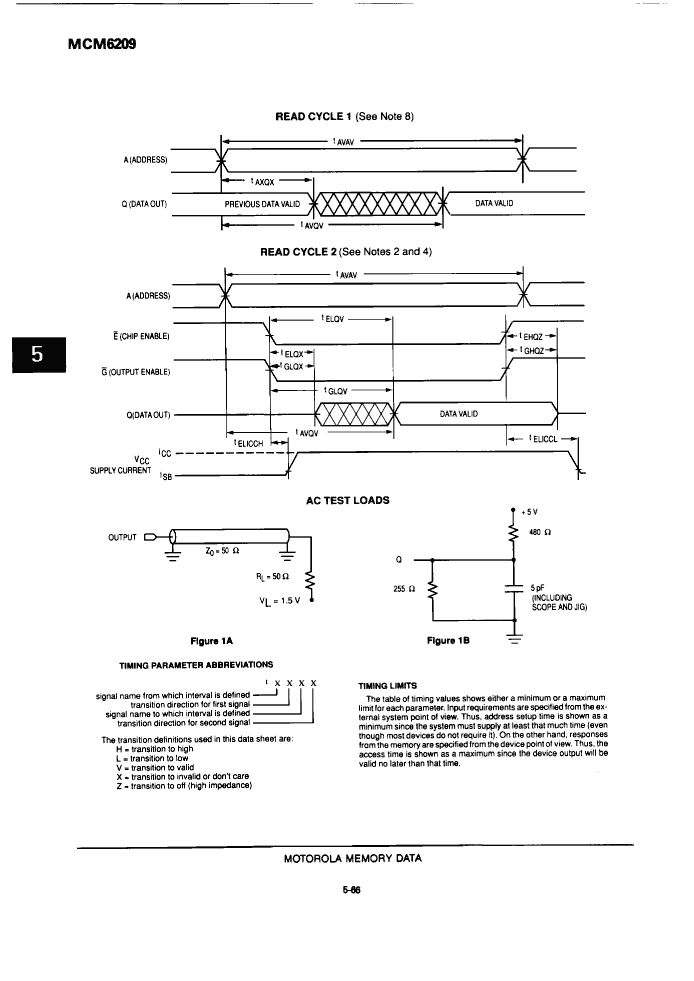

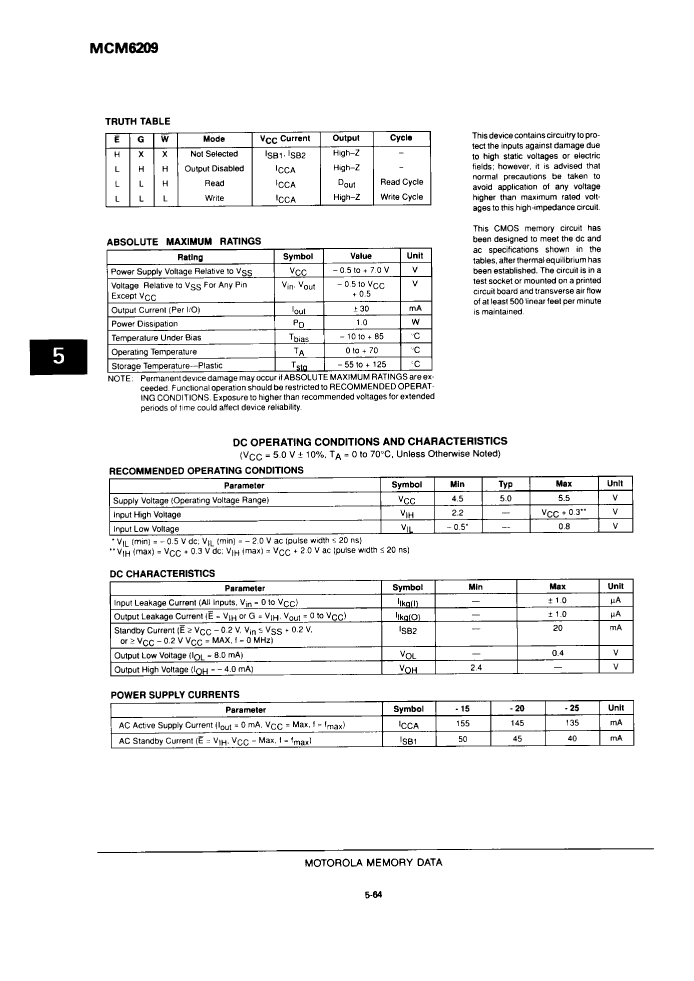

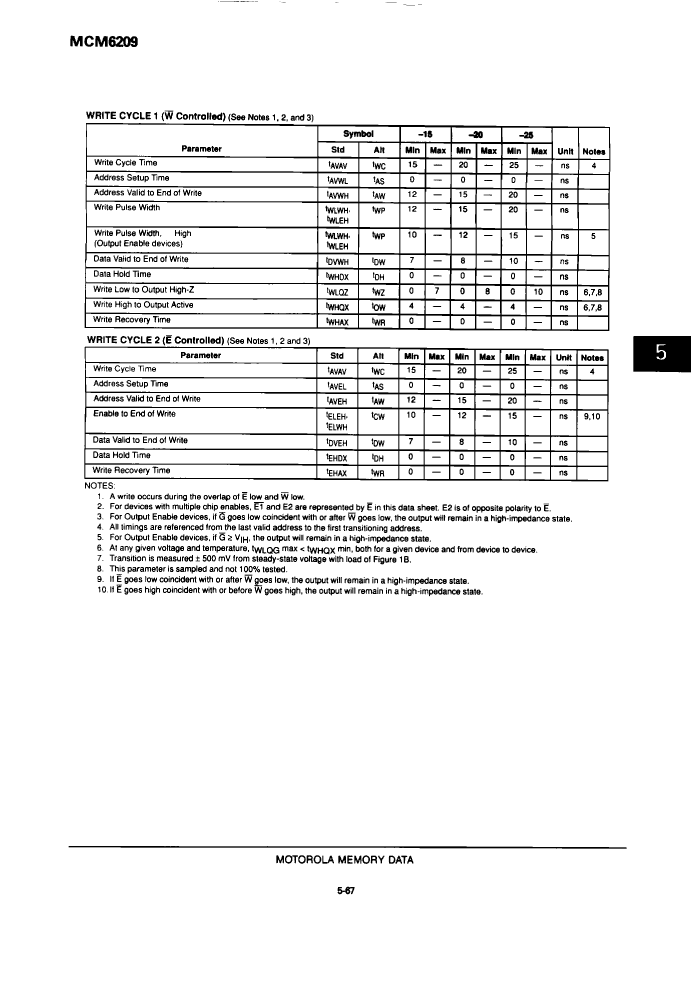

MCM6209P20 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MCM6209P20 Related Products

	MCM6209P20	MCM6209J25	MCM6209J25R2	MCM6209J15	MCM6209J15R2	MCM6209J20
Description	64KX4 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	64KX4 STANDARD SRAM, 25ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	64KX4 STANDARD SRAM, 25ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	64KX4 STANDARD SRAM, 15ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	64KX4 STANDARD SRAM, 15ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	64KX4 STANDARD SRAM, 20ns, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DIP	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	DIP, DIP28,.3	SOJ, SOJ28,.34	SOJ, SOJ28,.34	SOJ, SOJ28,.34	SOJ, SOJ28,.34	SOJ, SOJ28,.34
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	20 ns	25 ns	25 ns	15 ns	15 ns	20 ns
JESD-30 code	R-PDIP-T28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	34.67 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
