GRM15X5C1H1R2WDB4J datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GRM15X5C1H1R2WDB4J

GRM15X5C1H1R2WDB4J: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.0000012uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM15X5C1H1R2WDB4J Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.0000012uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT

GRM15X5C1H1R2WDB4J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Manufacturer's serial number	GRM15
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	4.17%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 13 INCH
positive tolerance	4.17%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND

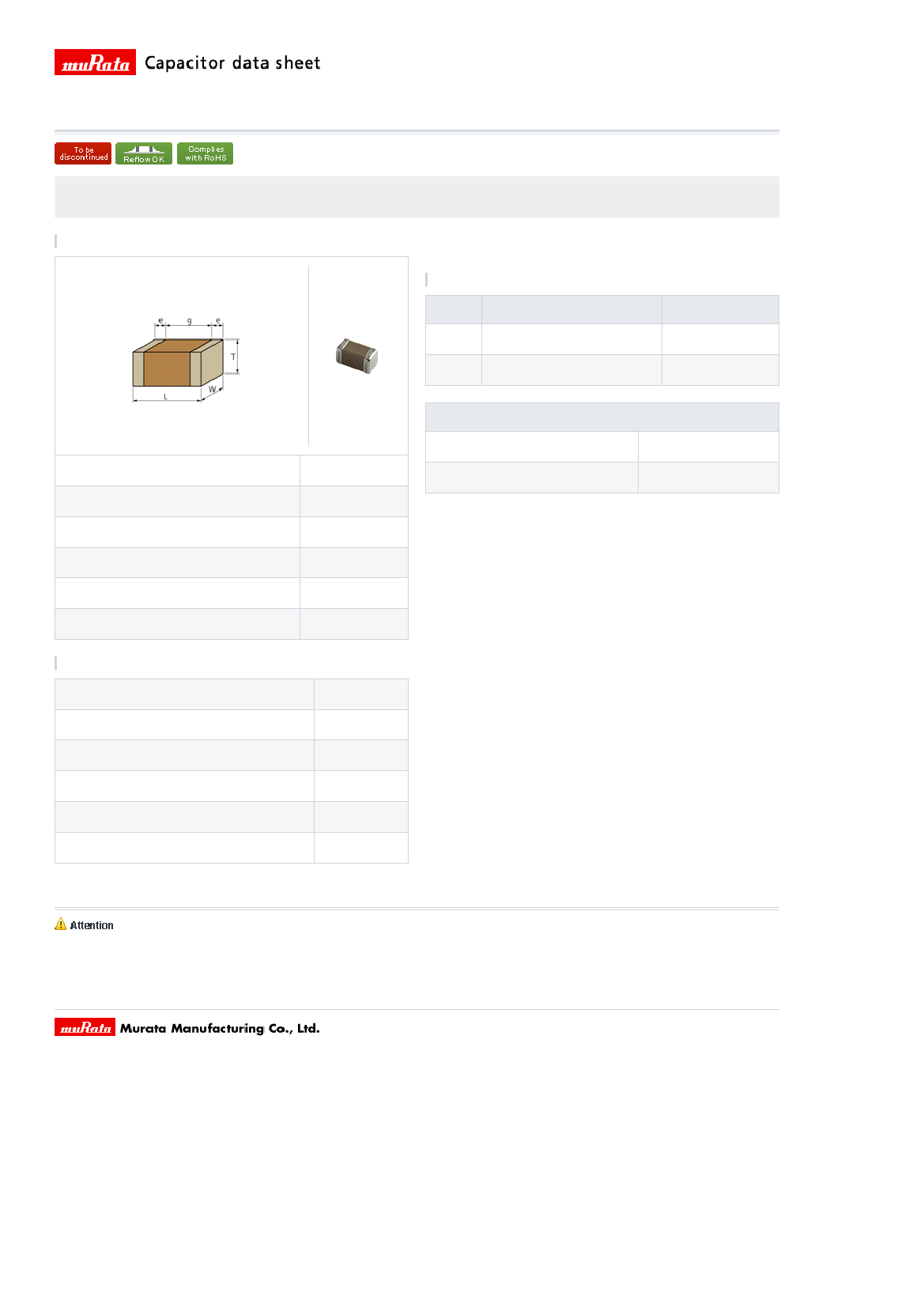

Preview

Download Datasheet

View All

GRM15X5C1H1R2WDB4#

# indicates a package specification code.

< List of part numbers with package codes >

GRM15X5C1H1R2WDB4D , GRM15X5C1H1R2WDB4J

Shape

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

10000

50000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.0 ±0.05mm

0.5 ±0.05mm

0.25 ±0.05mm

0.1 to 0.3mm

0.4mm min.

0402 (1005)

φ180mm Reel

0.90mg

82g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

1.2pF ±0.05pF

50Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20

GRM15X5C1H1R2WDB4J Related Products

	GRM15X5C1H1R2WDB4J	GRM15X5C1H1R2WDB4D
Description	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.0000012uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.0000012uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Murata	Murata
package instruction	, 0402	, 0402
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
capacitance	0.0000012 µF	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC
Manufacturer's serial number	GRM15	GRM15
Installation features	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes
negative tolerance	4.17%	4.17%
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 13 INCH	TR, PAPER, 7 INCH
positive tolerance	4.17%	4.17%
Rated (DC) voltage (URdc)	50 V	50 V
size code	0402	0402
surface mount	YES	YES
Temperature characteristic code	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND
