380LA014NF20: DescriptionEMI/RFI Non-Environmental Backshell with Strain Relief; File Size80KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

380LA014NF20 Overview

EMI/RFI Non-Environmental Backshell with Strain Relief

Preview

Download Datasheet

View All

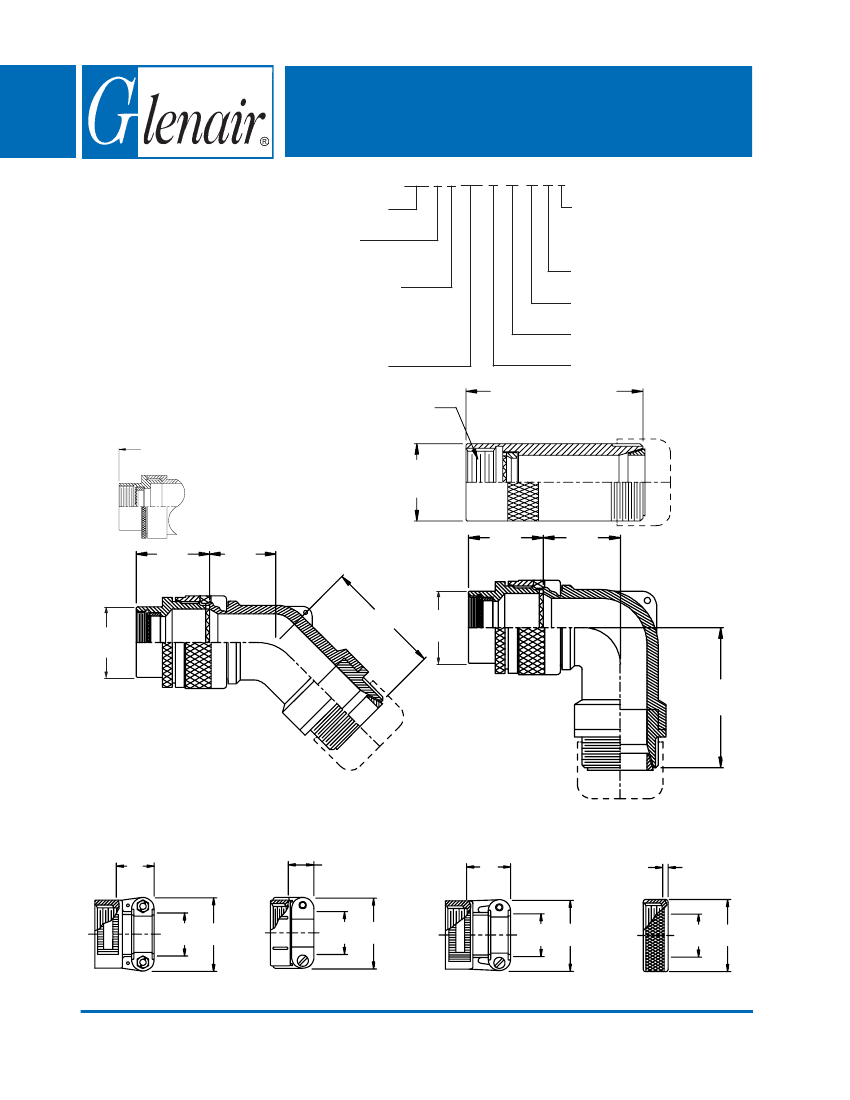

380-014

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type D - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

380 F S 014 M 16 10 A 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

A Thread

(Table I)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D)

Cable Entry (Tables X, XI)

Shell Size (Table I)

Finish (Table II)

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 4)

DIRECT COUPLING

TYPE D INDIVIDUAL

OR OVERALL SHIELD

TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

STYLE 2

(STRAIGHT

See Note 1)

(Table III)

(Table I)

(Table III)

(Table IV)

F (Table IV)

(Table I)

(Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 76
