PTH476B02AG201T260 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PTH476B02AG201T260

PTH476B02AG201T260: DescriptionPTC Thermistor, 200ohm, Chassis Mount; CategoryPassive components The resistor; File Size56KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

PTH476B02AG201T260 Overview

PTC Thermistor, 200ohm, Chassis Mount

PTH476B02AG201T260 Parametric

Parameter Name	Attribute value
Maker	Murata
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	PTH476
Installation features	CHASSIS MOUNT
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package shape	RECTANGULAR PACKAGE
Rated (AC) voltage (URac)	260 V
resistance	200 Ω
Resistor type	PTC THERMISTOR
surface mount	NO
Terminal shape	LUG
Thermistor Applications	HEATING ELEMENT

Preview

Download Datasheet

View All

THERMISTOR PRODUCTS

PTC THERMISTOR

FOR HEATER

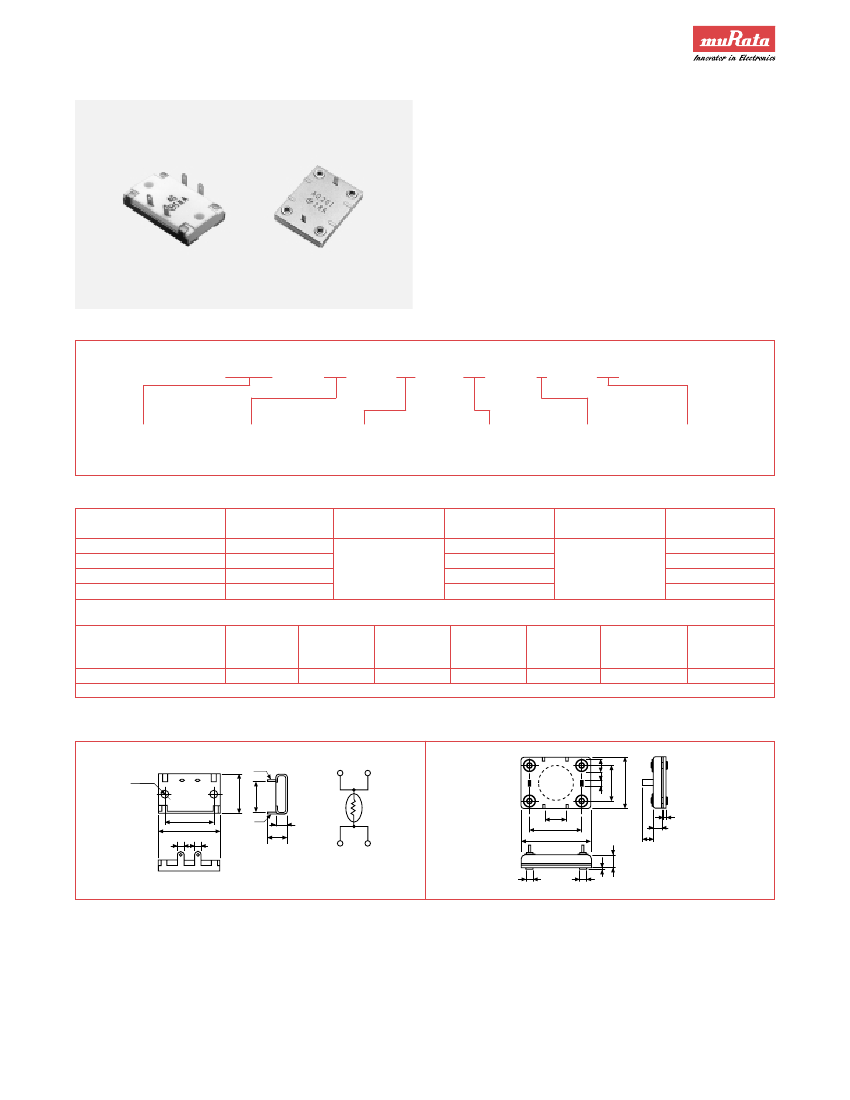

FEATURES

PTH476/521 Series

The heater element itself functions as a temperature

regulator.

The temperature pulsation which is observed in the

bimetallic thermostat application can be eliminated.

Excellent life characteristics ensure a long service life

as compared with Nickel-Chrome Heater under normal

operating conditions.

APPLICATIONS

PTH476: Dryer, copy machine, electric pot

PTH521: Steam generator, other small high

temperature heaters

PART NUMBERING SYSTEM

PTH476

B01

201

260

HEATER TYPE

PTC

CONSTRUCTION

TEMPERATURE

CHARACTERISTICS

RESISTANCE

VALUE

RESISTANCE

TOLERANCE

MAX.

VOLTAGE

SPECIFICATIONS

Part Number

PTH476B01BC201T260

PTH476B01AS201T260

PTH476B02AH201T260

PTH476B02AG201T260

Curie Point

BC ( 90°C)

AS (135°C)

AH (205°C)

AG (225°C)

Resistance

Value (Ohms)

200 ~ 1200

*Steady State

Current (mA)

28.0 (17) ± 20%

33.0 (21) ± 20%

58.0 (35) ± 20%

65.0 (39) ± 20%

Voltage max.

Nominal Surface

Temperature

105°C

130°C

185°C

200°C

260V

Designations in the parentheses are designed for Max. Voltage 260V max. • *Values based on 120V and ( ) on 220V

Operating temperature range (PTH476B01 type): –20°C to +60°C • Operating temperature range (PTH476B02 type): –20°C to +85°C

Part Number

PTH521A01AD201T260

Rated

Voltage (V)

120/220V Dual

Voltage

(V) max.

260

Curie

Point (CP)

AD (280°C)

Resistance

Inrush Current

Value (Ohms)

(A) max.

200 ~ 1200

Steady State

Nominal

Current

Surface Temp.

220V r.m.s. (mA) 220V r.m.s. (°C)

75 ± 20%

285

Operating temperature range: 0°C to +60°C

*Note:

PTH420 Series (heating element) available. Please consult us for details.

DIMENSIONS: mm

PTH476

2 ~ 4.3

29.5

0.5

0.7

3 6.5 3

POSISTOR

1.0 max.

0.5

5.4

5.3

7.0

1.5

5 max.

PTH521

7.5

0.5

558

CG01-J

PTH476B02AG201T260 Related Products

	PTH476B02AG201T260	PTH476B02AH201T260
Description	PTC Thermistor, 200ohm, Chassis Mount	PTC Thermistor, 200ohm, Chassis Mount
Maker	Murata	Murata
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Manufacturer's serial number	PTH476	PTH476
Installation features	CHASSIS MOUNT	CHASSIS MOUNT
Number of terminals	4	4
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Rated (AC) voltage (URac)	260 V	260 V
resistance	200 Ω	200 Ω
Resistor type	PTC THERMISTOR	PTC THERMISTOR
surface mount	NO	NO
Terminal shape	LUG	LUG
Thermistor Applications	HEATING ELEMENT	HEATING ELEMENT
