with Strain Relief

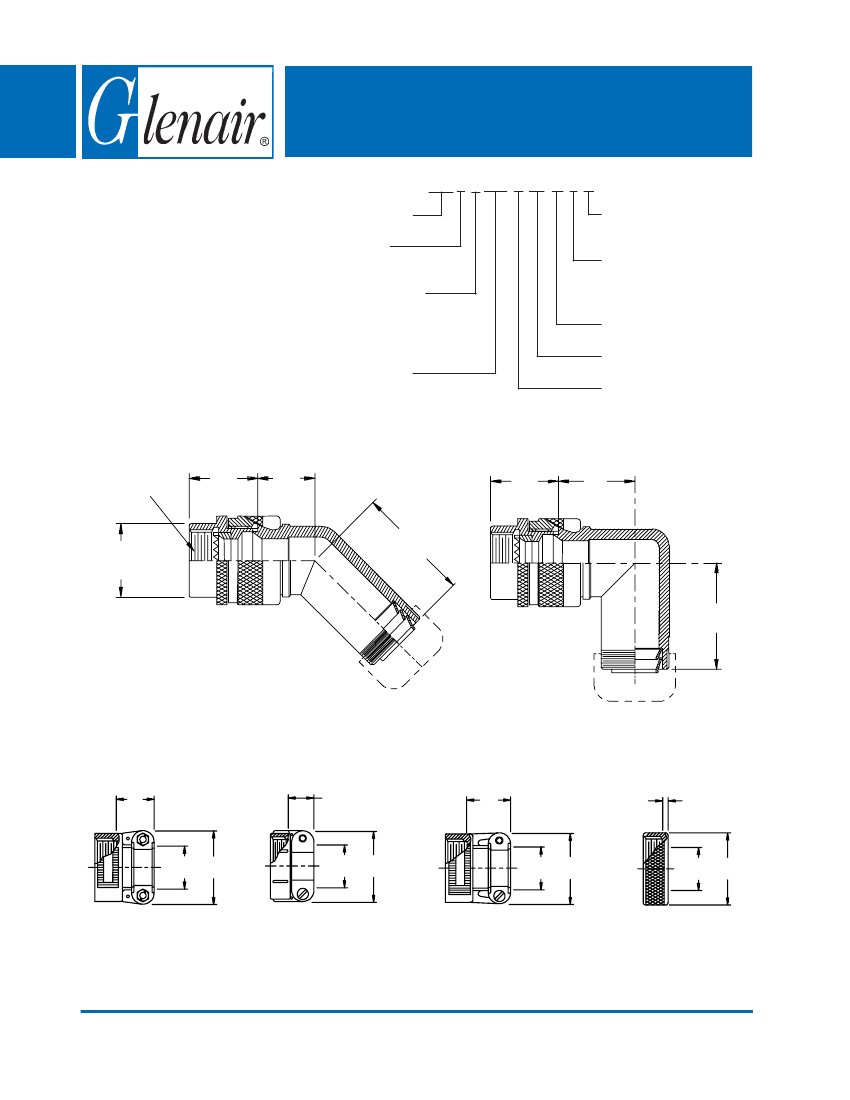

Type E - Direct Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
J-H-L-S
D-B-G-K
C
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8)
1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
1.180 (30.0) 1.250 (31.8) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
TABLE IV: ELBOW DIMENSIONS
E
Elbow
F
G
Max
Size
Max
Max
03 .639 (16.2) .950 (24.1) .750 (19.1)
04 .664 (16.9) .980 (24.9) .810 (20.6)
06 .688 (17.5) 1.000 (25.4) .870 (22.1)
08 .705 (17.9) 1.030 (26.2) .920 (23.4)
10 .732 (18.6) 1.050 (26.7) .980 (24.9)
12 .748 (19.0) 1.060 (26.9) 1.020 (25.9)
16 .800 (20.3) 1.120 (28.4) 1.140 (29.0)
20 1.041 (26.4) 1.320 (33.5) 1.480 (37.6)
24 1.041 (26.4) 1.320 (33.5) 1.480 (37.6)
28 1.092 (27.7) 1.360 (34.5) 1.610 (40.9)
32 1.138 (28.9) 1.410 (35.8) 1.720 (43.7)
H
Max
1.060 (26.9)
1.120 (28.4)
1.180 (30.0)
1.250 (31.8)
1.310 (33.3)
1.330 (33.8)
1.470 (37.3)
1.780 (45.2)
1.780 (45.2)
1.870 (47.5)
1.980 (50.3)
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
TABLE X: CABLE ENTRY
V
Cable Range
Dash
T
Max
No.
Max
Min
Max
.957 (24.3)
.780 (19.8)
.125 (3.2) .312 (7.9)
04
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
08
10
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.625 (15.9) .937 (23.8)
16
.905 (23.0) 1.770 (45.0)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE XI: CABLE ENTRY
Dash
W
Z
Y
X
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
* Not available in Style M clamp.
© 2005 Glenair, Inc.
CAGE Code 06324
See Inside Back Cover
for Additional Finish Options
1. Metric dimensions (mm) are indicated in
parentheses.
2. Cable range is defined as the accommoda-
tions range for the wire bundle or cable.
Dimensions shown are not intended for
inspection criteria.
3. Consult factory for shorter lengths on
straight backshells.
4. Designate
Symbol T for 3
ring termina-
tion of indi-
Cable Range
vidual and
Max
Min **
overall braid.
.156 (4.0) .250 (6.4)
Designate D
.188 (4.8) .312 (7.9)
for standard 2
.281 (7.1) .438 (11.1)
ring termina-
.344 (8.7) .562 (14.3)
tion of indi-
vidual or
.375 (9.5) .625 (15.9)
overall braid.
.438 (11.1) .750 (19.1)
.562 (14.3) .938 (23.8)
5. When using
Connector
.750 (19.1) 1.250 (31.8)
Designator B
.781 (19.8) 1.375 (34.9)
refer to pages
.969 (24.6) 1.625 (41.3)
18 and 19 for
1.125 (28.6) 1.875 (47.6)
part number
1.469 (37.3) 2.375 (60.3)
development.
** Not Applicable Style D
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
