OX01F10
1.3MP
product brief
lead free
available in
a lead-free
package
SoC Offers Rear and Surround View Cameras
Industry's Best Low-Light Performance,
Lowest Power and Smallest Size
OmniVision's OX01F10 is a 1.3MP SoC, providing automotive
designers with the industry's best imaging performance across
a wide range of challenging lighting conditions, along with the
most compact form factor and lowest power consumption. In a
single, 1/4" optical format package, the OX01F10 integrates a
3.0 micron image sensor and an advanced image signal
processor (ISP) with OmniVision's PureCel®Plus technology for
low noise, solving the automotive rear view camera (RVC) and
surround view system (SVS) challenges of achieving a small
form factor with excellent low-light performance, ultra-low
power and reduced cost while improving reliability by using
only one printed circuit board (PCB).
This SoC employs dual conversion gain (DCG) technology to
achieve a high dynamic range of 120 dB with only two captures,
as opposed to three required by the competition, which
minimizes motion artifacts while reducing power consumption
and boosting low-light performance.
The OX01F10 features <300 mW typical power consumption,
which is 30% lower than competitors and significantly reduces
the temperature. It is the only imaging device today that does
not require a metal heat sink, allowing for the use of plastic
camera module bodies to reduce costs. With its compact
package size, it also enables smaller cameras that can fit in
much tighter spaces. In addition, by integrating both the image
sensor and ISP into a single chip, designers can save on both
cost and space by eliminating the second PCB in typical two-
chip implementations.
This SoC provides 1.3MP resolution and a 1340 x 1020 array
size at 30 fps, offering ample resolution for calibration. It also
enables output flexibility with both 2-lane MIPI and 10-bit DVP
interfaces, and is AEC-Q100 Grade 2 certified.
Find out more at www.ovt.com.
Applications
¬ 360° Surround View System
¬ Rear View Cameras
OX01F10
Ordering Information
¬ SPI master for loading settings
¬ 50/60 Hz flicker cancellation
¬ SCCB for register programming
¬ programmable GPIOs
¬ high speed serial data transfer
with MIPI CSI-2 or DVP
¬ external frame synchronization
capability
¬ embedded temperature sensor
¬ one-time programmable (OTP)
memory
¬
OX01F10-E48Y-1B-Z
(color, lead-free)
48-pin a-CSP™ package
Product Features
¬ support for image size:
- 1340 x 1020 and any cropped size
¬ high dynamic range
¬ high sensitivity
¬ dual conversion gain
¬ ASIL-B safety feature
¬ image sensor process functions:
- AEC/AGC/AWB
- lens correction
- defective pixel correction
- HDR combination
- tone mapping
- automatic black level correction
¬ supported output formats:
- YUV
- RGB888
- BT656
- RAW
Product Specifications
¬
active array size:
1340 x 1020
¬
power supply:
- analog:
3.3V
- digital:
1.1V
- I/O pins:
1.8V/3.3V
¬
temperature range:
- operating:
-40°C to +105°C sensor
ambient temperature and -40°C to
+125°C junction temperature
¬
output interfaces:
up to 2-lane MIPI
CSI-2 and 96 MHz parallel clock
¬
input clock frequency:
6 ~ 64 MHz
¬
lens size:
1/3.55"
for 1340 x 1020 image size
¬
lens chief ray angle:
20° linear
¬
SCCB speed:
up to 1 MHz
¬
scan mode:
progressive
¬
shutter:
rolling shutter
¬
output formats:
linear output, dual
exposure HDR (long and short),
3-exposure HDR (long, short, and
very short)
¬
maximum image transfer rate:
30 fps @ 1340 x 1020 in 10-bit
¬
dynamic range:
120 dB
in 3-capture HDR
¬
pixel size:
3 µm x 3 µm
¬
image area:
4080 µm x 3108 µm
¬
package dimensions:
- a-CSP™:
5143 µm x 4180 µm

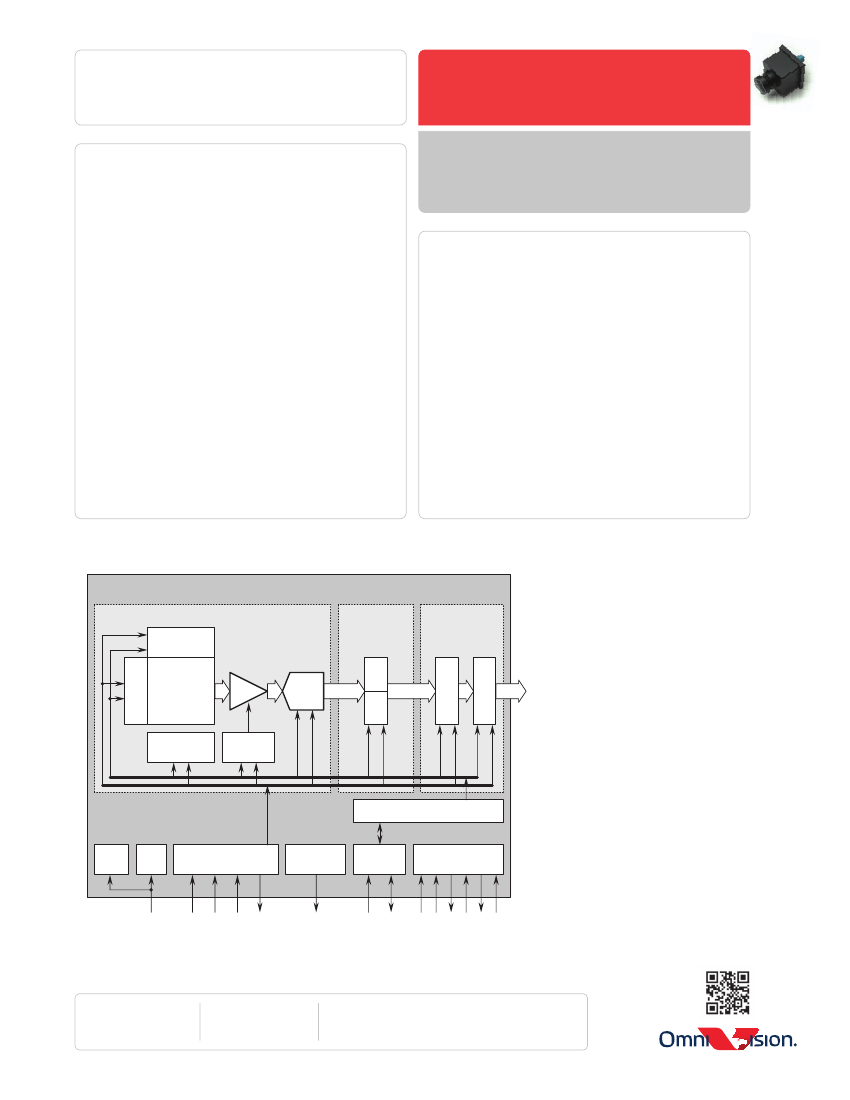

Functional Block Diagram
OX01F10
image sensor core
column
sample/hold
row select
ISP
array
10-bit
ADC
ISP/MCU
interface
MIPI/DVP
temperature
sensor
gain
control
MCU
AMP
MCP/N
MDP/N[1:0]
DVP[9:0]
control register bank
PLLs
PLL
timing generator and
system control logic
safety
monitoring
SCCB
interface
SPI/UART
interface
VSYNC
XVCLK
XSHUTDOWN
