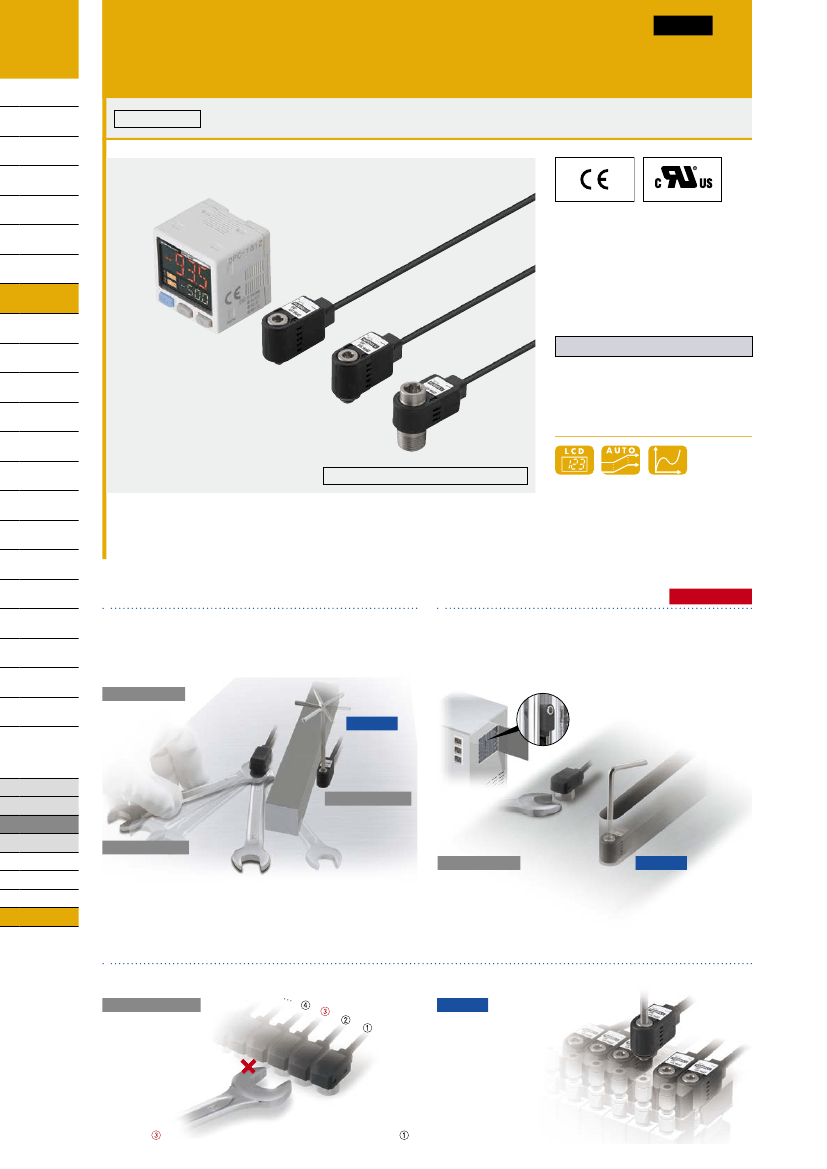

Head-separated Dual Display Digital Pressure Sensor
■
General terms and conditions............. F-3
■
Glossary of terms........................ P.1563~
For Gas
DPC-100
SERIES
DPH-100
SERIES
Related Information
■
Selection guide ............................. P.699~
■
General precautions ..................... P.1566
Recognition
* Passed the UL 991 Environment Test
* UL 61010C-1 compatible, Passed the UL 991
Environment Test based on SEMI S2-0200.
[Category applicable for semiconductor
manufacturing: TWW2, Process Equipment]
[Applicable standards: UL 61010C-1]
[Additional test / evaluation standards as per intended
use: UL 991, SEMI S2-0200]
panasonic.net/id/pidsx/global
Digital
Auto reference
With analog
output
Single axis type
Direct installation using a hexagonal wrench
Breakthrough construction
Obstructions can be avoided and installation from above
can be done much more easily using a hexagonal
wrench. This also eliminates wasted installation space
and contributes to a smaller installation footprint.
Previous problem
Flexible design! Sensor heads can be embedded
New concept
Because the bolts can be turned from directly above,
embedding the sensor heads into narrow spaces is
possible. In addition, the flat installation leaves no
worries for danger of objects striking against the sensor
and damaging it.
Spanner is difficult to hold!
(Obstructed by floor surface)
DPH-100
Turns minimally
from above!
Selection
Guide
Pressure/
Digital Display
Pressure/
Head-separated
Flow
Previous problem
Obstacle
Previous problem
Spanner cannot
be turned!
Previous problem
DPH-100
DPC-L100/
DPH-L100
DPS-400/
DPH-100
DPC-100/
DPH-100
Large space
needed to turn
the spanner!
Projection sticks out
after installation.
Easy to knock
against objects.
Embedded
installation greatly
increases design
flexibility!
Quick maintenance
During maintenance, the sensor head needed to be removed can be easily removed from directly above.
Conventional models
DPH-100
Spanner
does not fit!
It cannot be
turned either!
Remove and install
the required sensor
head directly.
To remove
, you have to remove the sensors in order starting from
.
Head-separated Dual Display Digital Pressure Sensor
DPC-100
SERIES
DPH-100
SERIES

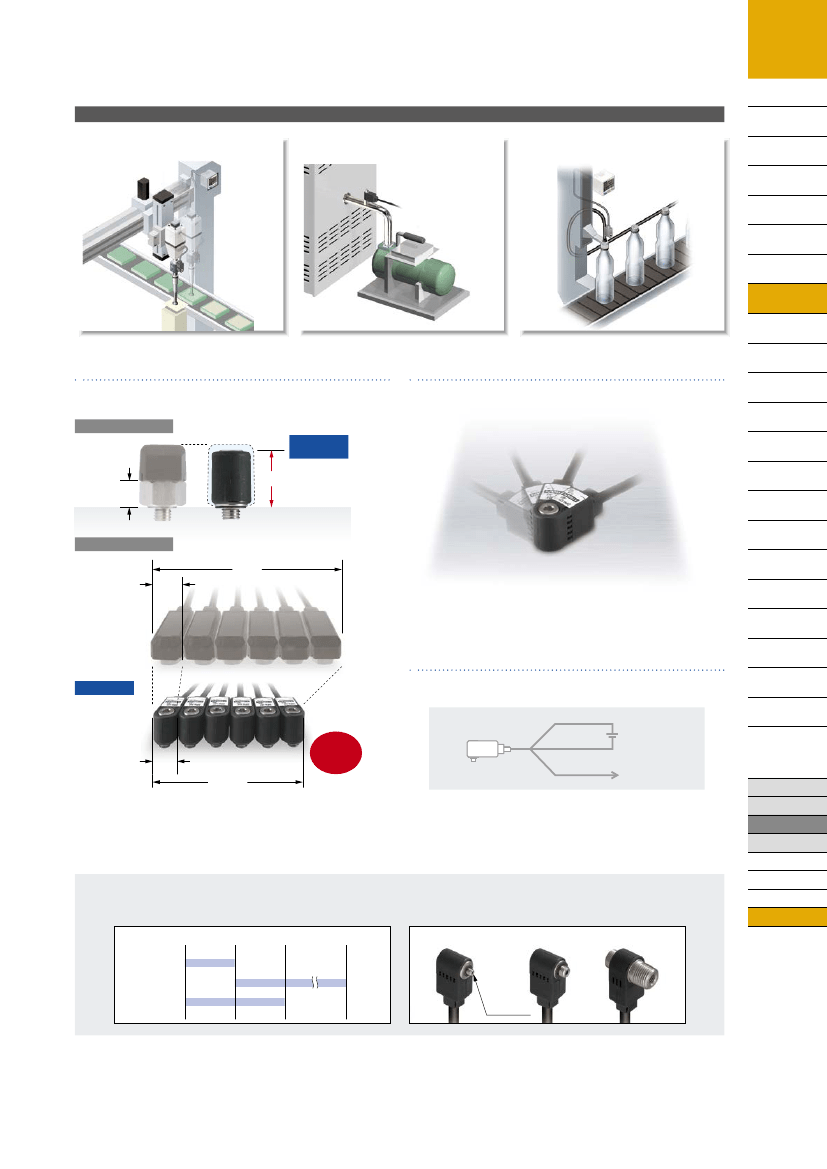

754
FIBER
SENSORS
APPLICATIONS
Confirming vacuum breakdown
Confirming reference pressure
Air-leak test
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
Mounting space-saving
Space saving during installation
Conventional models
Saved space
Easy adjustment
Sensor heads can be turned after installation
DPH-10□-M3
DPH-10□-M5
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
Wasted
space
14 mm
0.551 in
Conventional models
12.5 mm
0.492 in
75 mm
2.953 in
Free-turning
After installation, you can alter the cable direction with
the pressure port still secured in place. In addition, the
cable does not get twisted during installation.
LASER
MARKERS
PLC
HUMAN MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
FA COMPONENTS
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
Independent use of sensor head possible
DPH-100
Separate analog voltage output for each sensor head
10 mm
0.394 in
60 mm
2.362 in
DOWN
Analog 1 to 5 V
Selection
Guide
Pressure/
Digital Display
Pressure/
Head-separated
Flow
20%
12 to 24 V DC
Because the dead zone caused by the nut is
eliminated, the narrowed-down thickness after
installation contributes to space saving.
The analog voltage output from the sensor head can be
picked up directly.
Sensor head line-up
3 types of pressure range
-100 kPa
For vacuum pressure
For positive pressure
For compound pressure
0 kPa
100 kPa
1 MPa
Stainless steel pressure ports come in 3 shapes
M3 male thread
M5 male thread
Stainless
steel is
strong and
does not
bend easily
R1/8 male thread + M5 female thread
DPC-L100/
DPH-L100
DPS-400/
DPH-100
DPC-100/
DPH-100
755
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
PLC
HUMAN MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
FA COMPONENTS
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
Head-separated Dual Display Digital Pressure Sensor
DPC-100
SERIES
DPH-100
SERIES

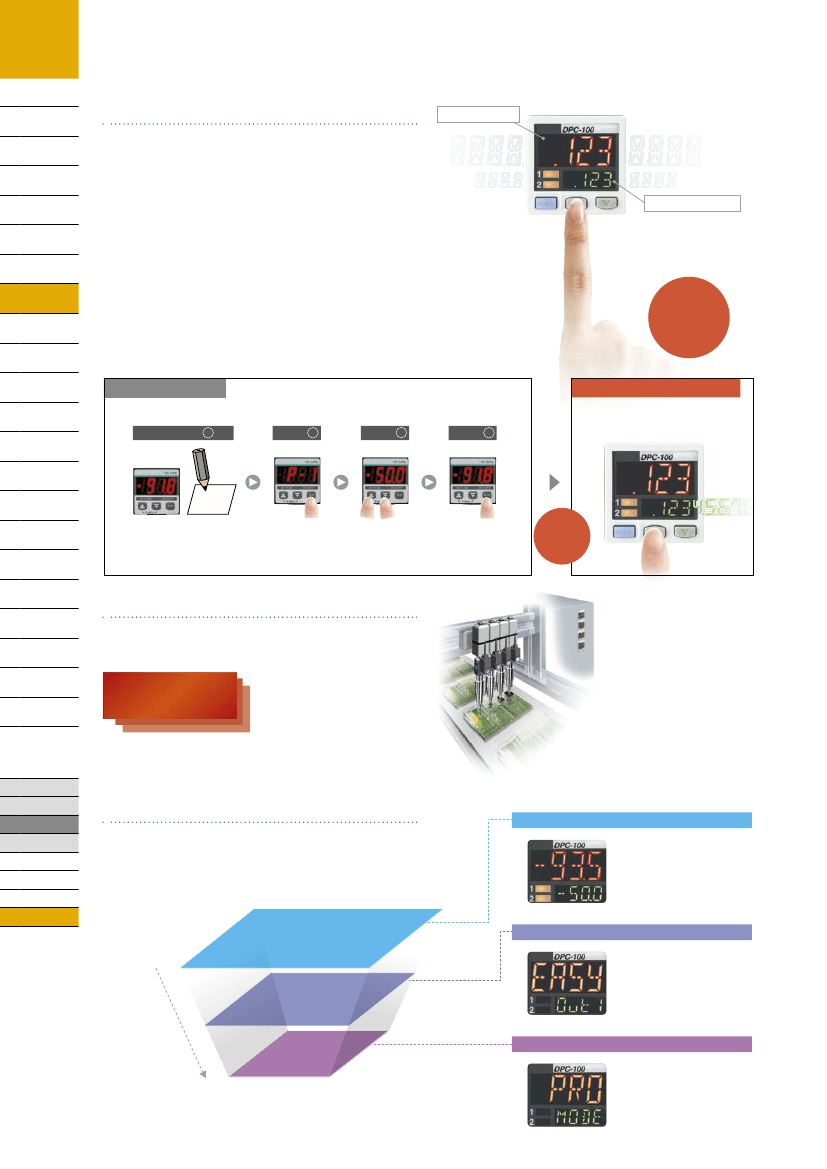

Dual display + Direct setting
Equipped with a 30 mm
1.181 in
square compact-sized
dual display.
“Current value” and “Threshold value” can be checked at
the same time.
The threshold value can be changed in RUN mode
directly.
Current value
Main display
Threshold value
Sub display
The current value
and the threshold
value can be checked
simultaneously!
Previous problem
Difficulty with only one display
Operation 1
Operation 2
Operation 3
Operation 4
Because direct
setting is possible
Operation
is as easy
as analog
Dual display direct setting
Just press the button
while in RUN mode
–91.8
Write down current value
Press the
MODE key
Adjust the
threshold value
Return to
RUN mode
1/4
of the
operations
High-speed response time at 500 μs
Reduced tact time. Response time contributes to even
greater productivity.
Response time at
500 μs
Selection
Guide
Pressure/
Digital Display
Pressure/
Head-separated
Flow
The controller’s setting operation mode has a
3-level configuration to suit the frequency of use
The setting levels are clearly separated into “RUN mode”
for operation settings that are carried out daily, “MENU
SETTING mode” for basic settings, and “PRO mode”
for special and detailed setting. These make setting
operations easy to understand and easy to carry out.
RUN mode
RUN mode
Settings such as threshold
value adjustment and
key lock operation can
be carried out while the
sensor is operating.
DPC-L100/
DPH-L100
DPS-400/
DPH-100
DPC-100/
DPH-100
Simple
setting
MENU SETTING mode
Basic settings such as
output mode setting and
NO/NC switching can be
carried out.
MENU SETTING mode
PRO mode
Special and
detailed setting
PRO mode
High-level function
settings such as
hysteresis adjustment
and the copy function
can be carried out.
Head-separated Dual Display Digital Pressure Sensor
DPC-100
SERIES
DPH-100
SERIES
756
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
PLC
HUMAN MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS

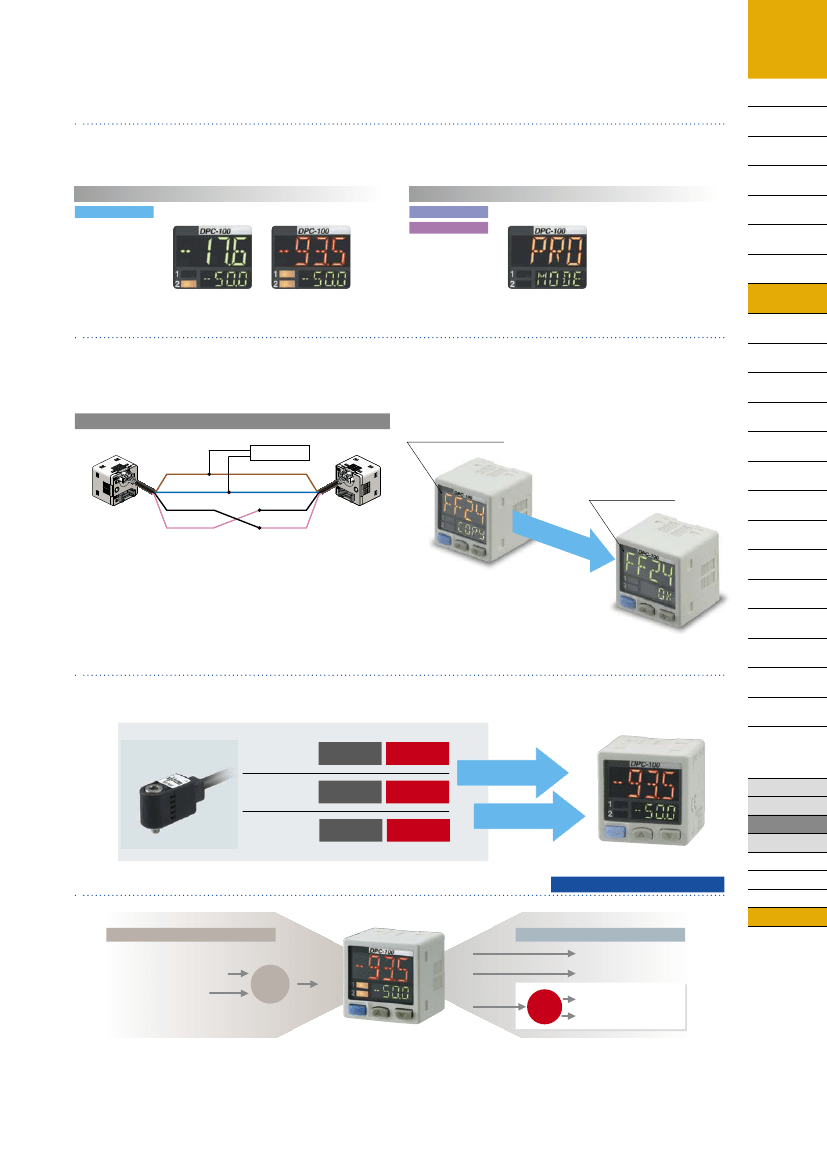

3-color display lets you view the controller status at a glance
The main display color switches between green and red in accordance with the ON/OFF status of output during RUN
mode. In addition, the display always appears orange while setting is in progress, so that the status of the controller
can be viewed at a glance.
RUN
RUN mode
While setting is in progress
MENU SETTING mode
PRO mode
Display in red or
green depending
on output ON/
OFF.
or
Orange while
setting is in progress.
Copy function reduces man-hours and human error
Controllers can be connected to a master controller one by one, and a copy of the setting details for the master
controller can be transmitted as data to the slave controllers. If making the same settings for multiple controllers, this
prevents setting errors from occurring with the other controllers and also reduces the number of changes required to
instruction manuals when equipment designs are changed.
Copying via wiring
Master controller
+V
0V
Comparative output 1
External input
Power supply
+V
0V
Comparative output 1
External input
* Other wires are not connected.
Slave controller
Details transmitted
Details received
Det
ails
c
opie
d
Sensor head auto-recognition
The controller will automatically recognize sensor heads when they are connected, even for sensor heads with
different rated pressure ranges. There is no need to use the controller to change settings.
FA COMPONENTS
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
DPH-101□
DPH-102□
DPH-103□
Compound pressure
Positive pressure
Vacuum pressure
±100 kPa
Auto-recognition
+1 MPa
–101 kPa
Initial setting not needed
Selection
Guide
Pressure/
Digital Display
Pressure/
Head-separated
Flow
1 model to suit a wide variety of applications
Inputs
DPC-100 original functions
DPC-L100/
DPH-L100
DPS-400/
DPH-100
DPC-100/
DPH-100
Outputs
Comparative output 1
Remote zero-adjustment input
Auto-reference input
Selection
Selection
Comparative output 2
Analog voltage output
1 to 5 V
Analog current output
4 to 20 mA
757
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
PLC
HUMAN MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
FA COMPONENTS
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
Head-separated Dual Display Digital Pressure Sensor
DPC-100
SERIES
DPH-100
SERIES

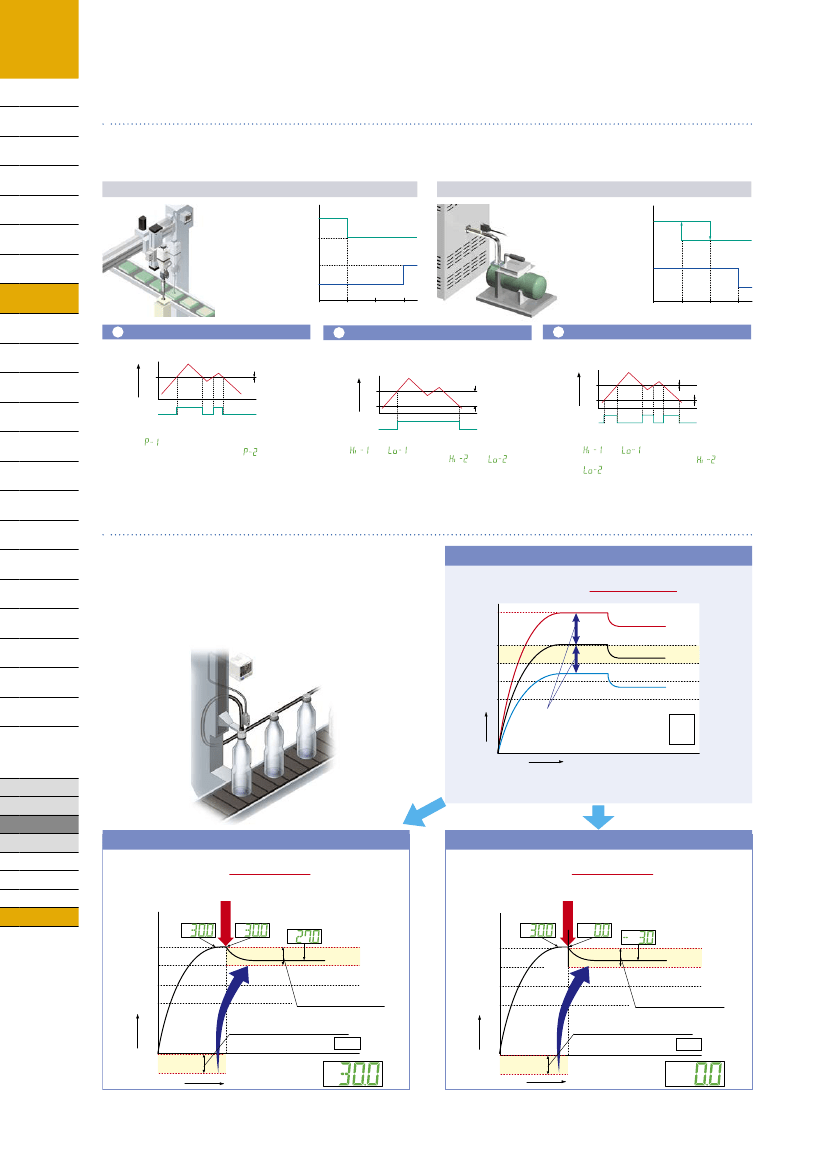

Comparative output 1
EASY mode
ON
OFF
ON
Suction checking
Equipped with independent two output and three output modes
OFF
Equipped with two independent comparative outputs, and separate sensing modes can be selected for each of them.
Vacuum breakdown checking
Two comparative outputs are provided, so that one of the outputs can be used as a warning output. In addition, if an
–100 kPa P-1 0 kPa P-2
output is not being used, it can be disabled.
Comparative output 2
EASY mode
Vacuum breakdown can also be checked during suction applications!
Comparative output 1
EASY mode
Reference pressure alarm output is possible during reference pressure checking!
Comparative output 1
hysteresis mode
ON
OFF
ON
OFF
Vacuum breakdown checking
Suction checking
ON
OFF
ON
OFF
0 kPa
Lo-1
Reference
pressure
checking
Alarm output
Comparative output 2
EASY mode
Comparative output 2
EASY mode
–100 kPa
1
P-1
2
0 kPa
P-2
3
Hi-1
P-2
EASY mode
Hysteresis mode
Window comparator mode
This mode is used for comparative output ON/OFF control.
Pressure
Pressure
OFF
ON
Pressure
P
This mode is used for setting comparative output
hysteresis to the desired level and for carrying out ON/
Reference
ON
OFF control.
H (Hysteresis)
pressure
Comparative output 1
hysteresis mode
checking
Hi
H (Hysteresis)
This mode is used for setting comparative output ON
and OFF at pressures within the setting range.
H (Hysteresis)
Hi
H (Hysteresis)
0
Comparative ON
output OFF
Notes: 1) Hysteresis can be fixed to one of eight different levels.
OFF
2) “
” appears in the sub display for
Note: “
” or
”
comparative output 1, and “
” appears for
0 kPa Lo-1 Hi-1
“
P-2
appears in the sub display for
comparative output 1, and “
” or “
”
comparative output 2.
appears for comparative output 2.
Comparative output 2
EASY mode
H: Fixed
Lo
Alarm output
0
Comparative ON
output OFF
H: 1 digit or more
Lo
0
Comparative
ON
output
OFF
H: Fixed
Notes: 1) Hysteresis can be fixed to one of eight different levels.
2) “
” or “
” appears in the sub display
for comparative output 1, and “
” or
“
” appears for comparative output 2.
Equipped with auto-reference/remote zero-adjustment functions,
More precise pressure management is possible with a minimum of effort
If the reference pressure of the device changes, the auto-
reference function partially shift the comparative output
judgment level by the amount that the reference pressure
shifts, and the remote zero-adjustment function can
reset the display value to zero via external input. These
functions are ideal for places where the reference pressure
fluctuates wildly, or where fine settings are desired.
Without auto-reference and remote zero-adjustment functions
Comparative output: Window comparator mode
Hi-1… 30, Lo-1… 25
Fixed set value
40
NG?
30
25
20
15
Variation in the filling pressure
Trial 1
Trial 2
Trial 3
Leak threshold level
OK
NG?
Pressure
0
Time
Selection
Guide
Pressure/
Digital Display
Pressure/
Head-separated
Flow
Because the threshold level is fixed for conventional pressure
sensors, changes in the reference pressure result in wrong
decisions.
With auto-reference function applied
Comparative output: Window comparator mode
Hi-1… 0, Lo-1…
–
5
Auto-reference input
Sets the absolute threshold level
The display remains at “30” and
only the threshold level is changed.
With remote zero-adjustment function applied
Comparative output: Window comparator mode
Hi-1… 0, Lo-1…
–
5
Sets the absolute threshold level
DPC-L100/
DPH-L100
DPS-400/
DPH-100
DPC-100/
DPH-100
Remote zero-adjustment input
The display is forced to “0”, and only the
filling pressure drop range is displayed.
30
25
20
15
30
OK
Threshold level after applying
auto-reference input
Threshold level before applying
auto-reference input
Trial 1
25
20
15
0
–5
OK
Threshold level after applying
remote zero-adjustment input
Threshold level before applying
remote zero-adjustment input
Trial 1
Pressure 0
-5
Time
Auto-reference input value…
Pressure 0
-5
Time
Displayed when remote zero-
adjustment input is applied…
When auto-reference input is applied, the reference pressure “30” is
added to the threshold level. If the reference pressure changes to “20”
or “40”, the auto-reference input compensates for this every time by
changing the threshold level, so any variation in the filling pressure can
be ignored.
When remote zero-adjustment input is applied, the reference pressure is
forced to “0”.
If the reference pressure changes to “20” or “40”, the remote zero-adjustment
input adjusts the reference pressure to “0” every time the reference pressure
changes, so any variation in the filling pressure can be ignored.
京公网安备 11010802033920号
EEWORLD
