P74FCT3974CD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> P74FCT3974CD

P74FCT3974CD: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24; Categorylogic logic; File Size147KB，4 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P74FCT3974CD Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24

P74FCT3974CD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
Other features	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND
series	FCT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	31.75 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Maximum Frequency@Nom-Sup	100000000 Hz
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
propagation delay (tpd)	5.2 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm

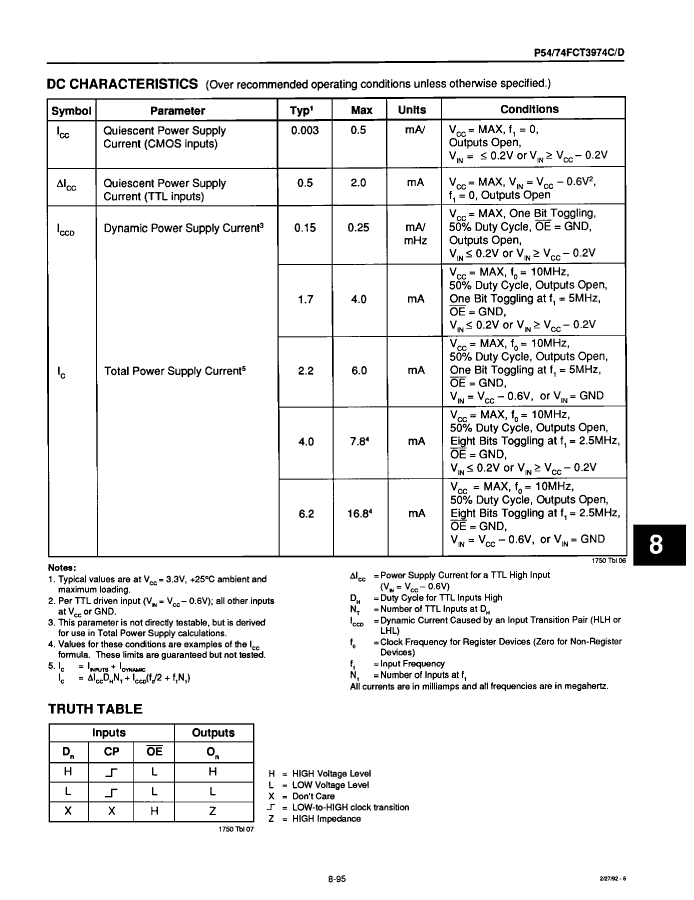

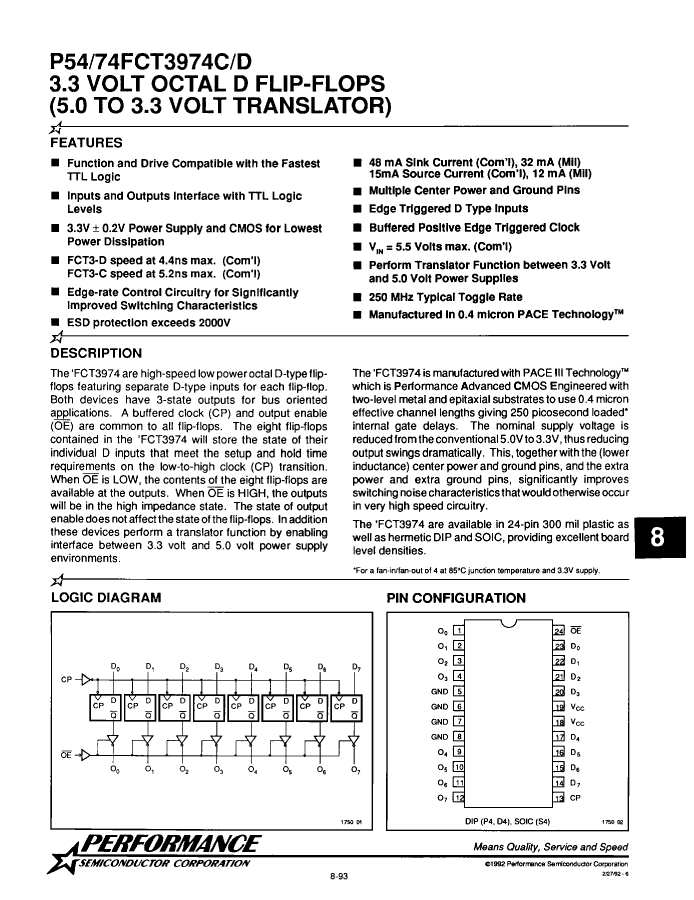

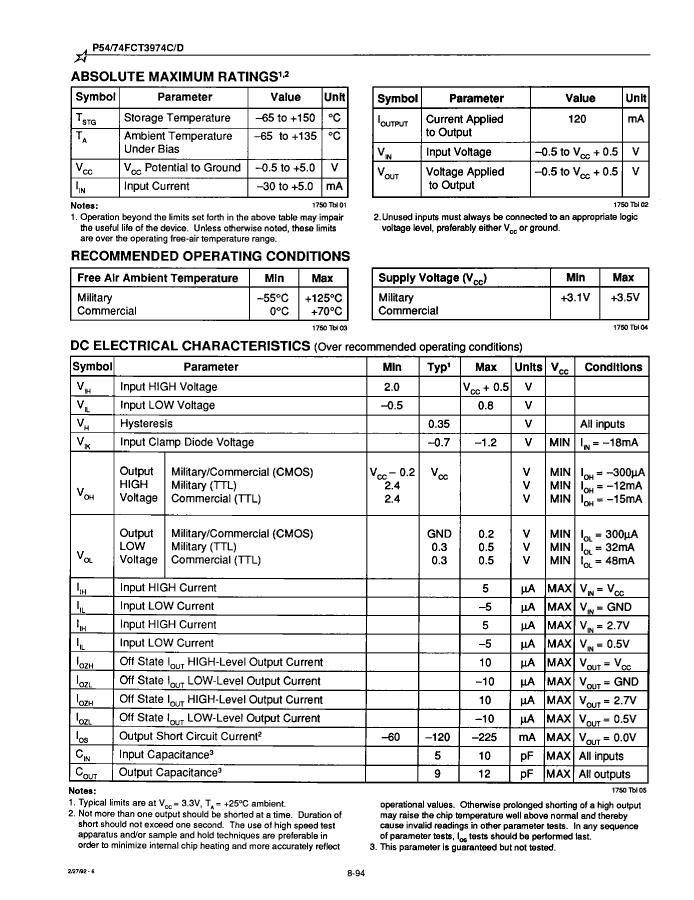

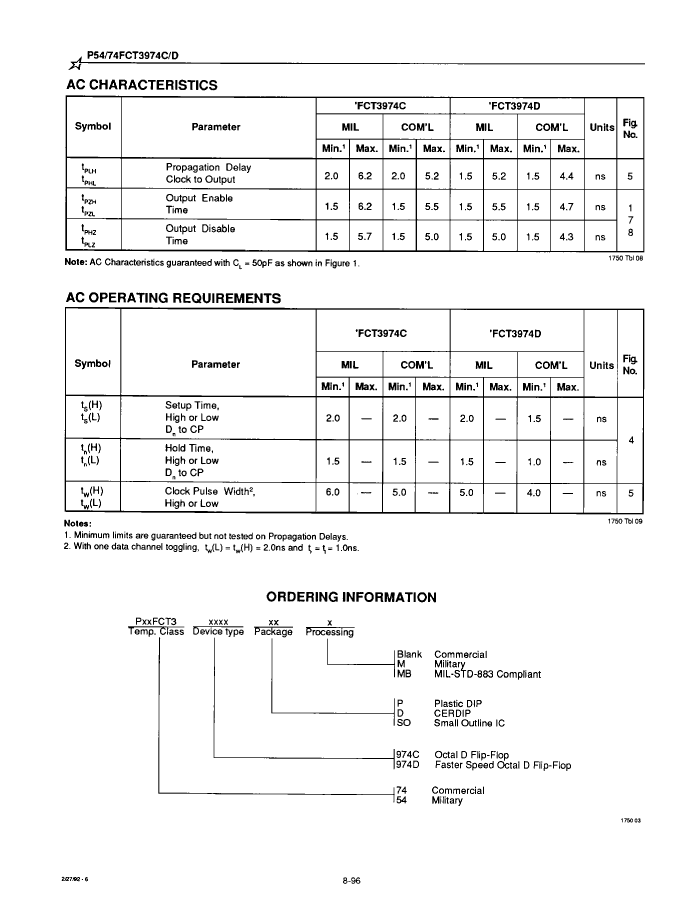

Preview

Download Datasheet

View All

P74FCT3974CD Related Products

	P74FCT3974CD	P54FCT3974DDM	P54FCT3974CDM	P74FCT3974CP	P74FCT3974CSO	P74FCT3974DP	P74FCT3974DD
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
Parts packaging code	DIP	DIP	DIP	DIP	SOIC	DIP	DIP
package instruction	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3
Contacts	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND	I/PS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; MULTIPLE CENTER PIN VCC AND GND
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	31.75 mm	31.75 mm	31.75 mm	31.9405 mm	15.4 mm	31.9405 mm	31.75 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Maximum Frequency@Nom-Sup	100000000 Hz	100000000 Hz	83000000 Hz	100000000 Hz	100000000 Hz	125000000 Hz	125000000 Hz
MaximumI(ol)	0.048 A	0.032 A	0.032 A	0.048 A	0.048 A	0.048 A	0.048 A
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	SOP24,.4	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
propagation delay (tpd)	5.2 ns	5.2 ns	6.2 ns	5.2 ns	5.2 ns	4.4 ns	4.4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	4.318 mm	2.65 mm	4.318 mm	5.08 mm
Maximum supply voltage (Vsup)	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Minimum supply voltage (Vsup)	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm	7.62 mm	7.62 mm
