CO2016
Page 1 of 3
CO2016 SERIES: 2.0 x 1.6 mm CLOCK OSCILLATOR
FEATURES
ULTRA MINATURE PACKAGE
ESSENTIAL IN HIGH DENSITY PCB
LOW SUPPLY VOLTAGE 1.8 AND 2.5 VDC
AVAILABLE
STANDBY FUNCTION
APPLICATIONS
PRINTER SCANNER
VGA CARD
DVD
DSC, DVC
ELECTRICAL SPECIFICATION
PARAMETER
Frequency Range
Operating Temperature Range
Frequency Stability
1 **
Storage Temperature Range
Supply Voltage (Vcc)
Supply Current
Symmetry
Rise / Fall Time
Logic “0” Level
Logic “1” Level
Load
VALUE
1.5 ~ 50.000 MHz
-10°C to +70°C
±25 ppm, ±30 ppm, ±50 ppm, ±100 ppm
-40°C to +85°C
1.8V ±5%
2.5V ±5%
3.3V ±5%
2.5 mA max ~24 MHz
3.5 mA max ~40 MHz
4.5 mA max ~50MHz
3.0 mA max ~24 MHz
4.5 mA max ~40 MHz
5.0 mA max ~50 MHz
2.5 mA max ~24 MHz
3.5 mA max ~40 MHz
4.5 mA max ~50 MHz
Output
CMOS
45% to 55% at 50% Vdd
10 nsec max at 10% to 90% Vdd
Vcc x 0.1 V max
Vcc x 0.9 V min
15 pF max
Pin 1: High or Open >> Output enabled Pin 3
Pin 1: Low >> Output disabled (High impedance)
Enable / Disable Function
**
Inclusive of 25°C tolerance, operating temperature range, voltage or load changes, aging, shock and vibration,
consult factory for tighter stability options.
NOTES
1
Not available at all frequencies, Contact Factory
2
Check part numbering table below. For others contact factory.
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
rd
STREET
Miami, Florida 33172
U.S.A.
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: www.raltron.com
CO2016
Page 2 of 3
CO2016 SERIES: 2.0 x 1.6 mm CLOCK OSCILLATOR

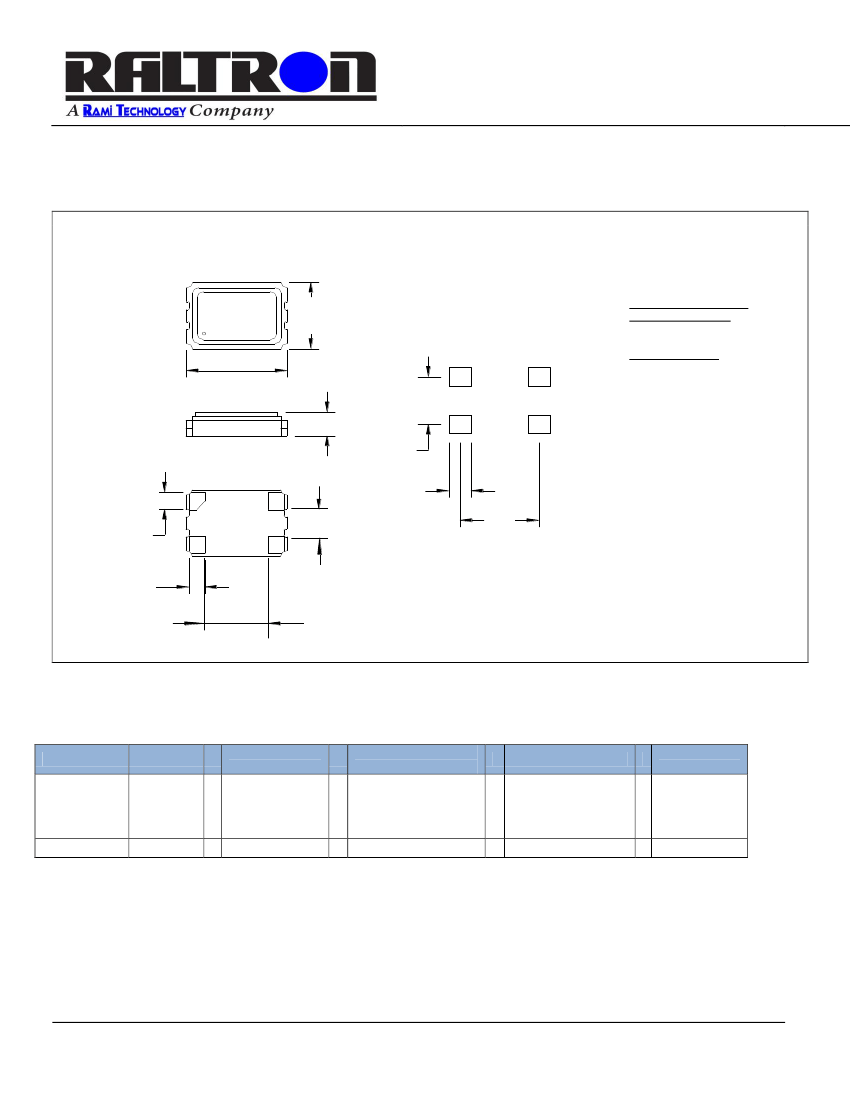

MECHANICAL SPECIFICATION (4 pin ceramic package)
TOP VIEW
RECOMMENDED PAD LAYOUT
TOP VIEW
OUTLINE TOLERANCE
IF NOT SPECIFIED:
±0.015” / 0.4mm
PIN FUNCTIONS:
[1] ENABLE / DISABLE
[2] GND
[3] OUTPUT
[4] VCC
SIDE VIEW
BOTTOM VIEW
DIMENSIONS: mm
[inches]
PART NUMBERING SYSTEM
SERIES
-
FREQUENCY
(MHz)
-
SUPPLY VOLTAGE
(Vcc)
-
STABILITY (PPM)
-
TAPE &
REEL
TYPE
Clock
Oscillator
CO
2016
2016
-
-
1.5 ~ 50.000
12.800
-
-
1.8:
Vcc=1.8
2.5:
Vcc=2.5
3.3:
Vcc=3.3
2.5
-
-
25:
±25 ppm
30:
±30 ppm
50:
±50 ppm
100:
±100 ppm
50
-
-
TR
TR
EXAMPLE: CO2016-12.800-2.5-50-TR
Surface Mount CO2016, 2.0 x 1.6 mm, 12.800 MHz, 2.5 VDC Supply Voltage, ±50 ppm Overall Stability, from
-10°C to +70°C, Symmetry 45% to 55%, Tape and Reel packaging.
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
rd
STREET
Miami, Florida 33172
U.S.A.
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: www.raltron.com
CO2016
Page 3 of 3
CO2016 SERIES: 2.0 x 1.6 mm CLOCK OSCILLATOR

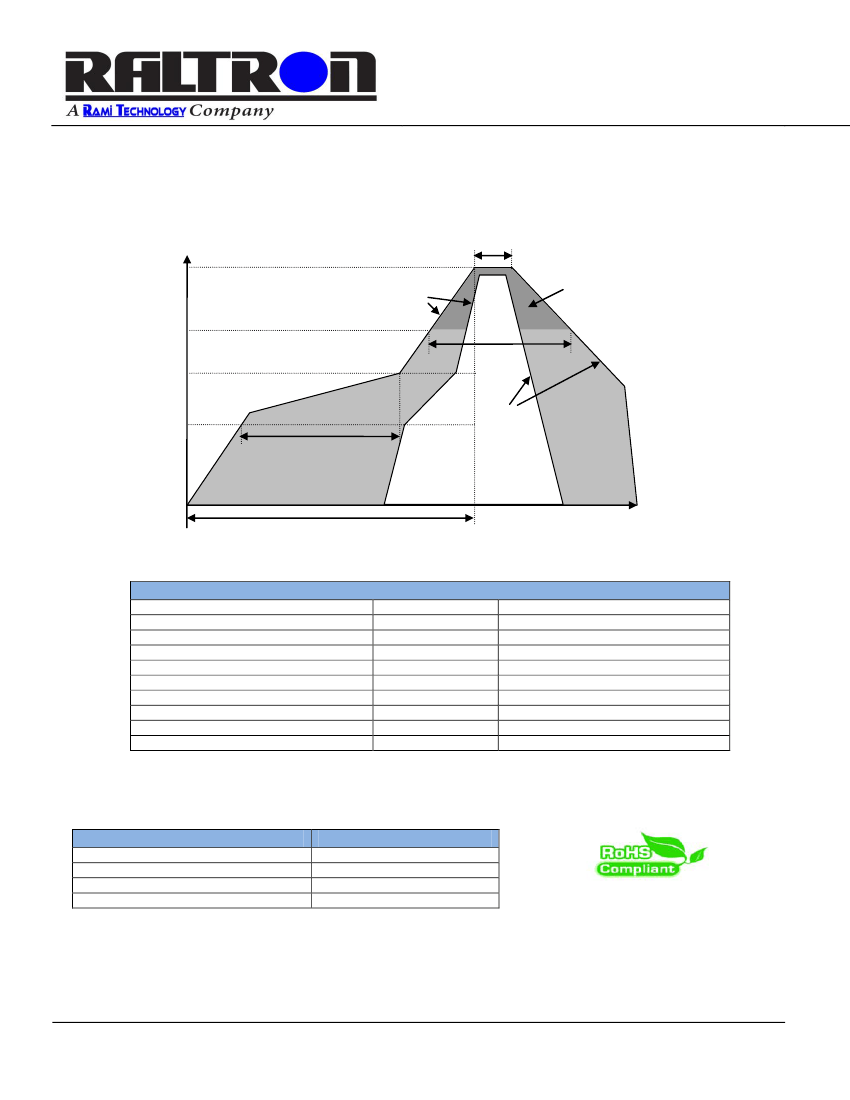

REFLOW PROFILE
t
P
T
P
Ramp-up
Critical Zone
T
L
to T
P
T
L
T
SMAX
Temp.
[°C]
T
SMIN
t
S
Preheat
t
L
Ramp-down
t[25°C] to Peak
Time [sec]
Reflow profile
Temperature Min Preheat
Temperature Max Preheat
Time (T
SMIN
to T
SMAX
)
Temperature
Peak Temperature
Ramp-up rate
Ramp-down rate
Time within 5°C of Peak Temperature
Time t[25°C] to Peak Temperature
Time
T
SMIN
T
SMAX
t
S
T
L
T
P
R
UP
R
DOWN
t
P
t[25°C] to Peak
t
L
150°C
200°C
60-180 sec.
217°C
260°C
3°C/sec max.
6°C/sec max.
10 sec.
480 sec.
60-150 sec.
ENVIRONMENTAL
PARAMETER
MOISTURE SENSITIVITY LEVEL
REACH SVHC
RoHS2
TERMINATION FINISH
VALUE
1
COMPLIANT
6/6 LEAD FREE
Au
AGUST 2013
