XCO543HU11-250.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> XCO543HU11-250.000

XCO543HU11-250.000: DescriptionLVCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size609KB，9 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

XCO543HU11-250.000 Overview

LVCMOS Output Clock Oscillator

XCO543HU11-250.000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compliant
JESD-609 code	e4
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

HIGH FREQUENCY, LOW JITTER

CLOCK OSCILLATOR

XCO

FAST TURNAROUND

CLOCK OSCILLATOR

DESCRIPTION

The XCO clock series is a cutting edge family of low to high

frequency,

low jitter output, single

multi

frequency

clock

oscillators. The XCO clocks are available in

7.0 x 5.0, 5.0 x 3.2, and

3.2 x 2.5 mm

ceramic packages with output frequencies ranging

from

10 MHz to 1.2 GHz.

Customer can select up to four output

frequencies. Its outstanding flexibility significantly reduces design

cycle time and overall cost. The XCO clock design incorporates a

low frequency crystal along with low jitter frequency synthesizer to

provide a wide range of frequencies. The XCO clocks are available in

LVCMOS, LVPECL

and

LVDS

outputs, allowing for a wide variety of

applications.

This product is ideal for the time conscious customer as shipments

are made within days of a placed order.

FEATURES



Fast Turnaround (Ships Within Days)



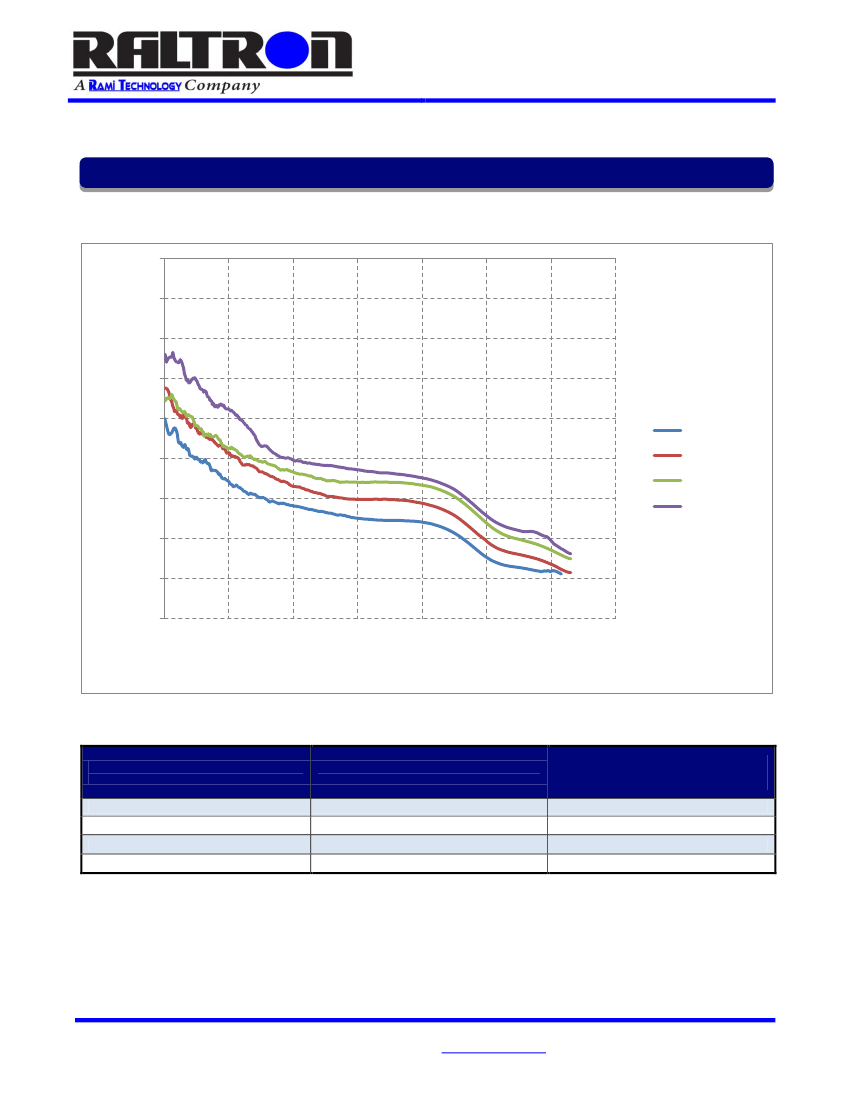

Very Low Jitter (Typical 0.6 ps)



10 MHz to 1.2 GHz Frequency Range



Selectable Single, Dual, or Quadruple Frequencies



Stability as low as ±20 ppm (-40 ~ 85 °C)



Available Sizes:



7.0 x 5.0 mm

5.0 x 3.2 mm

3.2 x 2.5 mm

SELECTOR GUIDE

Package Size (mm)

Family Part Number

Frequency Range (MHz)

Frequency Stability (ppm)

Number of Frequencies

Supply Voltage (V)

Temperature Range (°C)

7.0x5.0

XCO-74

LVCMOS

5.0x3.2

XCO-54

10 – 250

±20, ±25, ±50, ±100

1, 2, 4

2.5, 3.3

-20 ~ +70

-40 ~ +85

3.2x2.5

XCO-34

7.0x5.0

XCO-78

LVDS

5.0x3.2

XCO-58

10 – 1200

±20, ±25, ±50, ±100

1, 2, 4

2.5, 3.3

-20 ~ +70

-40 ~ +85

Pin 1, Pin 2, or None

3.2x2.5

XCO-38

7.0x5.0

XCO-79

LVPECL

5.0x3.2

XCO-59

10 - 1200

±20, ±25, ±50, ±100

1, 2, 4

2.5, 3.3

-20 ~ +70

-40 ~ +85

Pin 1, Pin 2, or None

3.2x2.5

XCO-39

Enable/Disable Pin

Pin 1, Pin 2, or None

R A L T R O N E L E C T R O N I C S



1 0 4 0 0 N .W . 3 3 S t r e e t



M i a m i , F l o r i d a 3 3 1 7 2



U . S . A .

Telephone: 305-593-6033



Fax: 305-594-3973



e-mail:

sales@raltron.com



web site: http://www.raltron.com
