189-007NH11P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 189-007NH11P

Preview

189-007NH11P: DescriptionFiber-Con Backshell; File Size206KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

189-007NH11P Overview

Fiber-Con Backshell

Preview

Download Datasheet

View All

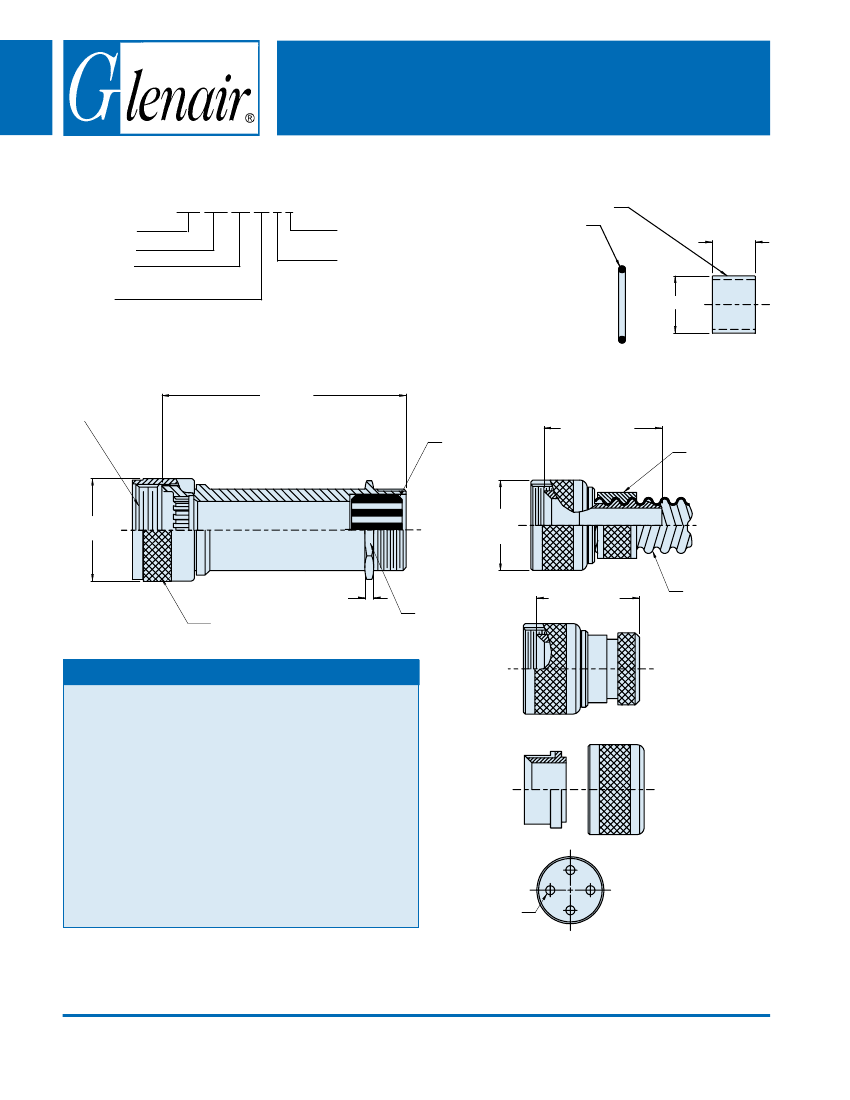

Backshells and

Accessories

189-007 NF 13 T 4

Product Series

Basic Number

Finish Symbol

(Table II)

Shell Size

(Table I)

A Thread

Length

(See Note 5)

Dia

.190 (4.8)

Knurl Style Mfr Option

for MIL-PRF-28876 Connectors

189-007

Fiber-Con Backshell

Length

(1/2” Increments)

Symbol

G = Gland Nut

T = Tubing Adapter

Omit for Standard

Shrink Boot

Adapter

(See Spacer Ring

Note 4) O-Ring

.310

(7.9)

Grommet

1.50 (38.1)

Max

Compression

Nut

Dia

SYM T

TUBING

ADAPTER

Positive Stop

1.00 (25.4)

Max.

"PEEK" Helical

Convoluted

Tubing 120-100

(Not Supplied)

APPLICATION NOTES

1. Assembly identified with manufacturer’s name and P/N,

space permitting.

2. Glenair 600 series Backshell assembly tools are recommended

for assembly and installation.

3. Material/ Finish:

Adapters, Coupling Nuts, Ferrule,

Compression Nut, Spacer Ring- Al Alloy

Grommet- Fluorosilicone/ N.A.

O-Ring- Fluorosilicone/ N.A.

4. Spacer Ring and O-Ring are packaged loose and must

be installed with connector at the time of assembly.

The spacer is utilized to retain the Terminus Insert

5. Standard minimum order is 1.5 inch

consult factory for shorter length.

6. Metric dimensions (mm) are indicated in parentheses.

SHRINK BOOT

ADAPTER (STD)

SYM G

GLAND NUT

.120 (03.0) Dia

4 Places

HOLE PATTERN

SHELL SIZE 13 SHOWN

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

I-14
