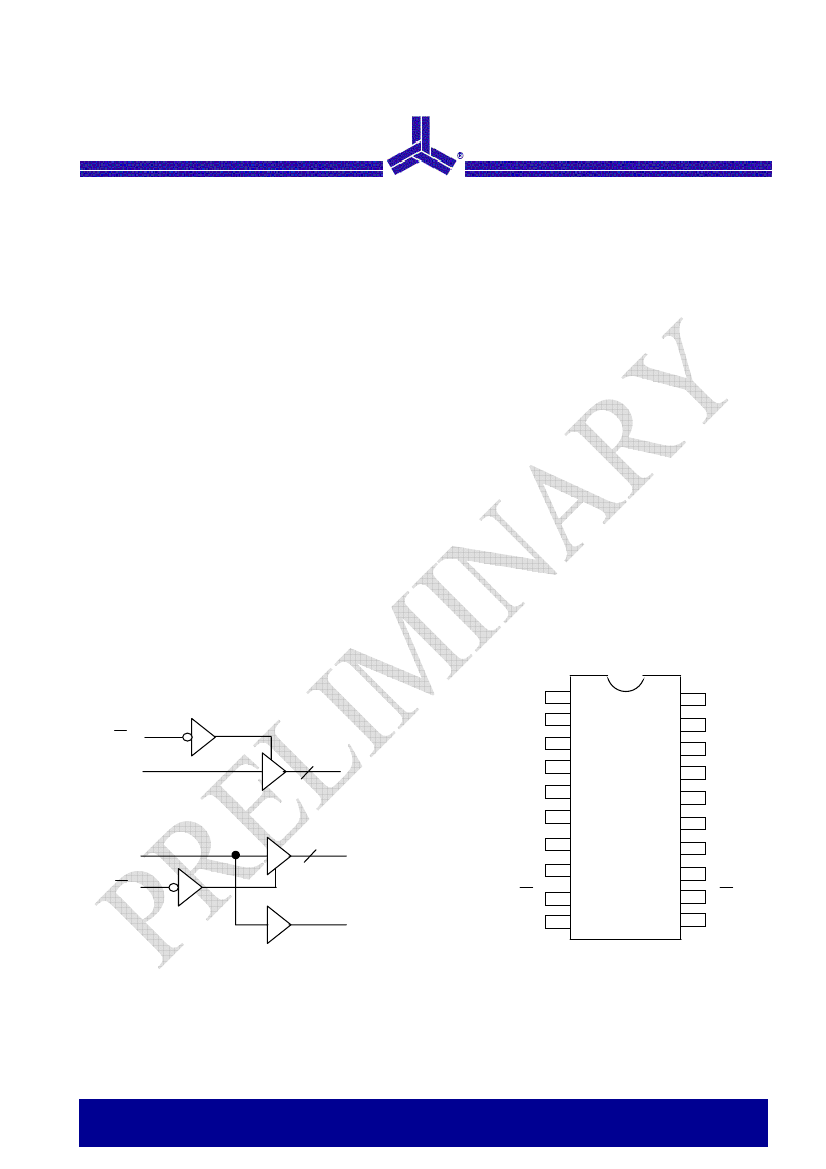

3.3V CMOS Buffer Clock Driver
| ASM2P3805AH | ASM2I3805AG-20-SR | ASM2I3805AHG-20-SR | ASM2P3805AG-20-AT | ASM2P3805AG-20-AR | ASM2P3805AG-20-DT | ASM2P3805AG-20-SR | ASM2P3805AHG-20-AT | ASM2P3805AHG-20-DT | ASM2P3805AG-20-ST | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver | 3.3V CMOS Buffer Clock Driver |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | - | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] | ALSC [Alliance Semiconductor Corporation] |
| Parts packaging code | - | SOIC | SOIC | SSOP | SSOP | QSOP | SOIC | SSOP | QSOP | SOIC |
| package instruction | - | SOP, | SOP, | SSOP, | SSOP, | SSOP, | SOP, | SSOP, | SSOP, | SOP, |
| Contacts | - | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | - | unknow | unknow | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| series | - | 3805 | 3805 | 3805 | 3805 | 3805 | 3805 | 3805 | 3805 | 3805 |
| Input adjustment | - | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER |
| JESD-30 code | - | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| JESD-609 code | - | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 |
| length | - | 12.8 mm | 12.8 mm | 7.2 mm | 7.2 mm | 8.65 mm | 12.8 mm | 8.649 mm | 8.65 mm | 12.8 mm |
| Logic integrated circuit type | - | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER | LOW SKEW CLOCK DRIVER |
| Number of functions | - | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | - | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Actual output times | - | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Maximum operating temperature | - | 85 °C | 85 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | - | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | SOP | SOP | SSOP | SSOP | SSOP | SOP | SSOP | SSOP | SOP |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | - | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| propagation delay (tpd) | - | 5.2 ns | 5.2 ns | 5 ns | 5 ns | 5 ns | 5 ns | 5 ns | 5 ns | 5 ns |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Same Edge Skew-Max（tskwd） | - | 0.6 ns | 0.6 ns | 0.5 ns | 0.5 ns | 0.5 ns | 0.5 ns | 0.5 ns | 0.5 ns | 0.5 ns |
| Maximum seat height | - | 2.65 mm | 2.65 mm | 2 mm | 2 mm | 1.73 mm | 2.65 mm | 1.753 mm | 1.73 mm | 2.65 mm |
| Maximum supply voltage (Vsup) | - | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| Minimum supply voltage (Vsup) | - | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | - | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| surface mount | - | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | - | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | - | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | - | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) |
| Terminal form | - | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | - | 1.27 mm | 1.27 mm | 0.65 mm | 0.65 mm | 0.635 mm | 1.27 mm | 0.635 mm | 0.635 mm | 1.27 mm |
| Terminal location | - | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | - | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| width | - | 7.5 mm | 7.5 mm | 5.3 mm | 5.3 mm | 3.9 mm | 7.5 mm | 3.9 mm | 3.9 mm | 7.5 mm |
