ITH 03FF A and ITH 03FP A
ITH 03FF R and ITH 03FP R
Box Mount Receptacle Connector
for Rear Panel Mounting
ITH
Rigid Insert
Connectors
ITH 03FF A 28-21 P Y XXX
ITH = Plastic Insert and Standard
Contacts (See Notes #4, 6)
03FF = Rear Mounting Receptacle
with Threaded Holes
03FP = Rear Mounting Receptacle
with Through Holes
Environmental Class
A - Non-Environmental
R - Environmental
Mod Code Option (See Table II)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Page 6)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Page 7)

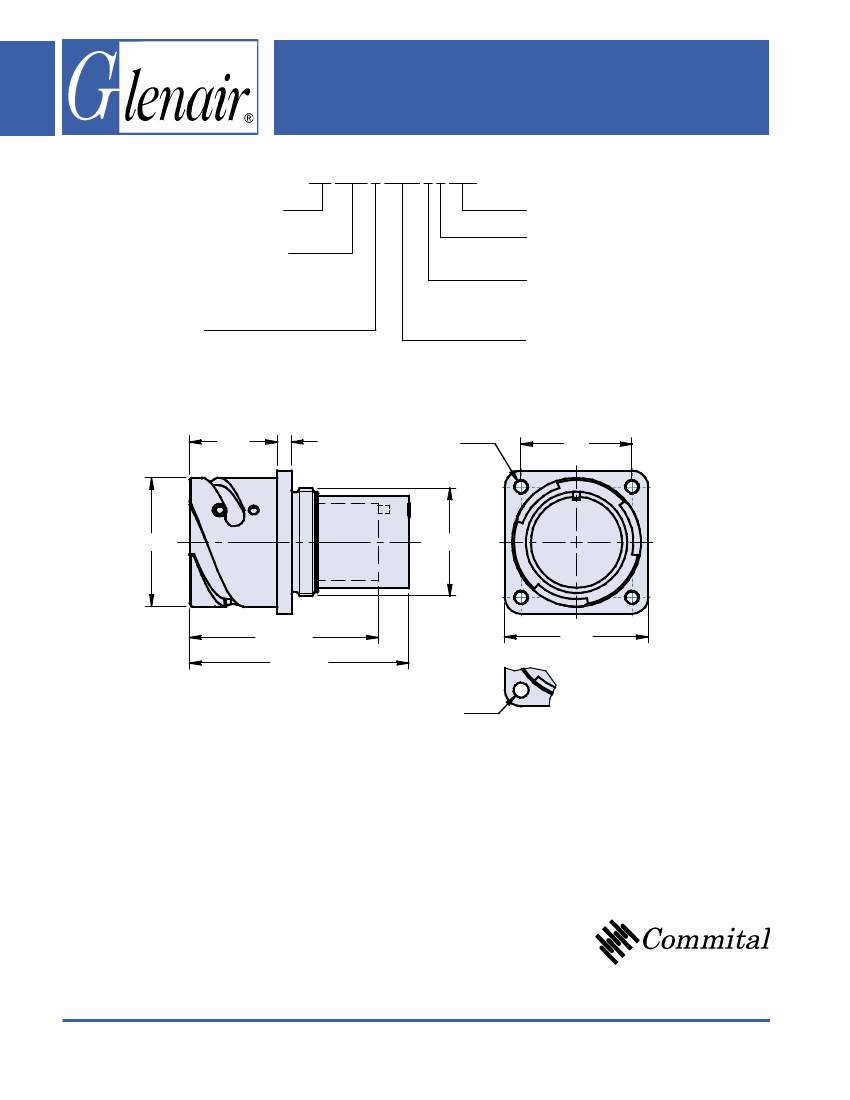

L2
L3
D2 (FF)
E
D1
F
L1 (A)
L1 (R)
L4
D2 (FP)
Application Notes:
1. Box mount receptacle connector with square flange for front or rear panel mounting. Optional threaded or
through mounting holes.
2. Environmental class A (non-environmental) not supplied with grommet; Class R (environmental) supplied with
grommet.
3. Standard shell materials configuration consists of aluminum alloy with cadmium free conductive plating and
black passivation.
4. Standard contact material consists of copper alloy with gold plating.
5. A broad range of other front and rear connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is Low fire hazard plastic UL94V0, IAW Article 3,
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
12
for Rear Panel Mounting
Book1
TABLE I: DIMENSIONS
Shell Size
18
20
22
24
28
32
36
40
D1
+0
-0.15
30.8
34.2
37.4
40.9
46.7
53.4
59.6
65.5
D2
FF
M4
M4
M4
M4
M5
M5
M5
M5
FP
H13
3.2
3.2
3.2
3.7
3.7
4.3
4.3
4.3
E
±0.1
27.0
29.4
31.8
34.9
39.7
44.5
49.2
55.5
L1
F thread
1.0000 - 20UNEF
1.1250 - 18UNEF
1.2500 - 18UNEF
1.3750 - 18UNEF
1.6250 - 18UNEF
1.8750 - 16UN
2.0625 - 16UN
2.3125 - 16UN
A
±0.3
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
R
±0.3
58.0
58.0
58.0
58.0
58.0
58.0
58.0
58.0
L2
+0.4
-0
23.05
23.05
23.05
23.05
24.05
24.05
24.05
24.05
L3
±0.2
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L4
±0.3
35.0
38.0
41.0
44.5
50.8
57.0
63.5
69.9
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
Connector less contacts
Omit for standard version (Gold Plated
Copper Alloy Contacts Supplied)
FINISH OPTIONS
Sym Description
F2
F6
F8
Bright Nickel Plating
Black Electrodeposited Paint
Olive Drab Zn-Co Plating
Omit for standard version
(Cad free / black passivation Finish)
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
13
ITH
Rigid Insert
Connectors
ITH 03FF A and ITH 03FP A
ITH 03FF R and ITH 03FP R
Box Mount Receptacle Assembly
