with Backshell for EMI Shielded and Jacketed Cable
ITH 030 (EMI) and ITHC 030 (EMI)
Rear Box Mount Receptacle
ITH
Rigid Insert
Connectors
ITH 030 A 28-21 P Y EMI22 XXX
ITH = Plastic Insert and Standard
Contacts (See Notes #4, 6)
ITHC = Plastic Insert and
Hyperboloid Socket Contacts
030 = Rear Mounting Receptacle
with Threaded Holes
Environmental Class
A - Non-Environmental
R - Environmental
Mod Code Option (See Table II)
PHM-EMI Adapter
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Page 6)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Page 7)
L2
L3
D2
E
D1
C
L1
L4

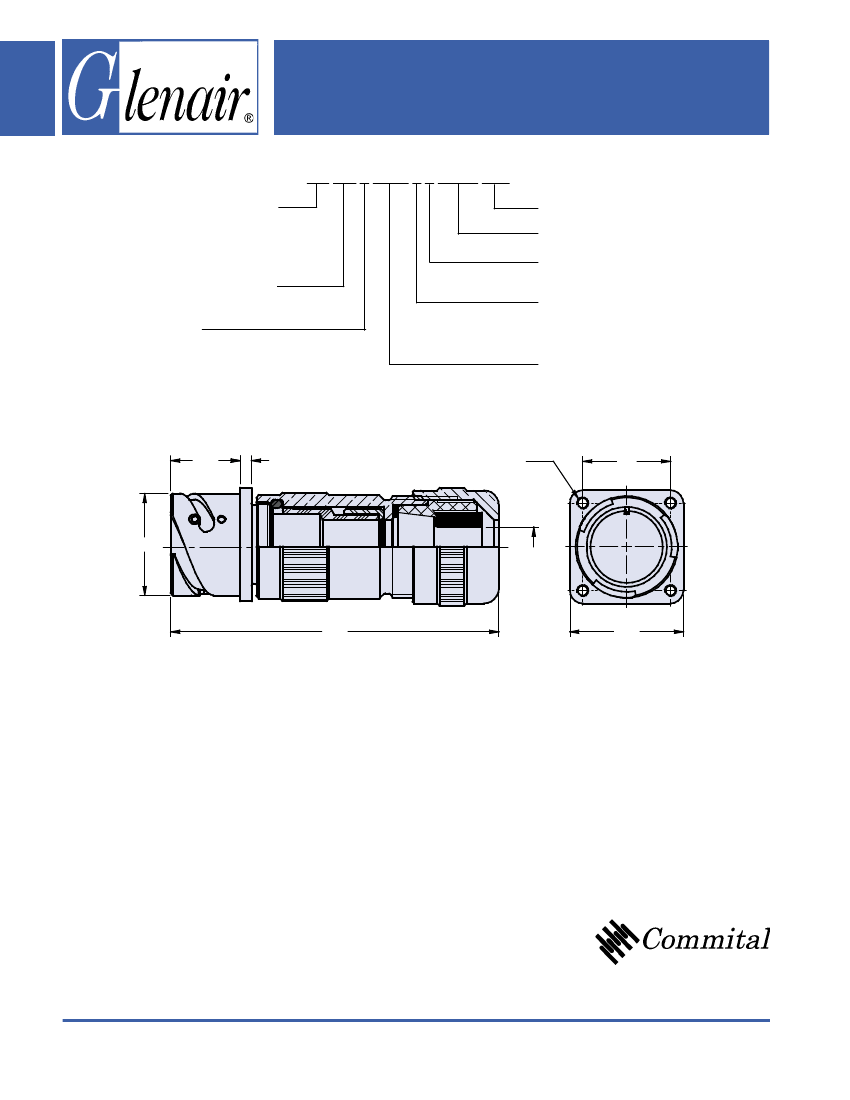

Application Notes:
1. Box mount receptacle connector with square flange for rear panel mounting and backshell to be used with
shielded jacket cables. Threaded mounting holes.
2. Environmental class A (non-environmental) not supplied with grommet; Class R (environmental) supplied with
grommet.
3. Standard shell materials configuration consists of aluminum alloy with cadmium conductive plating and black
passivation.
4. Contact material consists of copper alloy with gold plating.
5. A broad range of other front and rear connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is Low fire hazard plastic
UL94V0, IAW Article 3, NFF16-102, 356833.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
16
with Backshell for EMI Shielded and Jacketed Cable
TABLE I: DIMENSIONS
Shell size
18
20
22
24
28
32
36
40
EMI size
18
18
18
18
22
24
22
24
35
35
C
Min
2.0
2.0
2.0
2.0
15.0
19.0
15.0
19.0
23.0
23.0
Max
16.5
16.5
16.5
16.5
20.0
24.0
20.0
24.0
35.0
35.0
D1
+0
-0.15
30.8
34.2
37.4
40.9
46.7
53.4
59.6
65.5
D2
thread
M4
M4
M4
M4
M5
M5
M5
M5
E
±0.1
27.0
29.4
31.8
34.9
39.7
44.5
49.2
55.5
L1
Max
85.0
85.0
85.0
90.0
90.0
100.0
110.0
110.0
L2
+0.4
-0
23.05
23.05
23.05
23.05
24.05
24.05
24.05
24.05
L3
±0.2
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L4
±0.3
35.0
38.0
41.0
44.5
50.8
57.0
63.5
69.9
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
Connector less contacts
Omit for standard version (Gold Plated
Copper Alloy Contacts Supplied)
FINISH OPTIONS
Sym Description
F2
F6
F8
Bright Nickel Plating
Black Electrodeposited Paint
Olive Drab Zn-Co Plating
Omit for standard version
(Cad free / black passivation Finish)
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
17
ITH
Rigid Insert
Connectors
ITH 030 (EMI) and ITHC 030 (EMI)
Rear Box Mount Receptacle
