11-MPC-003-5-E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 11-MPC-003-5-E

Preview

11-MPC-003-5-E: DescriptionSingle Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size445KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api; Environmental Compliance

Download Datasheet Parametric Compare View All

11-MPC-003-5-E Overview

Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4

11-MPC-003-5-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	API Technologies
Reach Compliance Code	compliant
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
high	27 mm
high potential	1500 V
Minimum insulation resistance	300 MΩ
Maximum leakage current	0.5 mA
length	49 mm
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
physical size	L49.0XB35.0XH27.0 (mm)/L1.929XB1.378XH1.063 (inch)
Rated current	3 A
Rated voltage	250 V
width	35 mm

Preview

Download Datasheet

View All

Power Line Filters

Appliance Filters

11-MPC Series

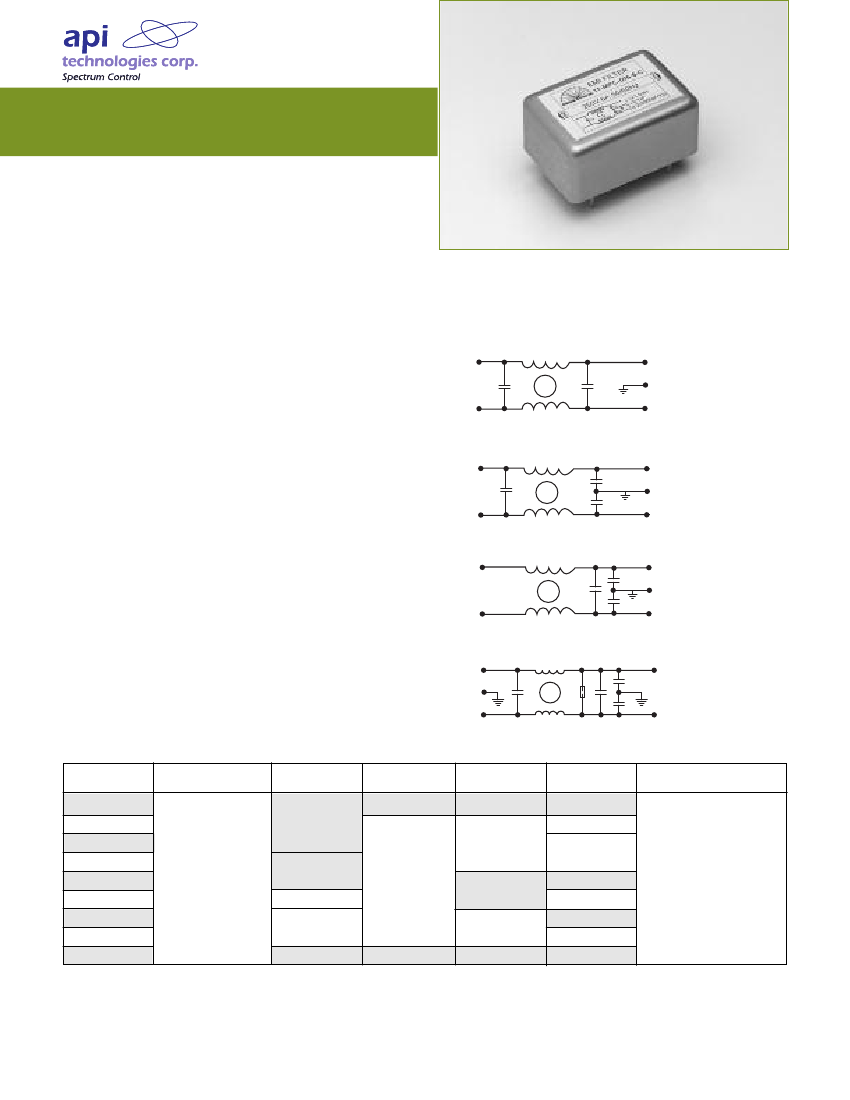

Features

I

Miniature general purpose PCB mounted filter

Requires minimal PCB real estate space

Low cost

Operating temperature: -25°C to +70°C

Two forms of cases are available:

metal case and plastic case

Personal computers and peripherals

Digital equipment

Measuring instruments and medical equipment

TV & VCR monitors and display units

Home appliances

Circuit Diagram

Circuit 1

Applications

I

Circuit 2

Circuit 3

Circuit 4

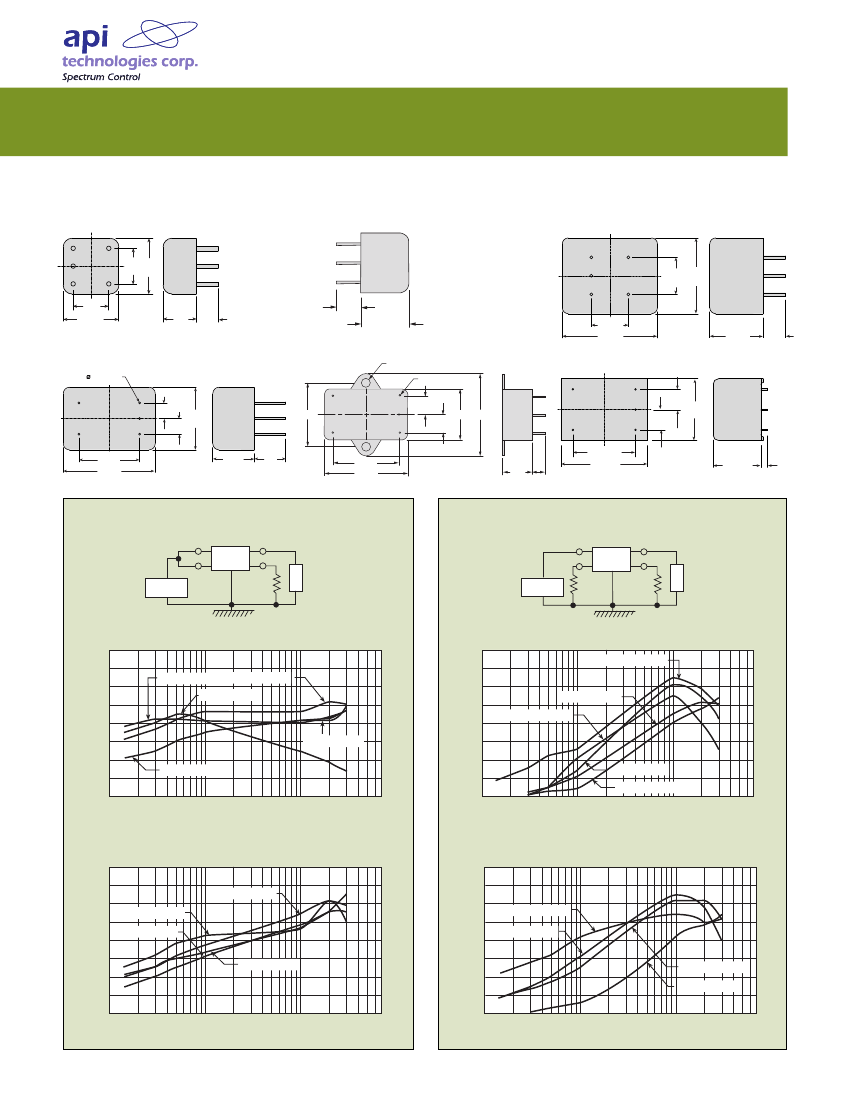

Specifications

Model

11-MPC-001-2-B

11-MPC-001-5-A

11-MPC-001-5-B

11-MPC-002-5-B

11-MPC-002-5-D

11-MPC-003-5-E

11-MPC-006-5-B

11-MPC-006-5-C

11-MPC-016-5-B

Rated Voltage

(@ 50/60Hz)

Rated

Current

1A

Leakage Current

(Max.)

5uA

Circuit

Diagram

1

2

Figure

A1

A

A1

D

E

A1

C

B

Temperature Rise

(Max.)

120/250VAC

2A

3A

6A

16A

0.50mA

3

2

30°C

0.2mA

4

Note: Test voltage: 1500VAC one minute, line to ground

Insulation resistance: 300 Mohm min. at 500VDC

Voltage drop: 1V max. at rated current

Weight: 17.5g

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

PF50

11-MPC-003-5-E Related Products

	11-MPC-003-5-E	11-MPC-006-5-B	11-MPC-006-5-C	11-MPC-001-2-B	11-MPC-001-5-A	11-MPC-001-5-B	11-MPC-002-5-B	11-MPC-002-5-D	11-MPC-016-5-B
Description	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4	Single Phase EMI Filter, 250V, 50/60HzHz, MINIATURE PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	27 mm	36 mm	20 mm	36 mm	15 mm	36 mm	36 mm	16 mm	36 mm
high potential	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
Minimum insulation resistance	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ	300 MΩ
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.005 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.2 mA
length	49 mm	64 mm	44 mm	64 mm	25 mm	64 mm	64 mm	45 mm	64 mm
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L49.0XB35.0XH27.0 (mm)/L1.929XB1.378XH1.063 (inch)	L64.0XB50.8XH36.0 (mm)/L2.52XB2.0XH1.417 (inch)	L44.0XB30.0XH20.0 (mm)/L1.732XB1.181XH0.787 (inch)	L64.0XB50.8XH36.0 (mm)/L2.52XB2.0XH1.417 (inch)	L25.0XB25.0XH15.0 (mm)/L0.984XB0.984XH0.591 (inch)	L64.0XB50.8XH36.0 (mm)/L2.52XB2.0XH1.417 (inch)	L64.0XB50.8XH36.0 (mm)/L2.52XB2.0XH1.417 (inch)	L45.0XB28.0XH16.0 (mm)/L1.772XB1.102XH0.63 (inch)	L64.0XB50.8XH36.0 (mm)/L2.52XB2.0XH1.417 (inch)
Rated current	3 A	6 A	6 A	1 A	1 A	1 A	2 A	2 A	16 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	35 mm	50.8 mm	30 mm	50.8 mm	25 mm	50.8 mm	50.8 mm	28 mm	50.8 mm
Maker	API Technologies	-	-	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
