PSB8040-4R2N: DescriptionSMD Power Inductors Shielded; File Size143KB，9 Pages; ManufacturerPREMO; Websitehttp://www.grupopremo.com

Download Datasheet View All

PSB8040-4R2N Overview

SMD Power Inductors Shielded

Preview

Download Datasheet

View All

PSB0503 , PSB5028 , PSB6013 ,

PSB6025 , PSB8040

PSB8058

SMD Power Inductors Shielded

C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)

Phone

+34 951 231 320 Fax +34 951 231 321

E-mail:

mar.villarrubia@grupopremo.com

Web http://www.grupopremo.com

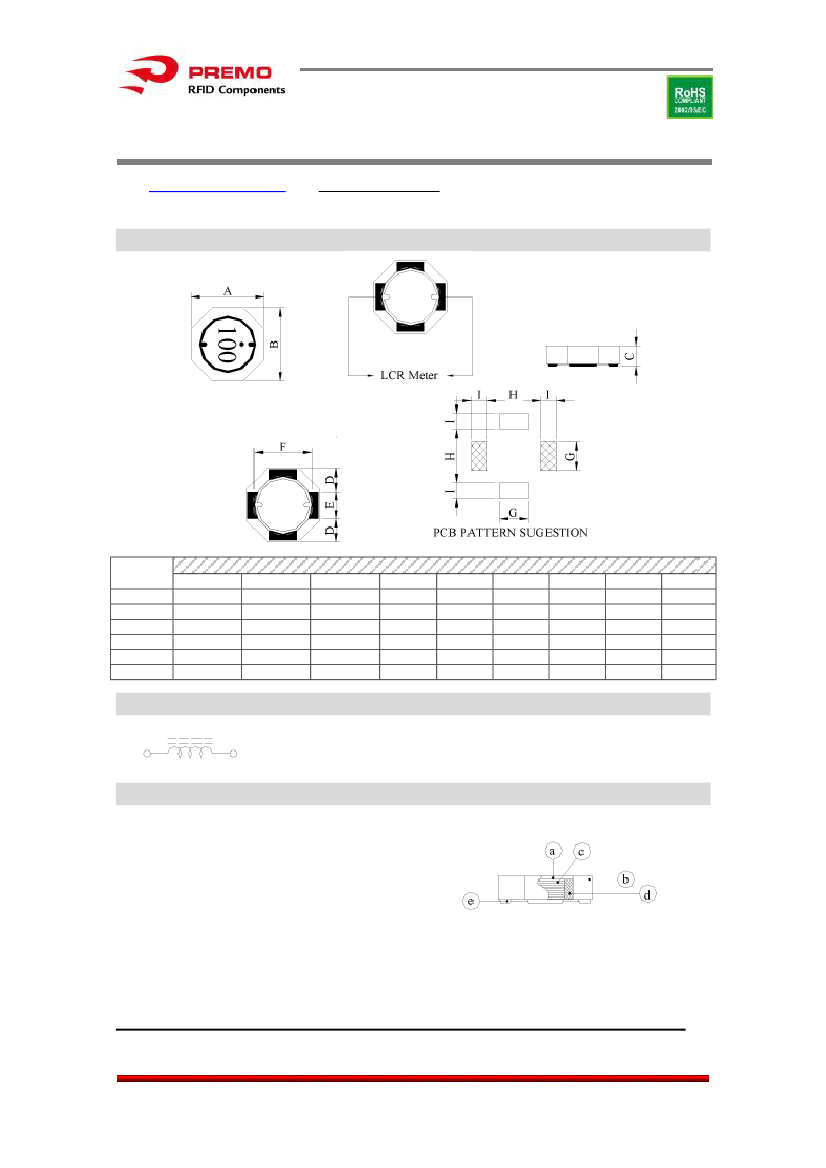

1. Configuration & Dimensions

Series

PSB0503

PSB5028

PSB6013

PSB6025

PSB8040

PSB8058

Dimensions [mm]

5.20±0.20

6.20±0.30

8.00±0.30

5.20±0.20

6.50±0.30

8.00±0.30

2.80±0.20

1.40±0.20

2.50±0.30

3.80±0.30

5.80±0.30

D(typ.)

1.70

2.15

2.40

E(typ.)

1.80

2.20

3.20

F(typ.)

3.90

4.90

6.40

G(ref.)

2.00

2.40

3.40

H(ref.)

3.70

4.90

6.20

I(ref.)

1.10

1.40

2. Schematic Diagram

3. Materials

a.- Core : Ferrite DR core

b.- Core : Ferrite RI core

c.- Wire : Enamelled copper wire (class F)

d.- Terminal : Ag / Ni / Sn

e.- Adhesive : Epoxy resin

f.- Remark : Lead content 200ppm max. include ferrite

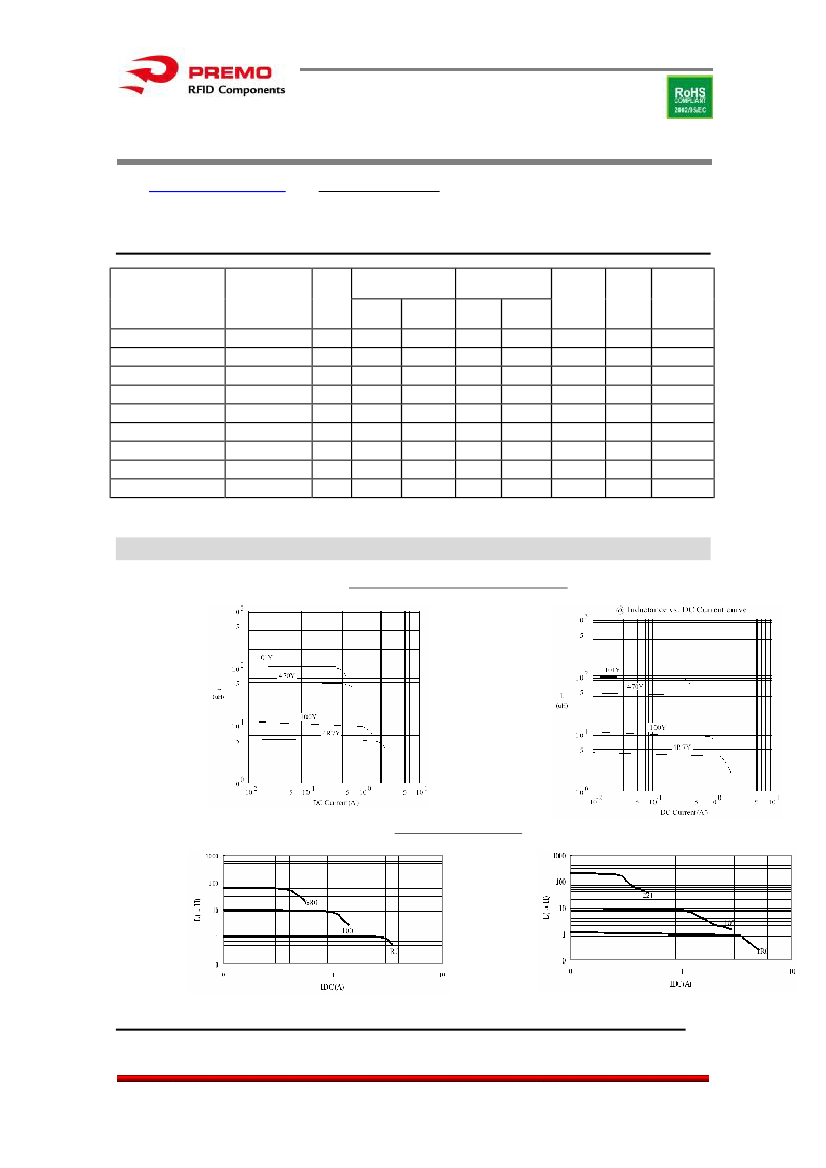

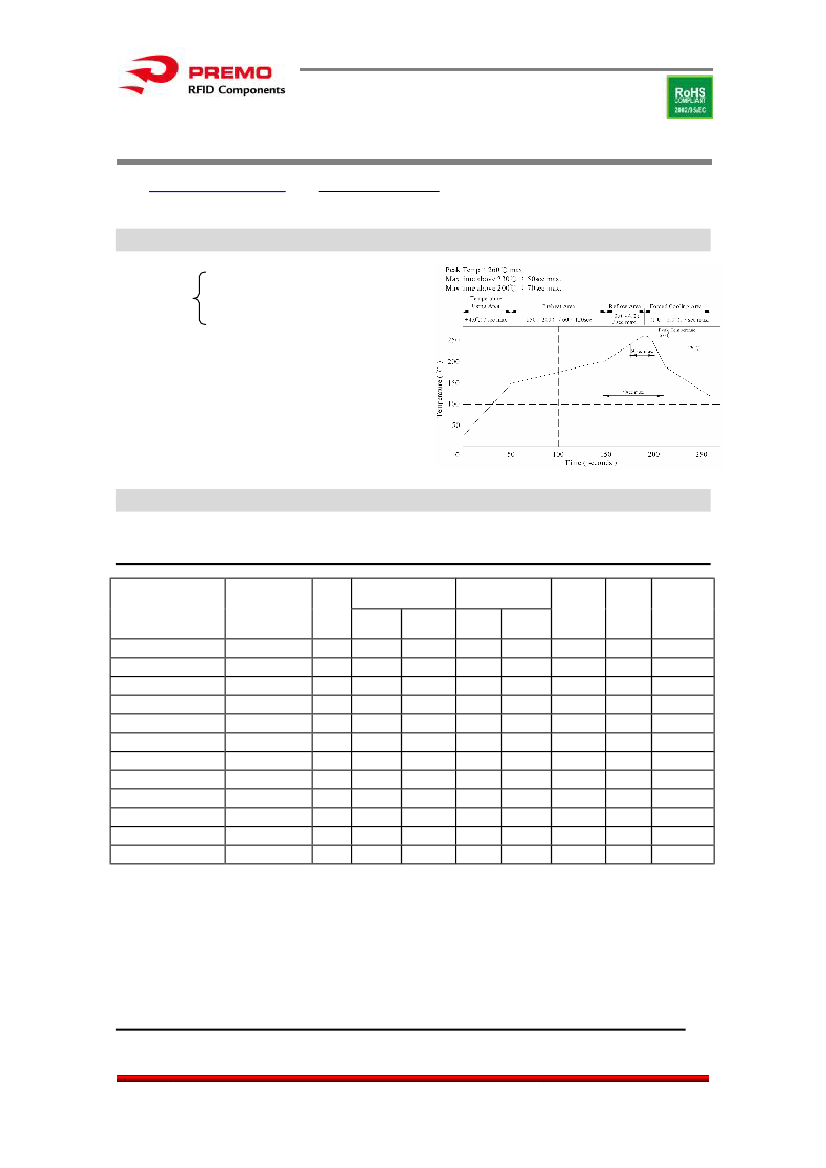

SMD Power Inductors
