REVISION G
DO NOT
SCALE FROM
THIS PRINT
G
G
PIN N
(SEE NOTE 2)
"D" REF (SEE TABLE 2, SHT 3)
"C" REF (SEE TABLE 2, SHT 3)
0.50 .020 TYP
02
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
No OF POSITIONS
20,30,40,50
LEAD STYLE
-02.5
-03.0
-04.0
-06.0
PLATING SPECIFICATION
-L: 10u"(0.25u"m)GOLD (MATTE TIN TAILS)
-F: GOLD FLASH (MATTE TIN TAILS)
PACKAGING(SEE NOTE 6)
-TR: TAPE & REEL
OPTION
-K: POLYIMIDE FILM
(USE K-500-300,SEE FIG. 3, SHT 3)
SHIELD
S: WITH SHIELD
N: NO SHIELD
TAIL OPTION
DV:VERTICAL
01
SEE NOTE 4
"A"
G
"B"
(SEE TABLE 1, SHT 3)
0.10[.004]
C
G
C
"A"
(SEE TABLE 1, SHT 3)
"A"
G
"E" REF (SEE TABLE 2, SHT 3)
1.32 .052 REF
4.98 .196 REF
G
1.32 .052 REF
1.10 .043 REF
0.85 .033 REF
G
C
C
0.67±0.10 .026±.004
0.87±0.10 .034±.004
G
0.80 .031 REF
0.50 .020 REF
G
SECTION "A"-"A"
SCALE 5 : 1
NOTES:
FIG 1

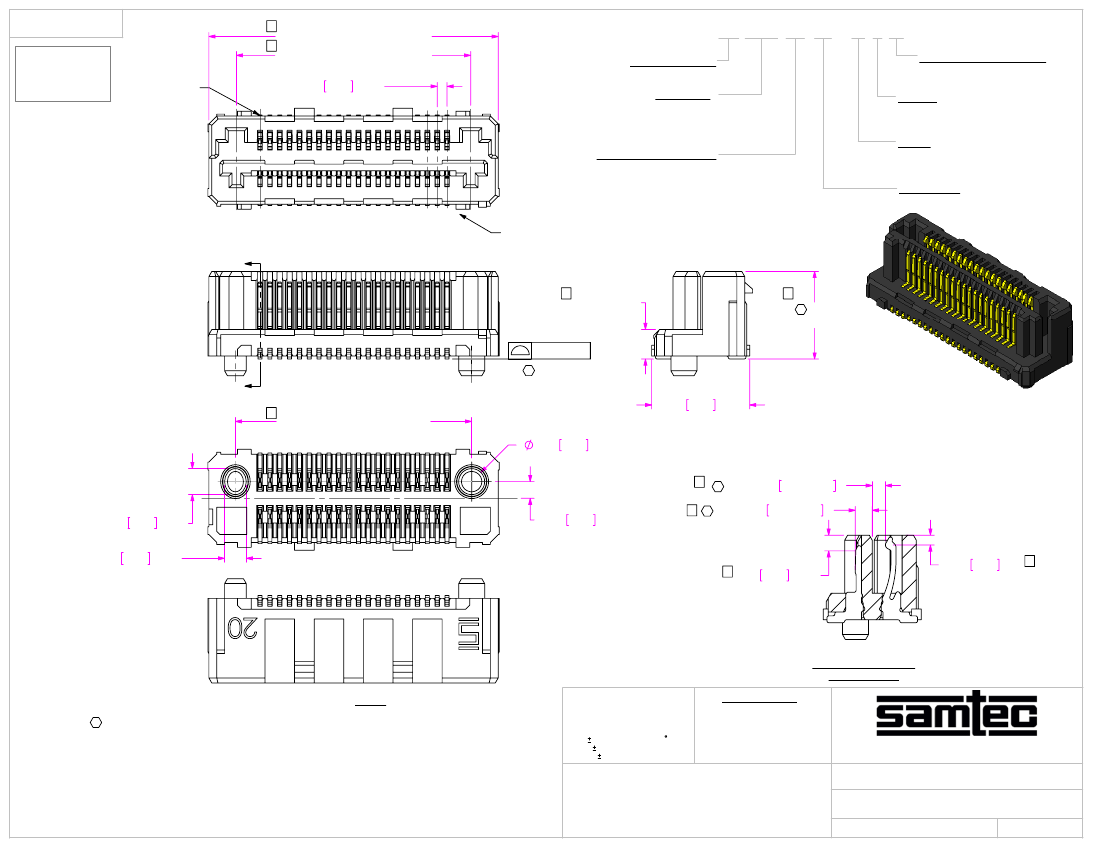

(LSHM-1XX-XX.X-DV-A-N-X-TR SHOWN)
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .038 [.0015].
3. MINIMUM PUSHOUT FORCE; TERMINALS: 2.22 N [.5 LBS], CONTACTS: 2.22 N [.5 LBS].
4. WHEN MATING WITH ANOTHER LSHM-DV, PIN 01 WILL MATE WITH CONTACT 02 ON
MATING CONNECTOR. WHEN MATING WITH A LSHM-DH, PIN 01 WILL MATE WITH PIN N,
WHERE N=TOTAL NUMBER OF POSITIONS.
5. MEASURE FROM TOP OF VERTICAL WALL.
6. FOR QUANTITIES UP TO 49 PCS., NO LEADER , TRAILER OR REEL WILL BE SUPPLIED.
FOR QUANTITIES OF 50-124 PCS., NO LEADER OR TRAILER WILL BE SUPPLIED.
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS[INCHES].
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
INSULATOR: VECTRA E130i
CONTACT OR TERMINAL: PHOS BRONZE
SHIELD: SUS304
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
0.50mm TERMINAL/SOCKET COMBO
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
SHEET
1
OF
3
BY:
AGEN H
REVISION G
"F" REF (SEE TABLE 2, SHT 3)
G
0.50 .020
02
0.15±0.05 .006±.002 (TYP)
'C'
G
DETAIL 'C'
SCALE 10 : 1
01
SEE NOTE 4
C
0.10[.004]
1.65 .065
0.85 .033 REF
"G" REF (SEE TABLE 2, SHT 3)
G
4.98 .196 REF
1.10 .043 REF
1.32 .052 REF
C
C
2.00[0.079]
C
0.80 .031 REF
1.32 .052 REF
0.85 .033 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING

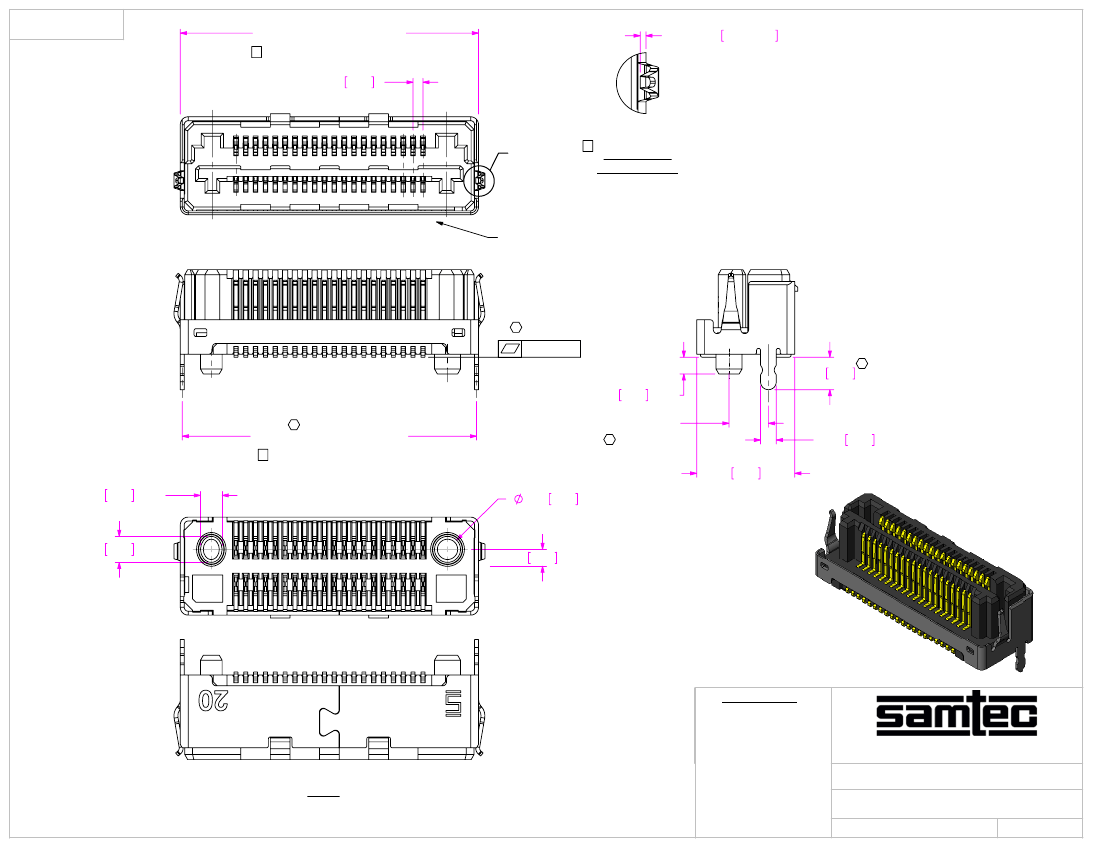

(LSHM-1XX-XX.X-DV-A-S-X-TR SHOWN)
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW
FIG 2
SHEET SCALE: 1:0.2
0.50mm TERMINAL/SOCKET COMBO
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
SHEET
2
OF
3
BY:
AGEN H
REVISION G
"H"
3.50 .138
"J"
FIG 3

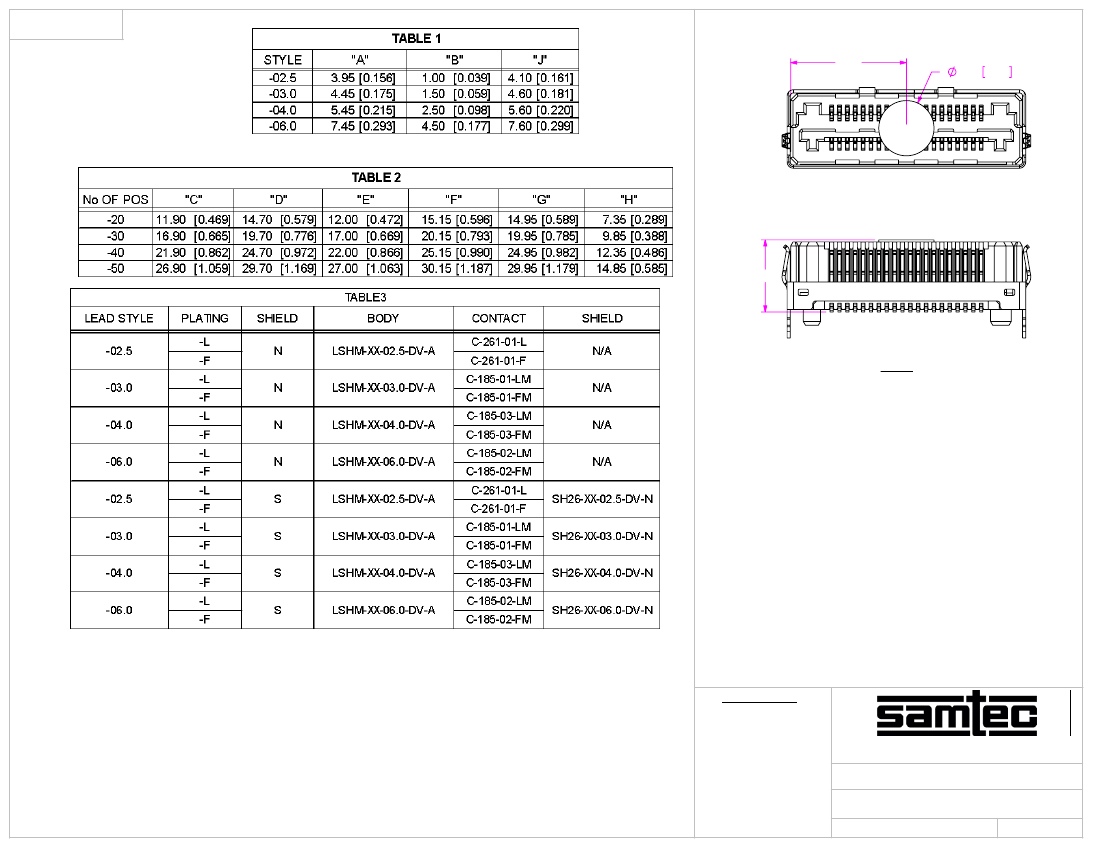

(LSHM-1XX-XX.X-DV-A-S-K-TR SHOWN)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
0.50mm TERMINAL/SOCKET COMBO
LSHM-1XX-XX.X-XX-DV-A-X-X-TR
10/30/2008
SHEET
3
OF
3
F:\DWG\MISC\MKTG\LSHM-1XX-XX.X-XX-DV-A-X-X-TR-MKT.SLDDRW
BY:
AGEN H
