REVISION F
DO NOT
SCALE FROM
THIS PRINT
MPT1-1XX-XX-X-X-XX-XXX
No OF POSITIONS
-01 THRU -50
(PER ROW)
LEAD STYLE
SEE TABLE 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. MINIMUM PUSHOUT FORCE: 3 LBS. [1.4 KG.]
3. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO ROWS SHALL BE .005 [.13] (R.A. TAIL N/A)
4. ASSEMBLE GOLD PLATE END AS SHOWN.
5. MAXIMUM ALLOWABLE FLASH AFTER REMOVAL OF CROSS-BARS: .005 [.13]
6. TOW & SWAY SPEC. OF 2° APPLIES TO ALL POSITIONS, POST & TAIL, IN ALL DIRECTIONS.
7. ALL DIMENSIONS TO BE ABOUT CL WITHIN ±.005 [.13]
POLARIZING OPTION
-XXX: POSITION POLARIZED (SEE FIG 4)
INDICATE POSITION TO BE OMITTED
OPTION
-LL: LOCKING LEAD (SEE FIG 2)
-RA: RIGHT ANGLE (SEE FIG 3)
(LEAD STYLE -08 ONLY)
-LA: RIGHT ANGLE WITH LOCKING LEADS (SEE FIG 3)
(LEAD STYLE -08 ONLY)
ROW SPECIFICATION
-T: TRIPLE (USE HTSW-50-T-LCP)
F
PLATING SPECIFICATIONS
-G: 10µ"GOLD, IN CONTACT AREA, 3µ" GOLD TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
C2-B-DC
C
(No OF POS x
.100 2.54
+.015
[.38]
.100[2.54])
- .010
[.25]
2 MAX SWAY
(EITHER DIRECTION)
.165 4.19 REF
GOLD PLATE
(SEE NOTE 4)
2 MAX SWAY
(EITHER DIRECTION)
C
'C' .008[.20]
(SEE NOTE 3)
C1-B,I-DC
"L" REF
(SEE TABLE 1)
.100 2.54 REF
HTSW-50-T-LCP
.025 0.64 SQ REF
2 MAX SWAY
(EITHER DIRECTION)
T-1S6-XX-XX-2
2 MAX SWAY
(EITHER DIRECTION)
.298 7.57
REF

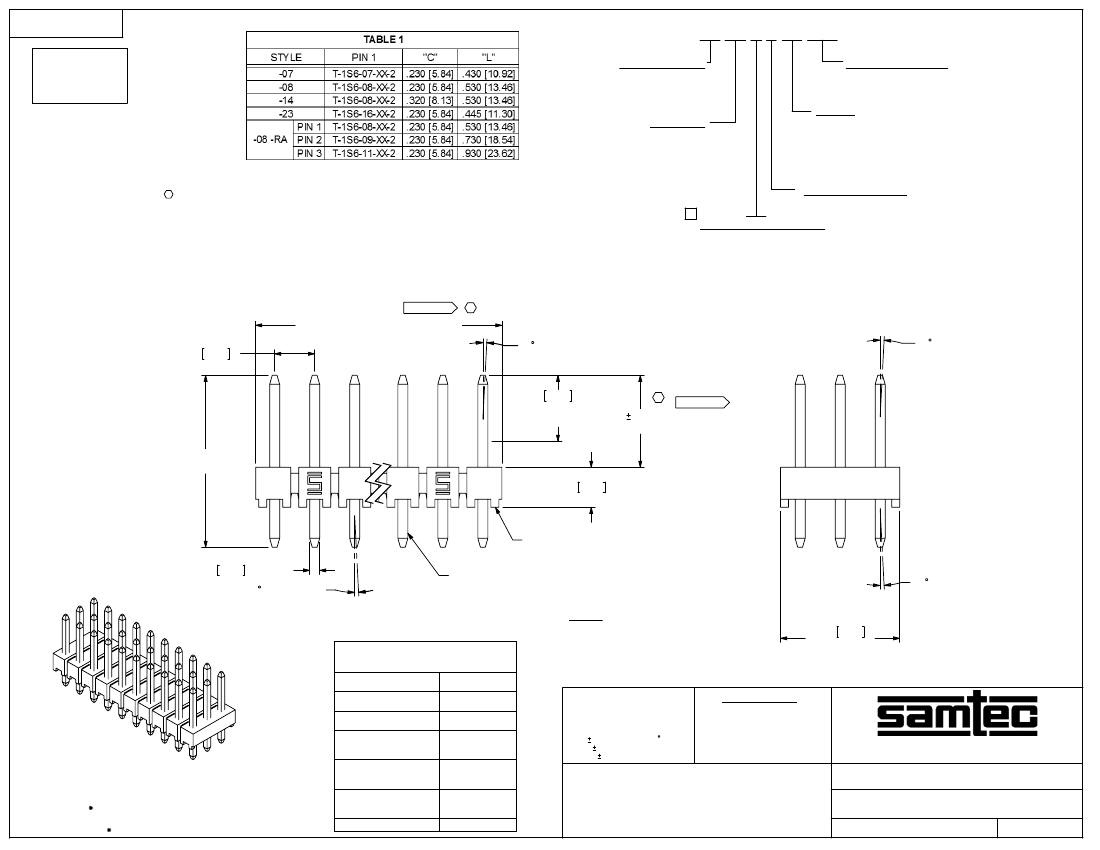

FIG 1
MPT1-1XX-07-X-T SHOWN
CRITICAL DIMENSION INSPECTION
INSTRUCTION TABLE
ASSEMBLY
IN-PROCESS
OPERATION
INSPECTION
FILL T-1S6-XX-
C1
XX-2
CUT TO
C2
POSITION
RIGHT ANGLE
C3, C7
ROW 1
A
C6, C7
C4, C8
RIGHT ANGLE
ROW 2
RIGHT ANGLE
ROW 3
CRIMP
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR:VECTRA E130i COLOR: NATURAL
TERMINAL: PHOS BRONZE ALLOY No 510
ASSEMBLY, .025 [.64] SQ. POST POWER STRIP
MPT1-1XX-XX-X-X-XX-XXX-ASM
SHEET
1
OF
2
F:\DWG\MISC\MKTG\MPT1-1XX-XX-X-X-XX-XXX-ASM-MKT.SLDDRW
BY:
WHITTAKER 08/03/1998
REVISION F

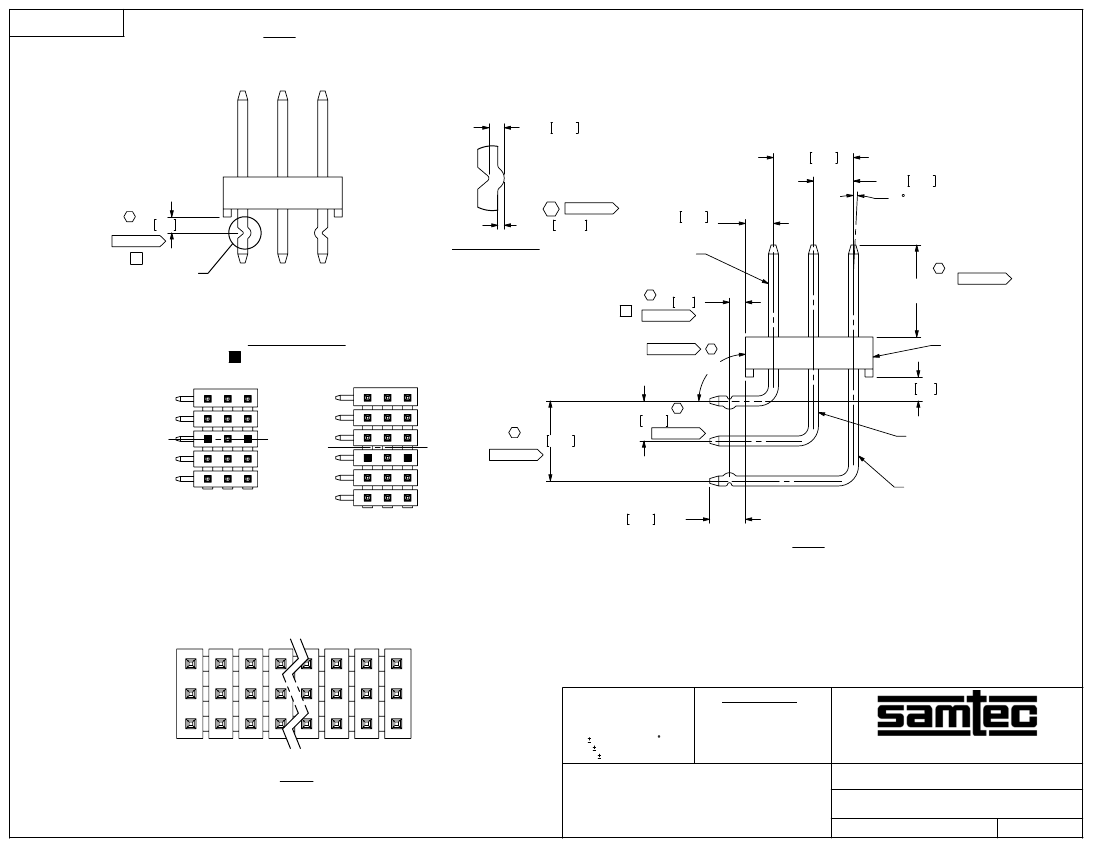

-LL: LOCKING LEAD
(NOTE: END VIEW SHOWN)
FIG 2
.017 0.43 MIN
.200 5.08
.100 2.54
C
C4
C4-B-CP
.04 1.0 (TYP)
C8-B,I-CP
SEE CRIMP DETAIL
F
CRIMP DETAIL
.0080 0.203
.070 1.78
REF
2 MAX SWAY
(EITHER DIRECTION)
SCALE 2x
[TYP-ALL CRIMPS]
C
PIN 1
.04 1.0
C
F
'C' ±.008[.20]
(SEE NOTE 3)
C7-B,I-CP
C8-B,I-CP
LOCKING LEAD
= CRIMP LOCATION
C3-B-CP
C
HTSW-50-TRA-LCP
90°
.06 1.5
C
C
L
C
.100 2.54
.200 5.08
C5-B-CP
C
L
PIN 2
PIN 3
C6-B-CP
ODD POSITIONS
EVEN POSITIONS
.090 2.27 REF
FIG 3
-RA: RIGHT ANGLE
[LEAD STYLE -08 ONLY]
(-LA OPTION SHOWN)
NOTE: -RA OPTION SHOWN FOR
ORIENTATION PURPOSES ONLY
03
150
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
01
148
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
FIG 4
POLARIZED OPTION
(INDICATE POSITION TO BE OMITTED)
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
ASSEMBLY, .025 [.64] SQ. POST POWER STRIP
MPT1-1XX-XX-X-X-XX-XXX-ASM
SHEET
2
OF
2
F:\DWG\MISC\MKTG\MPT1-1XX-XX-X-X-XX-XXX-ASM-MKT.SLDDRW
BY:
WHITTAKER 08/03/1998
