LC372200PM-20LV datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> LC372200PM-20LV

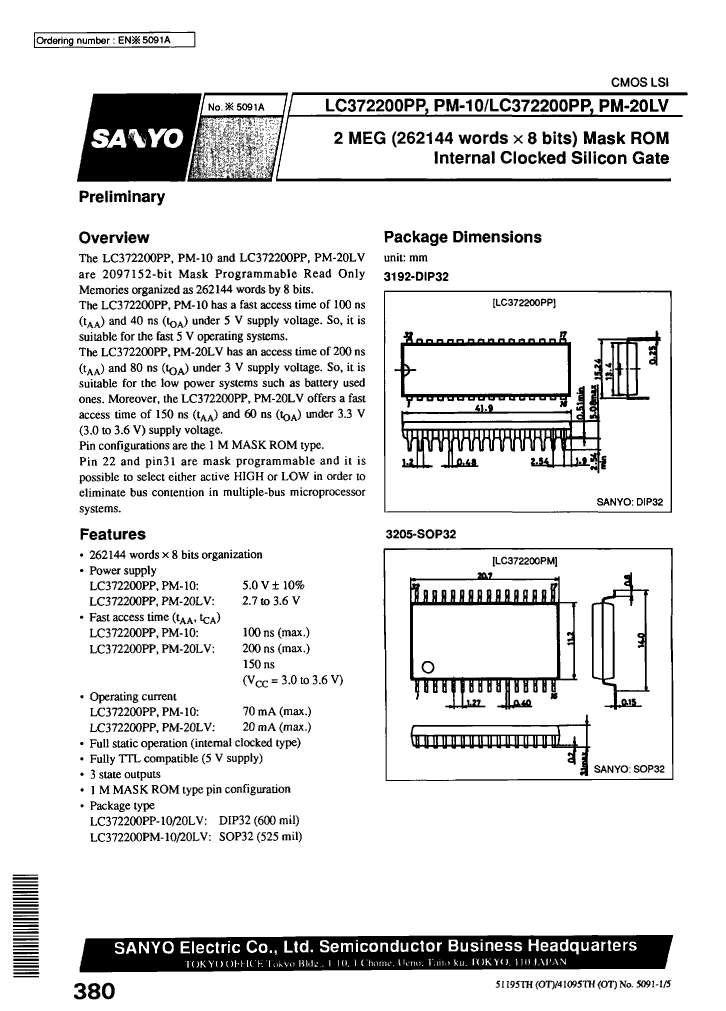

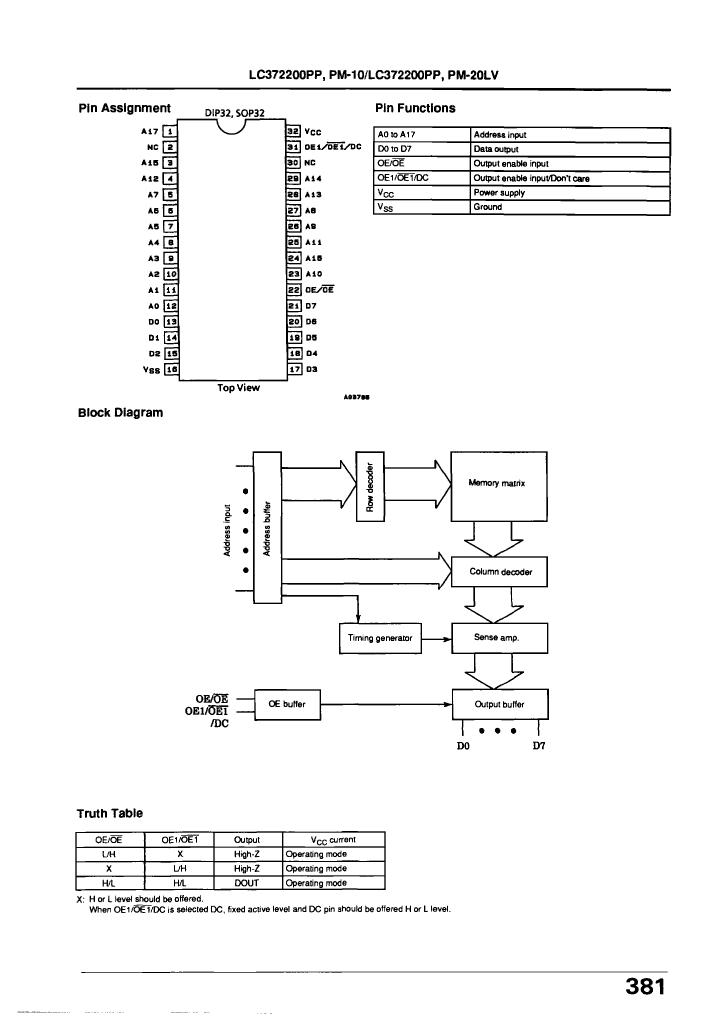

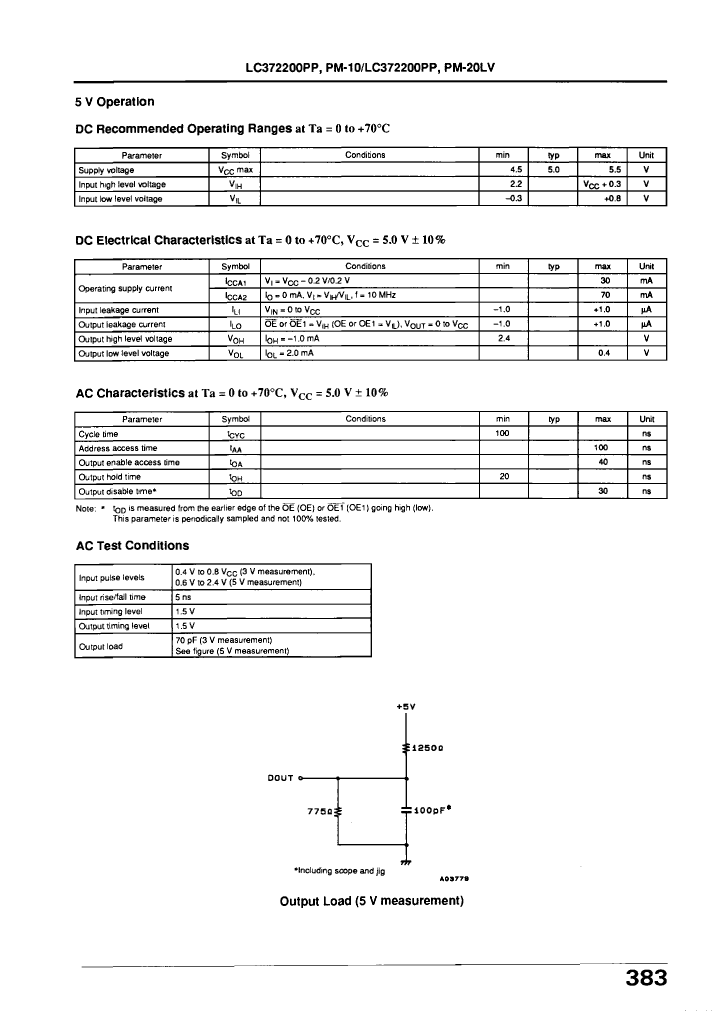

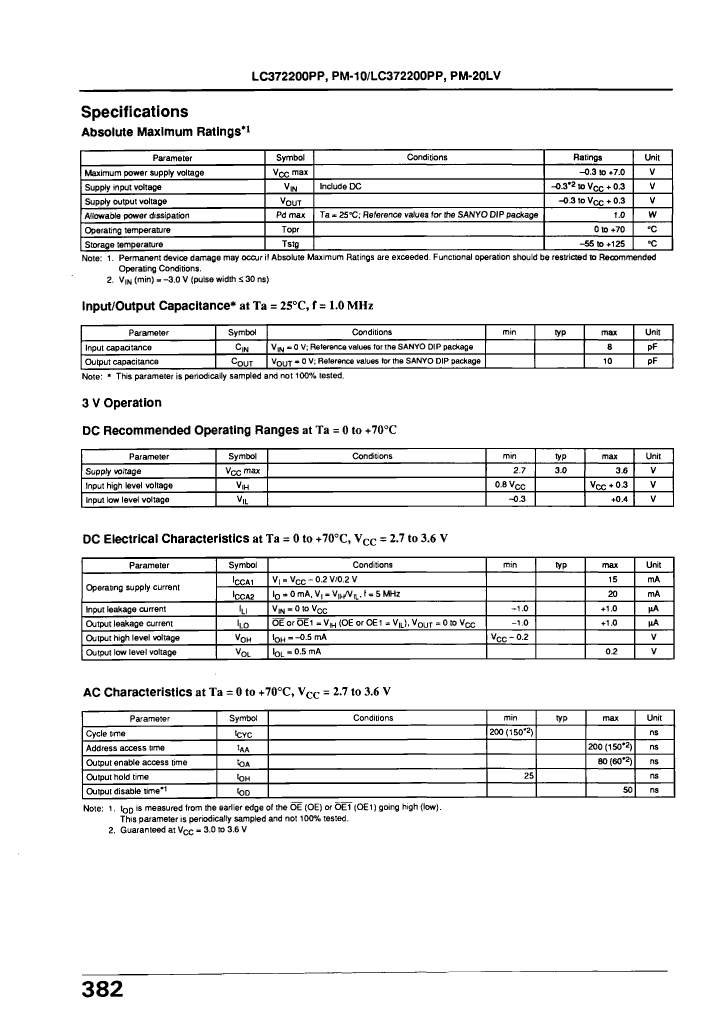

Preview

LC372200PM-20LV: DescriptionMASK ROM, 256KX8, 200ns, CMOS, PDSO32, 0.525 INCH, SOP-32; Categorystorage storage; File Size126KB，5 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC372200PM-20LV Overview

MASK ROM, 256KX8, 200ns, CMOS, PDSO32, 0.525 INCH, SOP-32

LC372200PM-20LV Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	SOIC
package instruction	SOP, SOP32,.56
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	200 ns
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	20.7 mm
memory density	2097152 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	32
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP32,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3 V
Certification status	Not Qualified
Maximum seat height	3.1 mm
Maximum slew rate	0.02 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.2 mm

Preview

Download Datasheet

View All

LC372200PM-20LV Related Products

	LC372200PM-20LV	LC372200PP-10	LC372200PM-10	LC372200PP-20LV
Description	MASK ROM, 256KX8, 200ns, CMOS, PDSO32, 0.525 INCH, SOP-32	MASK ROM, 256KX8, 100ns, CMOS, PDIP32, 0.600 INCH, DIP-32	MASK ROM, 256KX8, 100ns, CMOS, PDSO32, 0.525 INCH, SOP-32	MASK ROM, 256KX8, 200ns, CMOS, PDIP32, 0.600 INCH, DIP-32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	SOIC	DIP
package instruction	SOP, SOP32,.56	DIP, DIP32,.6	SOP, SOP32,.56	DIP, DIP32,.6
Contacts	32	32	32	32
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	100 ns	100 ns	200 ns
JESD-30 code	R-PDSO-G32	R-PDIP-T32	R-PDSO-G32	R-PDIP-T32
JESD-609 code	e0	e0	e0	e0
length	20.7 mm	41.9 mm	20.7 mm	41.9 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	32	32	32	32
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP
Encapsulate equivalent code	SOP32,.56	DIP32,.6	SOP32,.56	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3 V	5 V	5 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	5.08 mm	3.1 mm	5.08 mm
Maximum slew rate	0.02 mA	0.07 mA	0.07 mA	0.02 mA
Maximum supply voltage (Vsup)	3.6 V	5.5 V	5.5 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	4.5 V	4.5 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	5 V	5 V	3.3 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	11.2 mm	15.24 mm	11.2 mm	15.24 mm
Maker	SANYO	-	SANYO	SANYO
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
