Metal Line Switches
www.schurter.com/PG70
Metal Switch with Ceramic Actuator, Switching Voltage up to 30 VDC / 250 VAC

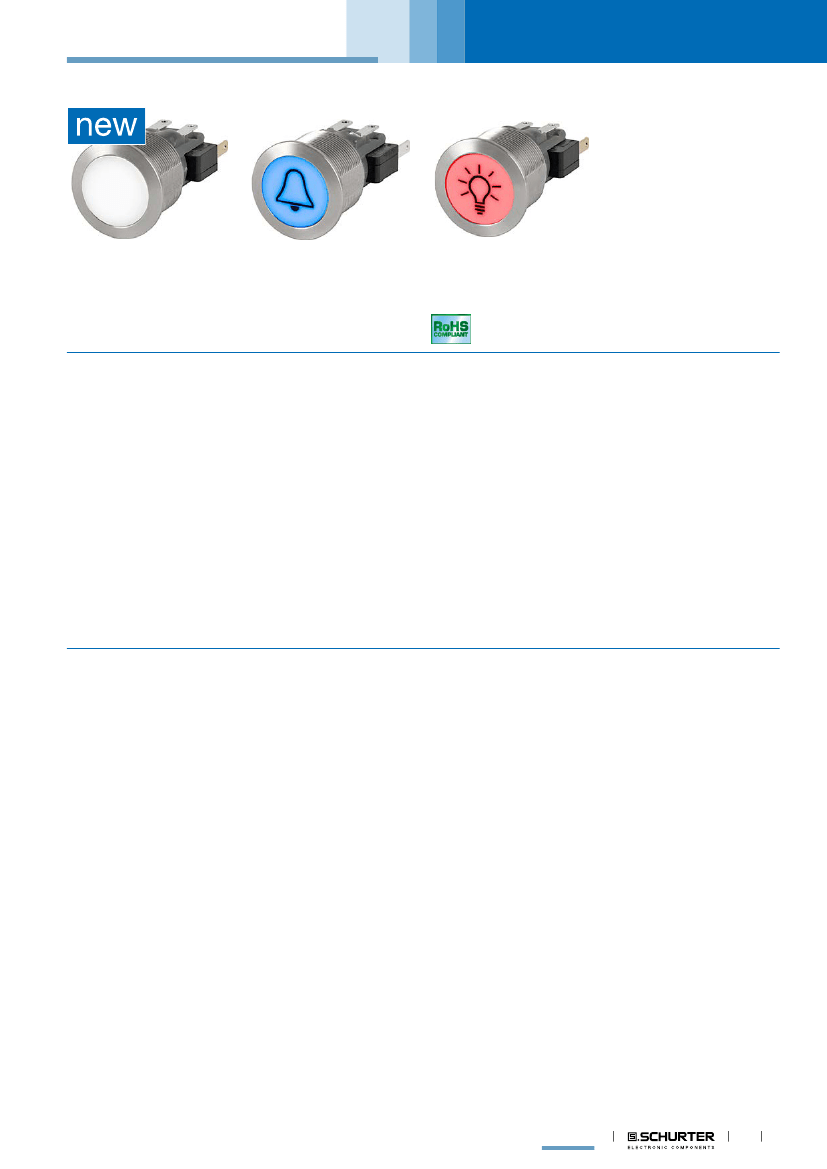

MSM CS 19
MSM 19 CS ST
MSM 19 CS LE BL blue
MSM 19 CS LE BL red
Description
- Momentary switch available in version: Standard (ST), with Lettering
(LE), with Backlighting (BL)
- Assembly method: clip micro-switch into the saddle, secure switch
using mounting nut
- Equipped with flat-pin plugs to permit fast connection
Characteristics
Standards
Approvals
-
-
-
-
-
-
-
- DIN EN 61058-1
- UL 1054
Low Voltage Directive 2006/95/EC Low Voltage Directive 2006/95/EC
VDE / ENEC Certificate Number (Omron): 40008425, 129246, 125256
UL / CSA File Number (Omron): E41515
VDE / ENEC Certificate Number (Marquardt): 097550
UL / CSA File Number (Marquardt): E41791
KEMA / ENEC File Number (Cherry): 2089323.01
UL / CSA File Number (Cherry): E23301
- housing material: high-quality stainless steel, actuator material: highly
durable ceramic
- Variety of design options regarding size, colour, illumination, connec-
tion or lettering
- Switching voltage from 30 VDC to 250 VAC, switching current from 0.1
A to 10 A
- Backlighting optional, this means the complete actuator surface is fully
illuminated
- IP-Protection: IP 65, IP 69K from front side to contact area, Micro-
Switch is available in versions IP 40 or IP 67, moving actuator is rated
IP 40 to frontside
- for use in harsh environments
References
Alternative: Standard version
Alternative: double-pole switch:
Alternative: switch with latching function:
Weblinks
html-datasheet, General Product Information, Approvals, CE declaration
of conformity, RoHS, CHINA-RoHS, e-Shop, CAD-Drawings, Product
News, Detailed request for product
Switches
1
MSM CS 19
Technical Data
Electrical Data
Switching Function
N.O. / N.C.
Number of Poles
1 pole
Supply Voltage
24 / 12 / 5 VDC Surface backlighting, ,
Micro Switch 5 A / 125 VAC or 3 A / 250 VAC, IP40
Contact Material
Ag
Switching Voltage
max. 125 / 250 VAC
Switching Current
max. 5 / 3 A
Rated Switching Capacity
750 W
Lifetime
0.2 million actuations at Rated Swit-
ching Capacity
Contact Resistance
< 30 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Micro Switch 0,1 A / 30 VDC, IP40
Contact Material
Au
Switching Voltage
max. 30 VDC
Switching Current
max. 0.1 A
Rated Switching Capacity
3W
Lifetime
0.2 million actuations at Rated Swit-
ching Capacity
Contact Resistance
< 50 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Micro Switch for Electrical Rating 10 A / 250 VAC (Protection Class
IP40)
Contact Material
Ag
Switching Voltage
max. 250 VAC
Switching Current
max. 10 A
Rated Switching Capacity
2500 W
Lifetime
0.05 million actuations at Rated Swit-
ching Capacity
Contact Resistance
< 30 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Micro Switch 5 A / 250 VAC, IP67
Switching Voltage
max. 250 VAC
Switching Current
max. 5
Rated Switching Capacity
1250 W
Lifetime
0.05 million actuations at Rated Swit-
ching Capacity
Micro Switch 0,1 A / 250 VAC, IP67 - on request
Switching Voltage
max. 250 VAC
Switching Current
max. 0.1
Rated Switching Capacity
25 W
Lifetime
0.05 million actuations at Rated Swit-
ching Capacity
Micro Switch 10 A / 250 VAC, IP67 - on request
Switching Voltage
max. 250 VAC
Switching Current
max. 10 A
Rated Switching Capacity
2500 W
Lifetime
0.01 million actuations at Rated Swit-
ching Capacity
Mechanical Data
Actuating Force
Actuating Travel
Lifetime
Shock Protection
Tightening Torque Plastic Nut
Tightening Torque Stainless
Steel Nut
Climatical Data
Operating Temperature
Storage Temperature
IP-Protection
Metal Line Switches
www.schurter.com/PG70
4.5 N
1.0 mm,
1.5 million actuations
IK 07
max. 4.5 Nm for thread M19, 3.5 Nm
for M22
max. 12 Nm for thread M19, 16 Nm for
M22
-25 to +85 °C
-25 to +85 °C
IP 65, IP 69K Front Side Contact
Area, IP 40 Front Side mechanical, IP 40
/ IP 67 Rear Side Contact Area optional
24 h / 48 h / 96 h Residence Time
Salt Spray Test (acc. to DIN
50021-SS)
Material
Housing
Actuator
Light Conductor (Point Illumi-
nation)
Illuminated Ring (Ring Illumi-
nation)
Stainless Steel
Ceramic (Zirconium Dioxide)
NBR70
PA
2
Switches
Metal Line Switches
www.schurter.com/PG70
MSM CS 19

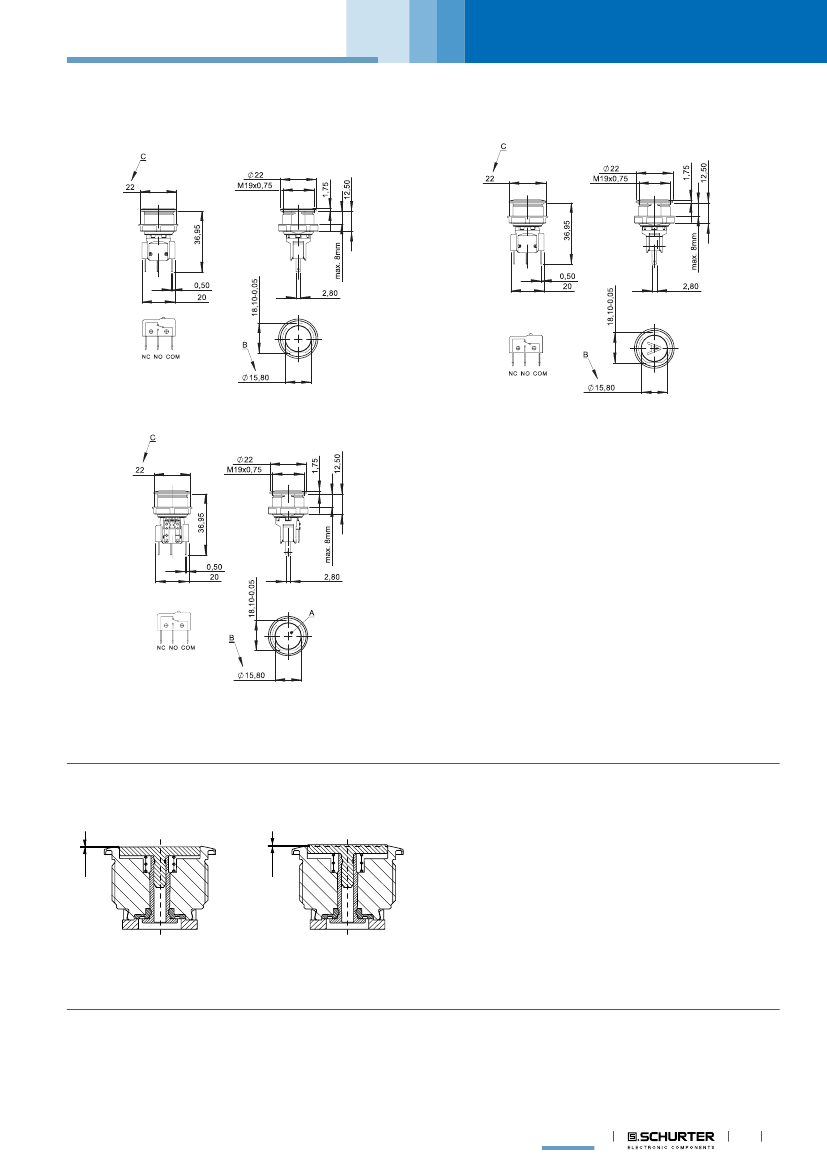

Dimensions
MSM 19 CS ST
MSM 19 CS LE
MSM 19 CS BL
Legend
A = Illumination Area
B = Actuating Area
C = Width Across Flats
D = Nut
Tolerance Range
Actuator Tolerance Range
0.20
The mounting tolerance range of the actuator varies from 0.2 mm projection length
and 0.2 mm short length to the housing edge. The slanting position of the actuator
can range within this tolerance.
0.20
Switches
3
MSM CS 19
Dimensions
MSM 19 CS ST
MSM 19 CS LE / MSM 19 CS BL
Metal Line Switches
www.schurter.com/PG70

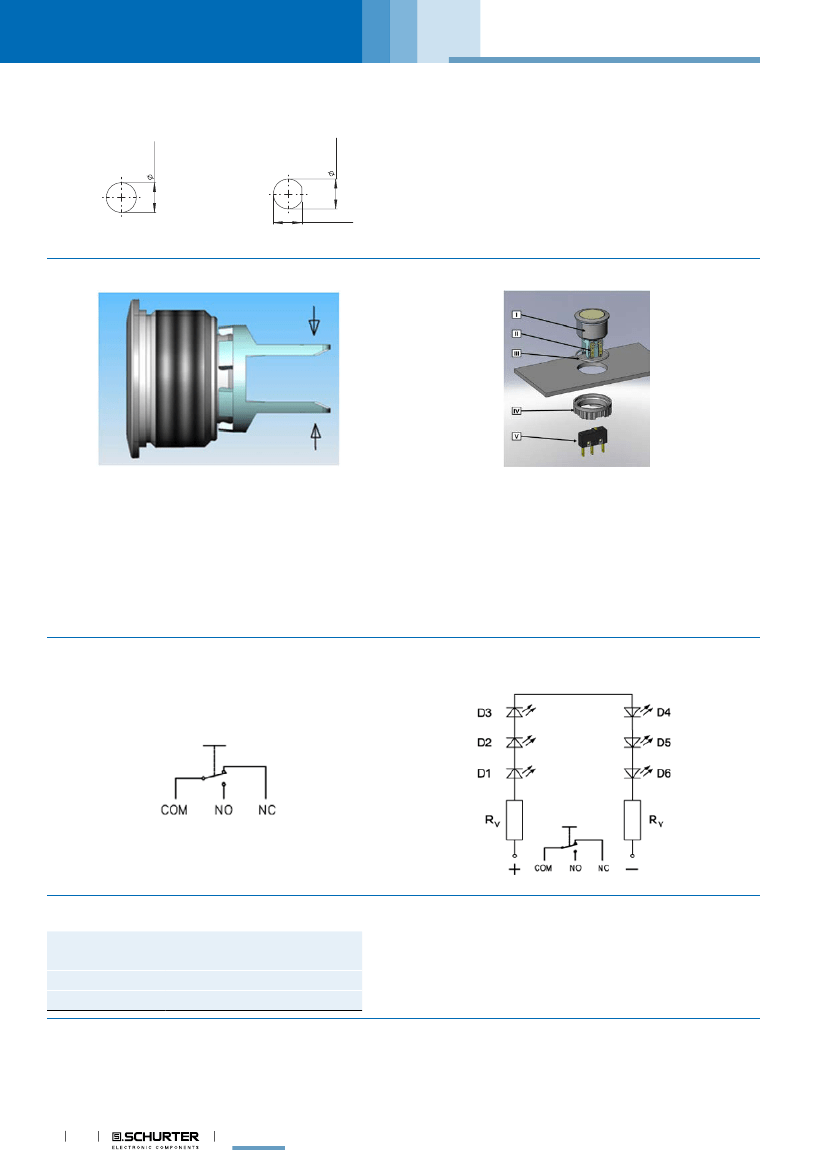

Assembly Instructions
During assembly, the protruding bars of the holder should not be pressed together.
I Housing
II Flat Pin Terminal (Illumination)
III Gasket
IV Nut (Nut type see Dimensions)
V Module Switching Contact
Installation Instruction:
1.) Place the gasket accurately on the actuator housing. Then mount the actuator housing assembly into the panel.
2.) Tighten the screw nut according to the torque instructions.
3.) Clasp the module switching contact into the micro switch holder of the actuator housing.
Installation information:
1.) The power supply and the configuration of the flat pin terminals have to be installed correctly for the illumination and micro switch function.
2.) Insulate the terminals as required. Fully insulated plug-in sleeves are recommended.
3.) Installation instructions according to VDE-standard DIN VDE 0100-100 or alternatively IEC 60354 standard.
Diagrams
MSM CS ST / MSM CS LE
MSM CS BL
Lettering
The last three digits in the order number define the lettering:
000
001-074
101-
No Lettering
Standard Lettering
Customized Lettering
4
Switches
Metal Line Switches
www.schurter.com/PG70
MSM CS 19
041 = ÷
042 =
✳
043 =
=
044 = #
045 =
↔
046 =
↕
047 =
→
048 =
←
049 =
↓
050 =
↑
051 = %
052 =
√
053 =
CTRL
054 =
RETURN
055 =
SHIFT
056 =
LOCK
057 =
STOP
058 =
ENTER
059 =
BACK
060 =
LINE
061 =
EIN
062 =
AUS
063 =
AUF
064 =
AB
065 =
ON
066 =
OFF
067 =
UP
068 =
DOWN
069 =
HIGH
070 =
LOW
071 =
ON/OFF
072 =
START
073 =
RESET
074 =
075 =
076 =
Order Index Lettering
001 =
A
002 =
B
003 =
C
004 =
D
005 =
E
006 =
F
007 =
G
008 =
H
009 =
I
010 =
J
011 =
K
012 =
L
013 =
M
014 =
N
015 =
O
016 =
P
017 =
Q
018 =
R
019 =
S
020 =
T
021 =
U
022 =
V
023 =
W
024 =
X
025 =
Y
026 =
Z
027 =
0
028 =
1
029 =
2
030 =
3
031 =
4
032 =
5
033 =
6
034 =
7
035 =
8
036 =
9
037 =
+
038 =
-
039 =
.
040 = x
Lettering Colour of Laser Lettering
Material
Ceramic
Lettering Colour
black
Filled letters
Variants
Diameter
[mm]
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
Switching
Current
[A]
0.1 A
5/3 A
10 A
5 A
0.1 A
5/3 A
10 A
5 A
0.1 A
0.1 A
0.1 A
0.1 A
0.1 A
0.1 A
5/3 A
5/3 A
5/3 A
5/3 A
5/3 A
5/3 A
5/3 A
10 A
10 A
10 A
5 A
Switching Voltage
[VAC/ VDC]
30 VDC
125 / 250 VDC
250 VAC
250 VAC
30 VDC
125 / 250 VDC
250 VAC
250 VAC
30 VDC
30 VDC
30 VDC
30 VDC
30 VDC
30 VDC
125 / 250 VAC
125 / 250 VAC
125 / 250 VAC
125 / 250 VAC
125 / 250 VAC
125 / 250 VAC
125 / 250 VAC
250 VAC
250 VAC
250 VAC
250 VAC
non-illuminated
non-illuminated
non-illuminated
non-illuminated
non-illuminated
non-illuminated
non-illuminated
non-illuminated
Backlighted, red, 24 VDC
Backlighted, green, 24 VDC
Backlighted, blue, 24 VDC
Backlighted, blue, 12 VDC
Backlighted, blue, 24 VDC
Backlighted, blue, 24 VDC
Backlighted, red, 24 VDC
Backlighted, red, 12 VDC
Backlighted, red, 24 VDC
Backlighted, red, 24 VDC
Backlighted, green, 24 VDC
Backlighted, blue, 24 VDC
Backlighted, blue, 24 VDC
Backlighted, red, 24 VDC
Backlighted, green, 24 VDC
Backlighted, blue, 24 VDC
Backlighted, red, 24 VDC
no
no
no
no
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
yes
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
MSM 19 CS ST
MSM 19 CS ST
MSM 19 CS ST
MSM 19 CS ST
MSM 19 CS LE
MSM 19 CS LE
MSM 19 CS LE
MSM 19 CS LE
MSM 19 CS BL red
MSM 19 CS BL green
MSM 19 CS BL blue
MSM 19 CS BL blue
MSM 19 CS BL blue
MSM 19 CS BL blue
MSM 19 CS BL red
MSM 19 CS BL red
MSM 19 CS BL red
MSM 19 CS BL red
MSM 19 CS BL green
MSM 19 CS BL blue
MSM 19 CS BL blue
MSM 19 CS BL red
MSM 19 CS BL green
MSM 19 CS BL blue
MSM 19 CS BL red
1241.7021.1110000
1241.7021.1120000
1241.7021.1130000
1241.7021.1180000
1241.7022.1110000
1241.7022.1120000
1241.7022.1130000
1241.7022.1180000
1241.7026.1121000
1241.7026.1112000
1241.7026.1114000
1241.7026.1114000E
1241.7026.1114046
1241.7026.1114076
1241.7026.1121000
1241.7026.1121000E
1241.7026.1121072
1241.7026.1121075
1241.7026.1122000
1241.7026.1124000
1241.7026.1124074
1241.7026.1131000
1241.7026.1132000
1241.7026.1134000
1241.7026.1181000
█
█
█
█
█
█
█
Illumination, LED
Torsion Pro-
tection
Housing Material
Config. Code
Order Number
Switches
5
