LH28F004SCHR-L85 datasheet, PDF

Datasheet> All Categories > storage> storage> LH28F004SCHR-L85

LH28F004SCHR-L85: DescriptionFlash, 512KX8, 85ns, PDSO40, 10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40; Categorystorage storage; File Size2MB，43 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH28F004SCHR-L85 Overview

Flash, 512KX8, 85ns, PDSO40, 10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40

LH28F004SCHR-L85 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40
Reach Compliance Code	unknown
Maximum access time	85 ns
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	18.4 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	40
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Programming voltage	3.3 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
type	NOR TYPE
width	10 mm

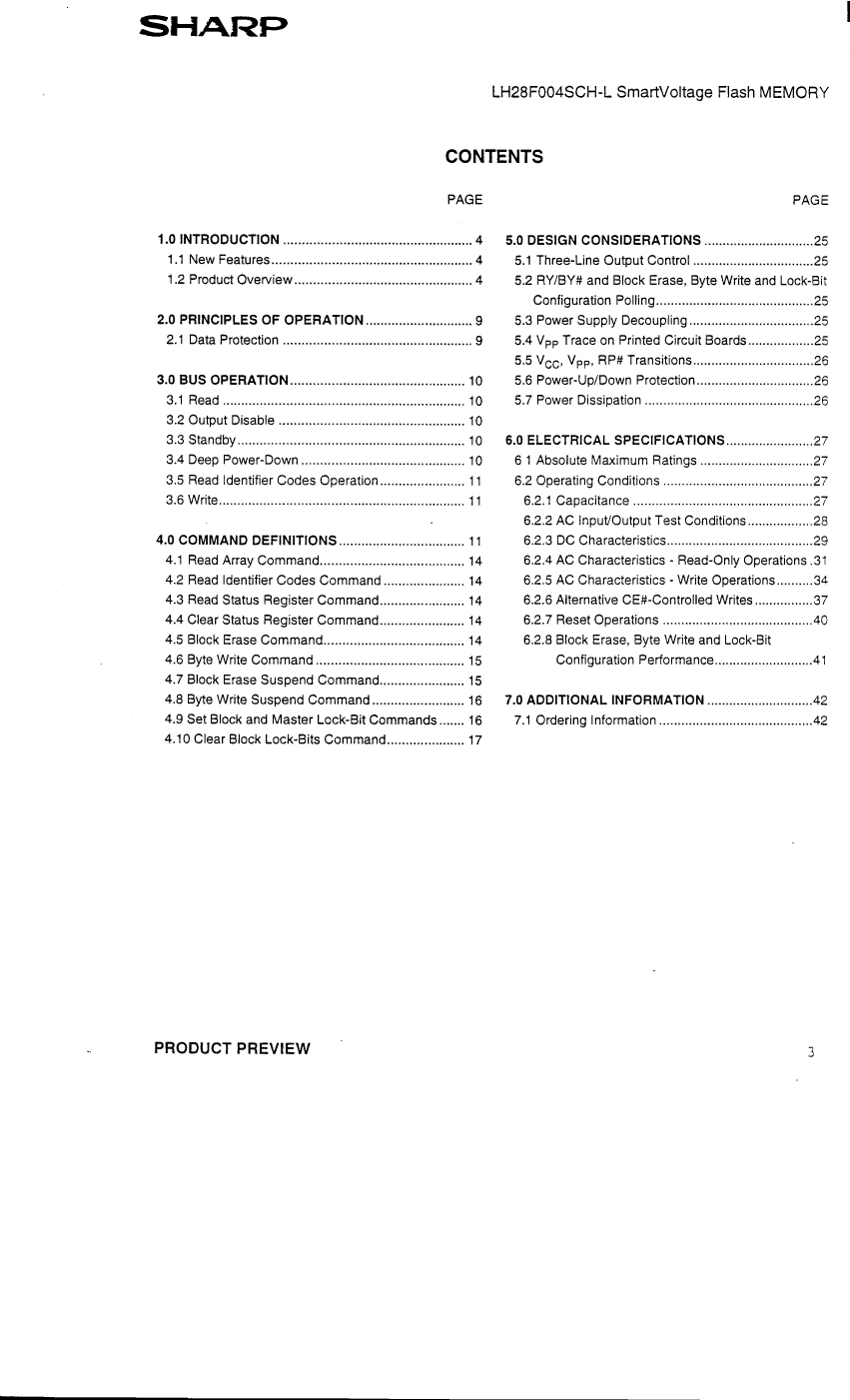

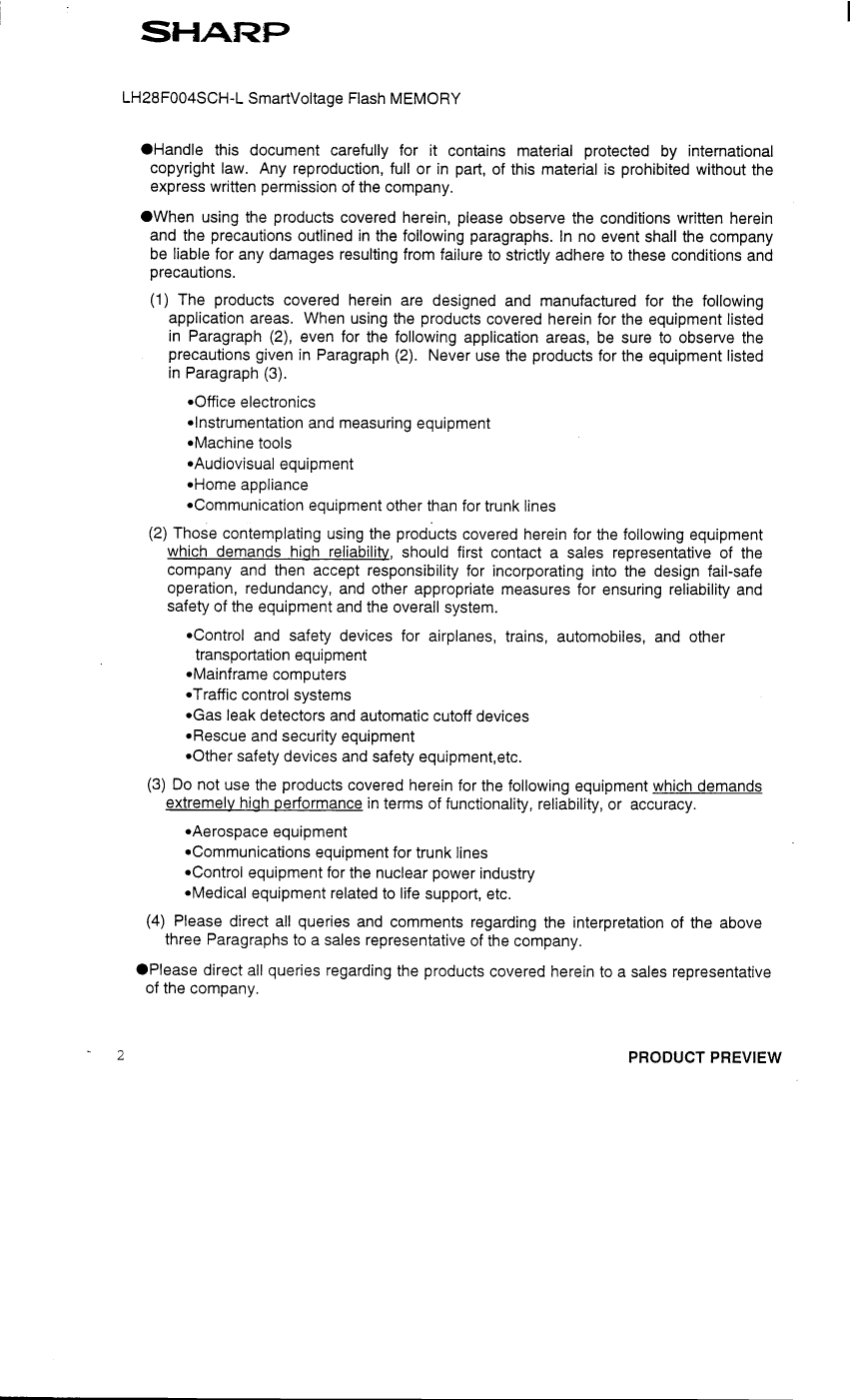

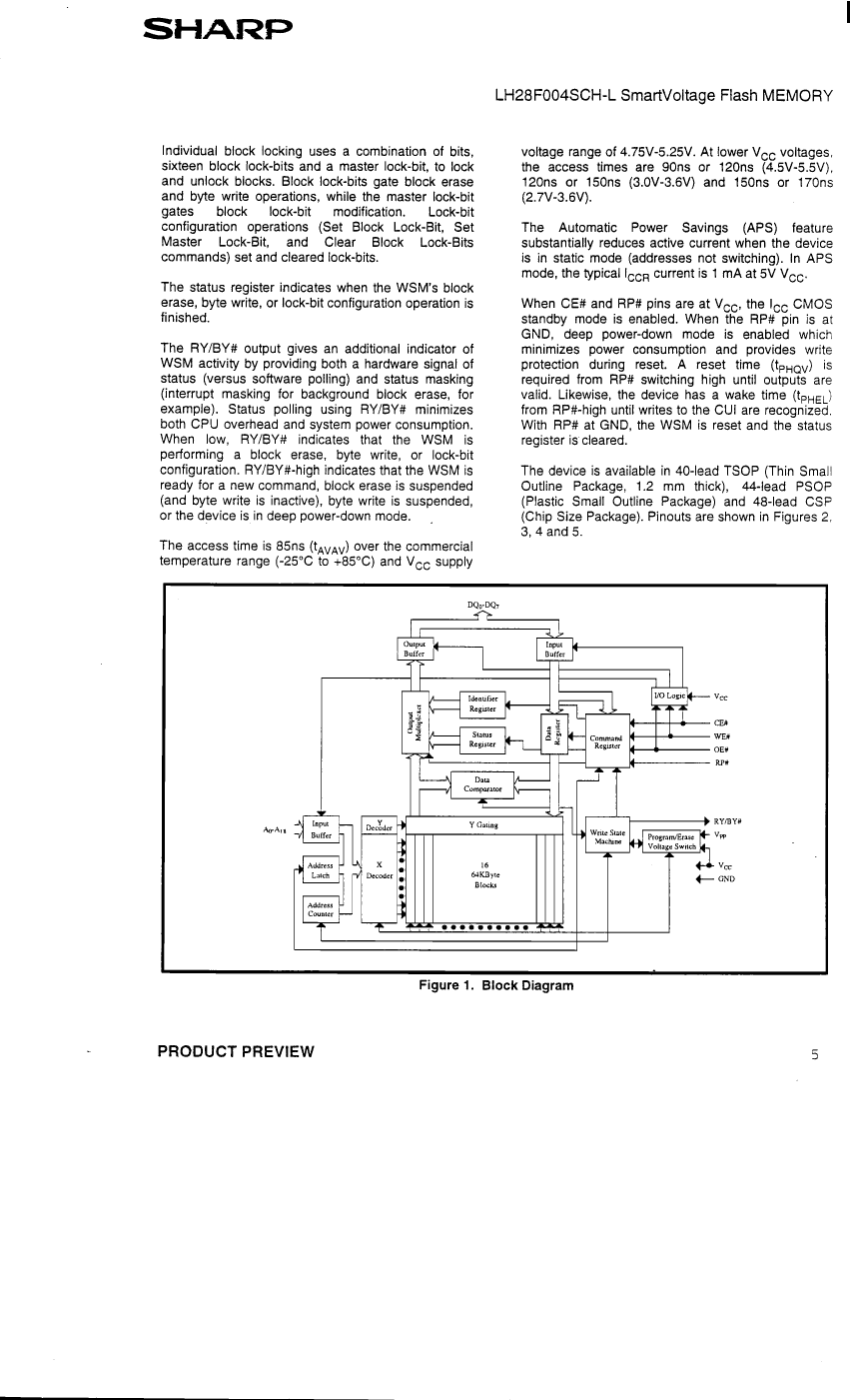

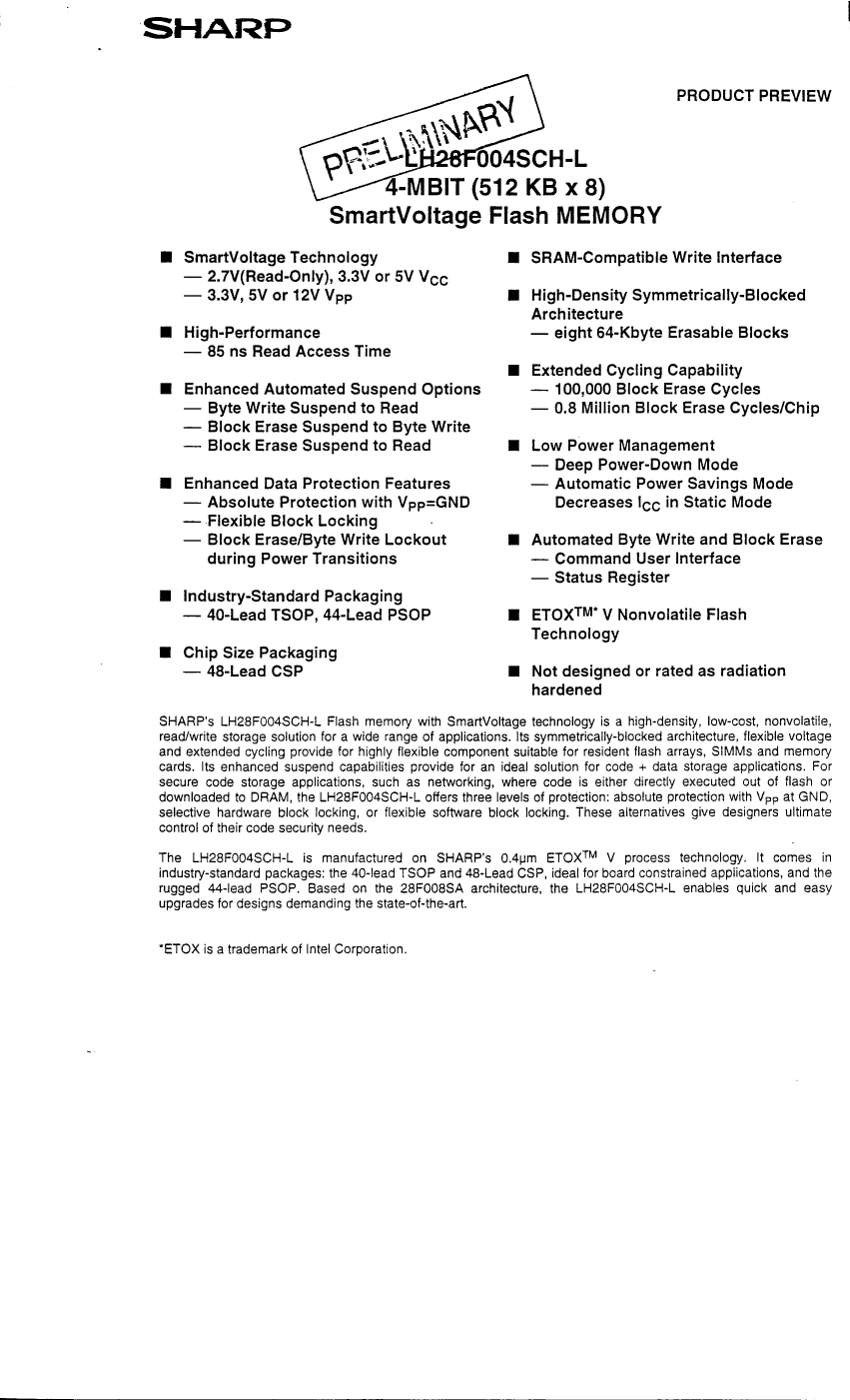

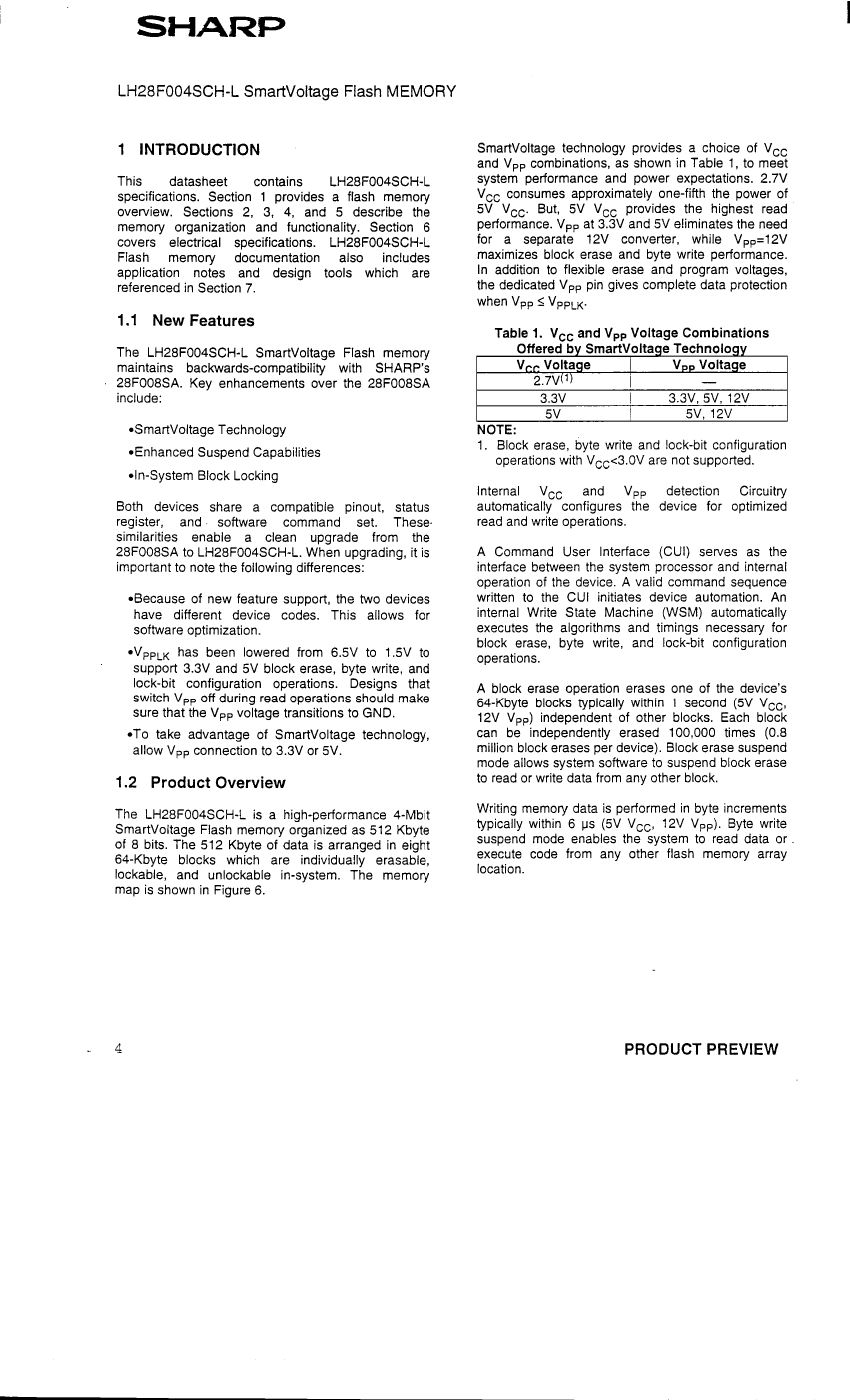

Preview

Download Datasheet

View All

LH28F004SCHR-L85 Related Products

	LH28F004SCHR-L85	LH28F004SCHB-L12	LH28F004SCHB-L85	LH28F004SCHN-L12	LH28F004SCHN-L85	LH28F004SCHT-L12	LH28F004SCHR-L12	LH28F004SCHT-L85
Description	Flash, 512KX8, 85ns, PDSO40, 10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40	Flash, 512KX8, 120ns, PBGA48, 8 X 6 MM, CSP-48	Flash, 512KX8, 85ns, PBGA48, 8 X 6 MM, CSP-48	Flash, 512KX8, 120ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44	Flash, 512KX8, 85ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44	Flash, 512KX8, 120ns, PDSO40, 10 X 20 MM, 1.2 MM HEIGHT, TSOP1-40	Flash, 512KX8, 120ns, PDSO40, 10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40	Flash, 512KX8, 85ns, PDSO40, 10 X 20 MM, 1.2 MM HEIGHT, TSOP1-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40	8 X 6 MM, CSP-48	8 X 6 MM, CSP-48	0.525 X 1.110 INCH, PLASTIC, SOP-44	0.525 X 1.110 INCH, PLASTIC, SOP-44	10 X 20 MM, 1.2 MM HEIGHT, TSOP1-40	10 X 20 MM, 1.20 MM HEIGHT, REVERSE, TSOP-40	10 X 20 MM, 1.2 MM HEIGHT, TSOP1-40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	85 ns	120 ns	85 ns	120 ns	85 ns	120 ns	120 ns	85 ns
JESD-30 code	R-PDSO-G40	R-PBGA-B48	R-PBGA-B48	R-PDSO-G44	R-PDSO-G44	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	18.4 mm	8 mm	8 mm	28.2 mm	28.2 mm	18.4 mm	18.4 mm	18.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	40	48	48	44	44	40	40	40
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1-R	TFBGA	TFBGA	SOP	SOP	TSOP1	TSOP1-R	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Programming voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	3.25 mm	3.25 mm	1.2 mm	1.2 mm	1.2 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	3.3 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	BALL	BALL	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	BOTTOM	BOTTOM	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	10 mm	6 mm	6 mm	13.2 mm	13.2 mm	10 mm	10 mm	10 mm
