SMD Transient Voltage Suppressor
TV50C110-HF Thru. TV50C441-HF
Working Voltage: 11 to 440 Volts
Peak Pulse Power: 5000 Watts
RoHS Device
Halogen Free
SMC/DO-214AB
Features
- Glass passivated chip.
- 5000W peak pulse power capability with a 10/1000µs
waveform, repetitive rate (duty cycle):0.01%
- Low leakage.
- Uni and Bidirectional unit.
- Excellent clamping capability.
- Very fast response time.
- UL recognized file # E349157
R
0.280(7.02)
0.260(6.52)
0.126(3.16)
0.114(2.86)
0.245(6.15)
0.220(5.52)
0.320(8.02)
0.305(7.64)
0.012(0.30)
0.006(0.15)
0.103(2.59)
0.079(1.98)
0.060(1.51)
0.030(0.75)
0.008(0.20)
0.000(0.00)
Mechanical Data
- Case: DO-214AB/SMC molded plastic.
- Epoxy: UL 94V-0 rate flame retardant
- Lead: Solderable per MIL-STD-750, method 2026.
- Polarity: Color band denoted cathode
end except bipolar.
- Mounting position: Any
- Weight:
0.230 gram
(approx.)
Dimensions in inches and (millimeter)
Circuit Diagram
Bi-directional
Uni-directional
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Parameter
Peak power dissipation with a 10/1000μs
waveform (Note 1)
Peak pulse current with a 10/1000μs
waveform (Note 1)
Power dissipation on infinite heatsink
at T
L
=75°C
Peak forward surge current, 8.3ms single
half sine-wave unidirectional only (Note 2)
Maximum instantaneous forward voltage
at 100A for unidirectional only (Note 3)
Operation junction and storage
temperature range
Symbol
P
PP
I
PP
P
D
I
FSM
V
F
T
J
, T
STG
Value
5000
See Next Table
6.5
300
3.5/5.0
-55 to +150
Units
W
A
W
A
V
°C
Notes: 1. Non-repetitive current pulse, per Fig.5 and derated above T
A
=25°C, per Fig.1
2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
3. V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV10
REV:C
Page 1
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

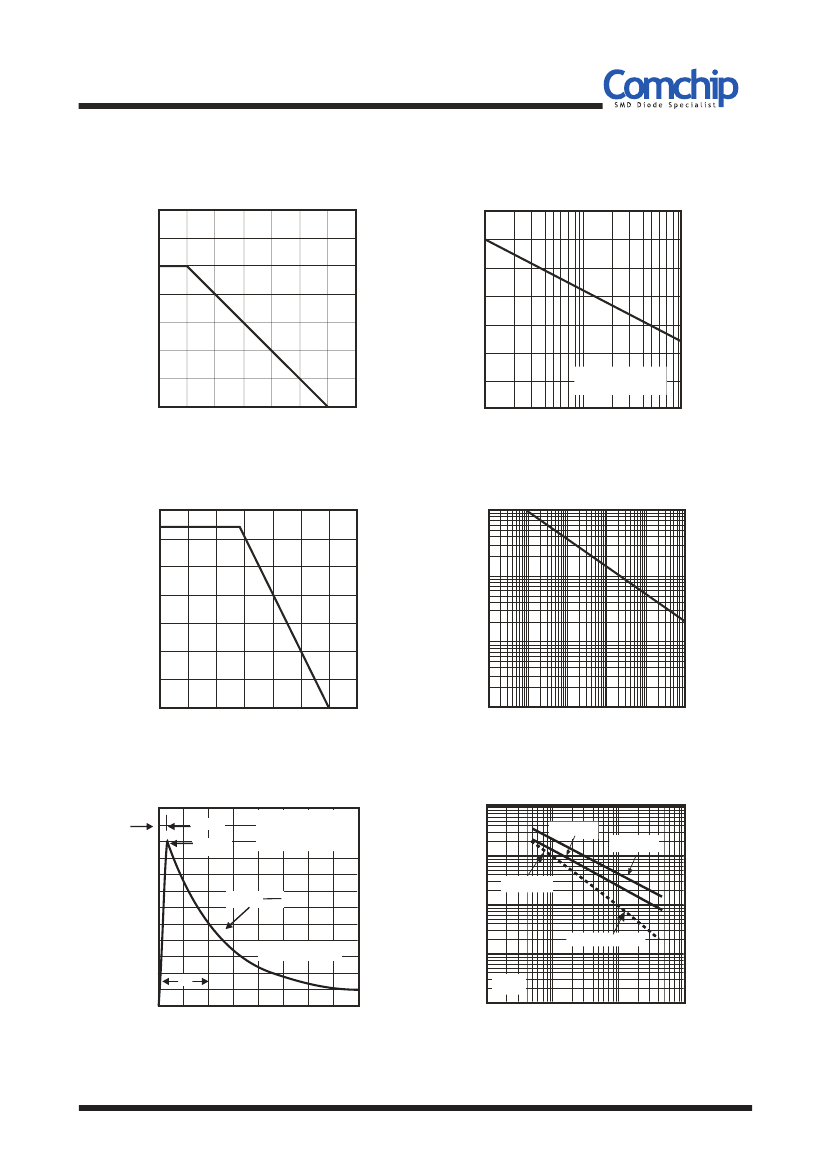

RATING AND CHARACTERISTIC CURVES (TV50C110-HF thru. TV50C441-HF)
Fig.1 - Pulse Derating Curve
140
350
Fig.2 - Maximum Non-Repetitive
Surge Current
Peak Forward Surge Current, (A)
Peak Pulse Derating in Percentage
of Peak Power or Current, (%)
120
100
80
60
40
20
0
300
250
200
150
100
50
0
8.3ms single half
sine-wave (JEDEC method)
T
J
=T
J
max.
0
25
50
75
100
125
150
175
1
10
100
Ambient Temperature, T
A
(°C)
Number of Cycles at 60Hz
Fig.3 - Steady State Power Derating Curve
7
Fig.4 - Peak Pulse Power Rating Curve
100
Steady State Power Dissipation, (W)
6
Peak Power, (kW)
5
4
3
2
1
0
10
1
0
25
50
75
100
125
150
175
0.1
0.1
1
10
100
1000
10000
Lead Temperature, T
L
(°C)
Pulse Width, t
d
(μs)
Fig.5 - Pulse Waveforem
10000
Tr=10μs
T
J
= 25°C
Pluse width(td) is defined as the
point where the peak current
decays to 50% of Ipp
Fig.6 - Typical Junction Capacitance
Bi-directional
@zero bias
100
Junction Capacitance, CJ (pF)
Peak Pulse Current, (%)
Peak value
(Ipp)
Uni-directional
@zero bias
1000
Uni-directional
@V
RWM
Half Value= 2
Ipp
100
50
10 / 1000
μsec.
waveform
as defined by R.E.A.
Bi-directional @ V
RWM
10
T
J
=25°C
f=1.0MHz
td
0
0
1.0
2.0
3.0
4.0
1
1
10
100
1000
Time, (ms)
Reverse Breakdown Voltage, V
BR
(V)
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV10
REV:C
Page 2
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (TV50C110-HF Thru. TV50C441-HF)
Breakdown voltage
Part No.
Min.
(V)
TV50C110J(B)-HF
TV50C120J(B)-HF
TV50C130J(B)-HF
TV50C140J(B)-HF
TV50C150J(B)-HF
TV50C160J(B)-HF
TV50C170J(B)-HF
TV50C180J(B)-HF
TV50C190J(B)-HF
TV50C200J(B)-HF
TV50C220J(B)-HF
TV50C240J(B)-HF
TV50C260J(B)-HF
TV50C280J(B)-HF
TV50C300J(B)-HF
TV50C330J(B)-HF
TV50C360J(B)-HF
TV50C400J(B)-HF
TV50C430J(B)-HF
TV50C450J(B)-HF
TV50C480J(B)-HF
TV50C510J(B)-HF
TV50C540J(B)-HF
TV50C580J(B)-HF
TV50C600J(B)-HF
TV50C640J(B)-HF
TV50C700J(B)-HF
TV50C750J(B)-HF
TV50C780J(B)-HF
TV50C800J(B)-HF
TV50C850J(B)-HF
TV50C900J(B)-HF
TV50C101J(B)-HF
TV50C111J(B)-HF
TV50C121J(B)-HF
TV50C131J(B)-HF
TV50C141J(B)-HF
TV50C151J(B)-HF
TV50C161J(B)-HF
TV50C171J(B)-HF
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
21.10
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
88.80
94.40
100.0
111.0
122.0
133.0
144.0
155.0
167.0
178.0
189.0
V
BR
@ I
T
Max.
(V)
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
23.30
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
97.60
104.0
111.0
123.0
135.0
147.0
159.0
171.0
185.0
197.0
209.0
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Reverse
Leakage
@V
RWM
I
R
(uA)
800
800
500
200
100
50
20
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Working
Peak
Reverse
Voltage
V
RWM
(V)
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
80.0
85.0
90.0
100.0
110.0
120.0
130.0
140.0
150.0
160.0
170.0
Maximum
Reverse
Surge
Current
I
PP
(A)
274.7
251.3
232.6
215.5
204.9
192.3
181.2
171.2
162.4
154.3
140.8
128.5
118.8
110.1
103.3
93.8
86.1
77.5
72.0
68.8
64.6
60.7
57.4
53.4
51.7
48.5
44.2
41.3
39.7
38.6
36.5
34.2
30.9
28.2
25.9
23.9
22.0
20.6
19.3
18.2
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
30.8
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
129.6
137.0
146.0
162.0
177.0
193.0
209.0
226.8
243.0
259.0
275.0
Device
Marking
Code
UNI
5PDX
5PDZ
5PEE
5PEG
5PEK
5PEM
5PEP
5PER
5PET
5PEV
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGB
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHB
5PHM
5PHP
5PHR
BI
5BDX
5BDZ
5BEE
5BEG
5BEK
5BEM
5BEP
5BER
5BET
5BEV
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
5BFX
5BFZ
5BGE
5BGG
5BGK
5BGM
5BGP
5BGR
5BGT
5BGB
5BGV
5BGX
5BGZ
5BHE
5BHG
5BHK
5BHB
5BHM
5BHP
5BHR
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV10
REV:C
Page 3
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (TV50C110-HF Thru. TV50C441-HF)
Breakdown voltage
Part No.
Min.
(V)
TV50C181J(B)-HF
TV50C191J(B)-HF
TV50C201J(B)-HF
TV50C221J(B)-HF
TV50C251J(B)-HF
TV50C301J(B)-HF
TV50C351J(B)-HF
TV50C401J(B)-HF
TV50C441J(B)-HF
200.0
211.0
224.0
246.0
279.0
335.0
391.0
447.0
492.0
V
BR
@ I
T
Max.
(V)
220.0
232.0
247.0
272.0
309.0
371.0
432.0
494.0
543.0
I
T
(mA)
1
1
1
1
1
1
1
1
1
Maximum
Reverse
Leakage
@V
RWM
I
R
(uA)
5
5
5
5
5
5
5
5
5
Working
Peak
Reverse
Voltage
V
RWM
(V)
180.0
190.0
200.0
220.0
250.0
300.0
350.0
400.0
440.0
Maximum
Reverse
Surge
Current
I
PP
(A)
17.1
16.2
15.4
14.0
12.3
10.3
8.8
7.7
7.0
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
291.6
307.8
324.0
356.0
405.0
486.0
567.0
648.0
713.0
Device
Marking
Code
UNI
5PHT
5PHV
5PHW
5PHX
5PHZ
5PJE
5PJG
5PJK
5PJM
BI
5BHT
5BHV
5BHW
5BHX
5BHZ
5BJE
5BJG
5BJK
5BJM
Note:
1) Suffix J denotes 5% tolerance devices.
2) Suffix B after part number to specify bi-directional devices.
3) For Bi-Directional devices having V
R
of 20 volts and under, the I
R
limit is double.
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV10
REV:C
Page 4
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

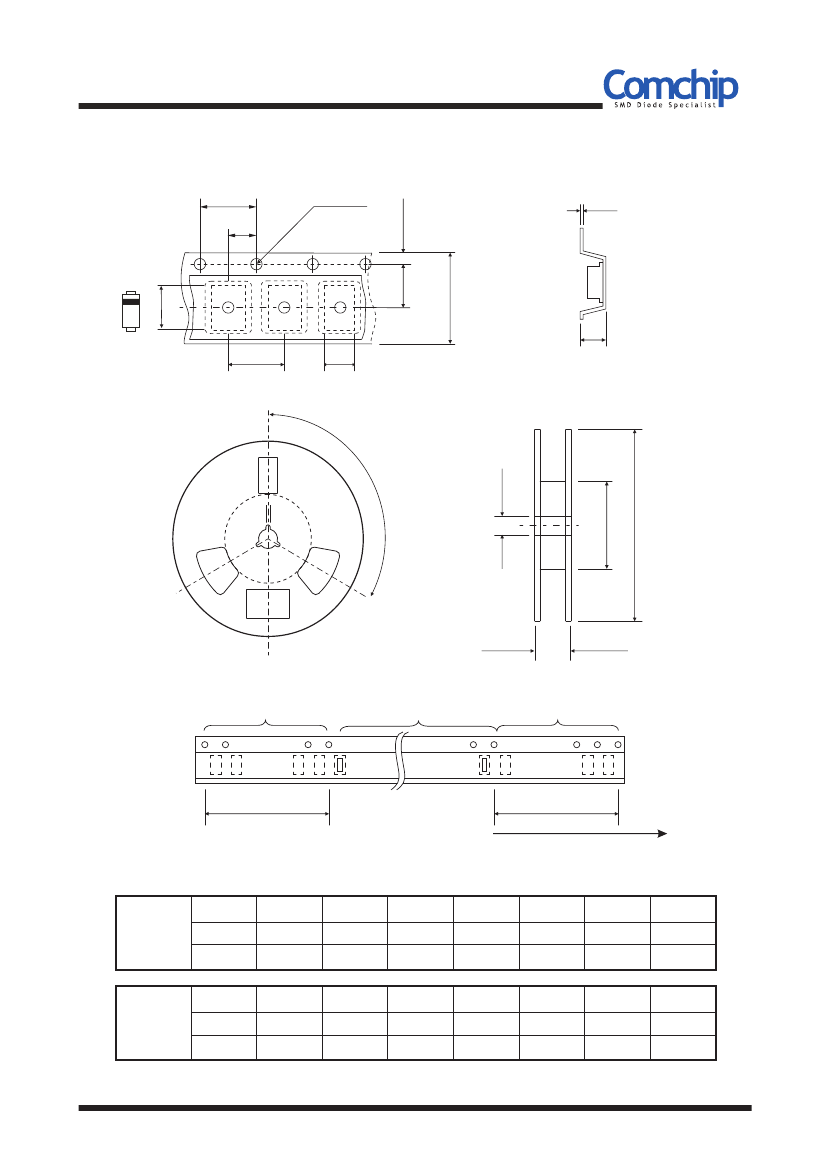

Reel Taping Specification
P
0
P
1
d
Index hole
E
T
F
B
P
A
W
C
12
0
o
D
2
D
1
D
W
1
Trailer
.......
.......
10 pitches (min)
Device
.......
.......
.......
.......
Leader
.......
.......
10 pitches (min)
End
Start
Direction of Feed
SYMBOL
A
6.05
±
0.10
0.238
±
0.004
B
8.31
±
0.10
0.327
±
0.004
C
3.29 (max)
0.130 (max)
d
1.55
±
0.10
0.061
±
0.004
D
330.00
13.000
D
1
50.00 (min)
1.969 (min)
D
2
13.00
±
0.20
0.512
±
0.008
DO-214AB
(SMC)
(mm)
(inch)
SYMBOL
E
1.75
±
0.10
0.069
±
0.004
F
7.50
±
0.10
0.295
±
0.004
P
8.00
±
0.10
0.315
±
0.004
P
0
4.00
±
0.10
0.157
±
0.004
P
1
2.00
±
0.10
0.079
±
0.004
W
16.00
±
0.30
0.630
±
0.012
W
1
22.40 (max)
0.882 (max)
DO-214AB
(SMC)
(mm)
(inch)
Company reserves the right to improve product design , functions and reliability without notice.
QW-JTV10
REV:C
Page 5
Comchip Technology CO., LTD.
ADI Reference Circuit
京公网安备 11010802033920号
EEWORLD
