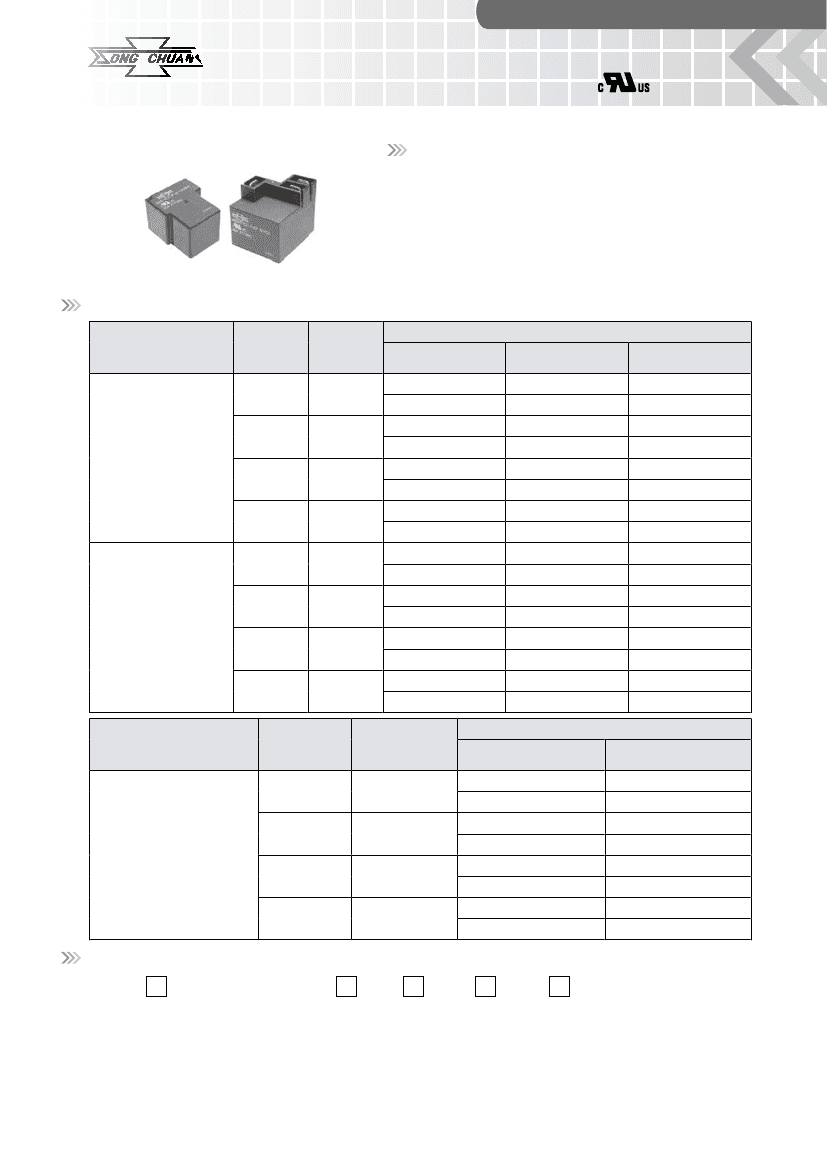

SONG CHUAN
805
Features
Optional for open frame, dust cover, sealed type and
with/without quick terminal on top.
High rating 20A 240VAC.
Ideal for home appliances application, specially for
heating control use.
Complies with RoHS-Directive 2011/65/EU.
Type List
Terminal
style
Contact
form
1A
(SPNO)
1C
(SPDT)
PCB terminal
1A
(SPNO)
1C
(SPDT)
1A
(SPNO)
1C
(SPDT)
1A
(SPNO)
1C
(SPDT)
Terminal
style
Contact
form
1A
(SPNO)
1C
(SPDT)
1A
(SPNO)
1C
(SPDT)
F
F
----
----
F
F
Insulation
system
----
-----
Flux tight
805-1AC-C
805-1AH-C
805-1CC-C
805-1CH-C
805-1AC-F-C
805-1AH-F-C
805-1CC-F-C
805-1CH-F-C
805WP-1AC-C
805WP-1AH-C
805WP-1CC-C
805WP-1CH-C
805WP-1AC-F-C
805WP-1AH-F-C
805WP-1CC-F-C
805WP-1CH-F-C
Designation
Sealed type
805-1AC-V
805-1AH-V
805-1CC-V
805-1CH-V
805-1AC-F-V
805-1AH-F-V
805-1CC-F-V
805-1CH-F-V
805WP-1AC-V
805WP-1AH-V
805WP-1CC-V
805WP-1CH-V
805WP-1AC-F-V
805WP-1AH-F-V
805WP-1CC-F-V
805WP-1CH-F-V
Sealed type
washable
805-1AC-S
805-1AH-S
805-1CC-S
805-1CH-S
805-1AC-F-S
805-1AH-F-S
805-1CC-F-S
805-1CH-F-S
805WP-1AC-S
805WP-1AH-S
805WP-1CC-S
805WP-1CH-S
805WP-1AC-F-S
805WP-1AH-F-S
805WP-1CC-F-S
805WP-1CH-F-S
WP (PCB terminal &
Quick terminal)
Insulation
system
----
-----
F
F
Designation
Flux tight
Sealed type washable
(with shroud)
(with shroud)
805WP-1AC-CF
805WP-1AC-SF
805WP-1AH-CF
805WP-1CC-CF
805WP-1CH-CF
805WP-1AC-F-CF
805WP-1AH-F-CF
805WP-1CC-F-CF
805WP-1CH-F-CF
805WP-1AH-SF
805WP-1CC-SF
805WP-1CH-SF
805WP-1AC-F-SF
805WP-1AH-F-SF
805WP-1CC-F-SF
805WP-1CH-F-SF
WP (PCB terminal &
Quick terminal)
Ordering Information
805
1
1. 805
-
2
1A
3
C
4
-
5
-
6
3. 1A
1C
4. C
H
-
7
8
-- Single pole normally open
-- Single pole double throw
-- Contact material AgNi
-- Contact material AgSnO
-- Basic series designation
2. Blank -- PCB terminal
W
-- Quick terminal (only for C1 cover)
WP
-- PCB terminal & Quick terminal
131
SONG CHUAN
805
5. Blank -- Standard type
F
-- Class F
6. Blank
C
V
S
CF
-- Open type
-- Flux tight
-- Sealed type
-- Sealed type washable
-- Flux tight with shroud
SF
C1
S1
-- Sealed type washable with shroud
-- With flanged cover
-- Sealed type washable with flanged cover
7. Blank -- Standard type
B
-- With insulation barrier
8.
-- Coil voltage (please refer to the
coil rating data for the availability)
20A 240VAC
Contact Rating
Resistive load
Coil Rating (DC)
Rated
voltage
(V)
5
6
9
12
18
24
36
48
110
Rated current
r10
% at 23°C
(mA)
139
118
78
58
39
29
19
15
6
Coil resistance Max. continuous
r10
% at 23°C
(:)
36
51
116
206
463
823
1,851
3,291
17,286
130 % of
rated
voltage
75 % of
rated
voltage
10 % of
rated
voltage
approx. 0.7W
voltage
at 85°C
Pick up
at 23°C
Drop out
at 23°C
Power consumption
at rated
voltage
voltage(Max.) voltage(Min.)
Specification
Contact material
Contact resistance
(1)
Operate time
Release time
(1)
(1)
AgNi / AgSnO alloy
50m
Max. (1A/6VDC by 4 pipes m
meter)
15 ms Max.
10 ms Max.
100 M: Min. (DC 500V)
Between contact and coil
:
6KV 1.2X50
Between open contact
Between contact and coil
Operating extremes
Damage limits
Operating extremes
Damage limits
Mechanical
10
10
10G
100G
10,000,000 operations
(frequency 18,000 operations/hr)
100,000 operations (for NO contact)
(frequency 900 operations/hr)
-40
+85°C (no freezing)
S
:
1000Vrms 50/60Hz 1min.
:
2500Vrms 50/60Hz 1min
55Hz , amplitude 1.5 mm
55Hz , amplitude 1.5 mm
Insulation resistance
(1)
Surge voltage withstand
Dielectric strength
(1)
Vibration resistance
Shock resistance
Life expectancy
Electrical
Operating ambient temperature
Weight
Note
Approx. 22 g (open type), 27g (with cover), 36g (WP) , 38g (W)
(1) Initial value. Operate and release time excluding contact bounce.
Safety Approval
Certified
File No.
UL / CUL
E88991
132

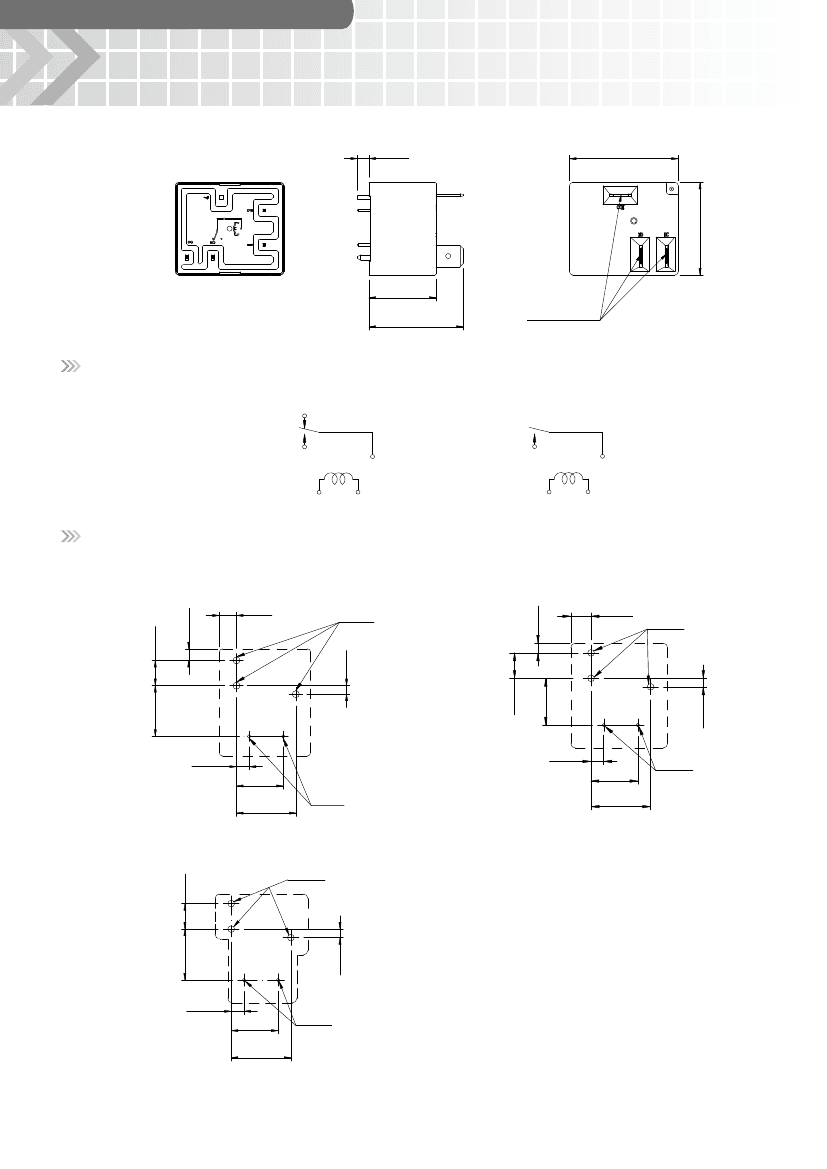

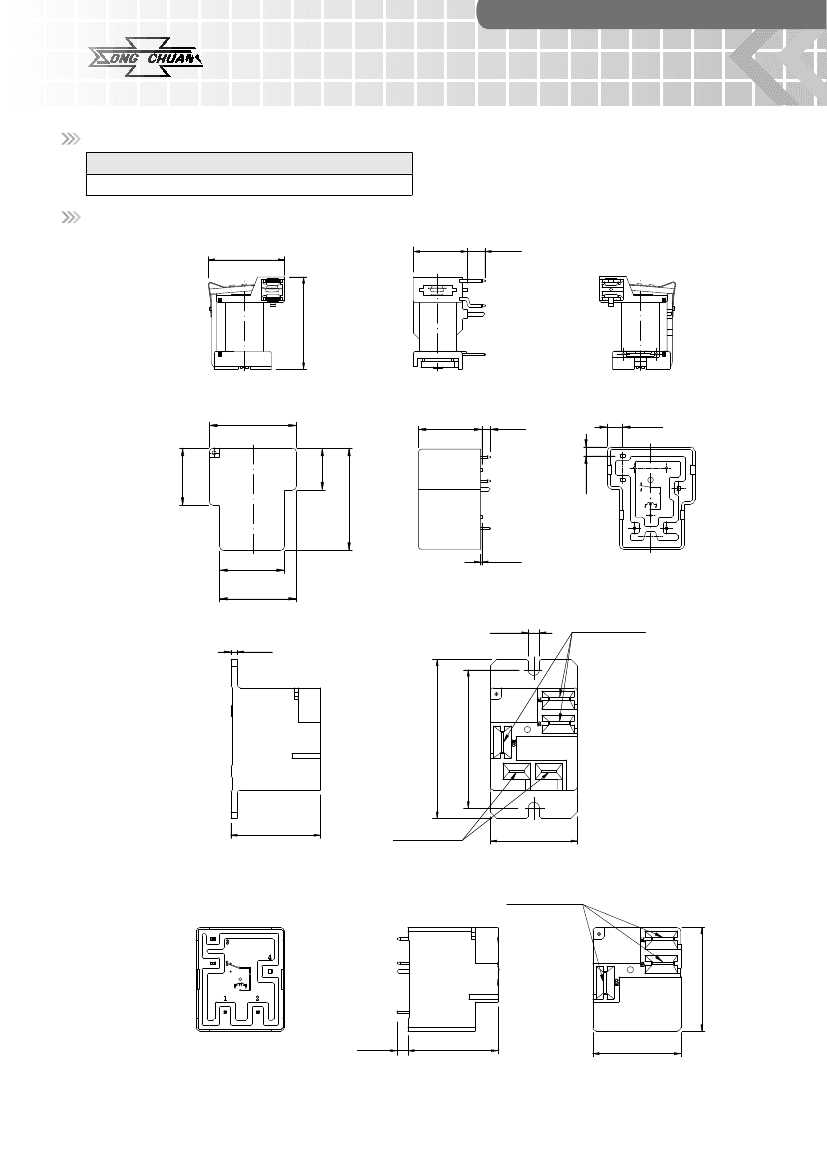

SONG CHUAN
805
Engineering Data

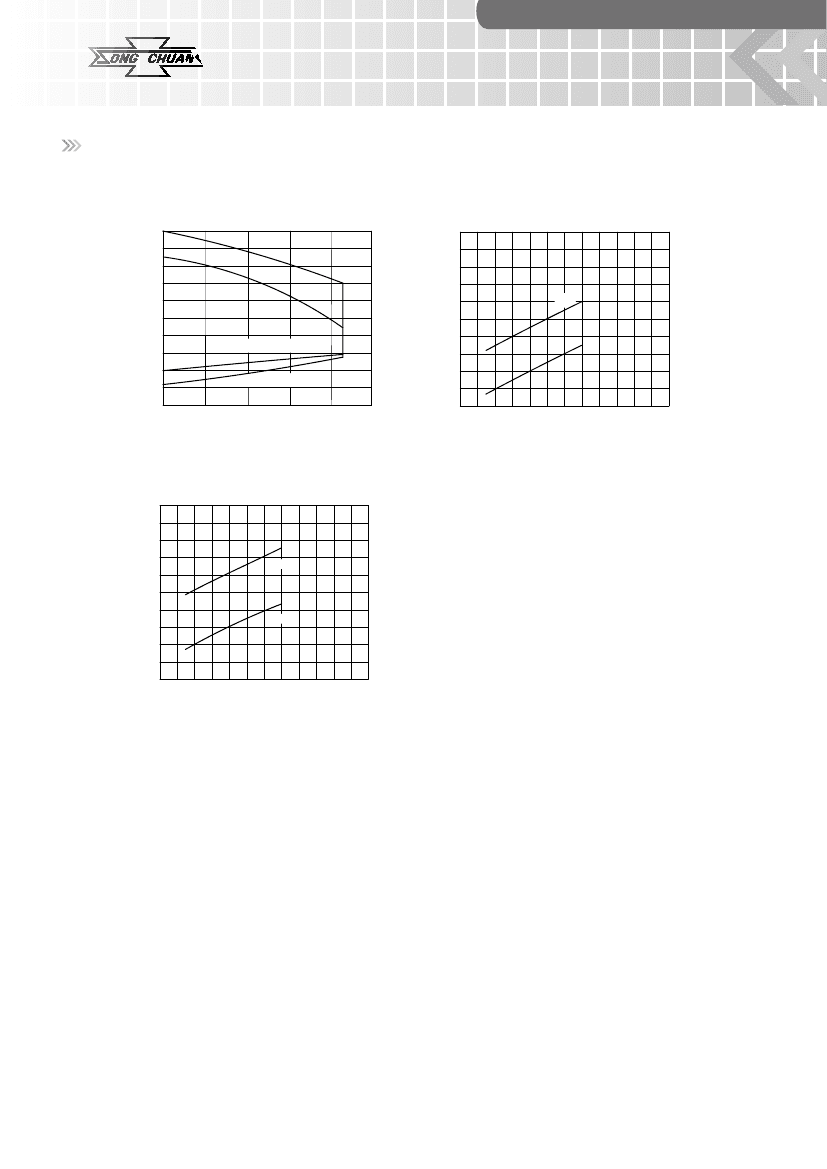

Coil operating range
240
220
200
0A
20A
120
110
Coil temperature rise
180
160
140
120
Temperature rise (°C)
100
90
80
70
60
50
40
20A
Coil voltage (%)
witrh coil voltage 100%
100
80
without coil voltage
60
0
20
40
60
80
100
0A
30
20
60
80
100
120
140
160
180
Ambient temperature (°C)
% of Nominal coil voltage (at 23°C)
Coil temperature rise
100
90
80
Temperature rise (°C)
70
60
50
40
20A
0A
30
20
10
0
60
80
100
120
140
160
180
% of Nominal coil voltage (at 85°C)
————
All specifications subject to change.
Please contact Song Chuan for update.
————
135
