8D523M53HB

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size373KB,2 Pages
ManufacturerSOURIAU
Download Datasheet Parametric Compare View All

8D523M53HB Overview

MIL Series Connector,

8D523M53HB Parametric

Parameter NameAttribute value
MakerSOURIAU
Reach Compliance Codeunknown
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Composite
: Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles

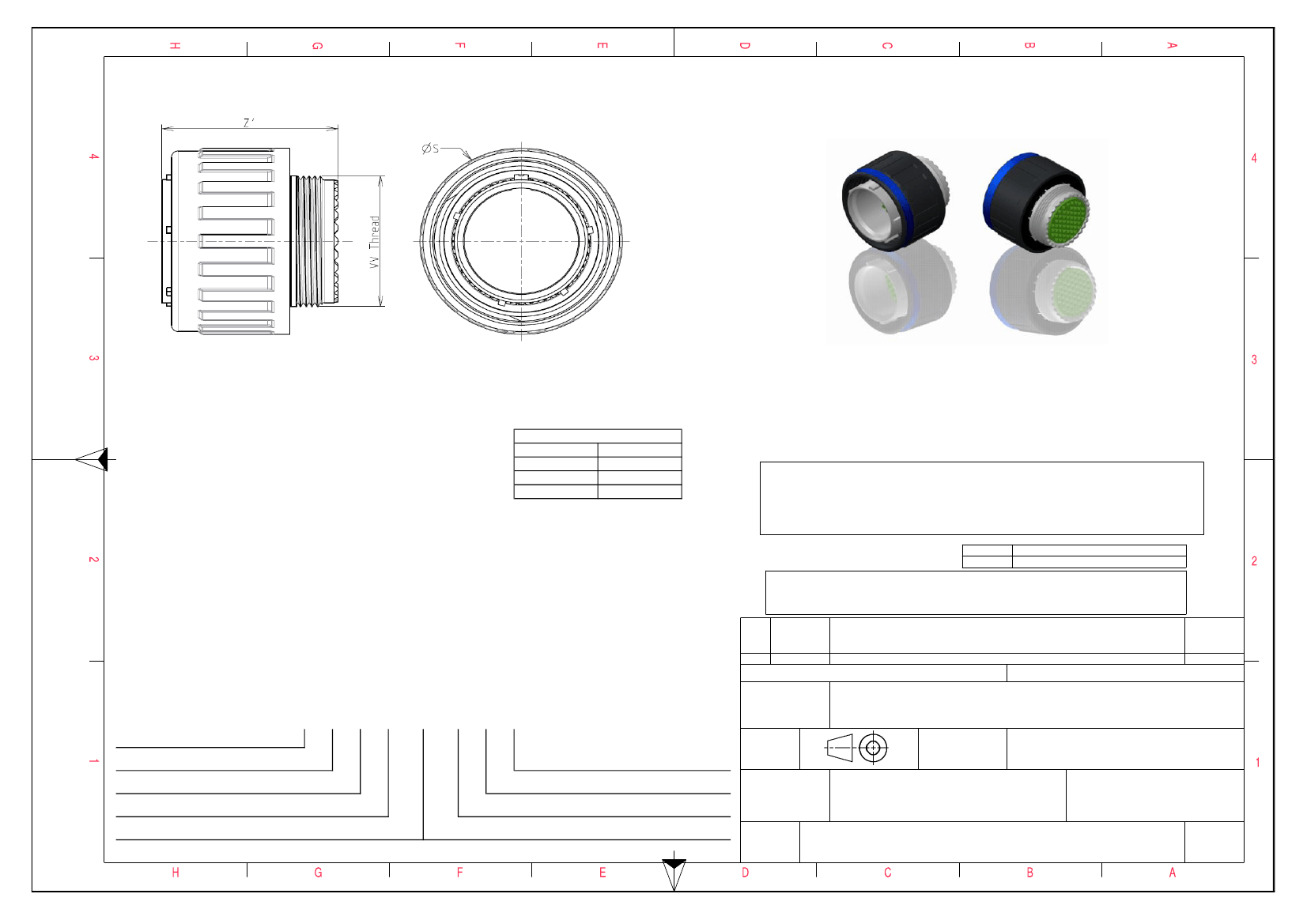

Connector dimension
Dim
Nominal
ØS
44.9 Max
Z'
31.5 Max
VV THREAD
M34x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
: -65°C to +200°C
: 2000 hours
PN: 8D523M53HB
A
ISS
07-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Plug with RFI Shielding
CONTACT TYPE
SHELL SIZE : 23
PLATING
:
M =
Nickel
: Standard Crimp Contact
ORIENTATION : B
CONTACT TYPE : PIN (1500 Matings)

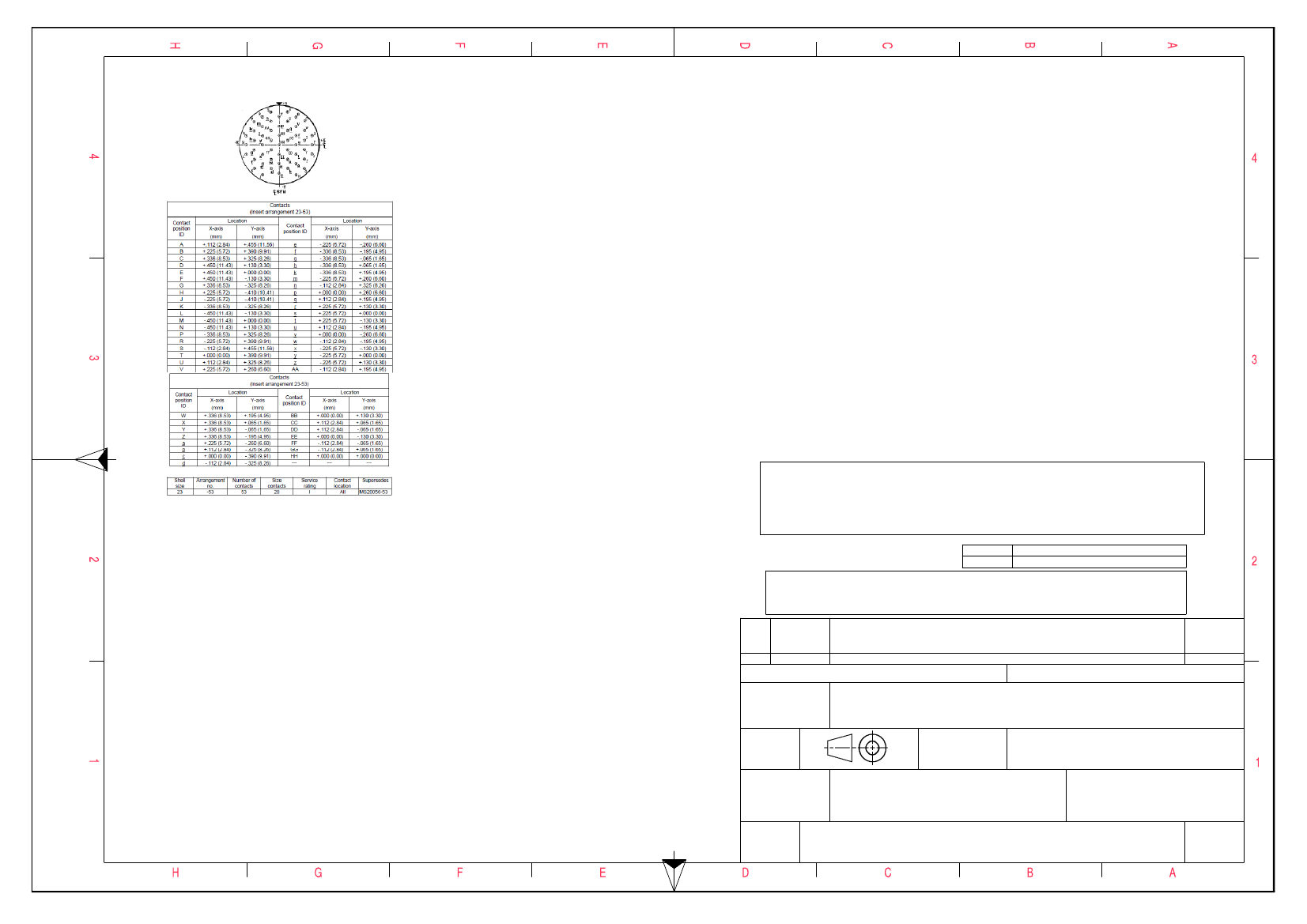

CONTACT LAYOUT : 23-53
FORMAT
Composite Plug 8D series
General linear
Tolerances:
±--
8D
5
-
23
M
53
H
B
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D523M53HB-C
SHEET
1/2
