SSR40KE200TXV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SSR40KE200TXV

SSR40KE200TXV: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon, HERMETIC SEALED, SEDPACK-1; CategoryDiscrete semiconductor diode; File Size1MB，7 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SSR40KE200TXV Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon, HERMETIC SEALED, SEDPACK-1

SSR40KE200TXV Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	HERMETIC SEALED, SEDPACK-1
Contacts	1
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	S-CSSO-G1
Maximum non-repetitive peak forward current	500 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	40 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	SMALL OUTLINE
Guideline	MIL-19500
Maximum repetitive peak reverse voltage	200 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE

Preview

Download Datasheet

View All

HIGH VOLTAGE

SCHOTTKY RECTIFIERS

Solid State Devices, Inc. (SSDI) is excited to release its new high voltage, low V

schottky rectifiers for the

military and aerospace industries. The examples below feature 40 - 80 amp, 150 - 200 volt schottky rectifiers

with TX, TXV, & S level screening available. Screening is based on MIL-PRF-19500. Screening flows are avail-

able on request. Contact us today for samples or more information about our high reliability schottky devices.

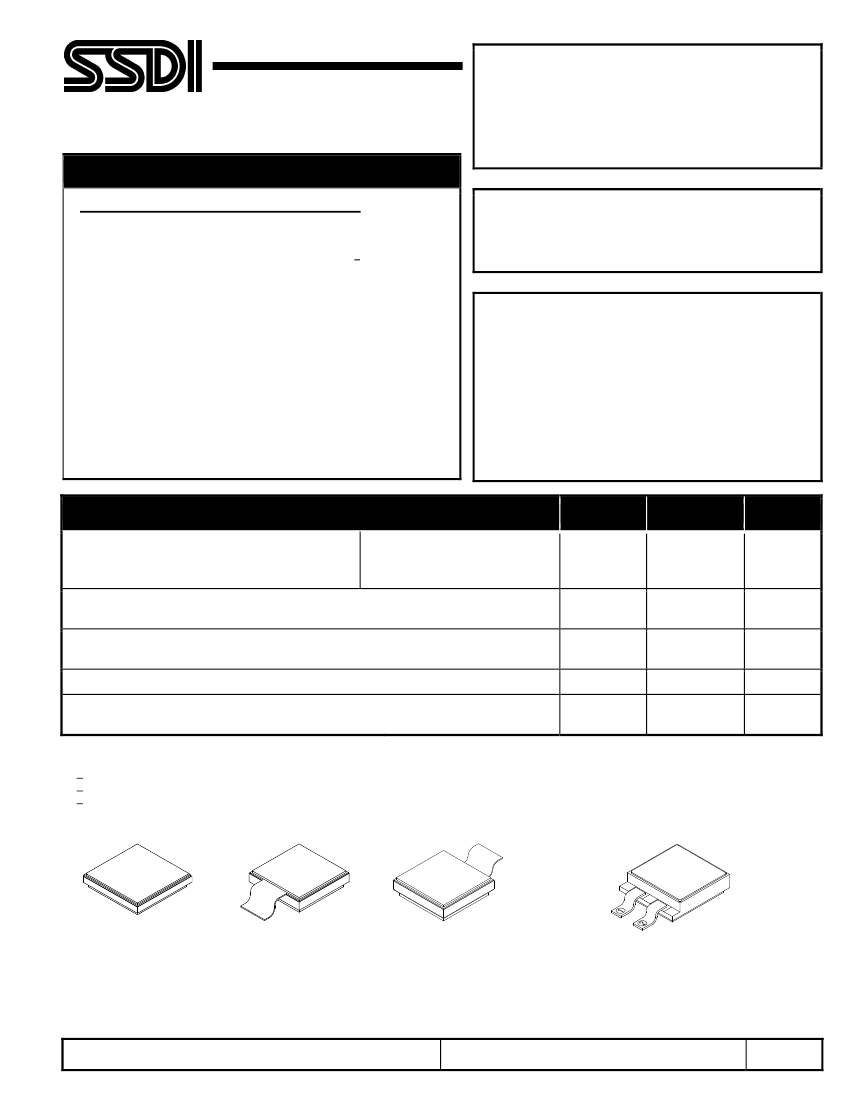

SED40KB200 & SSR40G200 Series

150 - 200 Volts, 40 Amps

Power Schottky Diode

▪

Low forward voltage drop: 0.95V max @ 40A, 25°C

▪

Low reverse leakage

▪

Hermetically sealed surface mount package

▪

Guard ring for overvoltage protection

▪

Eutectic die attach

▪

TX, TXV, and S level screening available

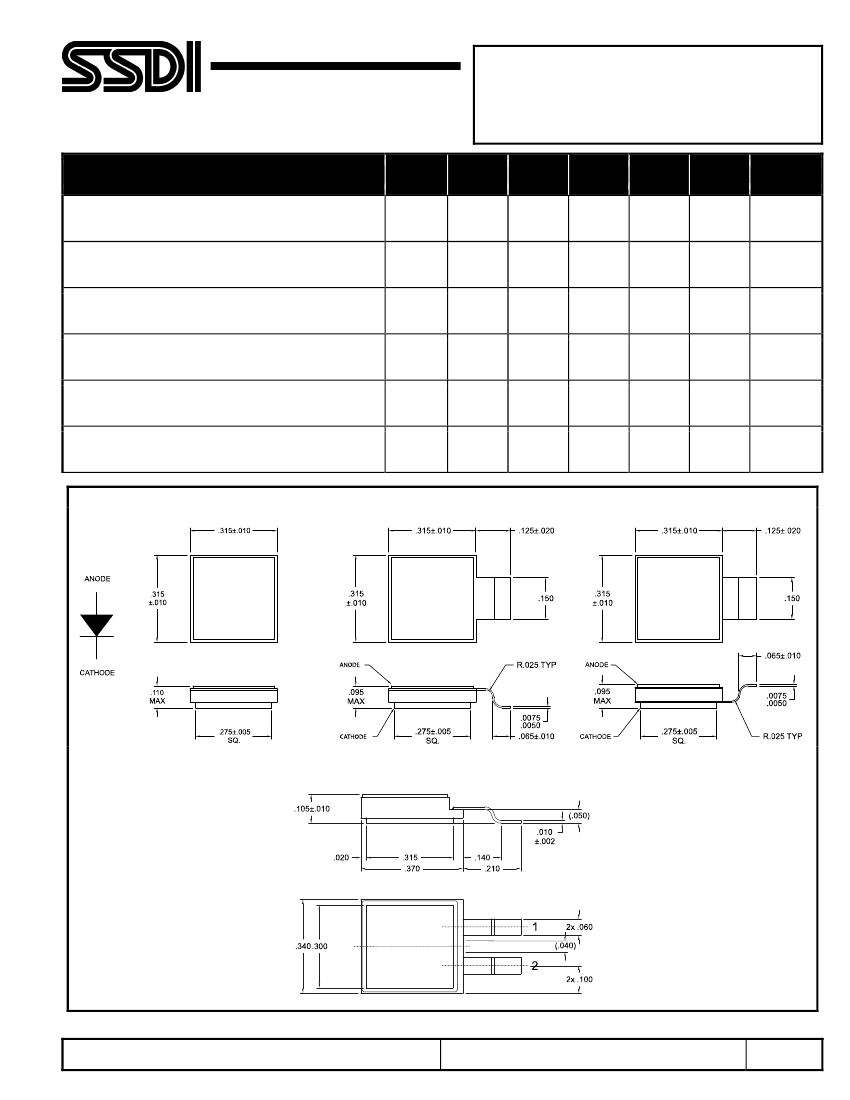

Sedpack 2 (KB)

Sedpack 2 with lead (KE)

*also available in

reverse polarity (KF)

Cerpack (G)

SSR40150J & SSR40200J

150 - 200 Volts, 40 Amps

Schottky Rectifier

▪

Low forward voltage drop: 1.1V max @ 40A, 25°C

▪

High surge rating

▪

Low reverse leakage current

▪

Low junction capacitance

▪

Isolated hermetically sealed package

▪

Ultrasonic aluminum wire bonds

▪

Custom lead forming available

▪

TX, TXV, and S level screening available

TO-257 (J)

SSR80150CTM & Z thru SSR80200CTM & Z

150 - 200 Volts, 80 Amps

Schottky Centertap Rectifier

▪

Low forward voltage drop: 1.05V max @ 40A, 25°C

▪

High surge rating

▪

Low reverse leakage current

▪

Low junction capacitance

▪

Isolated hermetically sealed package

▪

Ultrasonic aluminum wire bonds

▪

Ceramic seal for improved reliability available

▪

TX, TXV, and S level screening available

TO-254 (M)

TO-254Z (Z)

Solid State Devices, Inc.

▪

14701 Firestone Blvd. La Mirada, CA 90638

▪

(562) 404-4474

▪

FAX (562) 404-1773

▪

www.ssdi-power.com
