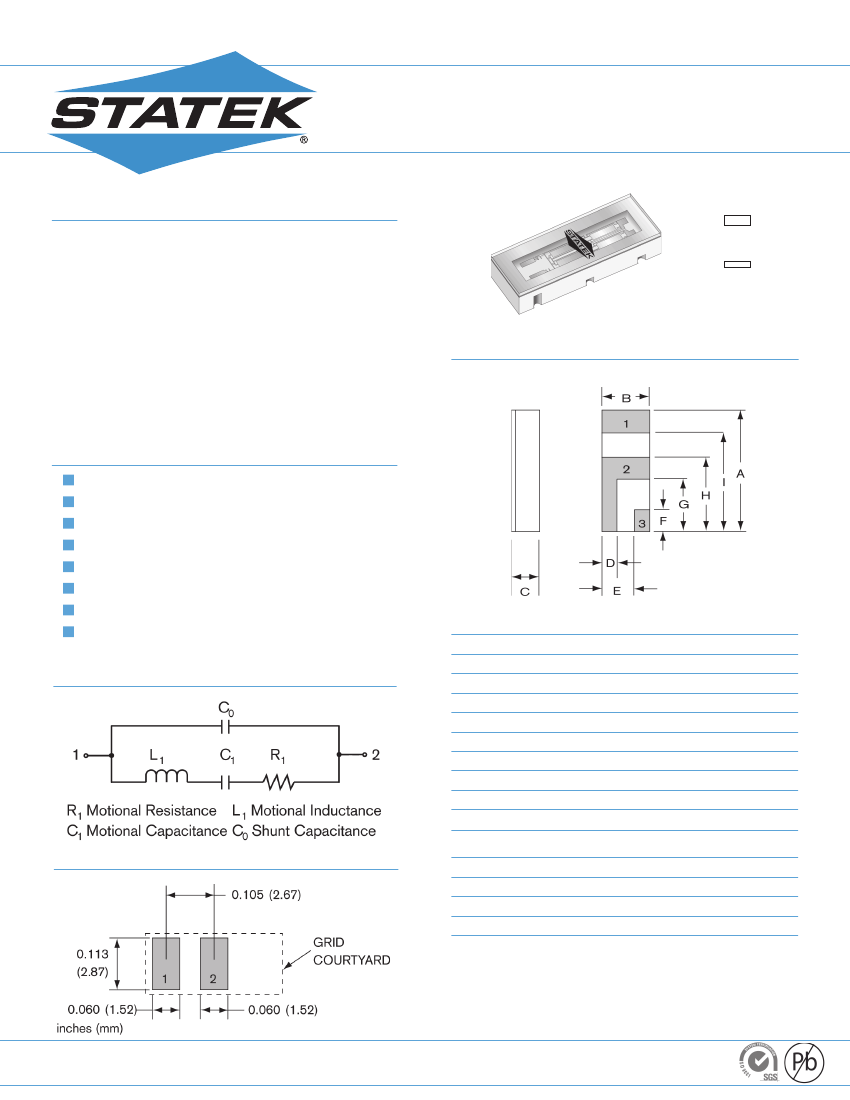

CX2VSM CRYSTAL
16 kHz to 600 kHz
Miniature Surface Mount
Quartz Crystal for Pierce Oscillators
DESCRIPTION
The CX2VSM quartz crystals are leadless devices
designed for surface mounting on printed circuit boards
or hybrid substrates. These miniature crystals are
intended to be used in Pierce oscillators. They are
hermetically sealed in a rugged, miniature ceramic
package. They are manufactured using the STATEK-
developed photolithographic process, and were
designed utilizing the experience acquired by producing
millions of crystals for industrial, commercial, military and
medical applications. Maximum process temperature
should not exceed 260
O
C.
FEATURES
Actual size
Side view
Glass Lid Shown
PACKAGE DIMENSIONS
Miniature tuning fork design
High shock resistance
Designed for low power applications
Compatible with hybrid or PC board packaging
Low aging
Full military testing available
Ideal for battery operated applications
Designed and manufactured in the USA
EQUIVALENT CIRCUIT
TYP.
DIM
A
B
C
D
E
F
G
H
I
inches
0.260
0.094
-
0.035
0.059
0.050
0.105
0.155
0.210
mm
6.60
2.39
-
0.89
1.50
1.27
2.67
3.94
5.33
inches
0.275
0.108
0.045
0.069
0.060
0.115
0.165
0.220
MAX.
mm
6.99
2.74
1.14
1.75
1.52
2.92
4.19
5.59
see below
SUGGESTED LAND PATTERN
DIM “C”
MAX
SM1
SM2/SM4
SM3/SM5
GLASS LID
inches
0.065
0.067
0.070
mm
1.65
1.70
1.78
CERAMIC LID
inches
0.075
0.077
0.080
mm
1.91
1.96
2.03
Note: Terminal 1 is electrically connected internally to terminal 3
10134 - Rev C
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com

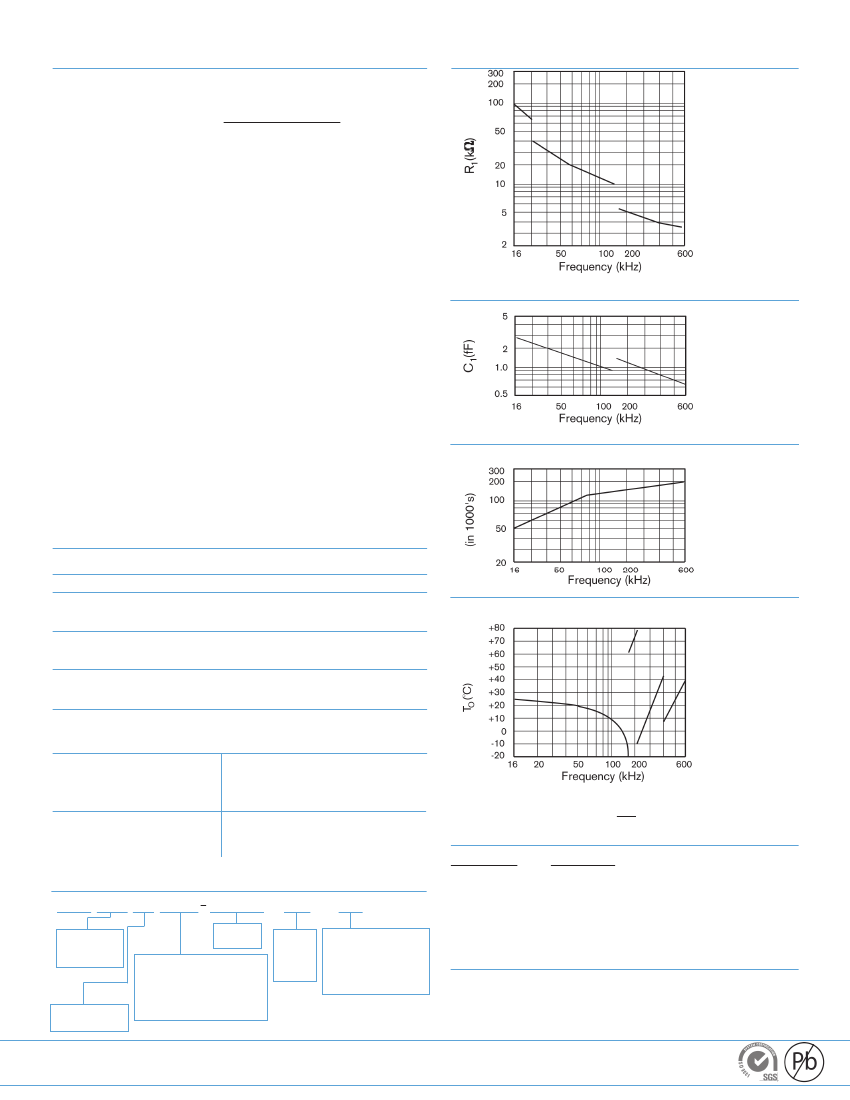

SPECIFICATIONS
FIGURE 1
CX2V TYPICAL MOTIONAL RESISTANCE (R
1
)
Specifications are typical at 25
O
C unless otherwise noted.
Specifications are subject to change without notice.
Frequency Range
16 kHz to 600 kHz
Functional Mode
Tuning Fork (Flexure)
Standard Calibration Tolerance
1
(see table below)
Motional Resistance, (R
1
) See Figure 1
MAX: 16-24.9 kHz, 2x Typ.
25-600 kHz, 2.5x Typ.
Motional Capacitance, (C
1
) Figure 2
Quality Factor, (Q)
Figure 3
MIN is 0.25x Typ.
Shunt Capacitance, (C
0
)
2.0 pF MAX.
Drive Level
16-24.9 kHz 0.5
µW
MAX
25-600 kHz 1.0
µW
MAX
2
Turning Point, (T
0
)
Figure 4
Temperature Coefficient, (k) -0.035 ppm/
O
C
2
Aging, first year
5 ppm MAX
3
Shock, survival
1,500 g, 0.3 ms,
1
/
2
sine
3
Vibration, survival
10 g RMS, 20-2,000 Hz random
Operating Temp. Range
-10
O
C to +70
O
C (Commercial)
-40
O
C to +85
O
C (Industrial)
-55
O
C to +125
O
C (Military)
Storage Temp. Range
-55
O
C to +125
O
C
Max Process Temperature 260
O
C for 20 sec.
1. Tighter frequency calibration available.
2. Other turning point available.
3. Higher shock and vibration available.
FIGURE 2
CX2V TYPICAL MOTIONAL CAPACITANCE (C
1
)
FIGURE 3
CX2V TYPICAL QUALITY FACTOR
(Q)
CX2V Standard Calibration T
olerance at 25
0
C
Frequency Range (kHz)
16-74.9
30 ppm
(0.003%)
+
_
+
_
75-169.9
50 ppm
(0.005%)
+
_
+
_
170-249.9
+
_
250-600
+
_
FIGURE 4
CX2V TYPICAL TURNING POINT TEMP (T
0
)
.
100 ppm
(0.01%)
200 ppm
(0.02%)
200 ppm
(0.02%)
500 ppm
(0.05%)
100 ppm
(0.01%)
100 ppm
(0.01%)
+
_
+
_
+
_
1000 ppm
(0.1%)
+
_
1000 ppm
(0.1%)
+
_
2000 ppm
(0.2%)
+
_
5000 ppm
(0.5%)
Load Capacitance (C
L
), Used to Calibrate CX2V
(other C
L
available)
Frequency Load
Range
Capacitance
(kHz)
(pF)
16-24.9
25-54.9
55-100.0
CX2V
S
Frequency
Range
(kHz)
100.1-179.9
180-600
Load
Capacitance
(pF)
5
4
10
9
8
C
SM1
Note: Frequency f at temperature T is related to frequency f
0
at
turning point temperature T
0
by:
f-f
2
0
=
k(T-T
0
)
TERMINATIONS
f
0
HOW TO ORDER CX2VSM CRYSTALS
32.768K
Frequency
K = kHz
SM1 = Gold Plated (Lead Free)
SM2 = Solder Plated
SM3 = Solder Dipped
SM4 = Solder Plated (Lead Free)
SM5 = Solder Dipped (Lead Free)
,
30
Calibration
Tolerance
@ 25
O
C
(in ppm)
/
I
“S” if special or
custom design.
Blank if Srd.
Operating Temp. Range:
C = -10
O
C to +70
O
C
I
= -40
O
C to +85
O
C
M = -55
O
C to +125
O
C
S = Customer Specified
Designation
SM1
SM2
SM3
SM4
SM5
CX2VSM
Termination
Gold Plated (Lead Free)
Solder Plated
Solder Dipped
Solder Plated (Lead Free)
Solder Dipped (Lead Free)
- Tray Pack
-16mm tape, 7” or 13” reels
PACKAGING OPTIONS
Blank = Glass Lid
C = Ceramic Lid
(Reference tape and reel data sheet 10109)
10134 - Rev C
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
