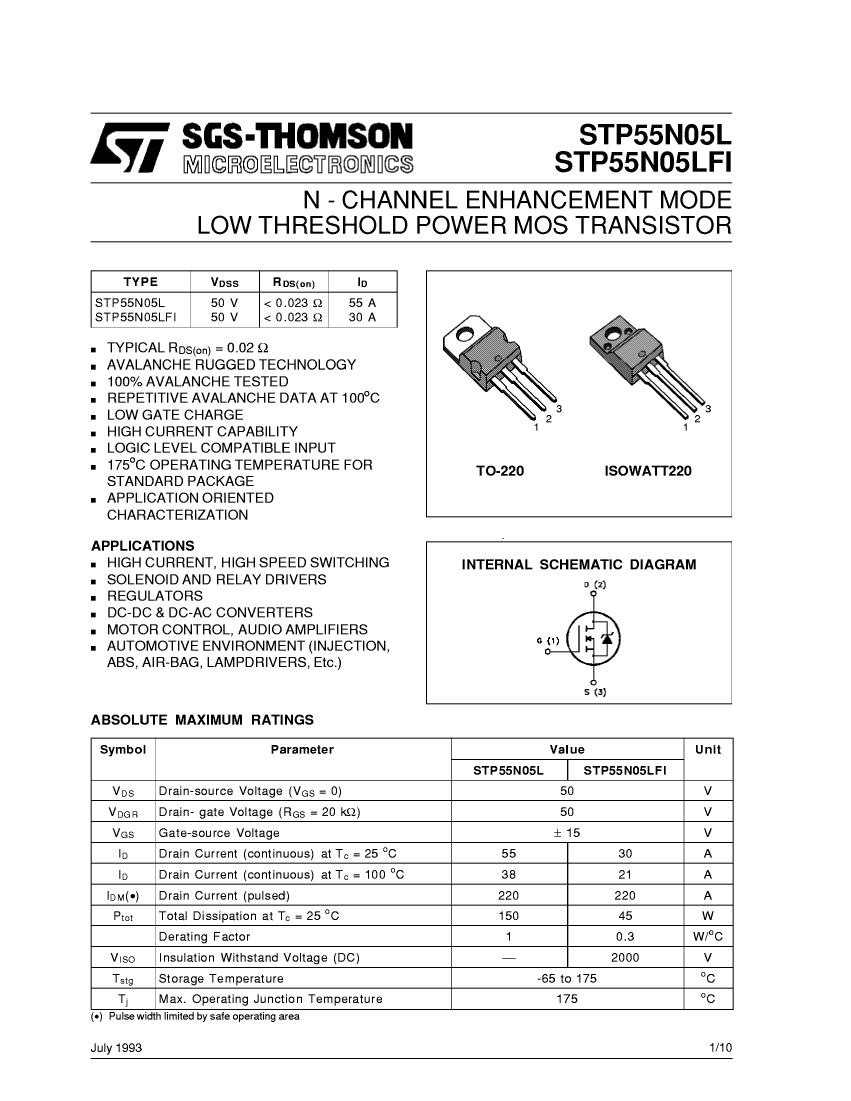

STP55N05LFI: Description30A, 50V, 0.023ohm, N-CHANNEL, Si, POWER, MOSFET, ISOWATT220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size342KB，10 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

STP55N05LFI Overview

30A, 50V, 0.023ohm, N-CHANNEL, Si, POWER, MOSFET, ISOWATT220, 3 PIN

STP55N05LFI Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	STMicroelectronics
package instruction	ISOWATT220, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	500 mJ
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V
Maximum drain current (Abs) (ID)	30 A
Maximum drain current (ID)	30 A
Maximum drain-source on-resistance	0.023 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	45 W
Maximum pulsed drain current (IDM)	220 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

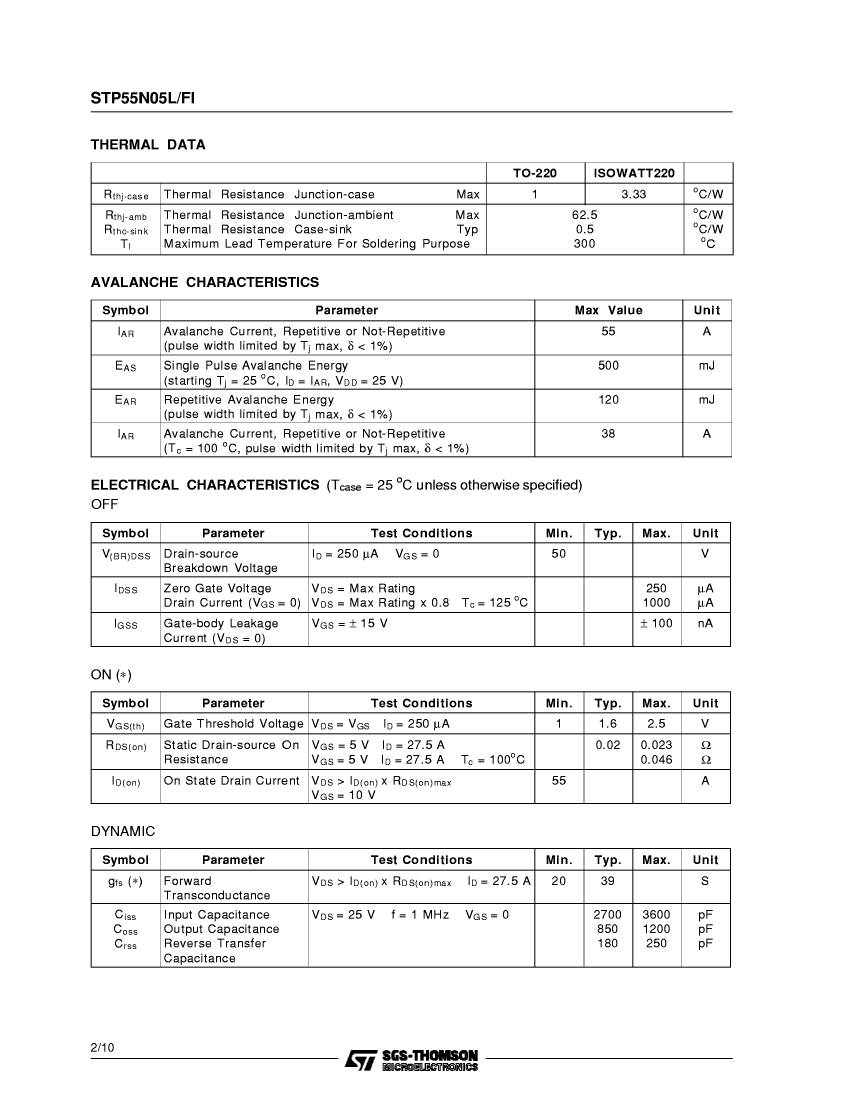

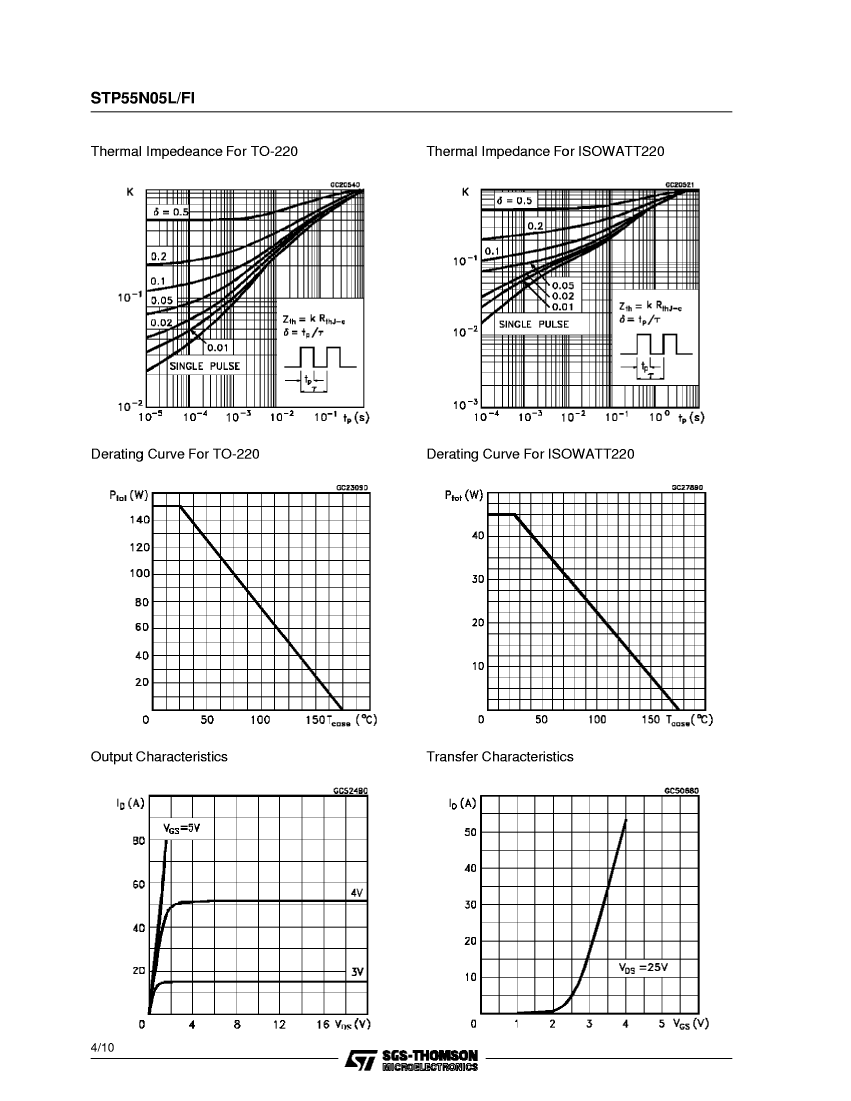

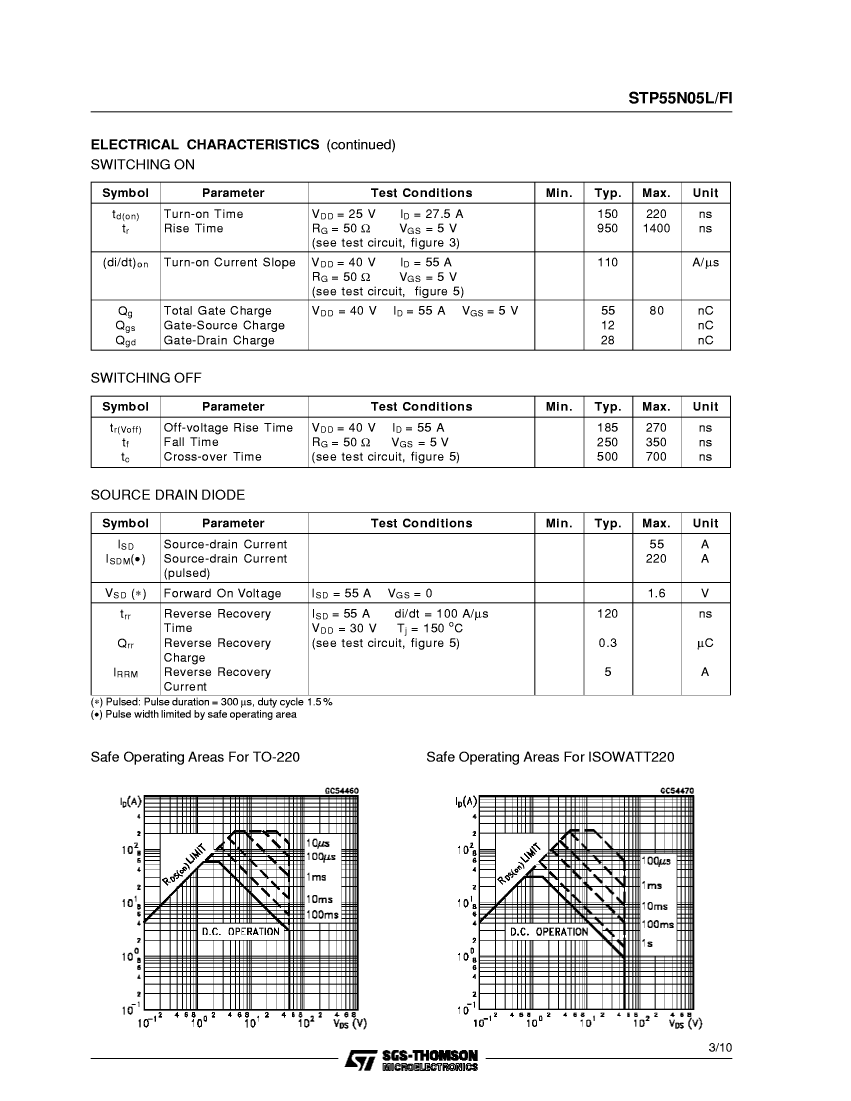

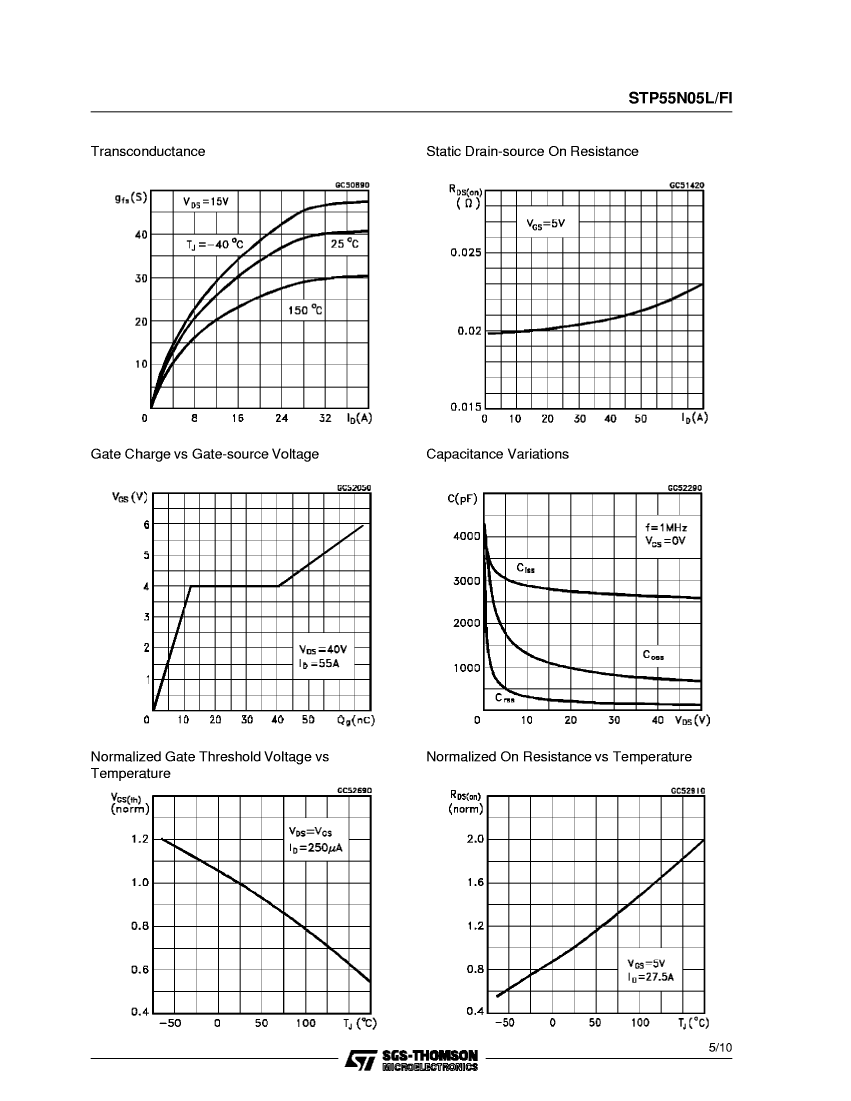

Preview

Download Datasheet

View All

STP55N05LFI Related Products

	STP55N05LFI	STP55N05L
Description	30A, 50V, 0.023ohm, N-CHANNEL, Si, POWER, MOSFET, ISOWATT220, 3 PIN	55A, 50V, 0.023ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220, 3 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics
package instruction	ISOWATT220, 3 PIN	TO-220, 3 PIN
Contacts	3	3
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	500 mJ	500 mJ
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V	50 V
Maximum drain current (Abs) (ID)	30 A	55 A
Maximum drain current (ID)	30 A	55 A
Maximum drain-source on-resistance	0.023 Ω	0.023 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	45 W	150 W
Maximum pulsed drain current (IDM)	220 A	220 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
