A-HDF26PP-TASL-B

Description
D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size100KB,1 Pages
ManufacturerASSMANN
Websitehttps://www.assmann.com/en/about-assmann/

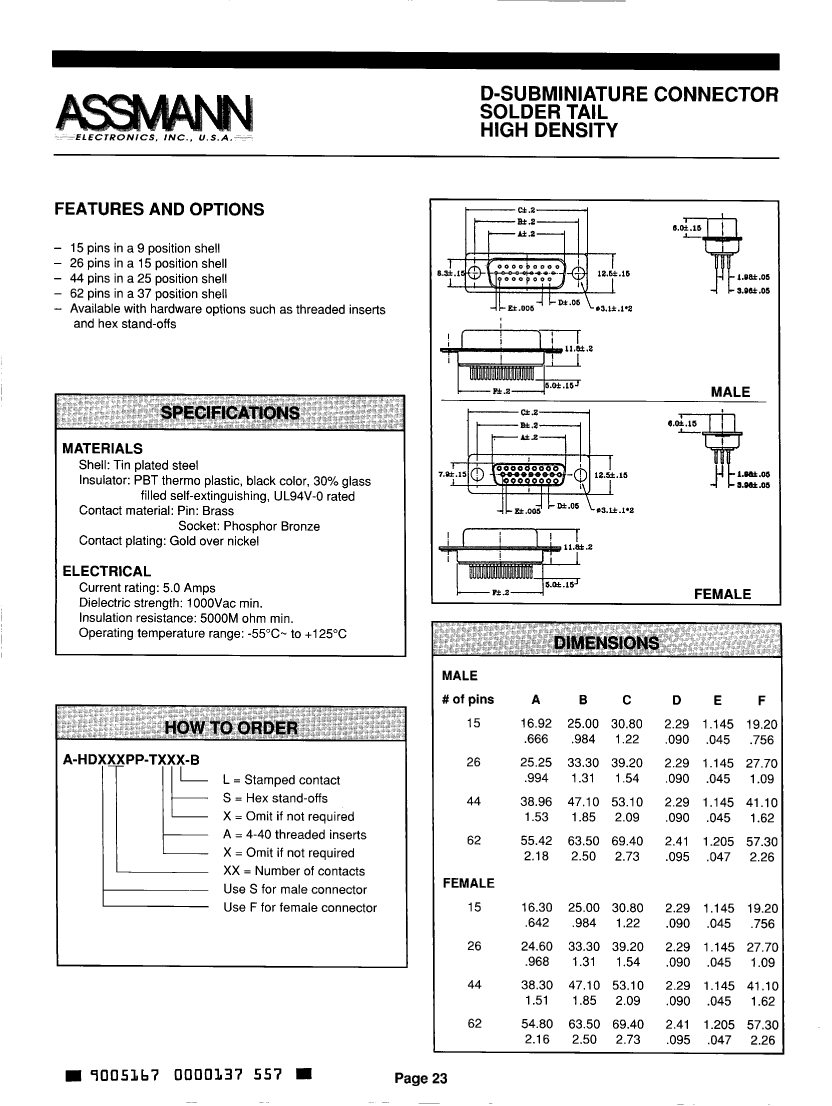

Download Datasheet Parametric View All

A-HDF26PP-TASL-B Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

A-HDF26PP-TASL-B Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerASSMANN
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHEX STAND-OFFS/4-40 THREADED I
body width0.498 inch
subject depth0.228 inch
body length1.54 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberA-HD
Plug contact pitch0.09 inch
Match contact row spacing0.079 inch
Installation option 1#4-40
Installation option 2STANDOFF
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.0066 mm
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.197 inch
Terminal pitch2.286 mm
Termination typeSOLDER
Total number of contacts26
