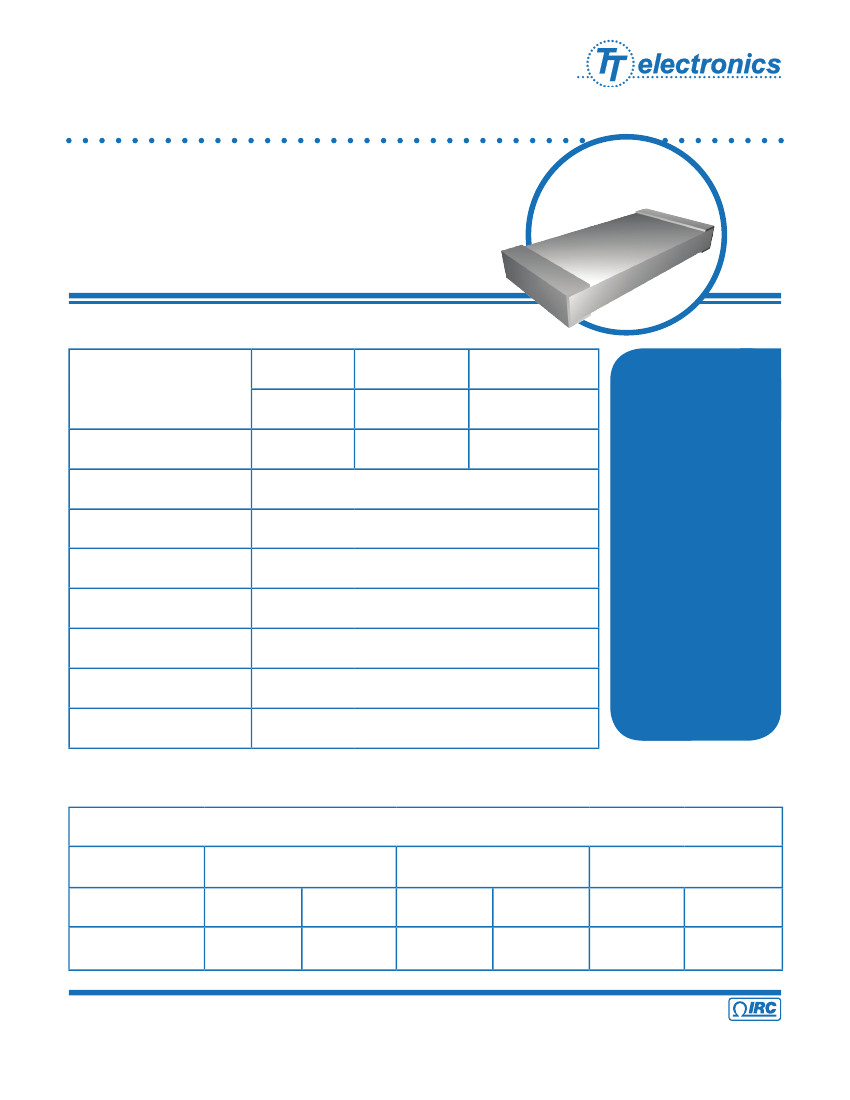

Platinum Temperature
Sensor
RTD Series
•
High stability Platinum based sensor
•
High resolution, accuracy and interchangeability
•
Compatible with automatic placement equipment
•
Wide temperature range - Very fast response time
•
Surface mount package available with SnPb and Pb-free terminations
IRC Advanced Film Division
Electrical Data
P1206
Self Heating
0.13°C /mW
Available Resistances
Resistance Tolerances
Operating Temperature
Range
Temperature Coefficient
Insulation Resistance
Recommended Measuring
Current
Long term Stability (10,000
hours at 125°C)
Termination
* Temperature coefficient in accordance with IEC751
P0805
0.13°C/mW
100Ω
±0.5%, ±1%, ±2%, ±5%
-55°C to +150°C
+3850 ppm/°C
10MΩ minimum at 25°C
≤1mA
<0.05%
60/40 SnPb or 100% Sn
P0603
0.14°C/mW
100Ω
100Ω, 1.0KΩ
The temperature
sensor is a conventional
thin film platinum RTD
in a surface mount
package designed for
temperature sensing,
over-temperature
protection and tempera-
ture compensation in
any application where
printed circuit board
temperature sensing is
desired.
Performance Data
Settling Response Time
P1206
Rapidly Stirred Oil
Air @ 1m/s
0.2s
(t
0.5
)
1.8s
(t
0.5
)
0.6s
(t
0.9
)
6s
(t
0.9
)
0.1s
(t
0.5
)
1.2s
(t
0.5
)
P0805
0.4s
(t
0.9
)
4.2s
(t
0.9
)
0.1s
(t
0.5
)
1.1s
(t
0.5
)
P0603
0.4s
(t
0.9
)
3.7s
(t
0.9
)
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
A subsidiary of
TT electronics plc
RTD Series Issue February 2006
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
Platinum Temperature
Sensor
Physical Data
L
IRC Advanced Film Division
a
TOP
W
BOTTOM
SIDE
b
H
L
P0603
P0805
P1206
0.063”±0.004”
0.081”±0.005”
0.126”±0.006”
W
0.031”±0.004”
0.050”±0.005”
0.063”±0.005”
H
0.020”±0.004”
0.020”±0.006”
0.024”±0.004”
a
0.008”±0.004”
0.016”±0.008”
0.016”±0.008”
b
0.008”±0.004”
0.016”±0.008”
0.016”±0.008”
Ordering Data
RTD
Model
P1206 = 1206 chip with standard SnPb terminations
P1206LF = 1206 chip with Pb-Free terminations
P0805 = 0805 chip with standard SnPb terminations
P0805LF = 0805 chip with Pb-Free terminations
P0603 = 0603 chip with standard SnPb terminations
P0603LF = 0603 chip with Pb-Free terminations
-
P1206
-
43
-
1001
-
D
Temperature Coefficient
42 = +3850 ppm/°C ±100 ppm/°C
43 = +3850 ppm/°C ± 50 ppm/°C
Resistance Code
Standard 4 Digit Resistance Code
Ex: 1000 = 100Ω; 1001 = 1000Ω
Tolerance Code
D= ±0.5%
F= ±1.0%
G=±2.0%
J=±5.0%
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
RTD Series Issue February 2006
