XC6216/XE6216
Series
ETR0321_025
28V Low Power Consumption 150mA Voltage Regulators (with Stand-by Function)
■GENERAL
DESCRIPTION
XC6216/XE6216 series are positive voltage regulator ICs with 28V of operation voltage. The series consists of a voltage
reference, an error amplifier, a current limiter, a thermal shutdown circuit and a phase compensation circuit plus a driver
transistor.
The output voltage is selectable in 0.1V increments within the range of 1.8V to 12V using laser trimming technologies. With
external resistors, the output voltage range can be expanded from 2.0V to 23V. The output stabilization capacitor (C
L
) is also
compatible with low ESR ceramic capacitors.
The over current protection circuit and the thermal shutdown circuit are built-in. These two protection circuits will operate
when the output current reaches current limit level or the junction temperature reaches temperature limit level.
The CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power
consumption.
■APPLICATIONS
●Car
audio, Car navigation systems
●Note
PCs / Tablet PCs
●Mobile
devices / terminals
●Digital
still cameras / Camcorders
●Smart
phones / Mobile phones
●Multi-function
power supplies
■FEATURES
: More than 150mA (200mA limit)
(V
IN
=V
OUT
+3.0V)
Dropout Voltage
: 300mV@I
OUT
=20mA
Input Voltage Range
: 2.0V~28.0V
Output Voltage Range
: 1.8V~12.0V (0.1V increments)
2.0V~23V with external resistors
Fixed Output Accuracy
:±2%
±1%
(V
out
≧2.00V)
±20mV
(V
out
≦1.9V)
Low Power Consumption
: 5μA
Stand-by Current
: Less than 0.1μA
High Ripple Rejection
: 30dB@1kHz
Operating Temperature
: -40℃~+85℃
Low ESR Capacitor
: Ceramic Capacitor Compatible
Built–in Protection
: Current Limit Circuit
Thermal Shutdown Circuit
Operating Ambient Temperature
: -40℃½+85℃
Packages
: SOT-25, SOT-89, SOT-89-5,
USP-6C, SOT-223, TO-252
USP-6B06, SOT-23
Environmentally Friendly
: EU RoHS Compliant, Pb Free
Max Output Current
■
TYPICAL APPLICATION CIRCUIT
■
TYPICAL PERFORMANCE
CHARACTERISTICS
●Output
Voltage vs. Input Volatage
Fixed Output Voltage
XC6216B/XE6216B Series
VIN
VOUT
R
21
CIN
1uF
CE
VSS
VOFB
CL
R
22
100kΩ
1uF
Output Voltage External Setting
XC6216C/XE6216Cシリーズ
XC6216C Series
設定電圧外部設定品
1/49
XC6216/XE6216
Series
■

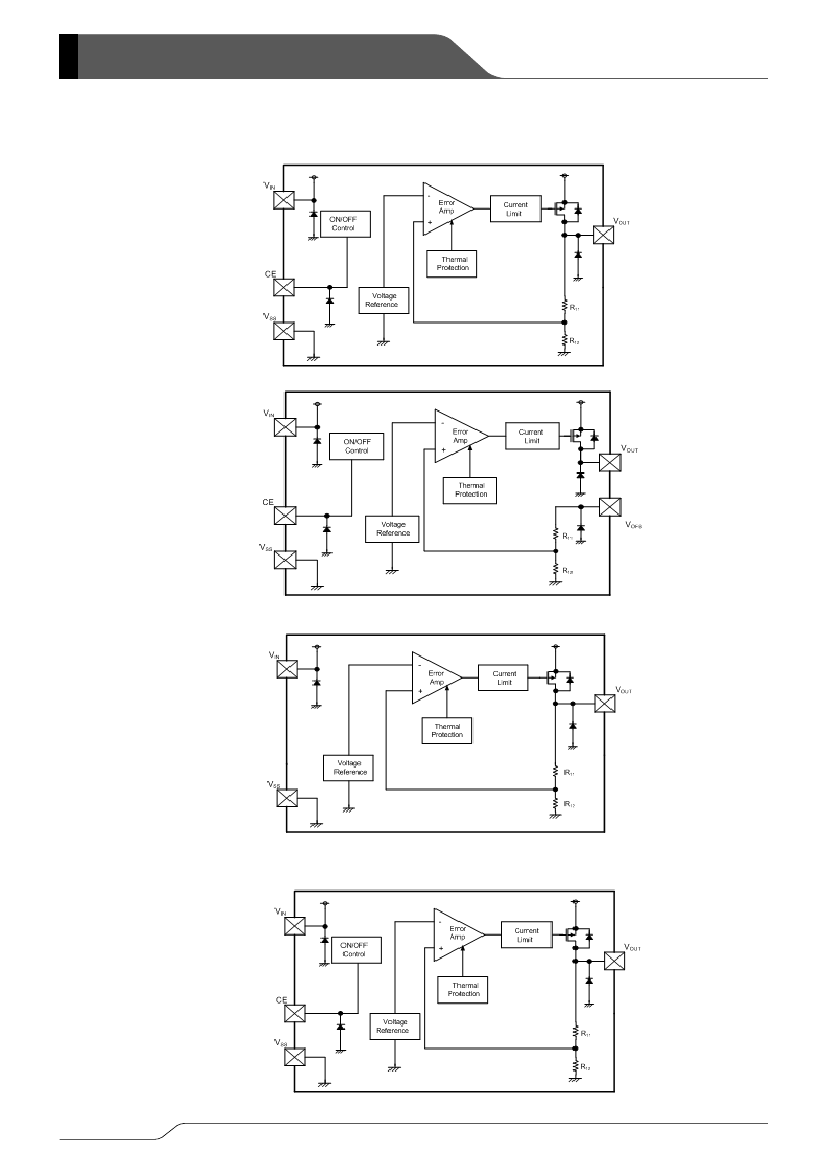

BLOCK DIAGRAMS
●XC6216
Series
●XC6216
Series B Type
●XC6216
Series C Type
●XC6216
Series D Type
●XE6216
Series
●XE6216
Series B Type
*Diodes inside the circuit are an ESD protection diode and parasitic diodes.
2/49
XC6216/XE6216
Series
■PRODUCT
CLASSIFICATION
●Ordering
Information
XC6216①②③④⑤⑥-⑦
(*1)
: CE function (Active High) Fixed output voltage 1.8V~12.0V(0.1V increments)
DESIGNATOR
①
ITEM
Type and Options of
Regulators
SYMBOL
B
C
DESCRIPTION
Fixed output voltage
Output voltage externally set (V
OFB
=2.0V)
(*3)
For the voltage within 1.8V ~9.9V (0.1V increments);
e.g. 2.5V
⇒
25, 5.0V
⇒
50
For the voltage within 10.0V~12.0V (0.1V increments);
e.g. 10.6V
⇒
A6, 11.2V
⇒
B2, 12.0V
⇒
C0
For C type (output voltage externally set), V
OFB
=2.0V only
±2%
V
OUT
≧2.00V：±1%,V
OUT
≦1.9V：±20mV
(*3)
SOT-25 (3,000pcs/Reel)
SOT-25 (3,000pcs/Reel)
SOT-89-5 (1,000pcs/Reel)
SOT-89-5 (1,000pcs/Reel)
USP-6C (3,000pcs/Reel)
USP-6C (3,000pcs/Reel)
USP-6B06 (5,000pcs/Reel)
②③
Output Voltage
18 ~ C0
④
Output Voltage
Accuracy
(*2)
⑤⑥-⑦
(*1)
Packages (Order
Unit)
20
2
1
MR
MR-G
PR
PR-G
ER
ER-G
8R-G
(*1)
(*2)
The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant.
For the Type C, the accuracy is based on V
OFB
voltage. The actual output voltage accuracy is depended on the external resistances.
(*3)
For the Type C and Output Voltage Accuracy±1% (±20mV) do not haveUSP-6B06 package
XC6216D①②③④⑤-⑥
(*1)
: 3 pin regulator (No CE function), Fixed output voltage 1.8V~12.0V(0.1V increments)
DESIGNATOR
①②
ITEM
Output Voltage
Output Voltage
Accuracy
SYMBOL
20 ~ C0
2
1
PR
PR-G
FR
FR-G
JR
JR-G
MR-G
DESCRIPTION
For the voltage within 1.8V~9.9V (0.1V increments);
e.g. 2.5V
⇒
25, 5.0V
⇒
50
For the voltage within10.0V~12.0V (0.1V increments);
e.g. 10.6V
⇒
A6, 11.2V
⇒
B2, 12.0V
⇒
C0
±2%
V
OUT
≧2.00V：±1%,V
OUT
≦1.9V：±20mV
SOT-89 (1,000pcs/Reel)
SOT-89 (1,000pcs/Reel)
SOT-223 (1,000pcs/Reel)
SOT-223 (1,000pcs/Reel)
TO-252 (2,500pcs/Reel)
TO-252 (2,500pcs/Reel)
SOT-23 (3,000pcs/Reel)
③
④⑤-⑥
(*1)
Packages (Order
Unit)
(*1)
The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant.
XE6216B①②③④⑤-⑥
(*1)
: CE function (Active High), Fixed output voltage 2.0V~12.0V(0.1V increments)
Characteristics are guaranteed over the temperature range of -40℃ to 85℃.
DESIGNATOR
①②
ITEM
Output Voltage
Output Voltage
Accuracy
Package (Order Unit)
SYMBOL
20~C0
DESCRIPTION
For the voltage within 2.0V ~9.9V (0.1V increments);
e.g. 2.5V
⇒
25, 5.0V
⇒
50
For the voltage within 10.0V~12.0V (0.1V increments);
e.g. 10.6V
⇒
A6, 11.2V
⇒
B2, 12.0V
⇒
C0
±2%
SOT-89-5 (1,000pcs/Reel)
SOT-89-5 (1,000pcs/Reel)
③
④⑤-⑥
(*1)
(*1)
2
PR
PR-G
The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant.
3/49
XC6216/XE6216
Series

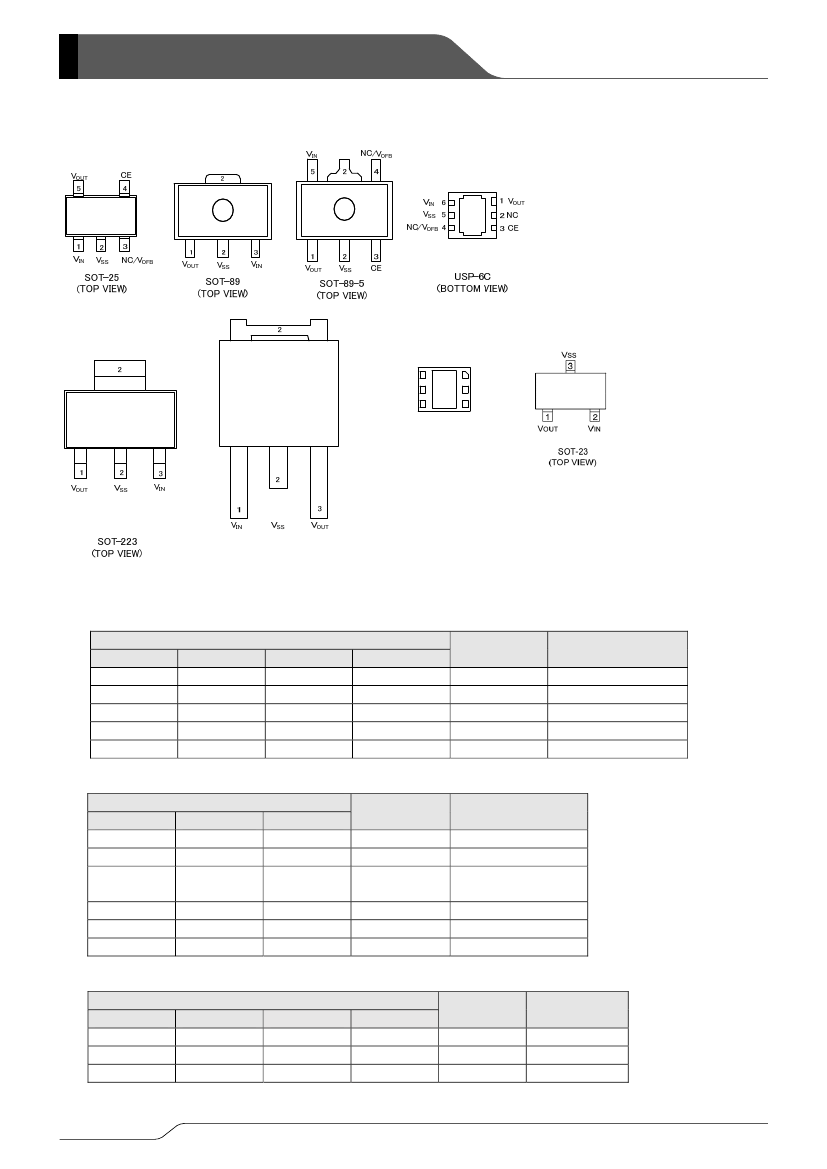

■PIN
CONFIGURATION
* The dissipation pad for the USP-6C and
USP-6B06 packages should be solder-
plated in reference mount pattern and metal
masking so as to enhance mounting
strength and heat release. If the pad
needs to be connected to other pins, it
should be connected to the V
SS
(No. 5) pin.
V
IN
6
V
SS
5
NC
4
1
V
OUT
2
NC
3
CE
USP-6B06
(BOTTOM VIEW)
USP-6B06
(BOTTOM VIEW)
TO-252
(TOP VIEW)
■PIN
ASSIGNMENT
●XC6216
Series B Type
SOT-25
1
2
3
4
5
PIN NUMBER
SOT-89-5
USP-6C
5
6
2
5
4
2,4
3
3
1
1
USP-6B06
6
5
2,4
3
1
PIN NAME
V
IN
V
SS
NC
CE
V
OUT
FUNCTIONS
Power Input
Ground
No connection
ON/OFF Control
Output
●XC6216
Series C Type
SOT-25
1
2
3
4
5
-
PIN NUMBER
SOT-89-5
5
2
4
3
1
-
USP-6C
6
5
4
3
1
2
PIN NAME
V
IN
V
SS
V
OFB
CE
V
OUT
NC
FUNCTIONS
Power Input
Ground
Output Voltage
Adjustment
ON/OFF Control
Output
No connection
●XC6216
Series D Type
SOT-89
3
2
1
PIN NUMBER
SOT-223
TO-252
3
1
2
2
1
3
SOT-23
2
3
1
PIN NAME
V
IN
V
SS
V
OUT
FUNCTIONS
Power Input
Ground
Output
4/49
XC6216/XE6216
Series
■PIN
ASSIGNMENT
●XE6216
Series B Type
PIN
NUMBER
SOT-89-5
1
2
3
4
5
PIN NAME
V
OUT
V
SS
CE
NC
V
IN
FUNCTIONS
Output
Ground
ON/OFF Control
No connection
Power Input
■LOGIC
CONDITION FOR THE PIN
PIN NAME
CE
DESIGNATOR
L
H
OPEN
CONDITIONS
0V≦V
CE
≦0.35V
1.1V≦V
CE
≦28.0V
CE=OPEN
IC OPERATION
OFF
ON
Undefined state
* Please avoid the state of OPEN, and make CE Pin arbitrary fixed potential.
(XC6216 Series B Type, XE6216 Series B Type, XC6216 Series C Type)
■PIN
FUNCTION ASSIGNMENT
SERIES
XC6216 Series B Type/XE6216 Series B Type
XC6216 Series C Type
XC6216 Series D Type
CHIP ENABLE PIN
Available
Available
Not Available
■ABSOLUTE
MAXIMUM RATINGS
●XC6216
Series B Type
PARAMETER
Input Voltage
Output Current
Output Voltage
CE Input Voltage
SOT-25
SOT-89-5
Power Dissipation
USP-6C
USP-6B06
Operating Ambient Temperature
Storage Temperature
*1: Pd > (V
IN
-V
OUT
)×I
OUT
*2: The power dissipation figure shown is PCB mounted and is for reference only.
Please see the power dissipation page for the mounting condition.
SYMBOL
V
IN
I
OUT
V
OUT
V
CE
RATINGS
V
SS
-0.3~+30
300
(*1)
V
SS
-0.3~V
IN
+0.3
V
SS
-0.3~30
250
600 (40mm x 40mm Standard board)
(*2)
500
1300 (40mm x 40mm Standard board)
(*2)
120
1000 (40mm x 40mm Standard board)
(*2)
1250(JEDEC board)
*2)
900 (40mm x 40mm Standard board)
(*2)
-40~+85
-55~+125
UNITS
V
mA
V
V
Pd
mW
(Ta=25℃)
Topr
Tstg
℃
℃
5/49
