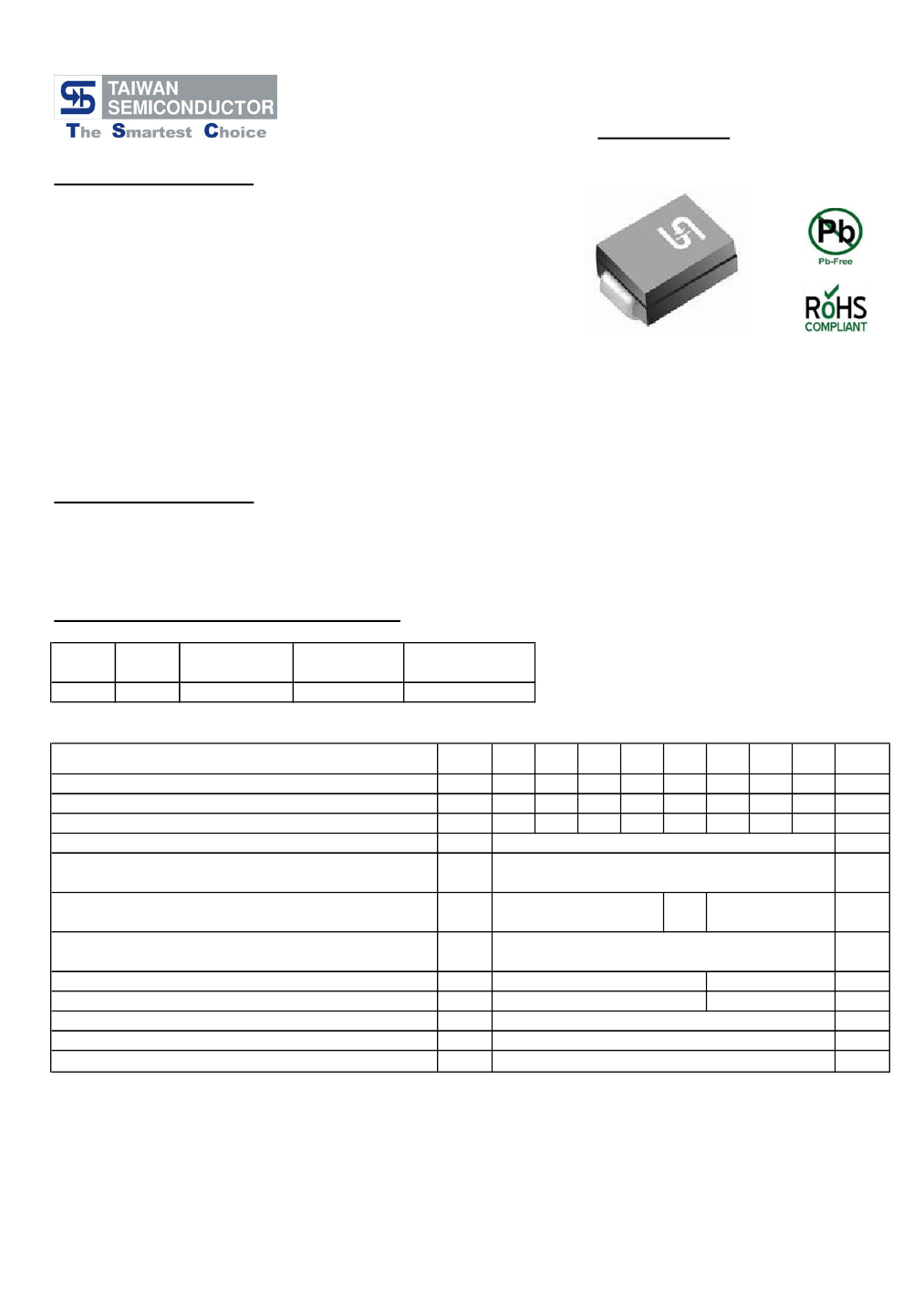

HS3A - HS3M
3.0AMPS High Efficient Surface Mount Rectifiers

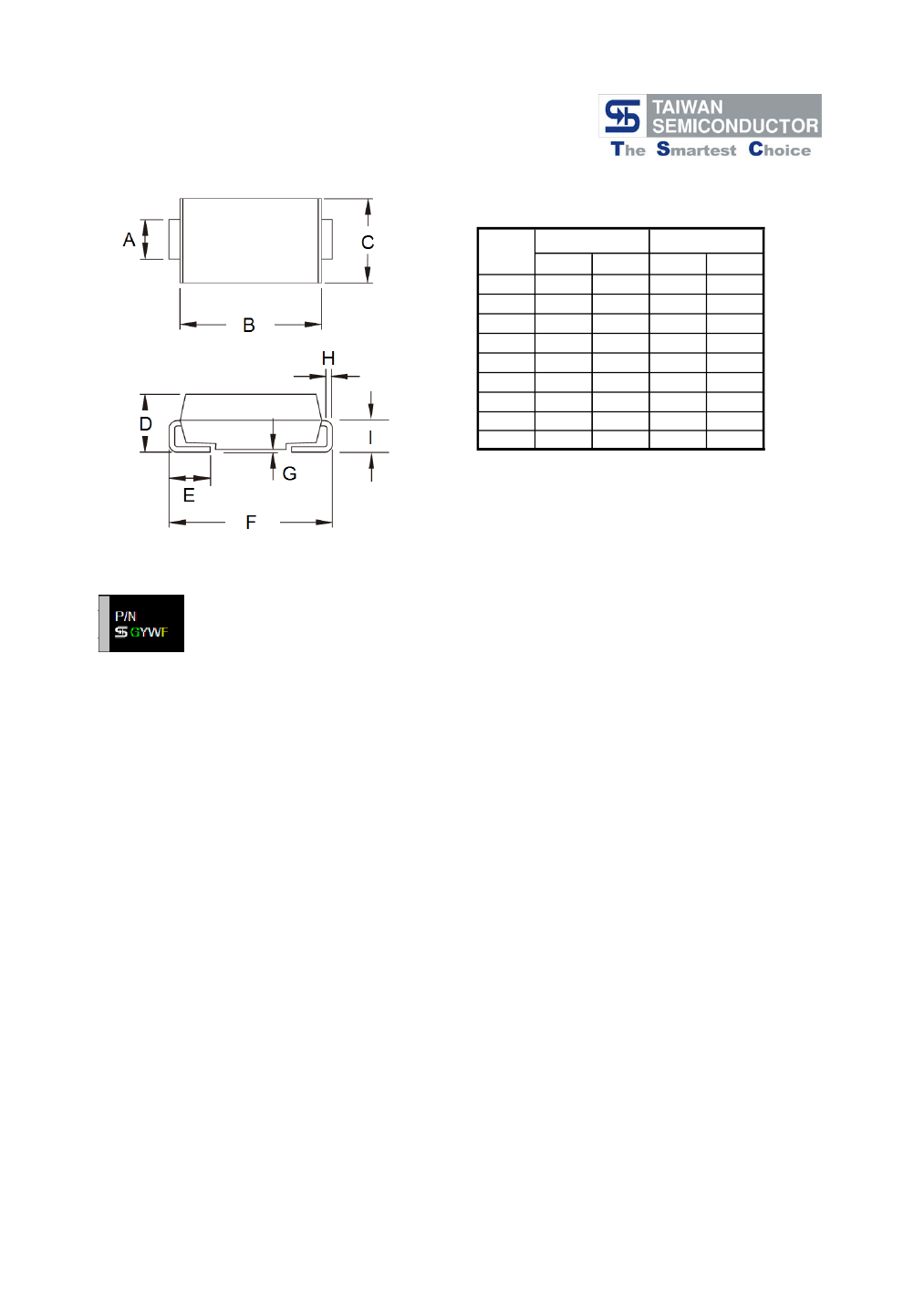

SMC/DO-214AB
Features
Glass passivated junction chip.
For surface mounted application
Low forward voltage drop
Low profile package
Built-in stain relief, ideal for automatic
placement
Fast switching for high efficiency
High temperature soldering:
260℃/10 seconds at terminals
Meet MSL level 1, per J-STD-020D,
lead free maximum peak of 260℃
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Terminal: Pure tin plated, lead free
Polarity: Indicated by cathode band

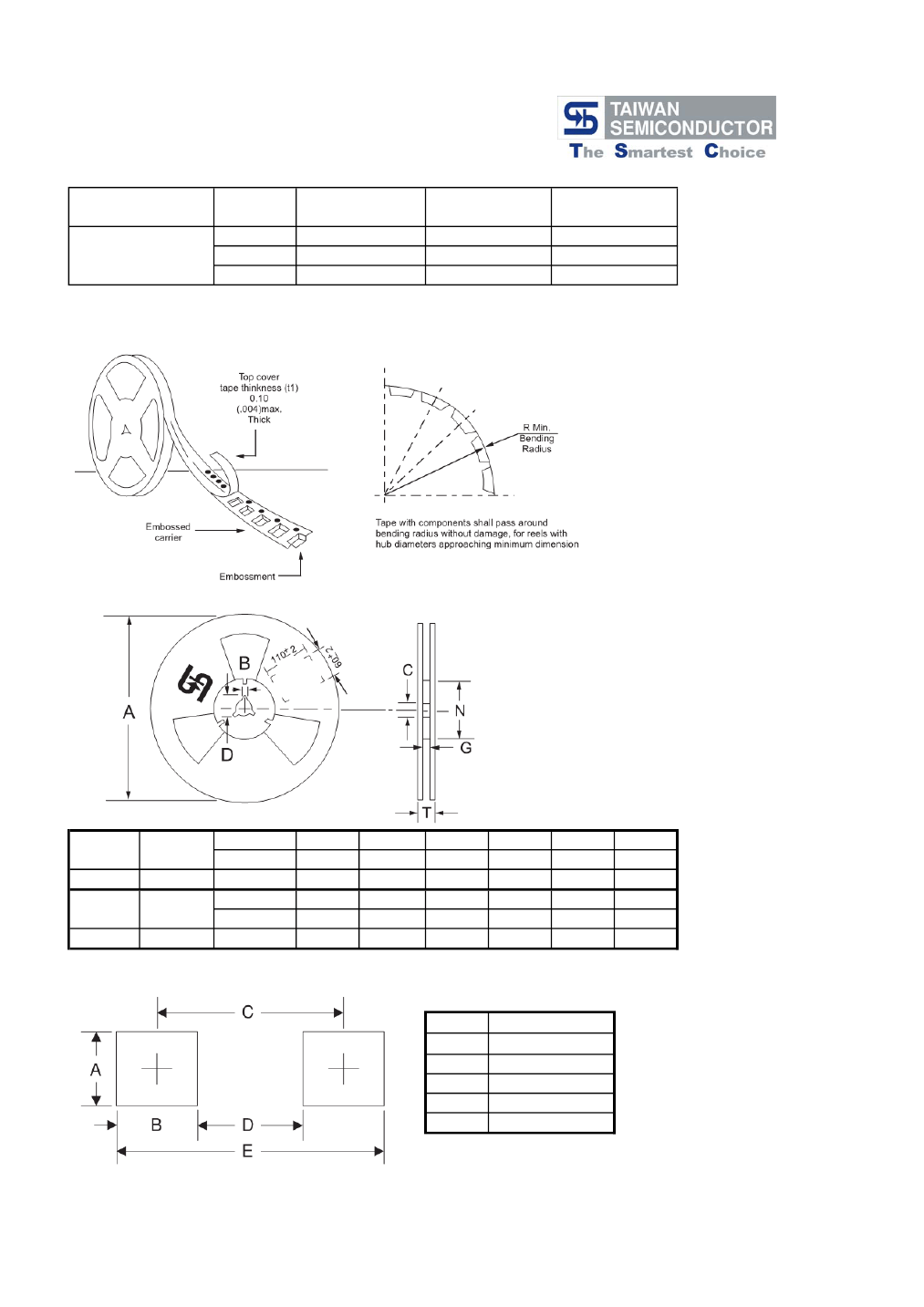

Packing: 16mm tape per EIA STD RS-481
Weight: 0.21 grams
Ordering Information (example)
Part No.
HS3A
Package
SMC
Packing
850 / 7" REEL
Packing code
R7
Packing code
(Green)
R7G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 3A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjA
T
J
T
STG
HS
3A
50
35
50
HS
3B
100
70
100
HS
3D
200
140
200
HS
3F
300
210
300
3
150
HS
3G
400
280
400
HS
3J
600
420
600
HS
3K
800
560
800
HS
3M
1000
700
1000
Units
V
V
V
A
A
1.0
10
250
50
80
60
1.3
1.7
V
uA
uA
Maximum Reverse Recovery Time (Note 2)
75
50
O
nS
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied V
R
=4.0 Volts
Version:G13

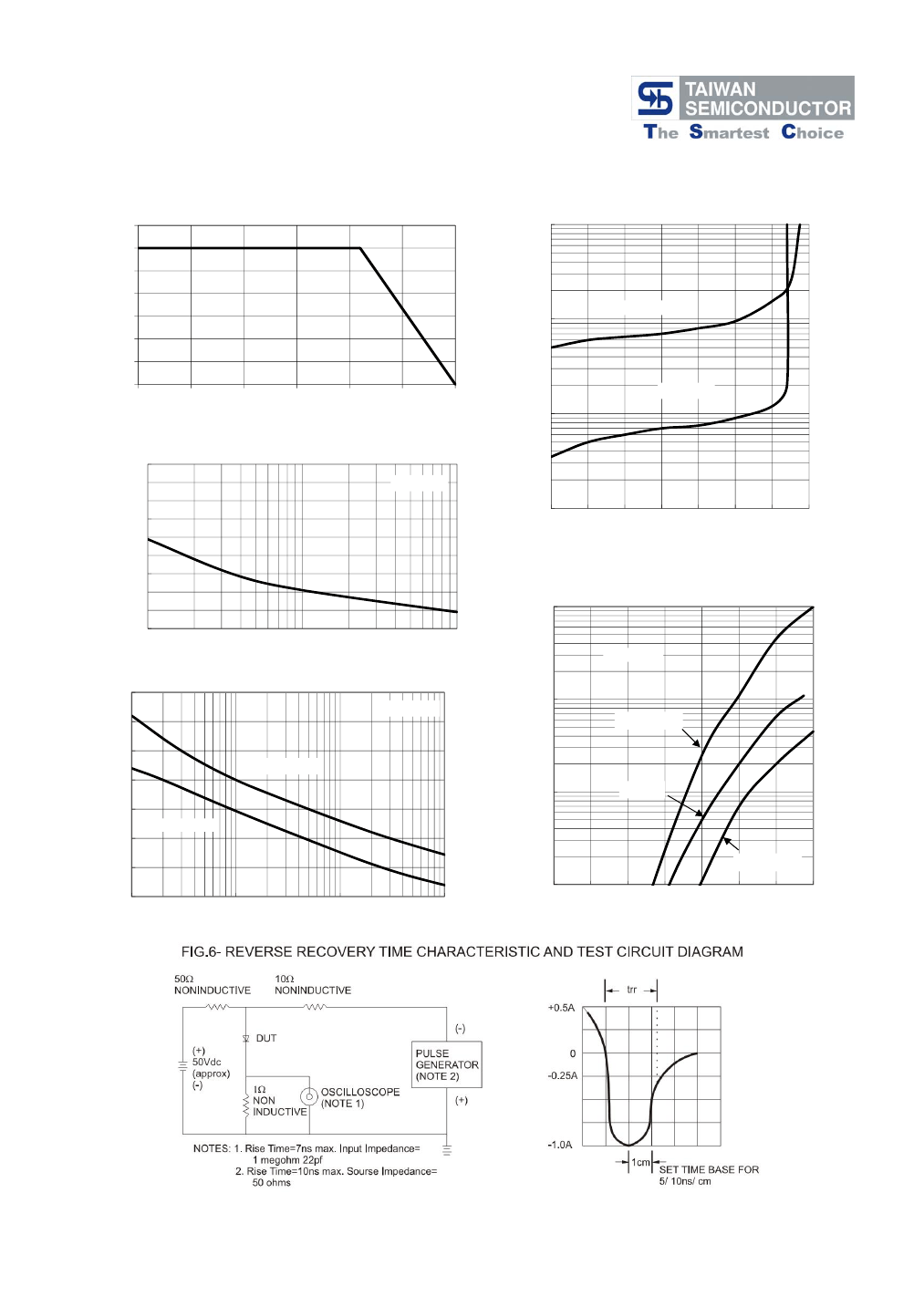

RATINGS AND CHARACTERISTIC CURVES (HS3A THRU HS3M)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
3.5
3
AVERAGE FORWARD
CURRENT (A)
2.5
2
INSTANTANEOUS REVERSE CURRENT (uA)
1.5
1
100
TA=125℃
0.5
0
0
25
50
75
100
125
150
LEAD TEMPERATURE (
o
C)
TA=25℃
10
PEAK FORWARD SURGE URRENT
(A)
300
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
TA=25℃
200
1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
100
100
0
INSTANTANEOUS FORWARD CURRENT (A)
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 5- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
TA=25℃
175
JUNCTION CAPACITANCE (pF)
150
125
100
75
50
25
0
0.1
FIG. 4- TYPICAL JUNCTION CAPACITANCE
TA=25℃
10
HS3A-HS3D
HS3A-HS3G
1
HS3G
HS3J-HS3M
HS3J-HS3M
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1
10
REVERSE VOLTAGE (V)
100
FORWARD VOLTAGE (V)
Version:G13
