SF21G thru SF28G
CREAT BY ART
FEATURES
- Glass passivated chip junction
- High efficiency, Low VF
- High current capability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Super Fast Rectifiers
MECHANICAL DATA
Case:
DO-204AC (DO-15)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Weight:
0.4g (approximately)
DO-204AC (DO-15)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@2A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJC
R
θJA
T
J
T
STG
40
16
65
- 55 to +150
- 55 to +150
0.95
5
100
35
20
O
SF
21G
50
35
50
SF
22G
100
70
100
SF
23G
150
105
150
SF
24G
200
140
200
2
50
SF
25G
300
210
300
SF
26G
400
280
400
SF
27G
500
350
500
SF
28G
600
420
600
UNIT
V
V
V
A
A
1.3
1.7
V
μA
ns
pF
C/W
O
O
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
C
C
Document Number: DS_D1405017
Version: G14
SF21G thru SF28G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
SF2xG
(Note 1)
A0
Prefix "H"
R0
B0
Suffix "G"
PACKING CODE
GREEN COMPOUND
CODE
DO-15
DO-15
DO-15
1,500 / Ammo box
3,500 / 13" Paper reel
1,000 / Bulk packing
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (SF21G) to 600V (SF28G)
EXAMPLE
PREFERRED P/N
SF21G A0
SF21G A0G
SF21GHA0
PART NO.
SF21G
SF21G
SF21G
H
AEC-Q101
QUALIFIED
PACKING CODE
A0
A0
A0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

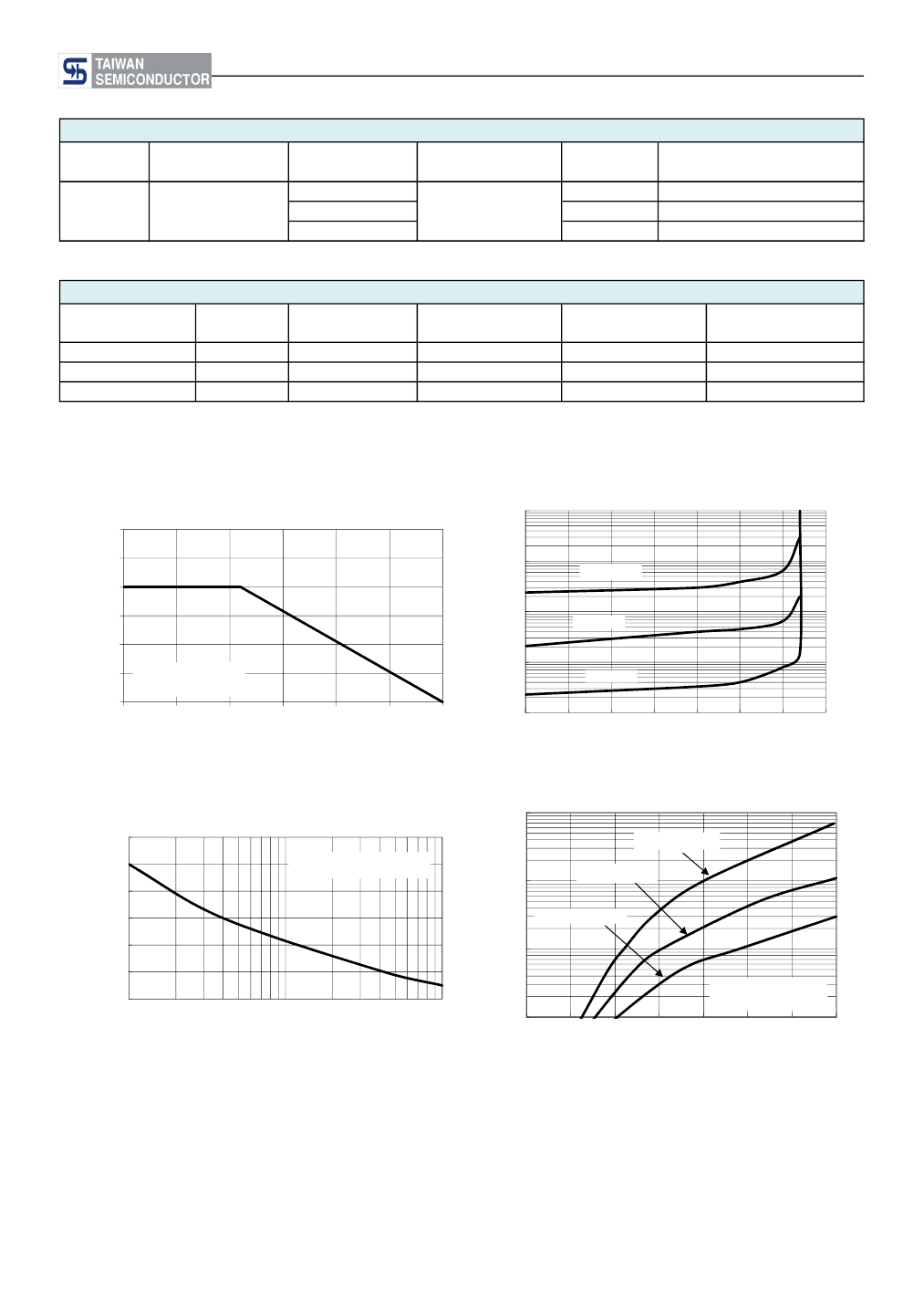

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (
o
C)
INSTANTANEOUS REVERSE CURRENT
(μA)
FIG.1- MAXIMUM AVERAGE FORWARD
CURRENT DERATING
1000
FIG.2- TYPICAL REVERSE CHARACTERISTICS
AVERAGE FORWARD
A
CURRENT (A)
100
TJ=125℃
10
TJ=75℃
RESISTIVE OR
INDUCTIVE LOAD
1
TJ=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT
(A)
SF21G-SF24G
SF25G-SF26G
10
SF27G-SF28G
1
Pulse
Width=300μs
1% Duty Cycle
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
0.1
FORWARD VOLTAGE (V)
Document Number: DS_D1405017
Version: G14
SF21G thru SF28G
Taiwan Semiconductor
CREAT BY ART
FIG. 4- TYPICAL JUNCTION CAPACITANCE
JUNCTION CAPACITANCE (pF)
150
125
100
75
50
25
0
f=1.0MHz
Vsig=50mVp-p
SF21G-SF24G
SF25G-SF28G
0.1
1
10
100
REVERSE VOLTAGE (V)
1000

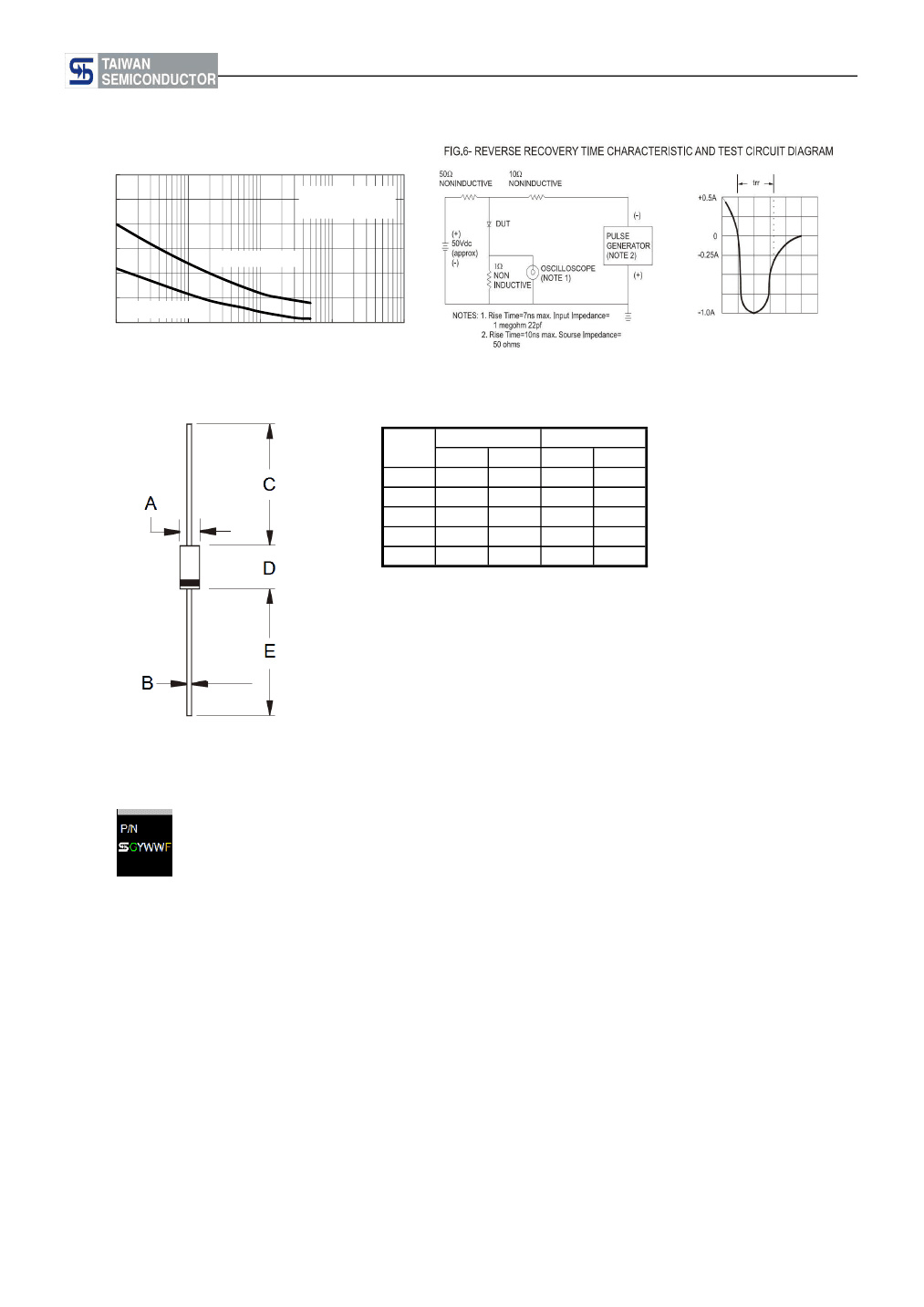

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.60
0.70
25.40
5.80
25.40
Max
3.60
0.90
-
7.60
-
Unit (inch)
Min
0.102
0.028
1.000
0.228
1.000
Max
0.142
0.035
-
0.299
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1405017
Version: G14
SF21G thru SF28G
Taiwan Semiconductor
CREAT BY ART
