ATC 800 C Series
NPO Ceramic
High RF Power
Multilayer Capacitors
• Case C Size
(.250" x .250")
• High Q
• Low ESR/ESL
• High RF Power
• 3600 WVDC
• Capacitance Range: 1 pF to 51 pF
and 1000 pF to 2700 pF
• Ultra-Stable Performance
• High RF Current/Voltage
• High Reliability
• RoHS Compliant, Pb free
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (1.0 pF to 2700 pF) @ 1 MHz.
ATC’s 800 C Series offers superb performance in demanding high
RF power applications requiring consistent and reliable operation.
The combination of highly conductive metal electrode systems,
optimized case geometries, and proprietary dielectrics, yields the
lowest ESR. ATC’s new NPO low loss rugged dielectrics are
designed to provide superior heat transfer in high RF power
applications. Ultra-low ESR and superior thermal performance
insure that the 800 C Series products are your best choice for high
RF power applications from VHF through microwave frequencies.
Typical functional applications: Bypass, Coupling, Tuning, Impedance
Matching and DC Blocking.
Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
1 pF to 51 pF; 1000 pF to 2700 pF:
10
5
Megohms min. @ +25°C at rated WVDC.
10
4
Megohms min. @ +125°C at rated WVDC.
Max. test voltage is 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, p 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.
150% of WVDC for capacitors rated above 500 volts DC and
≤1250
volts
DC for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds.
ENVIRONMENTAL TESTS
ATC 800 C Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is
greater.
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
200% of WVDC for capacitors rated at 500 volts DC or less.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINATION STYLES:
See Mechanical Configurations, page 3.
TERMINAL STRENGTH:
Terminations for chips withstand a pull
of 10 lbs. min., 20 lbs. typical, for 5 seconds in direction
perpendicular to the termination surface of the capacitor. Test per
MIL-STD-202, method 211.
ATC # 001-1076 Rev. E; 11/10
ATC 800 C Capacitance Values
CAP.
CODE
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
CAP.
(pF)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
TOL.
RATED
WVDC
CAP.
CODE
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
CAP.
(pF)
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
TOL.
RATED
WVDC
CAP.
CODE
220
240
270
300
330
360
390
430
470
510
102
112
122
152
182
222
242
272
CAP.
(pF)
22
24
27
30
33
36
39
43
47
51
1000
1100
1200
1500
1800
2200
2400
2700
TOL.
RATED
WVDC
B, C, D
F, G, J, K
3600
B, C, D
3600
3600
F, G, J, K
300
F, G, J, K
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10%
ATC PART NUMBER CODE
ATC800 C 22 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
J
TN 3600 X
C
Packaging
C - ATC Matrix Tray (Standard)
Laser Marking
WVDC
Termination Code
The above part number refers to a 800 C Series (case size C) 22 pF capacitor, J tolerance (±5%),
3600 WVDC, with TN termination (RoHS Compliant, Tin Plated over Non-Magnetic Barrier Termination), laser marking and plastic Matrix Tray packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
+1-631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
2
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 800 C Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
LENGTH
(L)
.230
+.025 -.010
(5.84
+0.64
-0.25)
TL
LL
WL
L
W
T
BODY DIMENSIONS
INCHES (mm)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
Y
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
800C
T
C
Solderable Barrier
C
W
L
T
High Purity Silver Leads
LL = .500 (12.7) min.
WL = .240 ±.005 (6.10 ±.127)
TL = .004 ±.001 (.102 ±.025)
Leads are Attached with
High Temperature Solder.
800C
MS
Microstrip
.250 ±.015
(6.35 ±0.38)
245 ±.025
(6.22 ±0.64)
.175 (4.45)
max.
.040 (1.02)
max.
C
LL
TL
Silver Leads
LL = .500 (12.7) min.
WL =
See below
TL = .004 ±.001 (.102 ±.025)
800C
AR
Axial Ribbon
WL
L
W
T
**
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
** WL = .110 (2.79) for capacitance values
≤
680 pF; WL = .130 (3.30) for capacitance values > 680 pF
ATC 800 C Capacitors: Non-Magnetic Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
LENGTH
(L)
.230
+.025 -.010
(5.84
+0.64
-0.25)
TL
LL
BODY DIMENSIONS
INCHES (mm)
WIDTH
(W)
THICKNESS
(T)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
Y
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier
Termination
800C
TN
C
Non-Mag
Solderable Barrier
C
L
W
T
High Purity Silver Leads
245 ±.025
(6.22 ±0.64)
LL = .500 (12.7) min.
WL = .240 ±.005 (6.10 ±.127)
TL = .004 ±.001 (.102 ±.025)
Leads are Attached with
High Temperature Solder.
800C
MN
Non-Mag
Microstrip
C
WL
L
W
T
.250 ±.015
(6.35 ±0.38)
.175 (4.45)
max.
.040 (1.02)
max.
TL
LL
WL
W
L
T
Silver Leads
245 ±.025
(6.22 ±0.64)
LL = .500 (12.7) min.
WL =
See below
TL = .004 ±.001 (.102 ±.025)
800C
AN
Non-Mag
Axial Ribbon
**
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
A M E R I C A N
ATC North America
+1-631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
3

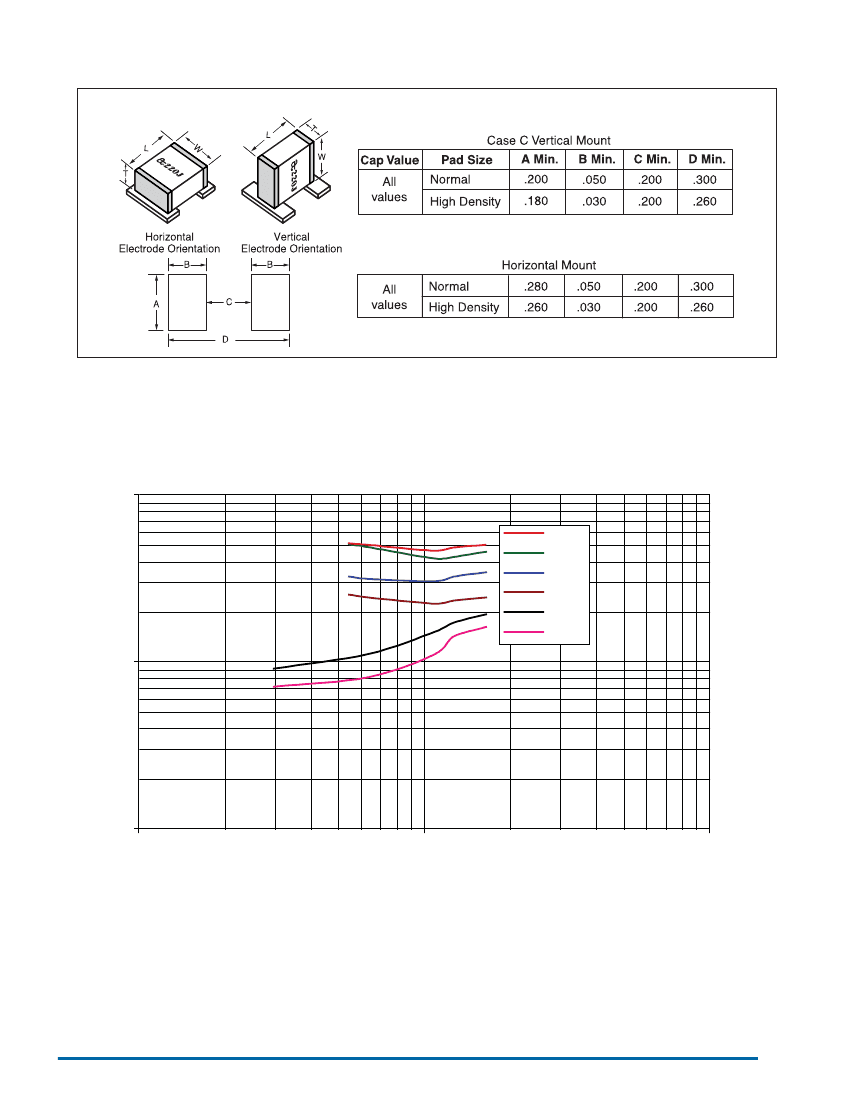

Suggested Mounting Pad Dimensions
ATC 800 C Performance Data
800 C ESR vs. Frequency
100
8.2 pF
10 pF
18 pF
39 pF
1500 pF
2700 pF
10
ESR (MilliOhms)
1
10
100
1000
Frequency (MHz)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC
document #001-992 Rev. B; 12/05). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at
www.atceramics.com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any
infringements of rights of third parties which may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
© 2009 American Technical Ceramics Corp. All Rights Reserved
ATC # 001-1076 Rev. E 11/10
