1-6450849-9 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1-6450849-9

Preview

1-6450849-9: DescriptionBoard Connector, 16 Contact(s), 4 Row(s), Male, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size191KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-6450849-9 Overview

Board Connector, 16 Contact(s), 4 Row(s), Male, Right Angle, Press Fit Terminal

1-6450849-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8367803806
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-04-06 16:22:53
YTEOL	8.85
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

1

PROPOSED DESIGN

10SEP2016

CZ

SZ

.490

.010

1

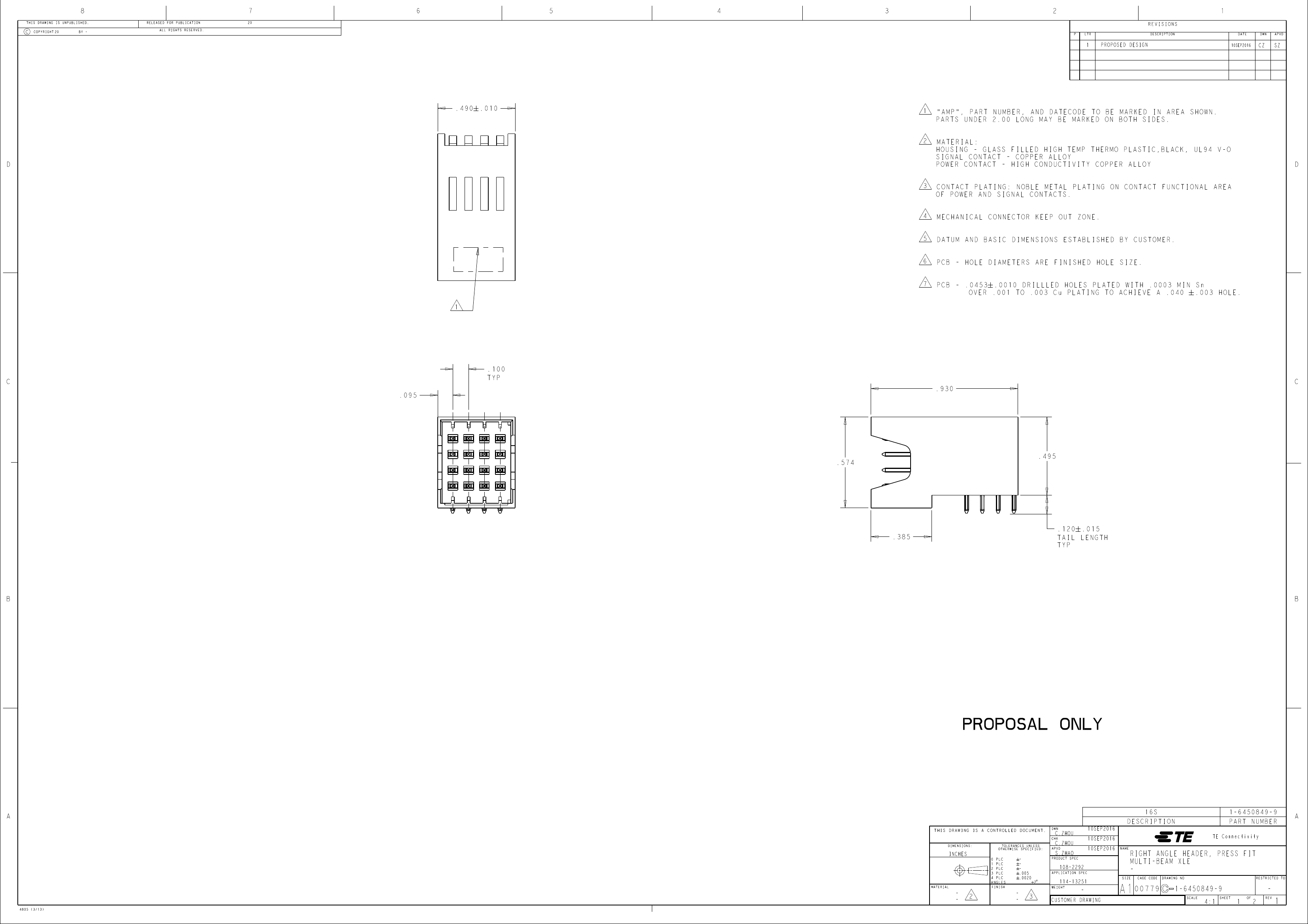

"AMP", PART NUMBER, AND DATECODE TO BE MARKED IN AREA SHOWN.

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES.

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC,BLACK, UL94 V-O

SIGNAL CONTACT - COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

CONTACT PLATING: NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS.

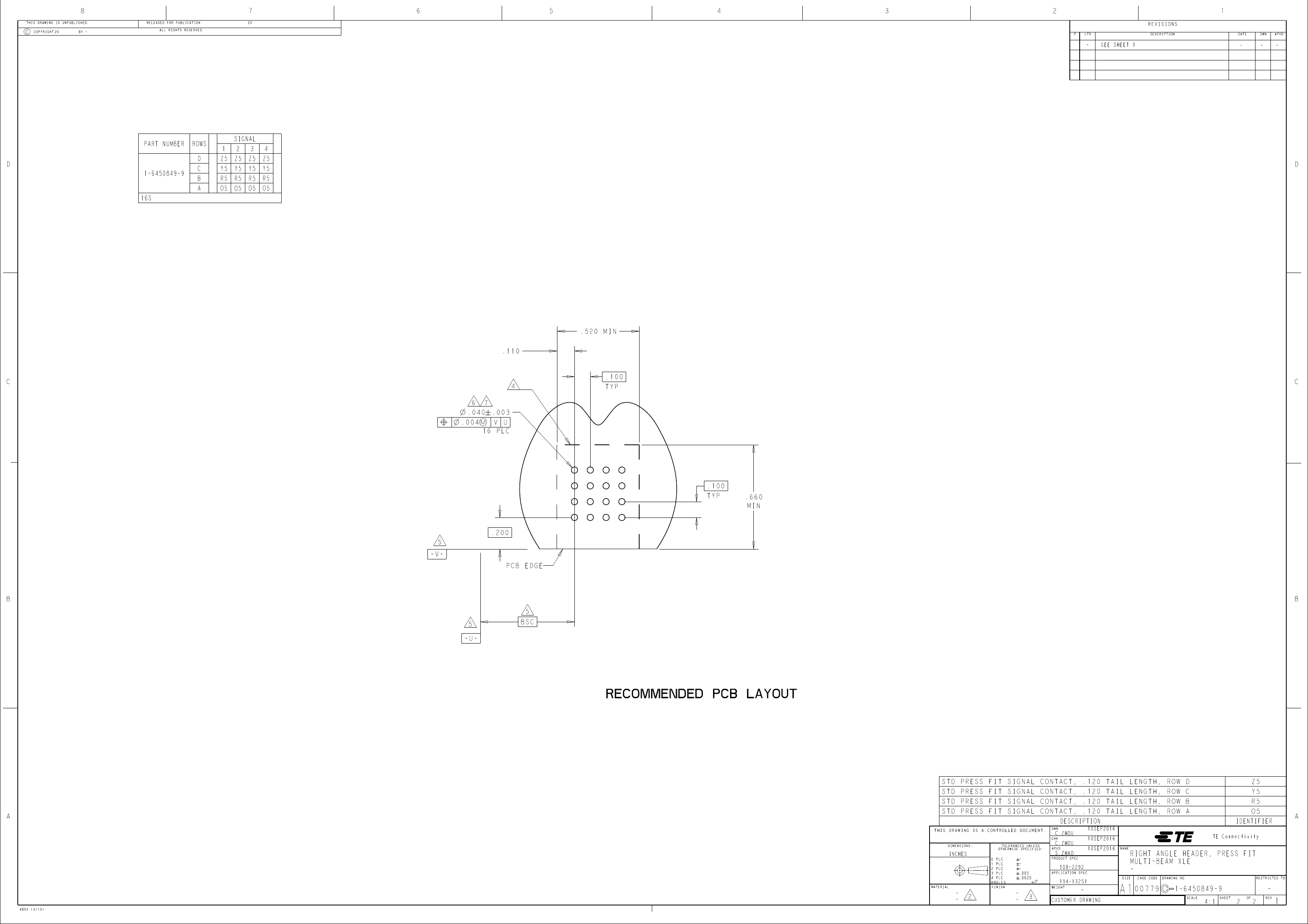

MECHANICAL CONNECTOR KEEP OUT ZONE.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB - HOLE DIAMETERS ARE FINISHED HOLE SIZE.

PCB - .0453 # .0010 DRILLLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 # .003 HOLE.

2

D

3

D

4

5

6

7

1

C

.095

.100

TYP

.930

C

.574

.495

.385

.120 .015

TAIL LENGTH

TYP

B

PROPOSAL ONLY

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

C.ZHOU

S.ZHAO

10SEP2016

NAME

DESCRIPTION

16S

1-6450849-9

PART NUMBER

TE Connectivity

A

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

-

2

-

WEIGHT

114-13251

3

-

CUSTOMER DRAWING

A1

00779

SIZE

RIGHT ANGLE HEADER, PRESS FIT

MULTI-BEAM XLE

-

CAGE CODE

DRAWING NO

RESTRICTED TO

1-6450849-9

SCALE

4805 (3/13)

4:1

SHEET

1

OF

2

REV

-

1
