5-104192-5 datasheet, PDF - EEWORLD Datasheet

5-104192-5: Description20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-104192-5 Overview

20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT

Parameter Name	Attribute value
Objectid	2094081118
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	AMPMODU
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	104192
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0

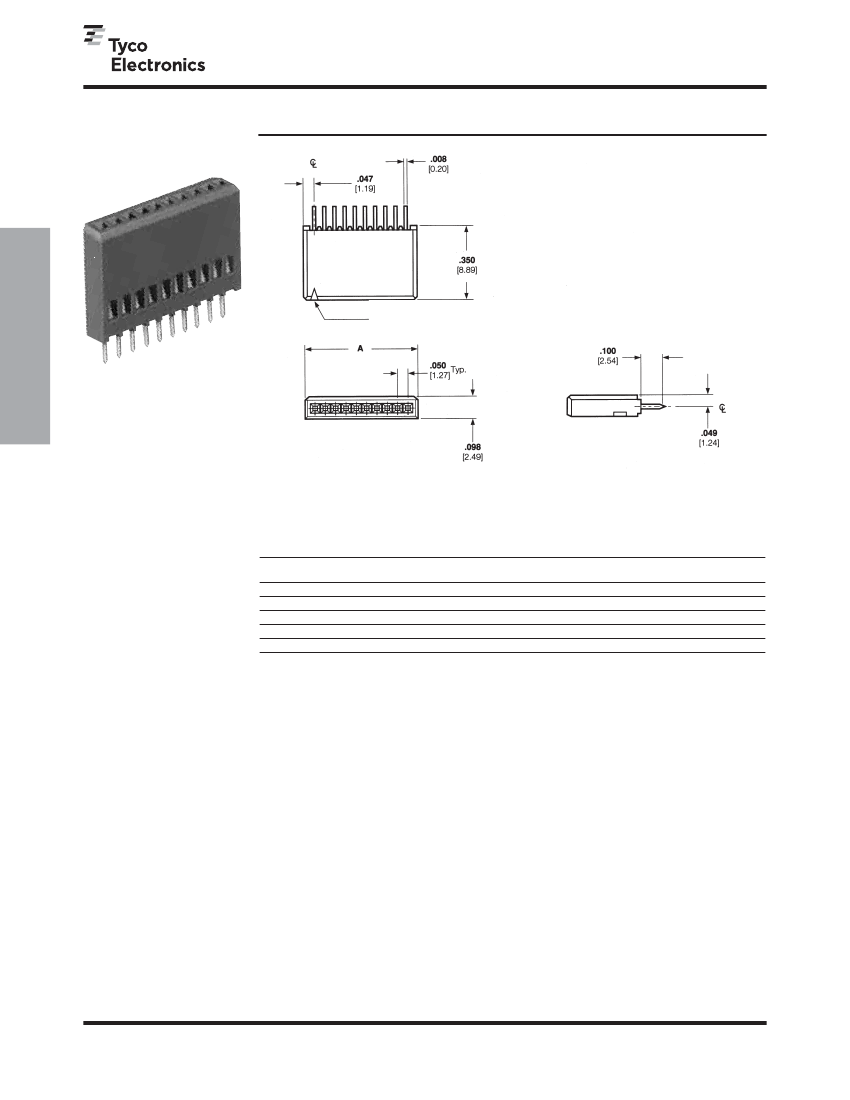

AMPMODU Interconnection System

Thru-Hole Receptacles, .050 x .100 [1.27 x 2.54] Centerline,

Board-to-Board

(Continued)

Single Row, Vertical

Receptacles

Circuit Identification

Feature

Material and Finish

3

Housing

— Glass-filled thermoplastic,

black, 94V-0 rated

Contacts

— Copper alloy; duplex

plated .000030 [0.00076] gold in

mating area, .000150 [0.00381] tin

on solder posts, with entire contact

underplated .000050 [0.00127] nickel

	5-104192-5	5-104192-3	5-104192-7
Description	20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknow	unknown
Other features	AMPMODU	AMPMODU	AMPMODU
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Manufacturer's serial number	104192	104192	104192
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	20	12	30
UL Flammability Code	94V-0	94V-0	94V-0
Objectid	2094081118	-	2094081120
