8-1532128-0

Description
D MICROMINIATURE CONNECTOR
CategoryThe connector    The connector
File Size129KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

8-1532128-0 Overview

D MICROMINIATURE CONNECTOR

8-1532128-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeRECEPTACLE
Connector typeD MICROMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
insulator materialPOLYPHENYLENE SULPHIDE
Manufacturer's serial number1532128
Installation option 1LOCKING
Installation typeCABLE
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Termination typeWIRE
Total number of contacts51
Maximum wire diameter26 AWG
Minimum wire diameter26 AWG
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Pin & Socket Connectors > Product Feature Selector > Product Details

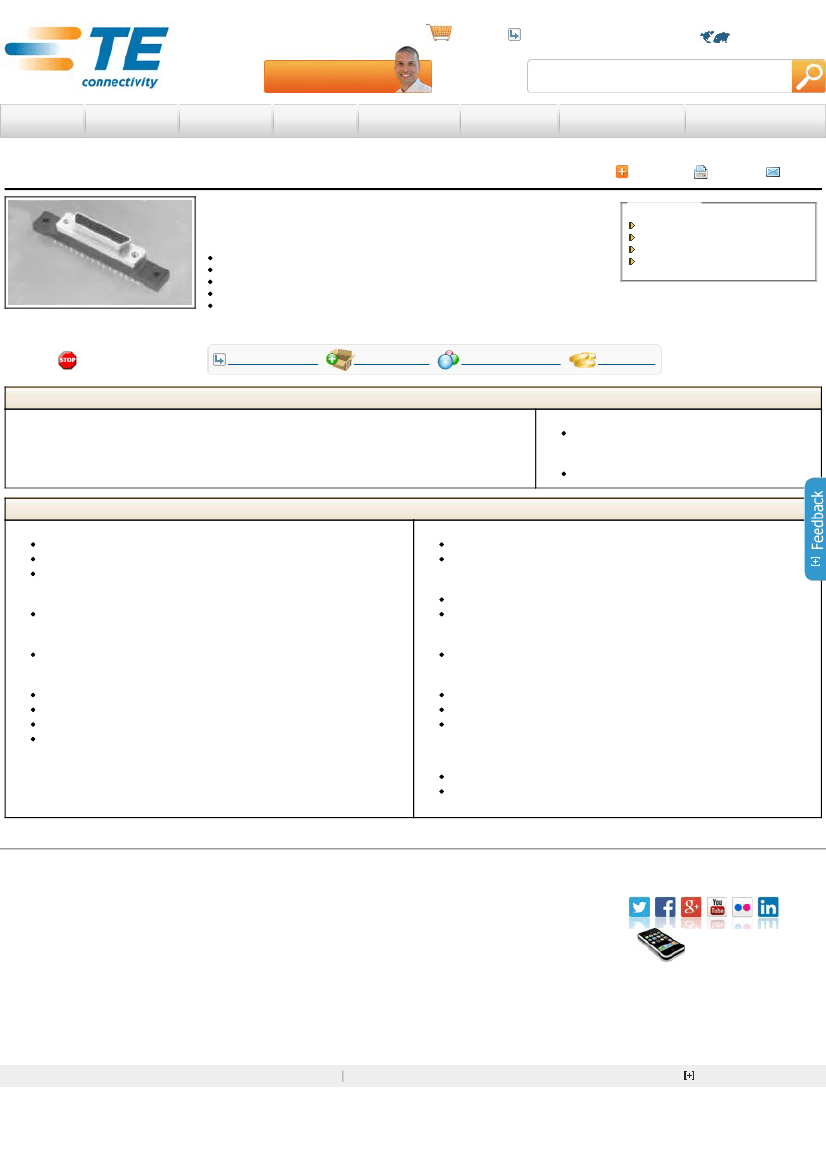

M83513/04­G04N Product Details
Microminiature D Connectors
Not reviewed for RoHS Compliance
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
Connector
Connector Design = Cable Connector
Connector Style = Receptacle
Contact Type = Socket
Product Series = MCK (Full Metal)
M83513/04­G04N
(8­1532128­0)
TE Internal Number: 8­1532128­0
View all Features
 Superseded
Search for Replacement Parts
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Additional Information:
Product Line Information
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Design = Cable Connector
Product Series = MCK (Full Metal)
Mechanical Attachment:
Mounting Hardware = None
Dimensions:
Lead Length (mm [in]) = 914.40 [36.000]
Body Features:
Shell Plating = Nickel, Electroless
Wire Size (AWG/CM) = 26 AWG
Wire Type = 19 strand per MIL­C­22759/11
Insulation Color = 10 solid color repeating per M­85513
Contact Features:
Contact Type = Socket
Contact Style = Wire Termination
Housing Features:
Connector Style = Receptacle
Housing Material = Polyphenylene Sulfide (PPS)
Configuration Features:
Number of Positions = 51
Industry Standards:
Government/Industry Qualification = No
RoHS/ELV Compliance = Not reviewed for ELV/RoHS compliance
Lead Free Solder Processes = Not reviewed for lead free solder
process
Other:
Brand = Microdot
Comment = Also available in commercial grade.
