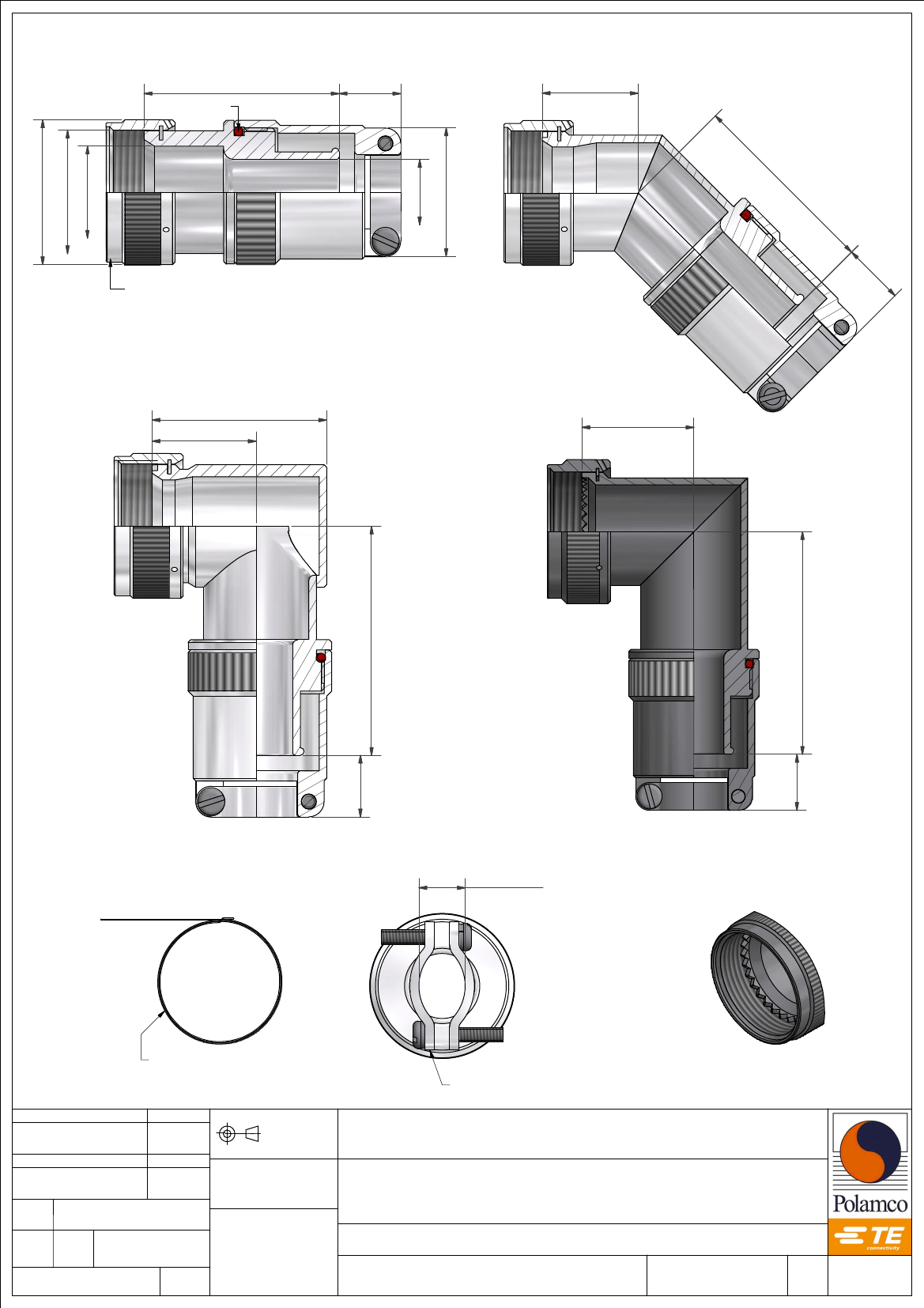

38,00
O-RING
J
C
A THREAD
D
G
XXXX
H
B
T
J
PART MARK AND BATCH NUMBER HERE
ANGLE 1
E
K
ANGLE 2
KS
F
J
90 BACKSHELL ANGLE 3
ALUMINIUM ALLOY
M: MINIMUM
CLAMPING
DIAMETER
90 BACKSHELL ANGLE 3
STAINLESS STEEL
BAND
STAINLESS STEEL SCREWS AND WASHERS
STAINLESS STEEL
TEETH VIEW
DRAWN
K.K-W
DATE
02/05/2018
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
88A SERIES
BAND-IN-A-CAN BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
28/02/2012
DOC
TYPE
ISSUE
Customer Drawing
REV.
4
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-DTL-26482 ll / MIL-DTL-83723 SERIES l & lll
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
6708
WEIGHT
N/A
J
NCAGE CODE U5792
F
SHT DRAWING NO:
1 P10096
TABLE 1
SHELL
SIZE
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
G
4,7
6,3
7,9
9,5
11,1
12,7
14,2
15,8
17,4
19,0
20,6
22,2
23,8
25,4
27,0
28,6
30,2
31,8
33,3
35,0
36,5
38,1
H
MAX
17,2
18,8
20,4
22,0
23,5
25,0
26,7
28,3
30,0
31,5
33,0
34,7
36,4
37,8
39,4
41,0
42,6
44,2
45,8
47,3
50,9
50,9
M
0,5
6,8
6,7
7,8
7,9
8,6
9,0
10,2
10,4
12,5
12,4
15,0
15,4
16,8
17,3
18,8
19,5
23,9
22,4
23,8
24,4
26,4
26,4
J
0,5
12
12
12
12
12
12
12
12
12
12
12
15
15
15
15
15
15
15
15
15
15
15
A
THREAD
9/16 - 24UNEF
1/2 - 20UNF
5/8 - 24UNEF
3/4 - 20UNEF
7/8 - 20UNEF
1 - 20UNEF
1 1/16 - 18UNEF
1 3/16 - 18UNEF
1 5/16 - 18UNEF
1 7/16 - 18UNEF
1 3/4 - 18UNS
2 -18UNS
2 1/4 - 16UN
2 1/2 - 16UN
2 3/4 - 16UN
3 - 16UN
1 1/2 - 18UNEF
B
MAX
17,0
15,6
18,6
21,7
24,9
28,2
30,9
36,4
39,6
40,4
50,0
56,3
62,7
69,0
75,4
81,7
42,0
T
MIN
6,7
6,5
9,2
12,7
14,6
17,7
19,7
22,9
26,1
29,0
34,9
41,2
46,7
52,1
58,6
65,0
30,1
C
0,5
16,8
16,6
16,8
17,3
18,1
19,0
19,2
20,1
20,3
21,8
23,3
25,0
26,2
28,6
30,1
31,3
22,1
TABLE 3
CODE
1-C
1-B
4-J
2-Z
MATERIAL / FINISH
ALUMINIUM / ELECTROLESS NICKEL
ALUMINIUM / CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
STAINLESS STEEL / PASSIVATE
NICKEL ALUMINIUM BRONZE / SHOT BLAST
SEE SS0076 FOR FULL RANGE OF FINISH OPTIONS
D
MAX
38,5
40,5
41,9
42,3
43,2
44,0
44,1
45,0
45,5
46,2
40,9
42,6
43,8
45,0
46,7
47,9
40,3
E
MAX
26,6
24,7
26,7
29,2
30,7
34,2
37,2
42,2
44,2
45,2
54,2
60,9
67,4
73,4
79,7
86,0
48,0
F
MAX
39,9
41,3
43,0
44,5
46,1
47,7
47,7
48,4
50,0
51,6
53,1
56,1
59,3
62,3
65,5
68,6
49,6
K
0,5
17,8
17,5
17,8
18,7
19,0
21,0
23,5
27,0
27,0
27,0
31,4
36,4
38,0
41,0
44,1
47,2
28,0
KS
0,5
16,0
17,5
18,8
20,4
21,5
23,0
24,0
25,7
27,2
28,7
31,6
33,5
36,0
39,3
40,8
40,8
27,0
88A1-16-08-1-C-SB
SERIES
CONNECTOR INTERFACE
ANGLE
SHELL SIZE (TABLE 1)
ENTRY SIZE (TABLE 2)
MATERIAL (TABLE 3)
FINISH (TABLE 3)
BAND REF (OMIT IF NOT SUPPLIED)
DRAWN
K.K-W
DATE
02/05/2018
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
88A SERIES
BAND-IN-A-CAN BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
28/02/2012
DOC
TYPE
ISSUE
Customer Drawing
REV.
4
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-DTL-26482 ll / MIL-DTL-83723 SERIES l & lll
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
6708
WEIGHT
N/A
SHT DRAWING NO:
NCAGE CODE U5792
2 P10096
