917621-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 917621-5

917621-5: Description70 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size145KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

917621-5 Overview

70 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

917621-5 Parametric

Parameter Name	Attribute value
Objectid	1940504409
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
Board mount options	PEG
body width	0.244 inch
subject depth	0.128 inch
body length	1.091 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	917621
Plug contact pitch	0.024 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1054 mm
Plating thickness	8u inch
polarization key	ENDS
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N

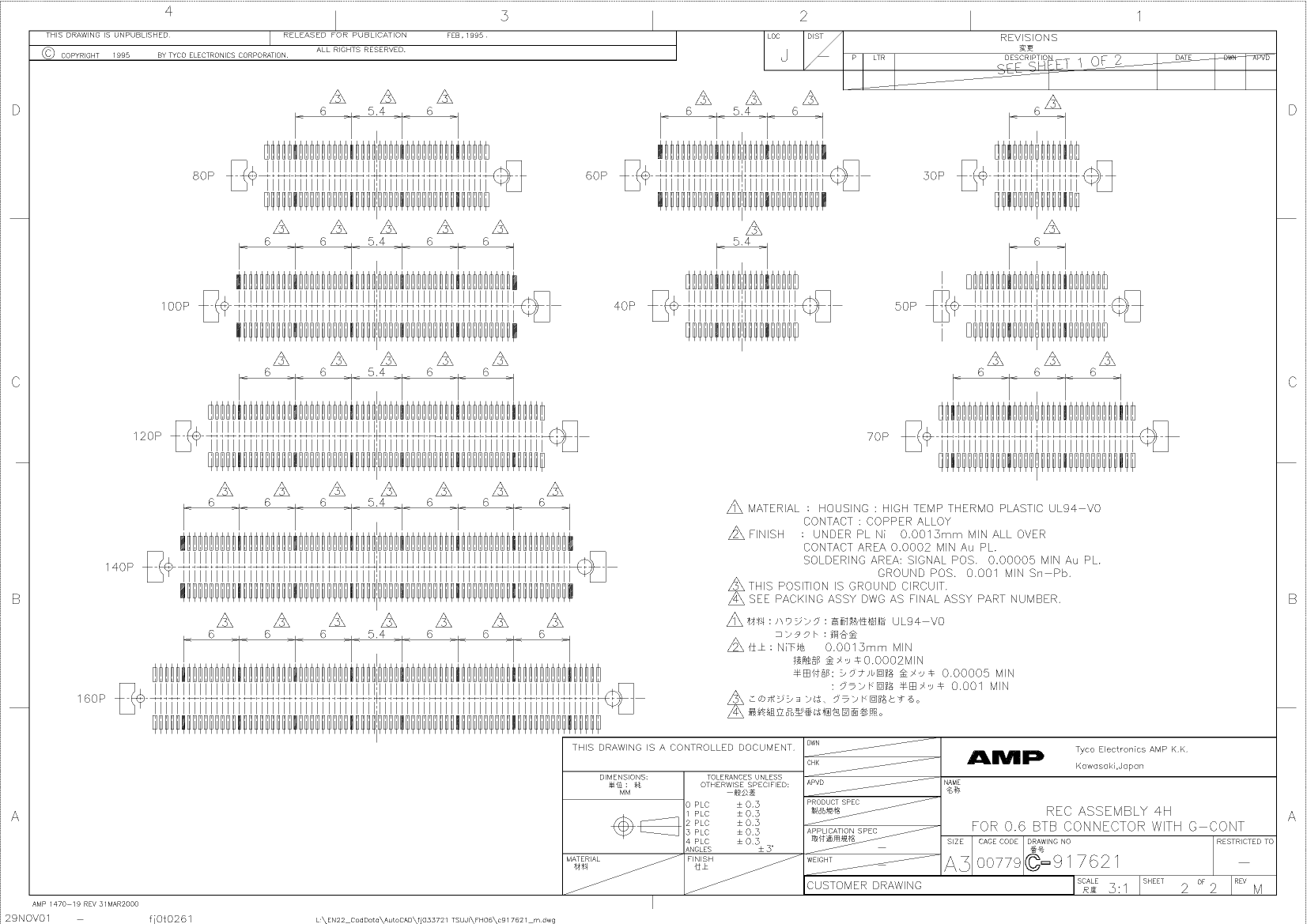

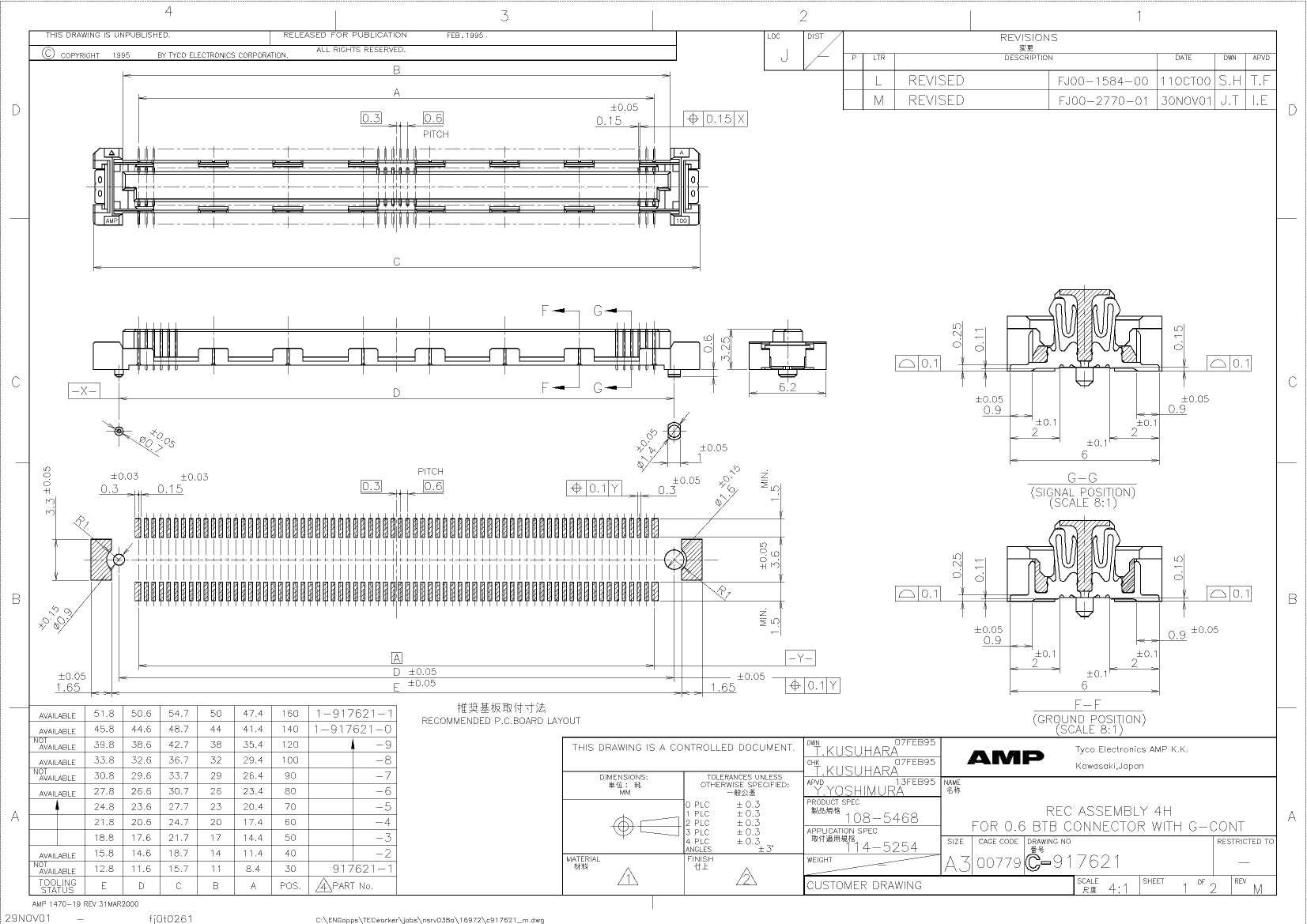

Preview

Download Datasheet

View All

917621-5 Related Products

	917621-5	917621-4	1-917621-0	917621-8	917621-3	917621-6	917621-7	917621-9	1-917621-1
Description	70 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	60 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,140 CONTACTS,SKT,0.024 PITCH,SURFACE MOUNT TERMINAL,NATURAL	100 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	50 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	80 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	90 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	120 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE	160 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE
Reach Compliance Code	unknown	unknow	unknow	compliant	unknown	unknown	unknown	unknown	compliant
Other features	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch
subject depth	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch
body length	1.091 inch	0.972 inch	1.917 inch	1.445 inch	0.854 inch	1.209 inch	1.327 inch	1.681 inch	2.154 inch
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	THERMOPLASTIC	POLYETHYLENE
Plug contact pitch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.6 mm	0.6 mm	0.6096 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	70	60	140	100	50	80	90	120	160
Evacuation force-minimum value	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N
Objectid	1940504409	-	-	1940504412	-	1940504410	1940504411	-	1940504076
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DIN compliance	NO	NO	-	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	-	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	917621	917621	917621	-	917621	917621	917621	917621	-
Mixed contacts	NO	NO	-	NO	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	-	-	-	incompatible	incompatible	-	incompatible	incompatible	conform to
