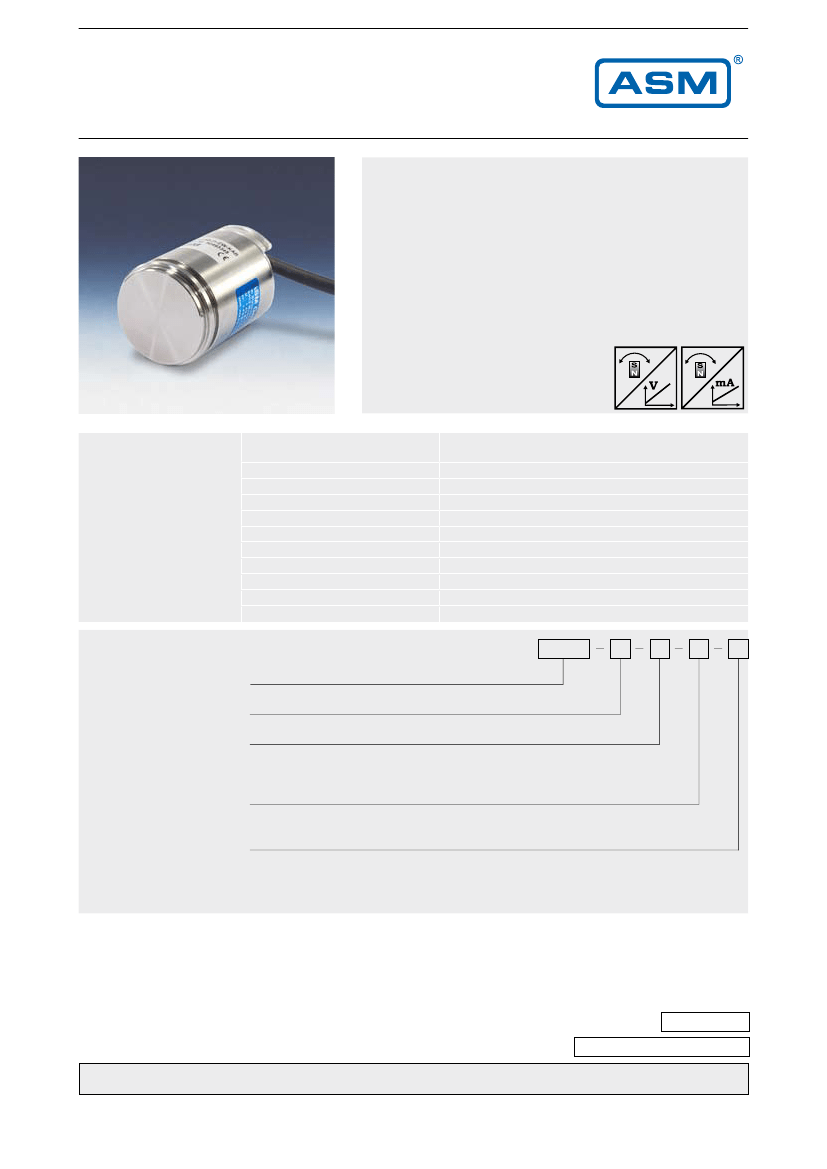

POSITILT
®
PTAS2
Magnetic inclination sensor with analog output

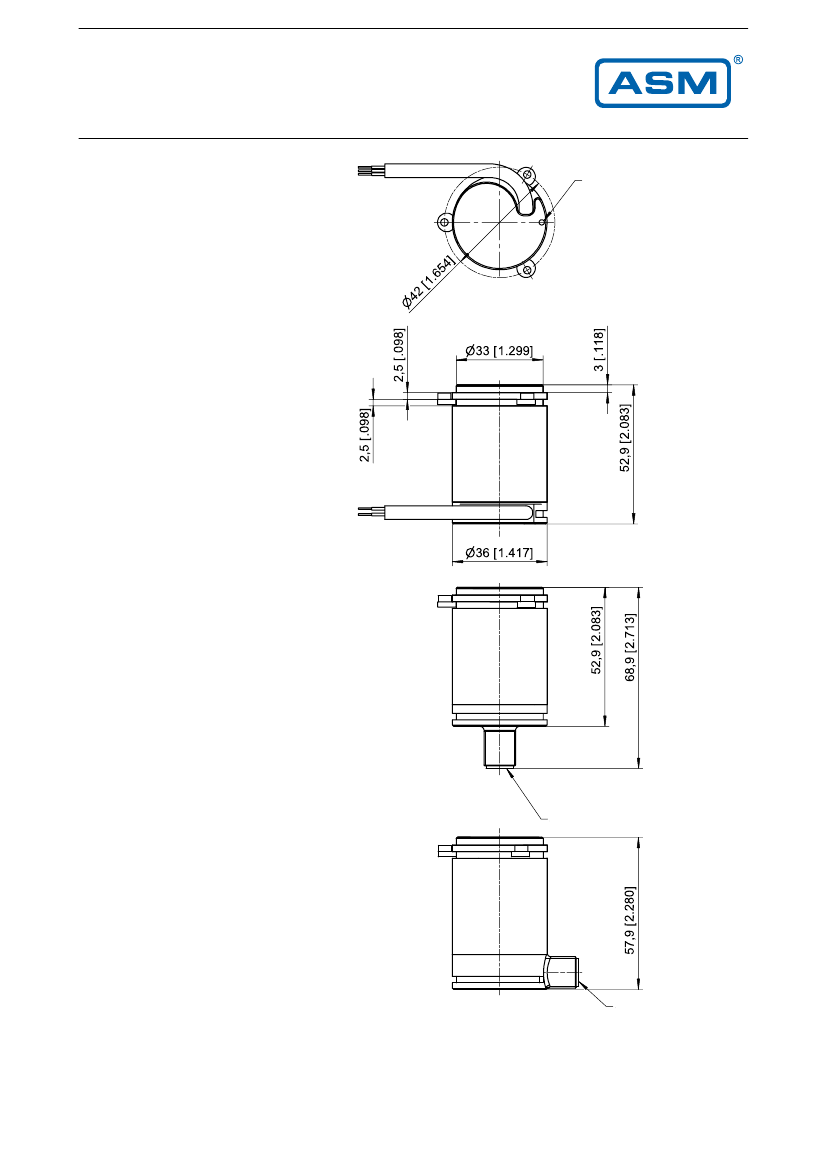

Magnetic inclination sensor in a 36 mm housing
●
Protection class IP67/IP69K
● agnetic measurement principle
M
● utputs:
O
Voltage 0.5 ... 4.5 V; 0.5 ... 10 V
Current 4 ... 20 mA
● edundant second channel as option
R
● ther outputs available on request
O
Specifications
Outputs
Resolution
Repeatability
Linearity
Measurement range
Signal characteristics
Material
Mounting
Protection class
Shock
Vibration
Voltage: 0.5 ... 4.5 V; 0.5 ... 10 V
Current: 4 ... 20 mA, 3 wire
0.03 % (±30 ... ±180); 0.1 % (±15°)
±0.03 % (±30 ... ±180°); ±0.1 % (±15)
±0.3 % f.s. (typ.)
0 ... ±15° to 0 ... ±180°, standard ±180°
CW, CCW
Stainless steel / aluminium / zinc (depends on the model)
Clamps, mounting plate
IP67 (IP67/IP69K option)
EN 60068-2-27:1993, 100 g/11 ms, 100 shocks
EN 60068-2-6:1995, 20 g 10 Hz-2 kHz, 10 cycles
Order Code PTAS2
Model name
PTAS2
Measurement range ±15 ... ±180° in steps of 15°
15 / 30 / 45 / ... / 165 / 180
Output
(see page 26)
U6
= 0.5 ... 4.5 V ratiometric
U2
= 0.5 ... 10 V
I1
= 4 ... 20 mA, 3 wire
Signal characteristics
CW
= Signal increasing CW
CCW
= Signal increasing CCW
Connection
KAB3M
= Cable, standard length 3 m, IP67
KAB3M69K = Cable, standard length 3 m, IP67/IP69K
M12A5
= 5-pin socket M12 axial (compatible with 4-pin connector)
M12R5
= 5-pin socket M12 radial (compatible with 4-pin connector), (in preparation)

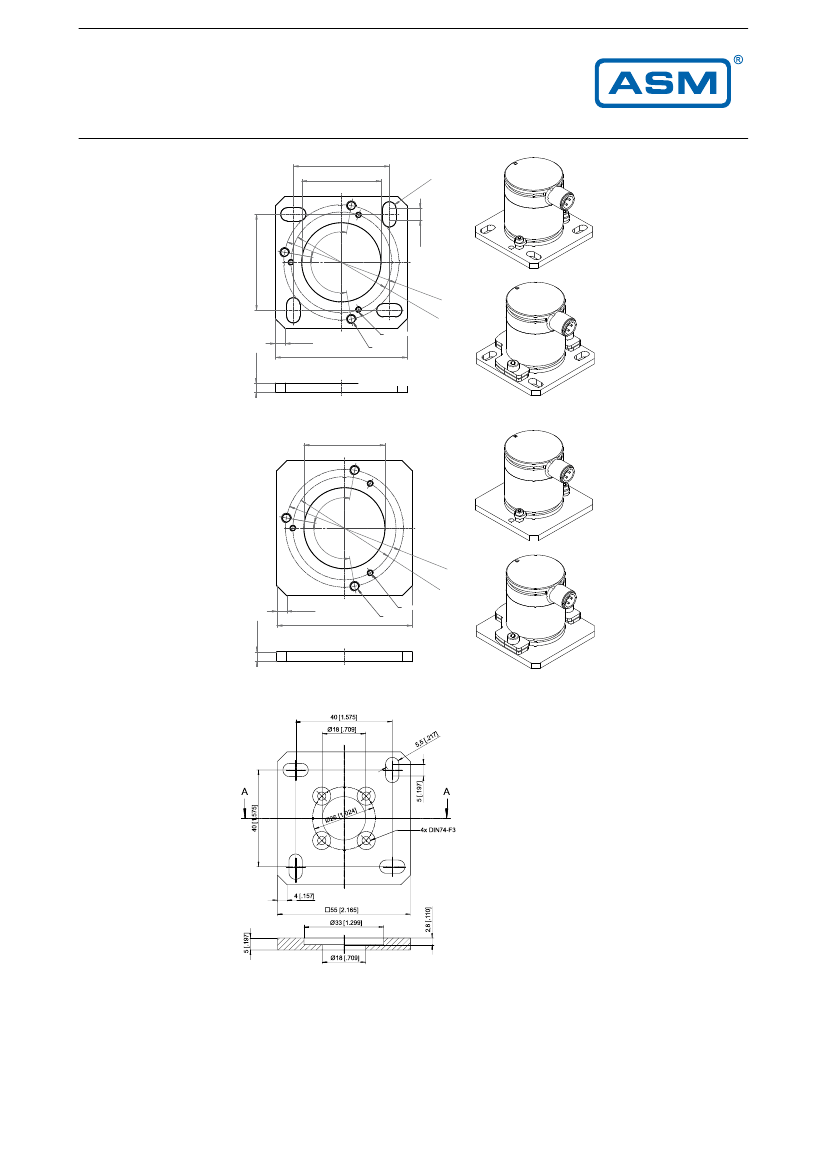

Order code mounting clamps (set
of 3 pieces)
Order code connector cable
(see accessories page 32)
Order example: PTAS2 - 180 - I1 - CW - KAB3M
24
CAT-PR/PT-E-08
www.asm-sensor.com
PRPT-BFS1
KAB-2M-M12/4F/G-LITZE
ASM
POSIROT
®
– PRAS, POSITILT
®
– PTAS
Outputs U2, U6 and I1
U2
Voltage Output
0.5 ... 10 V
Excitation voltage
Excitation current
Output voltage
Output current
Output load
Measuring rate
Stability (temperature)
Operating temperature
Protection
EMC
+18 ... +27 V DC (+36 V DC as option)
40 mA max.
0.5 ... 10 V DC
2 mA max.
> 5 kΩ
1 kHz standard
±50 x 10
-6
/ °C f.s. (typ.) for 90°...360°
±100 x 10
-6
/ °C f.s. (typ.) for <90°
-40 ... +85 °C (+105 °C as option)
Reverse polarity, short circuit
According to EN 61326:2004
+5V DC ±10 % / +8.25 V DC ±10 %
40 mA max.
10 ... 90 % of the excitation voltage
2 mA max.
> 1 kΩ
1 kHz standard
±50 x 10
-6
/ °C f.s. (typ.) for 90°...360°
±100 x 10
-6
/ °C f.s. (typ.) for <90°
-40 ... +85 °C (+105/125 °C as option)
Reverse polarity, short circuit
According to EN 61326:2004
+18 ... +27 V DC (+36 V DC as option)
60 mA max.
500
Ω
max.
4 ... 20 mA
1 kHz standard
±50 x 10
-6
/ °C f.s. (typ.) for 90°...360°
±100 x 10
-6
/ °C f.s. (typ.) for <90°
-40 ... +85 °C
Reverse polarity, short circuit
According to EN 61326:2004
U6 = U6/5 / U6/8,25
Voltage Output
10 ... 90 % ratiometric
Excitation voltage
Excitation current
Output voltage
Output current
Output load
Measuring rate
Stability (temperature)
Operating temperature
Protection
EMC
I1
Current Output
4 ... 20 mA
Excitation voltage
Excitation current
Load resistor
Output current
Measuring rate
Stability (temperature)
Operating temperature
Protection
EMC
Other outputs available on request.
Output signals
U2
U6
I1
Excitation +
Signal +
GND
Signal Wiring
Output signals
Excitation +
Signal
GND
Do not connect!
Do not connect!
Connector pin
1
2
3
4
5
Cable color
brown
white
blue
black
–
Connection
View to sensor
connector
M12A5 / M12R5
26
CAT-PR/PT-E-08
www.asm-sensor.com
ASM
