11C-2 datasheet, PDF - EEWORLD Datasheet

11C-2: DescriptionPower Bipolar Transistor, 10A I(C), 110V V(BR)CEO, 1-Element, NPN, Silicon, DIE-2; CategoryDiscrete semiconductor The transistor; File Size36KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

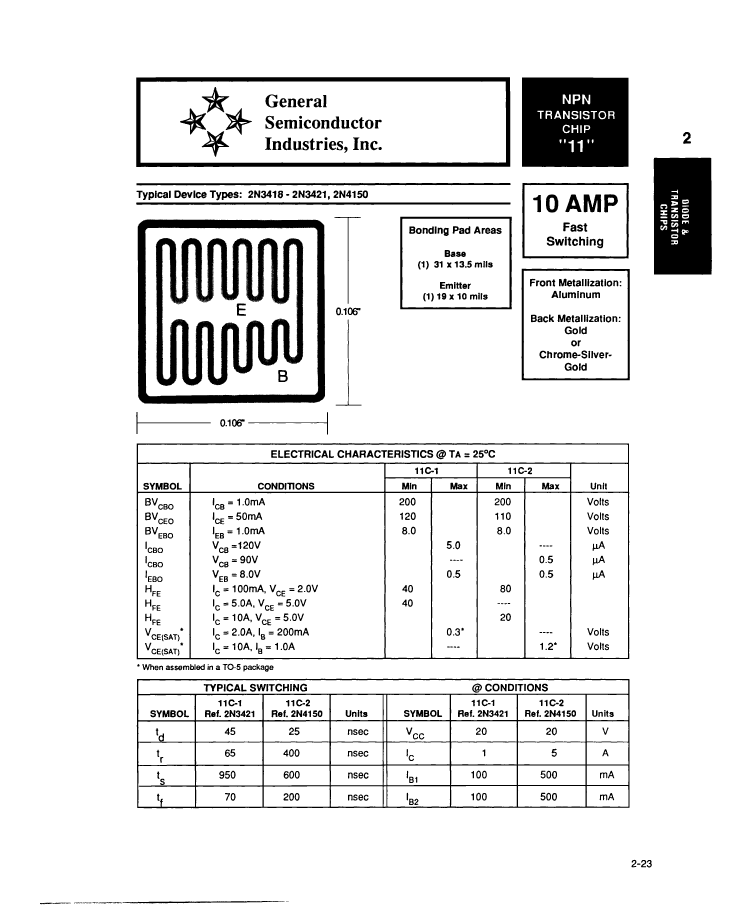

11C-2 Overview

Power Bipolar Transistor, 10A I(C), 110V V(BR)CEO, 1-Element, NPN, Silicon, DIE-2

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DIE
package instruction	UNCASED CHIP, S-XUUC-N2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	110 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JESD-30 code	S-XUUC-N2
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER
transistor applications	SWITCHING
Transistor component materials	SILICON

	11C-2	11C-1
Description	Power Bipolar Transistor, 10A I(C), 110V V(BR)CEO, 1-Element, NPN, Silicon, DIE-2	Power Bipolar Transistor, 10A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon, DIE-2
Maker	Vishay	Vishay
Parts packaging code	DIE	DIE
package instruction	UNCASED CHIP, S-XUUC-N2	UNCASED CHIP, S-XUUC-N2
Contacts	2	2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	10 A	10 A
Collector-emitter maximum voltage	110 V	120 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	40
JESD-30 code	S-XUUC-N2	S-XUUC-N2
Number of components	1	1
Number of terminals	2	2
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE
Package form	UNCASED CHIP	UNCASED CHIP
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
