12F5M: DescriptionRectifier Diode, 1 Phase, 1 Element, 12A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN; CategoryDiscrete semiconductor diode; File Size2MB，13 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

12F5M Overview

Rectifier Diode, 1 Phase, 1 Element, 12A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN

12F5M Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DO-4
package instruction	ROHS COMPLIANT, DO-4, 1 PIN
Contacts	1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	FAST RECOVERY HIGH POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-203AA
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	180 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

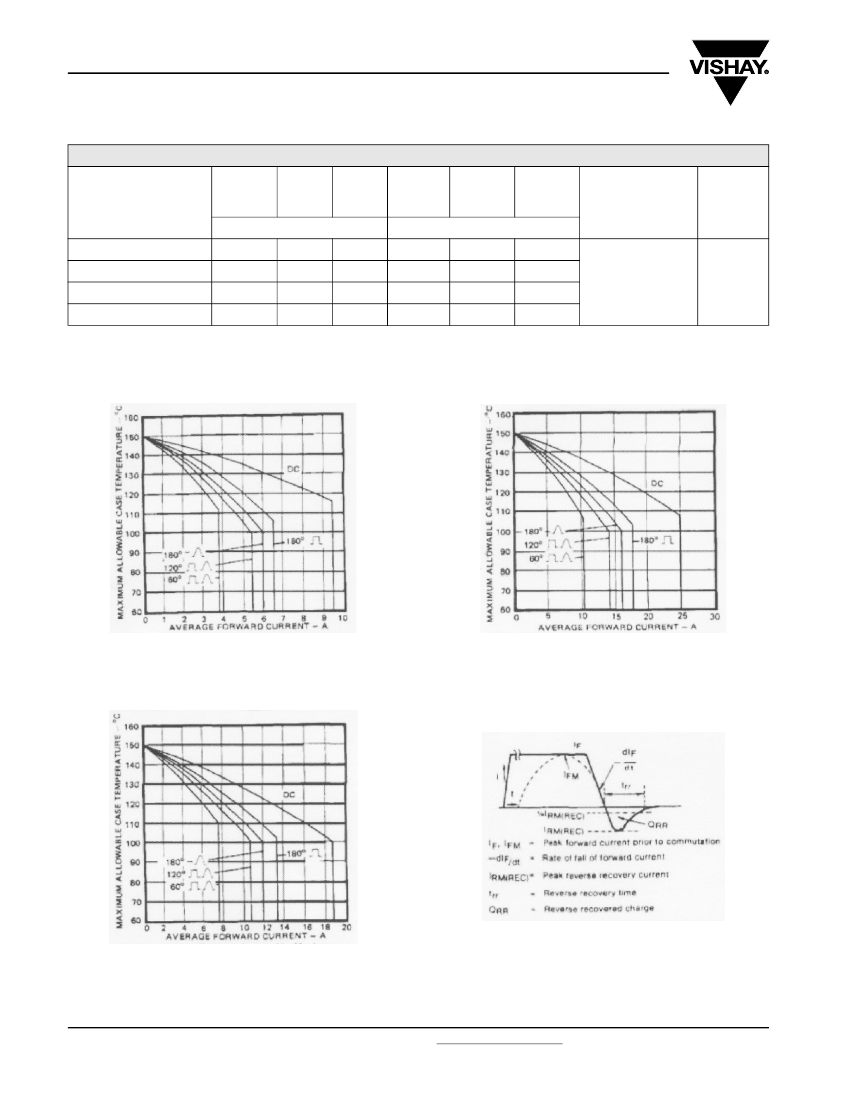

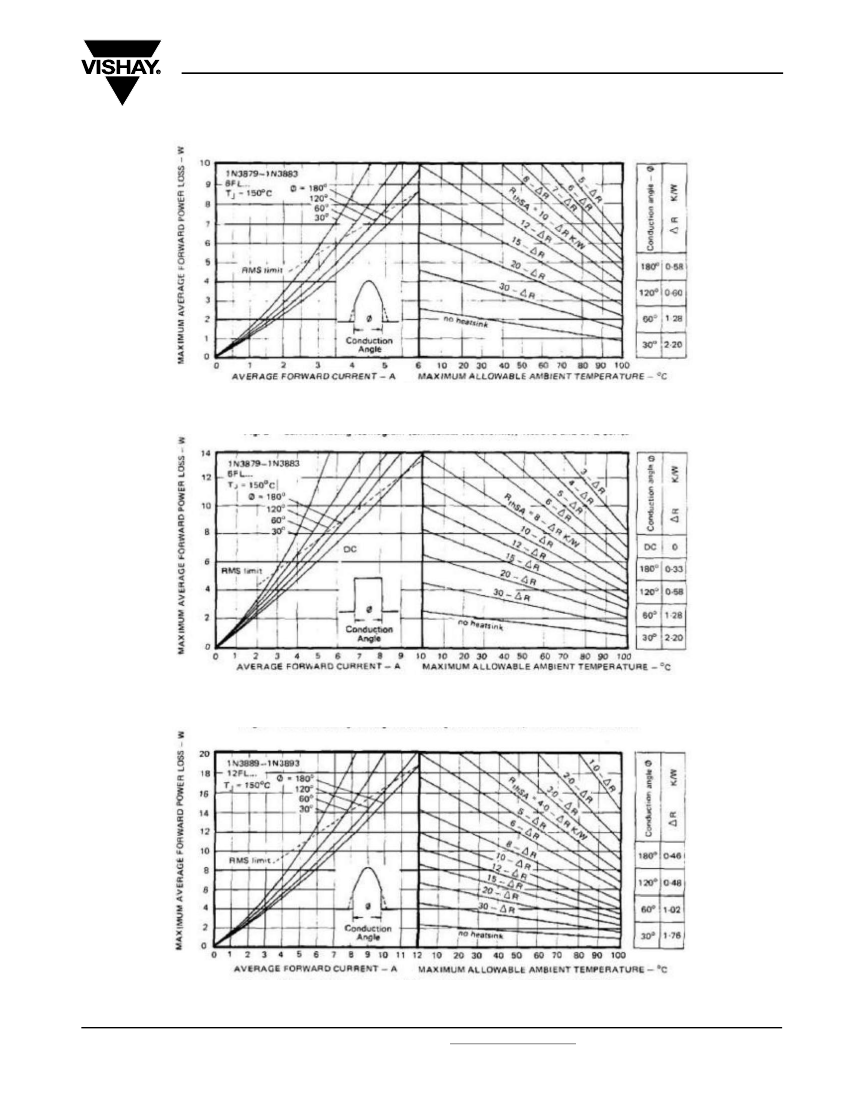

Preview

Download Datasheet

View All

1N3879(R), 1N3889(R), 6/12/16FL(R) Series

Vishay High Power Products

Fast Recovery Diodes

(Stud Version), 6/12/16 A

FEATURES

• Short reverse recovery time

• Low stored charge

• Wide current range

• Excellent surge capabilities

• Standard JEDEC types

• Stud cathode and stud anode versions

• Fully characterized reverse recovery conditions

DO-203AA (DO-4)

RoHS

COMPLIANT

• RoHS compliant

TYPICAL APPLICATIONS

• DC power supplies

• Inverters

PRODUCT SUMMARY

F(AV)

6/12/16 A

• Converters

• Choppers

• Ultrasonic systems

• Freewheeling diodes

MAJOR RATINGS AND CHARACTERISTICS

SYMBOL

F(AV)

F(RMS)

50 Hz

FSM

60 Hz

50 Hz

60 Hz

√t

RRM

Range

CHARACTERISTICS

= 100 °C

1N3879. TO

1N3883.

(1)

9.5

(1)

363

50 to 400

(1)

1N3889. TO

1N3893.

(1)

145

150

(1)

103

856

6FL..

9.5

110

115

1452

12FL..

145

150

103

1452

50 to 1000

See Recovery Characteristics table

- 65 to 150

16FL..

180

190

160

150

2290

√s

°C

UNITS

Note

(1)

JEDEC registered values

Document Number: 93138

Revision: 26-Sep-08

For technical questions, contact: ind-modules@vishay.com

www.vishay.com

12F5M Related Products

	12F5M	12FR5M	16FR5M	6FR5	6FR5M	6F5M	16F5M	16FR5	6F5	12F5
Description	Rectifier Diode, 1 Phase, 1 Element, 12A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 12A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 16A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 16A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 16A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 12A, 50V V(RRM), Silicon, DO-203AA, ROHS COMPLIANT, DO-4, 1 PIN
Parts packaging code	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4
package instruction	ROHS COMPLIANT, DO-4, 1 PIN	ROHS COMPLIANT, DO-4, 1 PIN	O-MUPM-D1	ROHS COMPLIANT, DO-4, 1 PIN	ROHS COMPLIANT, DO-4, 1 PIN	O-MUPM-D1	ROHS COMPLIANT, DO-4, 1 PIN	O-MUPM-D1	O-MUPM-D1	ROHS COMPLIANT, DO-4, 1 PIN
Contacts	1	1	1	1	1	1	1	1	1	1
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER	FAST RECOVERY HIGH POWER
Shell connection	CATHODE	ANODE	ANODE	ANODE	ANODE	CATHODE	CATHODE	ANODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	180 A	180 A	225 A	135 A	135 A	135 A	225 A	225 A	135 A	180 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	12 A	12 A	16 A	6 A	6 A	6 A	16 A	16 A	6 A	12 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Maximum repetitive peak reverse voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Vishay	-	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
