194D105X5025A7T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 194D105X5025A7T

194D105X5025A7T: DescriptionCAPACITOR, TANTALUM, SOLID; CategoryPassive components capacitor; File Size91KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

194D105X5025A7T Overview

CAPACITOR, TANTALUM, SOLID

194D105X5025A7T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	, 1005
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	1.27 mm
JESD-609 code	e0
leakage current	0.0005 mA
length	2.54 mm
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed Plastic, 7 Inch
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	25 V
size code	1005
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
width	1.27 mm

Preview

Download Datasheet

View All

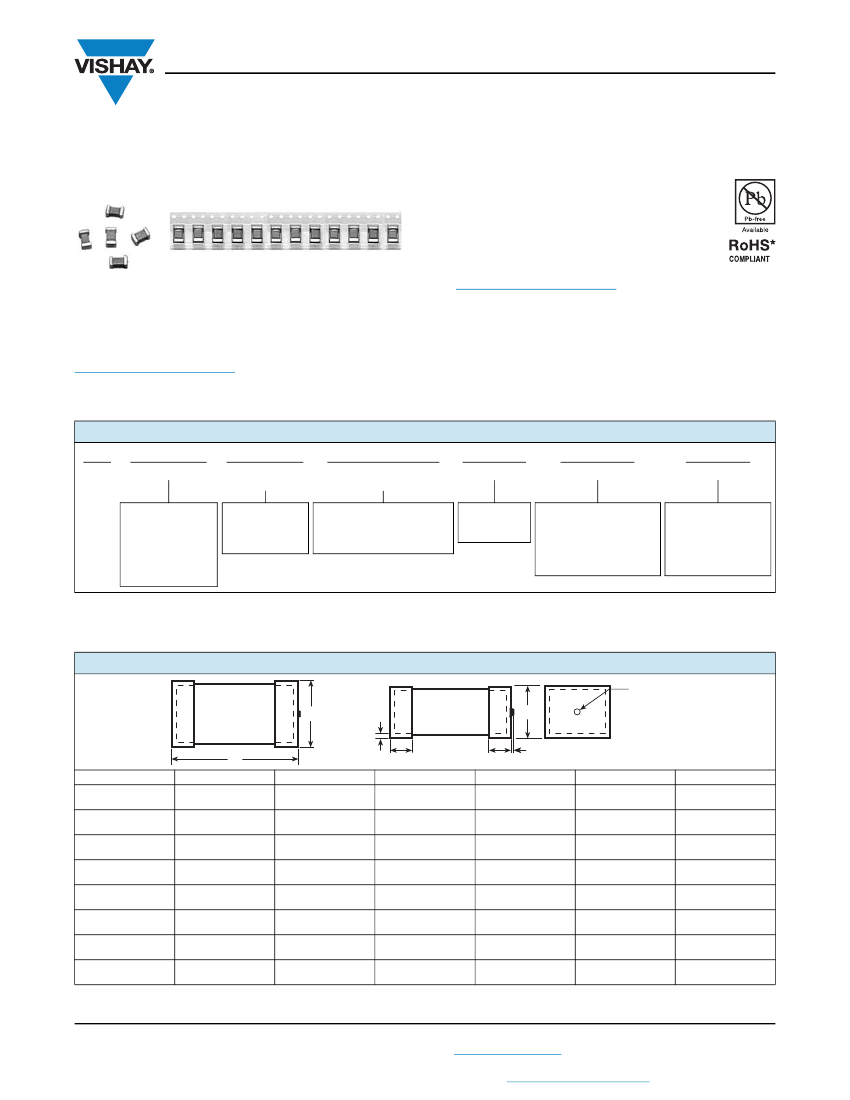

194D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors,

ANTAMOUNT®

, Conformal Coated

FEATURES

• 8 mm, 12 mm, 16 mm tape and reel

packaging available per EIA-481 and reeling

per IEC 60286-3, 7" [178 mm] standard

• Mounting: Surface mount

• Material categorization:

For definitions of compliance please see

www.vishay.com/doc?99912

Note

Lead (Pb)-containing terminations are not RoHS-compliant.

Exemptions may apply.

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40088

Operating Temperature:

- 55 °C to + 125 °C

(above 85 °C, voltage derating is required)

Capacitance Range:

0.10 μF to 330 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 50 V

ORDERING INFORMATION

194D

TYPE

225

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

X5 = ± 5 %

Special order

004

DC VOLTAGE RATING

AT + 85 °C

This is expressed in volts.

To complete the

three-digit block, zeros

precede the voltage rating

CASE CODE

TERMINATION

PACKAGING

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third

is the number of

zeros to follow.

See Ratings

and Case

Codes table

2 = Gold plated

(50 μ inch minimum)

standard

(RoHS compliant)

8 = 60/40 solder plated

7 = Hot solder dipped

T = T/R (full reel)

7" [178 mm] reel

standard

H = T/R (half reel)

7" [178 mm]

B = Bulk

Note

• Preferred tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.

DIMENSIONS

in inches [millimeters]

Weld and

dimple

projection

identifies

anode (+)

terminal

max.

CASE CODE

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.135 ± 0.015

[3.43 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.220 ± 0.015

[5.59 ± 0.38]

0.265 ± 0.015

[6.73 ± 0.38]

0.285 ± 0.015

[7.24 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.070 ± 0.015

[1.78 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

MAX.

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

Note

• When solder coated terminations are required, add 0.015" [0.381 mm] to termination dimension tolerances

Revision: 08-Feb-13

Document Number: 40000

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
