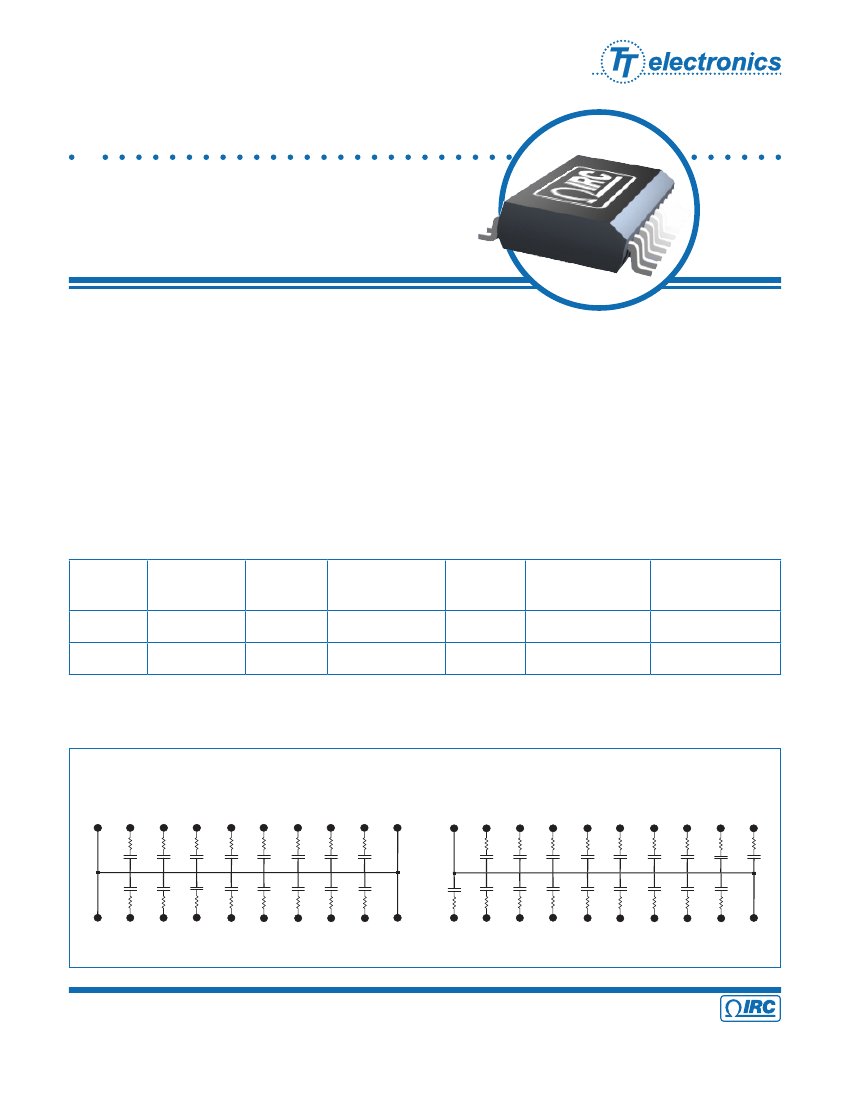

TaNCap
®
AC Line
Termination Network
AC Terminator Series
•
•
•
•
•
Improves signal quality
Reduces power dissipation
Highly integrated - replaces up to 36 discretes
RoHS compliant and Sn/Pb terminations available
Proven TaNCap
®
thin film technology in QSOP, SOIC, and TSSOP packages
Today’s high speed digital circuits demand top performance while maintaining low power dissipation. IRC’s
TaNCap
®
AC termination networks are designed to meet the needs of the digital circuit designer by blocking DC
current flow into the terminating resistor during the steady-state portion of the digital signal while passing current
into the tantalum nitride terminating resistor during the presence of signal edges and transients.
The SOIC, QSOP, and TSSOP packages offer a high level of integration in today’s most popular surface mount
configurations. One AC Termination network replaces up to 36 discrete components.
The TaNCap
®
series of resistor-capacitor networks are manufactured using IRC’s military and space proven
tantalum nitride thin film technology. For high reliability combined with superior performance, use IRC TaNCap
®
AC termination networks for your high speed, digital circuit applications.
Electrical Data
Range
Resistors
Capacitors
10Ω to 100Ω
10pF to 200pF
Tolerance
(%)
±10
±20
Breakdown
Voltage (volts)
N/A
25
TCR
(ppm/°C)
±100
N/A
Max. Power
Dissipation
(watts)
0.1 per resistor
N/A
Operating Temp.
Range (°C)
-55 to +125
-55 to +125
Schematic Data
SCHEMATIC P
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
SCHEMATIC V
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
AC Terminator Series Issue January 2009 Sheet 1 of 2
TaNCap
®
AC Line
Termination Network
Physical Data
Model
QS20x
SL20x
TS20x
Body Type
QSOP
SOIC-W
TSSOP
# Pins
20
20
20
Reference IRC Datasheet
Surface Mount QSOP Termination Networks
Surface Mount SOIC Termination Networks
Surface Mount TSSOP Termination Networks
Ordering Data
Sample Part Number
Family
Model
GUS - QS20V
-
330
-
K
- 470 - M
QS20P, QS20PLF = 16 circuit QSOP Package
QS20V, QS20VLF = 18 circuit QSOP Package
SL20P, SL20PLF = 16 circuit SOIC-W Package
SL20V, SL20VLF = 18 circuit SOIC-W Package
TS20P, TS20PLF = 16 circuit TSSOP Package
TS20V, TS20VLF = 18 circuit TSSOP Package
Note: LF suffix indicates 100% matte tin, Pb-free termination
Resistor Code
3 digit resistor code
Example: 330 = 33Ω, 101 = 100Ω
Resistor Tolerance
K = ±10%, M = ±20%
Capacitor Code
3 digit capacitance code
Example: 470 = 47pF, 101 = 100pF
Capacitor Tolerance
K = ±10%, M = ±20%
Packaging Available
Tubes, Tape & Reel
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
AC Terminator Series Issue January 2009 Sheet 2 of 2
