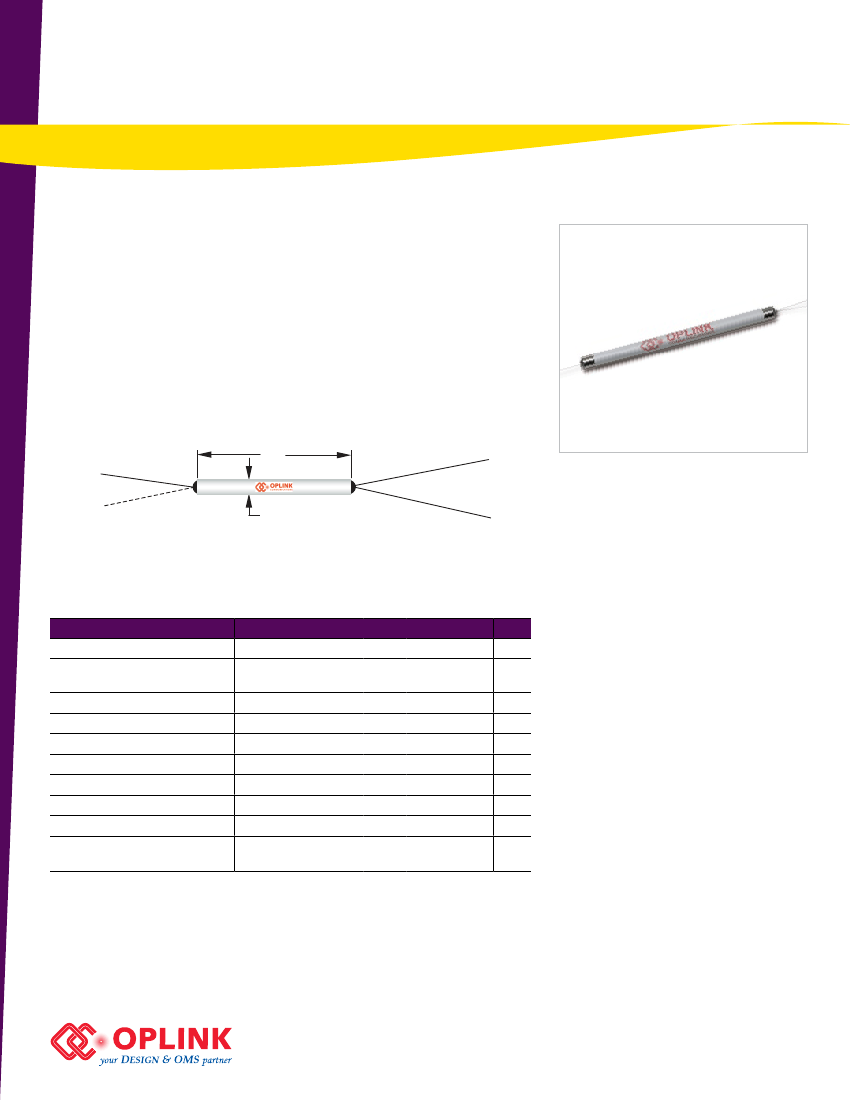

Ultra Hi-Rel Undersea Component Family
UWDM59 Series
Fused Single-Mode WDM
(980/1550 nm)
Product Description
Oplink’s 980/1550 nm fused single-mode wavelength division multiplexers are
manufactured using the proven fused biconical taper technology and Oplink’s
stringent quality procedures. With low insertion loss and flat passband, this
deviceis ideal for combining pump (980 nm) and signal light at 1550 nm in op-
tical fiber amplifiers. Please contact our Oplink OEM design team for further
information.
Oplink’s Ultra Hi-Rel family of optical components are available for your un-
dersea applications. Please contact us with your requirements.
Port 1 In
L
Port 2 Signal
Port 4 (terminated for
1x2 configuration)
Ø
Port 3 Pump
Performance Specificationns
UWDM59 Series
Premium
Grade A
Grade B
Unit
Features
Very High Reliability
Ultra Low Insertion Loss
Ultra High Isolation
Low Polarization Sensitivity
High Directivity
High Stable & Reliable
Bidirectional
Operating Wavelength
(970 - 990nm / 1535 - 1565nm)
970 - 990 / 1535 - 1565
< 0.1
< 0.2
> 20
< 0.05
< 0.1
> 55
500
- 10 to + 70
- 40 to + 85
HI1060 FLEX & HI980
P1: 250 µm bare fiber
P2: 900 µm loose tube
(ø) 3.0 x (L) 54.0
(ø) 3.0 x (L) 60.0
< 0.1
< 0.3
nm
dB
dB
dB
dB
mW
°C
°C
Insertion Loss
Isolation
Polarization Dependent Loss
Directivity
Maximum Power Handling
Operating Temperature
Storage Temperature
Fiber Type
Package Dimensions
**
mm
Applications
Note:
* Values are referenced without connector loss.
** The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom speci-
fied.
Undearsea
R03.20081120
Ultra Hi-Rel Undersea Component Family
Fused Single-Mode WDM (980/1550 nm)
UWDM59 Series
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
UWDM
5
9
S
0
0
Wavelength
1550/980 nm= 59
Type
Standard= S
Premium Grade = P
A Grade = A
B Grade = B
Grade
Fiber Length
0.5 Meter = H
1.0 Meter = 1 *
1.5 Meters = 5
2.0 Meters = 2
Connector Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC = 9
MU = A
Configuration
1x2 = 1
2x2 = 2
Package & Fiber Type
P1+ HI1060 = 16
P1+ HI980 = 19
P2+ HI1060 = 26
P2+ HI980 = 29
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Notes :
* 1 meter is standard. The lead time
for special fiber length will be longer.
R03.20081120
