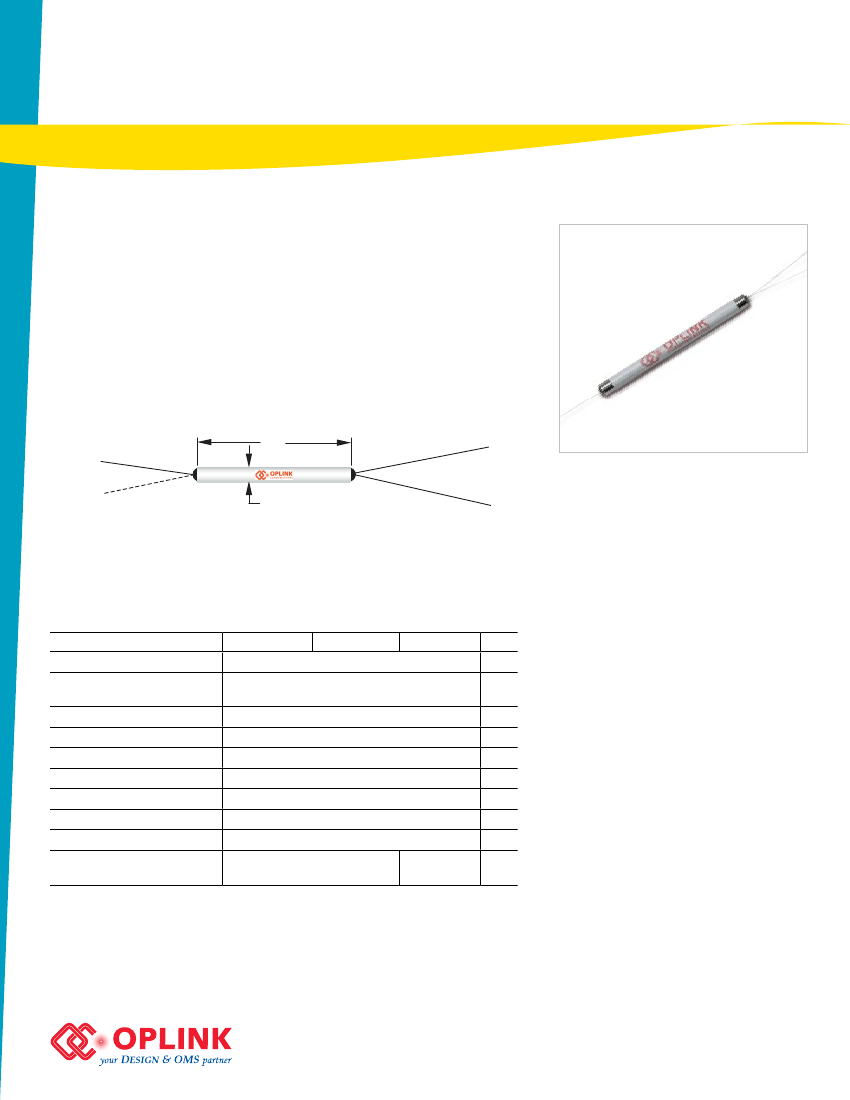

Fused Single-Mode WDM
(980/1550nm)
SWDM59 Series
Product Description
Oplink’s 980/1550nm fused single-mode wavelength division multiplexers are
manufactured using the proven fused biconical taper technology and Oplink’s
stringent quality procedures. With low insertion loss and flat passband, this
device is ideal for combining pump (980nm) and signal light at 1550nm in opti-
cal fiber amplifiers.
Oplink can provide customized designs to meet specialized feature applica-
tions. Also, Oplink offers modular assemblies that integrate other components
to form a full function module or subsystem.
Port 1 In
L
Port 2 Signal
Port 4 (terminated for
1x2 configuration)
Ø
Port 3 Pump
Features
Performance Specificationns
SWDM59 Series
Premium
Grade A
Grade B
Unit
Ultra Low Insertion Loss
Ultra High Isolation
Low Polarization Sensitivity
High Directivity
dB
dB
dB
dB
mW
°C
°C
(ø)3.0 x (L)54
(ø)3.0 x (L)60
Applications
Operating Wavelength
Insertion Loss
Isolation
Polarization Dependent Loss
Directivity
Maximum Power Handling
Operating Temperature
Storage Temperature
Fiber Type
Package Dimensions
**
(970 - 990nm / 1535 - 1565nm)
970 - 990nm / 1535 - 1565nm
< 0.1
< 0.2
> 20
< 0.1
> 55
500
- 10 to + 70
- 40 to + 85
HI1060 FLEX & HI980
P1: 250µm bare fiber
P2: 900µm loose tube
mm
< 0.3
High Stable & Reliable
Bidirectional
Telecommunications
CATV
Subscriber Loop
Local Area Networks
Fiberoptic Sensors
Note:
* Values are referenced without connector loss.
** The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom speci-
fied.
R01.20080624
Fused Single-Mode WDM (980/1550nm)
SWDM59 Series
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
SWDM
5
9
S
0
0
Wavelength
1550/980nm= 59
Type
Standard= S
Premium Grade = P
A Grade = A
B Grade = B
Grade
Fiber Length
0.5 Meter = H
1.0 Meter = 1 *
1.5 Meters = 5
2.0 Meters = 2
Connector Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC = 9
MU = A
Configuration
1x2 = 1
2x2 = 2
Package & Fiber Type
P1+ HI1060 = 16
P1+ HI980 = 19
P2+ HI1060 = 26
P2+ HI980 = 29
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Notes :
* 1 meter is standard. The lead time
for special fiber length will be longer.
R01.20080624
Product Lines:
Mux/Demux
Switching/Routing
Coupling/Splitting
Monitoring/Conditioning
Amplification
Transmission
Interconnect
RGB Laser Modules
