AZ762H-1CB-24DSE: Description16 A SPDT MINIATURE HIGH TEMPERATURE POWER RELAY; File Size163KB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet View All

AZ762H-1CB-24DSE Overview

16 A SPDT MINIATURE HIGH TEMPERATURE POWER RELAY

Preview

Download Datasheet

View All

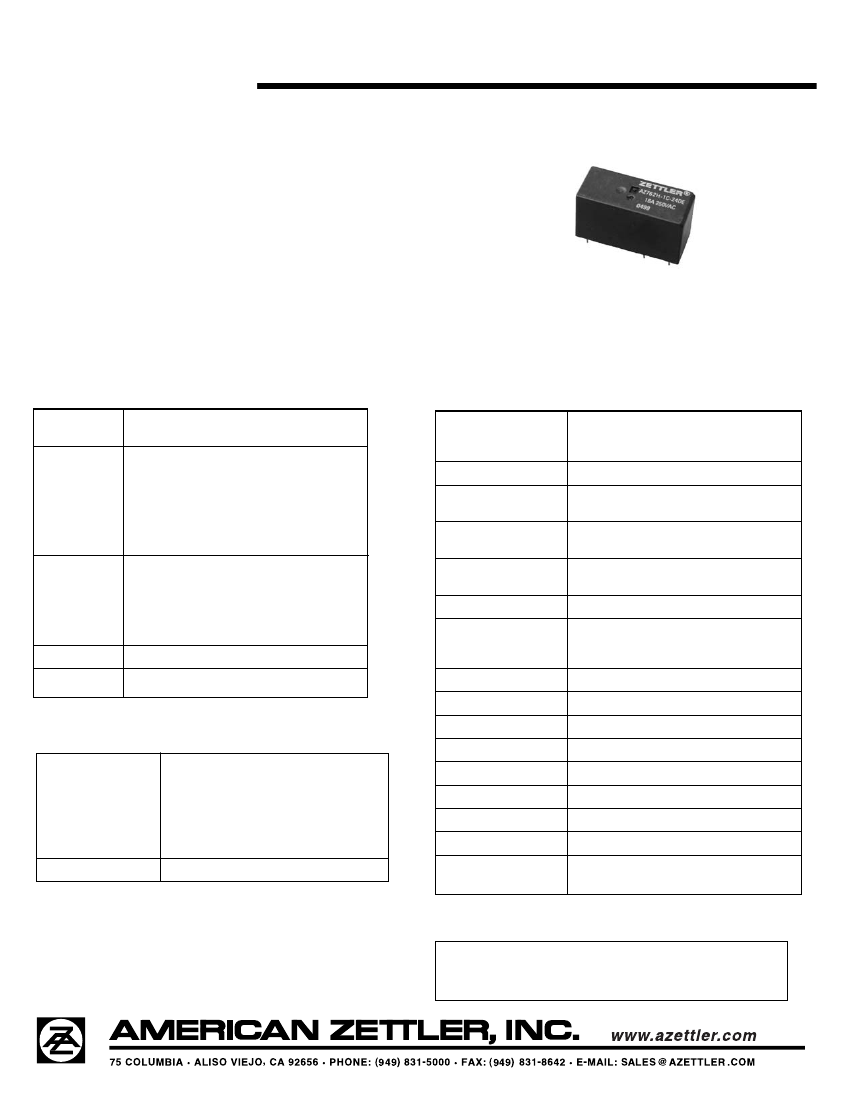

AZ762H

16 A SPDT MINIATURE HIGH

TEMPERATURE POWER RELAY

FEATURES

•

High ambient operating temperature (105°C)

Dielectric strength 5000 Vrms

Low cost

Epoxy sealed versions available

16 Amp switching (standard coil only)

Class B (130°C) standard

Isolation spacing greater than 10 mm

UL, CUR file E44211, VDE40006031

CONTACTS

Arrangement

Ratings

SPDT (1 Form C)

SPST (1 Form A)

Resistive load:

Max. switched power: 480 W or 4432 VA

Max. switched current: 16 A

Max. switched voltage: 150* VDC or 440 VAC

Note: If switching voltage is greater than 30 VDC,

special precautions must be taken. Please contact the

factory.

GENERAL DATA

Life Expectancy

Mechanical

Electrical

OperateTime (typical)

ReleaseTime (typical)

Dielectric Strength

(at sea level for1min.)

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Minimum operations

1 x 10

at 16 A 277 VAC general use

7 ms at nominal coil voltage

3 ms at nominal coil voltage

(with no coil suppression)

5000 Vrms coil to contact

1000 Vrms between open contacts

1000 megohms min. at 20°C

500 VDC 50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 105°C (221°F)

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P. C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

14 grams

Rated Load

UL, CUR

VDE

16 A at 277 VAC general use, 100k

cycles 105°C (10A sensitive coil)

16 A at 250 VAC resistive, 105°C

(10A sensitive coil)

6 A at 400 VAC resistive, 105°C

Silver nickel. Gold plating available

< 50 milliohms initially (using 6 V 1 A method)

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Max. Temperature

196 mW Standard

141 mW Sensitive

1.7 W at 20°C (68°F) ambient

26°C (47°F) at nominal coil voltage

130°C (266°F)

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

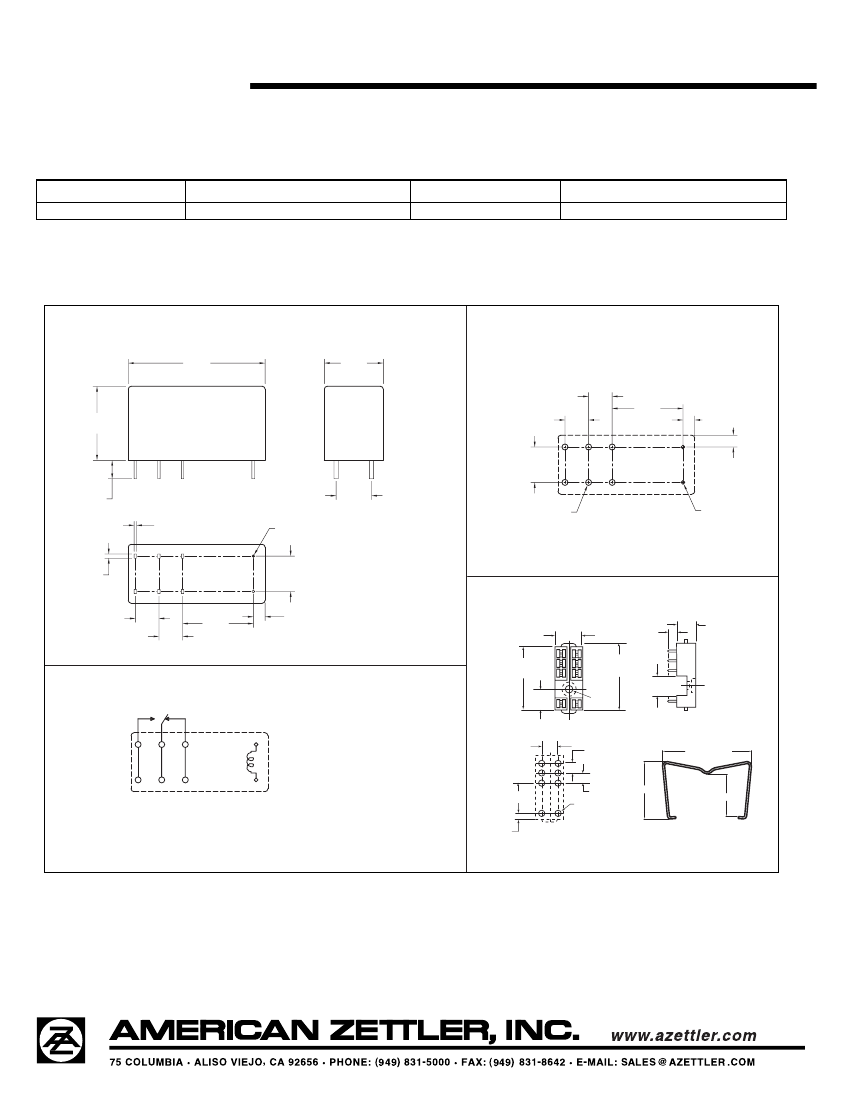

11/13/08W
