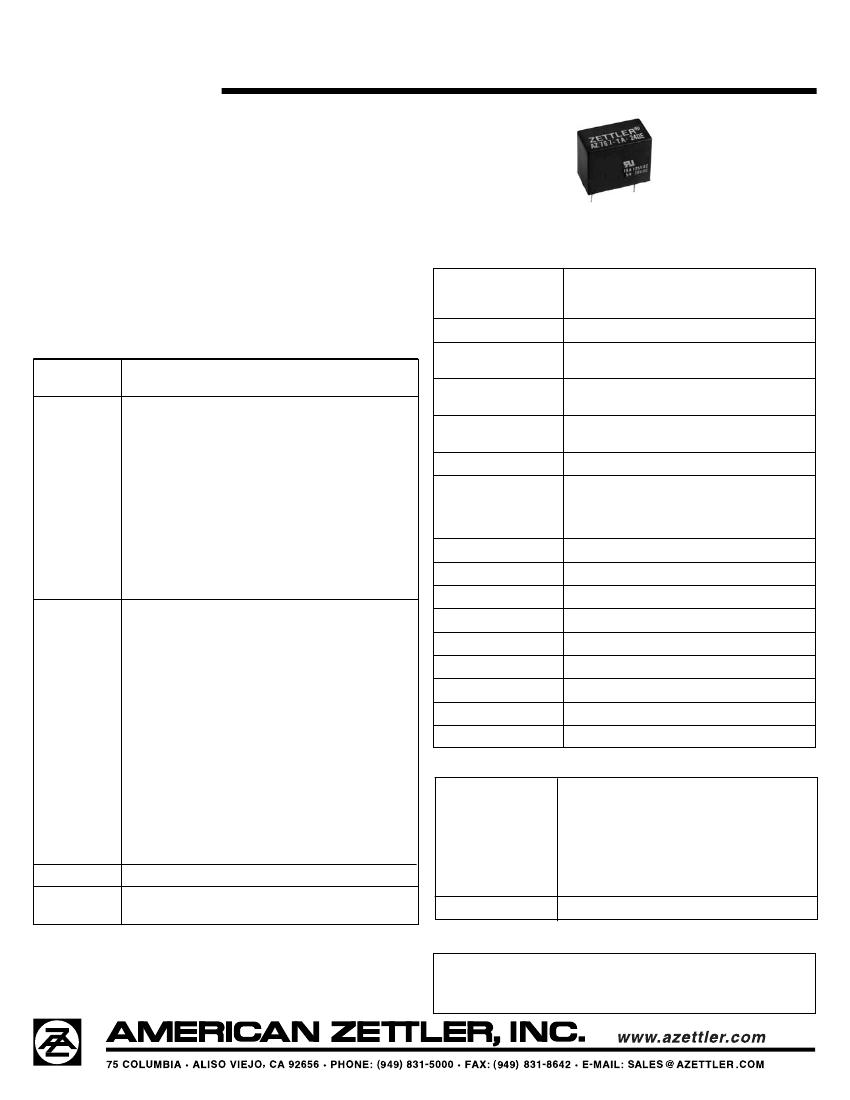

AZ767
SPDT SUBMINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
Small footprint
Low cost
Class B insulation standard
Epoxy sealed version available
10 Amp switching
UL, CUR file E44211
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 5 A 240 VAC Res.
8 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: 150 W (SPST-NO) standard
1250 VA (SPST-NO) standard
90 W (SPST-NO) sensitive
750 VA (SPST-NO) sensitive
90 W (SPDT)
750 W (SPDT)
Max. switched current: 10 A AC SPST-NO standard
5 A DC SPST-NO standard
3 A AC/DC SPST-NO sensitive
3 A AC/DC SPDT
Max. switched voltage: 150* VDC or 380 VAC
*
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Release Time (typical)
Dielectric Strength
2500 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
1000 megohms min. at 20°C
500 VDC 50% RH
Greater than 5% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 90°C (194°F), standard
-40°C (-40°F) to 105°C (221°F), sensitive
-40°C (-40°F) to 130°C (266°F)
0.062" DA at 10–50 Hz
10 g operating, 100 g damage
P.B.T. polyester
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
6 grams
Rated Load
UL, CUR
Form A
10 A at 125 VAC, Res., 30k cycles [1]
10 A at 125 VAC, General Use., 100k cycles [2]
5 A at 250 VAC, General Use, 100k [1][2]
5 A at 30 VDC, Res., 100k cycles [1][2]
300 W at 120 VAC Tungsten [2]
3 A at 250 VAC, General Use, 100k cycles [1][2]
sensitive
3 A at 30 VDC, Res., 100k cycles [1][2] - sensitive
5 A at 125 VAC, Res., 100k cycles [1] - sensitive
10 LRA / 1.5 FLA at 120 VAC, 100k cycles [1]
1/10 HP at 125 VAC, 100k cycles [1]
1/16 HP at 250 VAC, 100k cycles [1]
8 A at 250 VAC, General Use, 100k cycles [2] - sensitive
high capacity
Form C
3 A at 250 VAC, General Use, 100k cycles [1][2]
3 A at 30 VDC, Res., 100k cycles [1][2]
[1] silver cadmium oxide [2] silver nickel
Silver cadmium oxide or silver nickel
<100 milliohms initially
(24 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
253 mW standard
113 mW sensitive
1.25 W at 20°C (68°F) ambient
41°C (74°F) at nominal coil voltage, standard
22°C (40°F) at nominal coil voltage, sensitive
Max. 130°C (266°F)
Material
Resistance
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
9/6/06 W
