AZ770-1A-18DS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ770-1A-18DS

AZ770-1A-18DS: DescriptionSPDT SUBMINIATURE POWER RELAY; CategoryMechanical and electronic products relay; File Size111KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ770-1A-18DS Overview

SPDT SUBMINIATURE POWER RELAY

AZ770-1A-18DS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compli
ECCN code	EAR99
body width	10.35 mm
body height	12.95 mm
Body length or diameter	17.85 mm
Coil operating voltage (DC)	13.5 V
Coil resistance	1600 Ω
Maximum coil voltage (DC)	30.6 V
Nominal coil voltage	18 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1250VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated power R load	150W@30VDC
Contact (DC) maximum rated R load	5A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	AZ770
Number of terminals	5
operating hours	8 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	17.85mm x 10.35mm x 12.95mm
Guideline	UL; VDE
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	4 ms
Terminal surface	Tin (Sn)
Terminal length	0.157 inch
Termination type	SOLDER
weight	4.6 g

Preview

Download Datasheet

View All

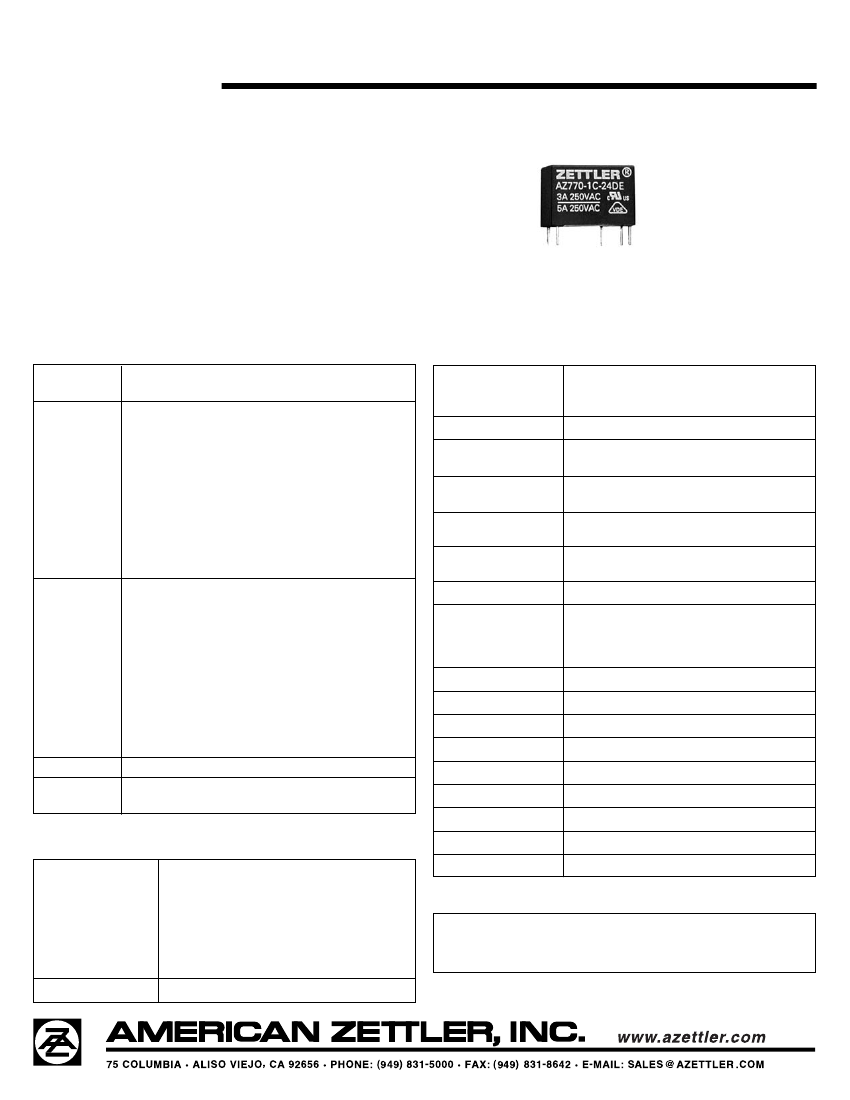

AZ770

SPDT SUBMINIATURE

POWER RELAY

FEATURES

Small footprint

5 kV dielectric strength, 10 kV surge

Class B insulation standard

8 mm creepage and clearance

Epoxy sealed version available

5 Amp switching

High temperature 105 C and high current 10A version

avilable ( UL Pending )

•

UL, CUR file E44211, VDE 40006815

CONTACTS

Arrangement

Ratings

SPST (1 Form A)

SPDT (1 Form C)

Resistive load:

Max. switched power: 150 W (SPST-NO) standard

1250 VA (SPST-NO) standard

90 W (SPDT)

750 VA (SPDT)

Max. switched current: 5 A AC SPST-NO standard

5 A DC SPST-NO standard

3 A AC/DC SPST-NO sensitive

3 A AC/DC SPDT

Max. switched voltage: 150* VDC or 380 VAC

Note: If switching voltage is greater than 30 VDC, special

precautions must be taken. Please contact the factory.

•

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 5 A 240 VAC Res.

8 ms at nominal coil voltage

4 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms between open contacts

Surge Voltage

Coil to contact

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

10,000V (at 1.2x50 µ s)

1000 megohms min. at 20°C

500 VDC 50% RH

Greater than 5% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 90°C (194°F), standard

-40°C (-40°F) to 105°C (221°F), sensitive

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

10 g operating, 100 g damage

P.B.T. polyester

Tinned copper alloy, P. C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

4.6 grams

Rated Load

UL, CUR

Form A (N.O.)

5 A at 250 VAC, Res., 100k cycles

5 A at 30 VDC, Res., 100k cycles

1/8 HP, 125 / 250 VAC, 100k cycles

3 A at 250 VAC, 0.4 PF., 100k cycles

C300 Pilot Duty, 125 / 250 VAC, 100k cycles

TV-2, 120 VAC

Form C

3 A at 250 VAC, Res. 100k cycles

3 A at 30 VDC, Res, 100k cycles

Form A and Form C

5 A at 250 VAC, 100k cycles

Silver nickel, gold plating available

<100 milliohms initially

(24 V, 1 A voltage drop method)

VDE

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

253 mW standard

113 mW sensitive

1.25 W at 20°C (68°F) ambient

41°C (74°F) at nominal coil voltage, standard

22°C (40°F) at nominal coil voltage, sensitive

Max. 130°C (266°F)

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

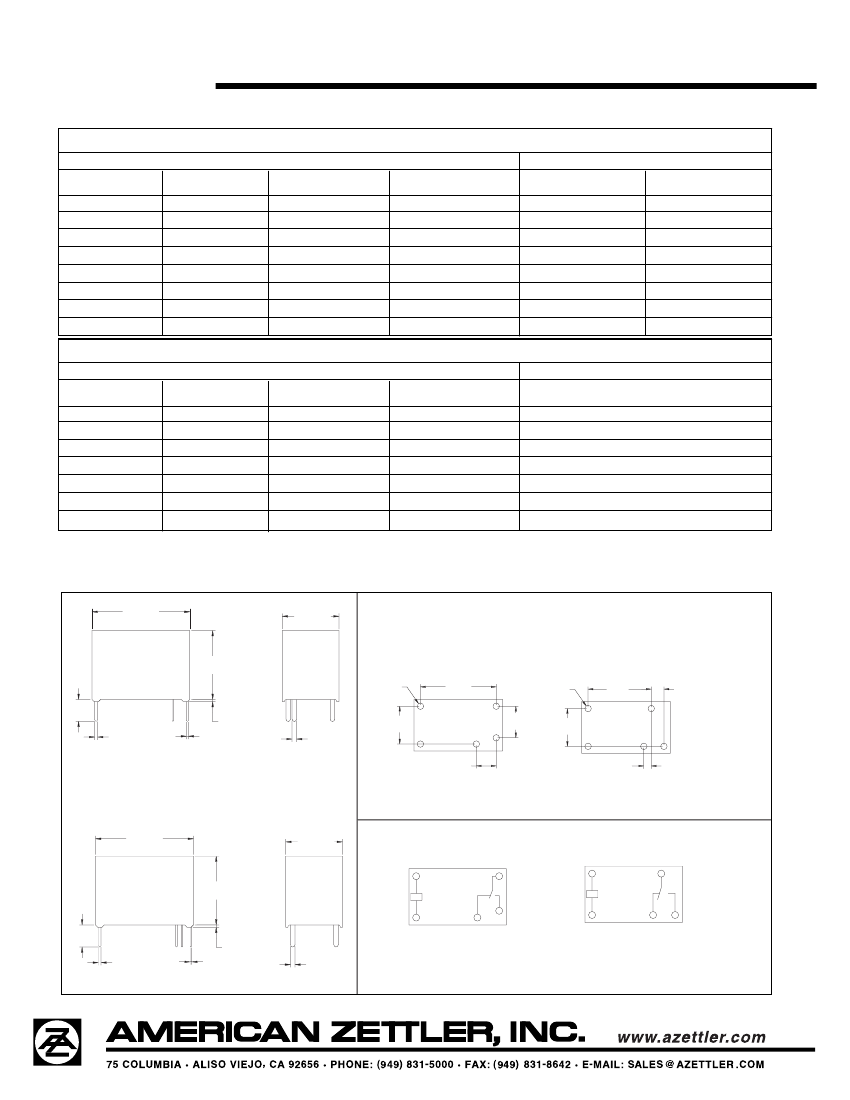

10/31/08W
