D101-4X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> D101-4X

D101-4X: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size65KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

D101-4X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D101-4X	-	-	View	Buy Now

D101-4X Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT

D101-4X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
Other features	COIL OPERATE VOLTAGE(AC): 240V, COIL RELEASE VOLTAGE(AC): 240V
body width	127 mm
body height	88.9 mm
Body length or diameter	107.95 mm
Coil current (AC) maximum value	0.013 A
Coil power	3000 mW
Maximum coil voltage (AC)	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	5A@120VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
physical size	107.95mm x 127mm x 88.9mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Voltage Sensitive Relays

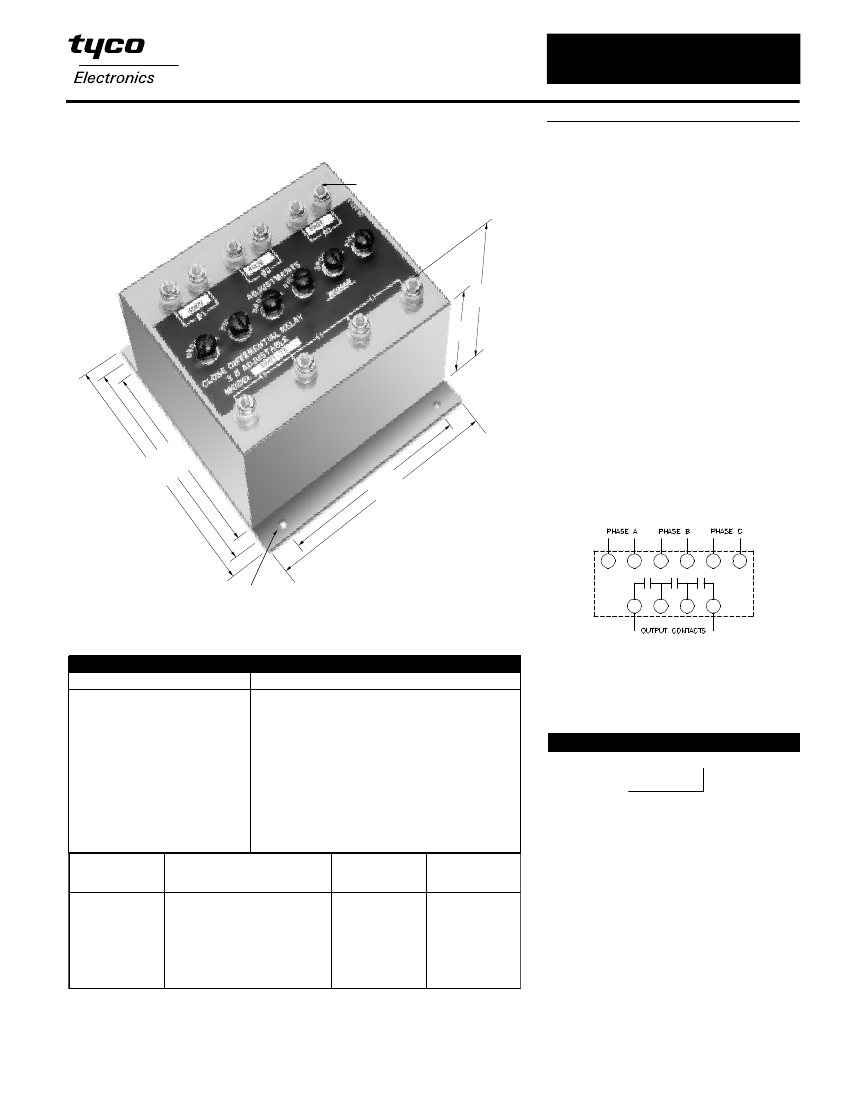

WILMAR™ Protective Relays – D101X Series,

3 Phase Adjustable, Close Differential

#6 - 32 STUDS

10 PLACES

Function:

•

ANSI/IEEE C37.90-1978

•

UL file No. E58048

•

CSA file No. LR61158

Close Differential Relays are voltage sensitive. The

pick-up and drop-out voltage settings are indepen-

dently adjustable, which allows precise setting of the

differential voltage. This relay is available in a wide

range of AC voltages. Their primary application is

the sensing and control of transfer switches.

Operation:

The output contacts will close when the voltage of

all three phases is above the pre-set pick-up point,

and will open when any one phase drops below its

drop-out setting.

Note:

Dimensions in inches. Multiply values by 25.4 for dimensions in mm.

/ DIA.

4 MTG. HOLES

13 64

PRODUCT SPECIFICATIONS

Part Number

Nominal Voltage ...............................

Nominal Frequency ..........................

Pick-Up Adjustment Range .............

Drop-Out Adjustment Range ...........

Output Contacts ...............................

Contact Ratings ................................

Operating Temperature Range ........

D101X

AC, Three Phase, see part number selection

50 to 500 Hz.

66-100% of nominal voltage, screwdriver adjustable

SPNO

5 amp resistive at 120 VAC or 28 VDC

-20°C to +85°C

Model: L-L Volts

D101X = 120 VAC

D101-6X = 208 VAC

D101-4X = 240 VAC

D101-10X = 380 VAC

D101-7X = 480 VAC

PART NUMBER SELECTION

Sample Part No.

D101X

Model

Power Consumption

Each Phase

2 VA max.

3 VA max.

4 VA max.

(inches)

1/2

(inches)

11/16

3/16

D101X

D101-4X

D101-6X

D101-7X

D101-10X

Notes:

1. Remove screws for access to pick-up and drop-out

trip adjustments.

2. Clockwise rotation of the pick-up and drop-out

adjustment will raise the voltage trip point.

Consult factory for additional models.

Tyco Electronics

/ www.tycoelectronics.com / Factory Direct Technical Support: 800-253-4560, ext. 2023 (U.S., Canada, Mexico) or 805-220-2020, ext. 2023 (International)
