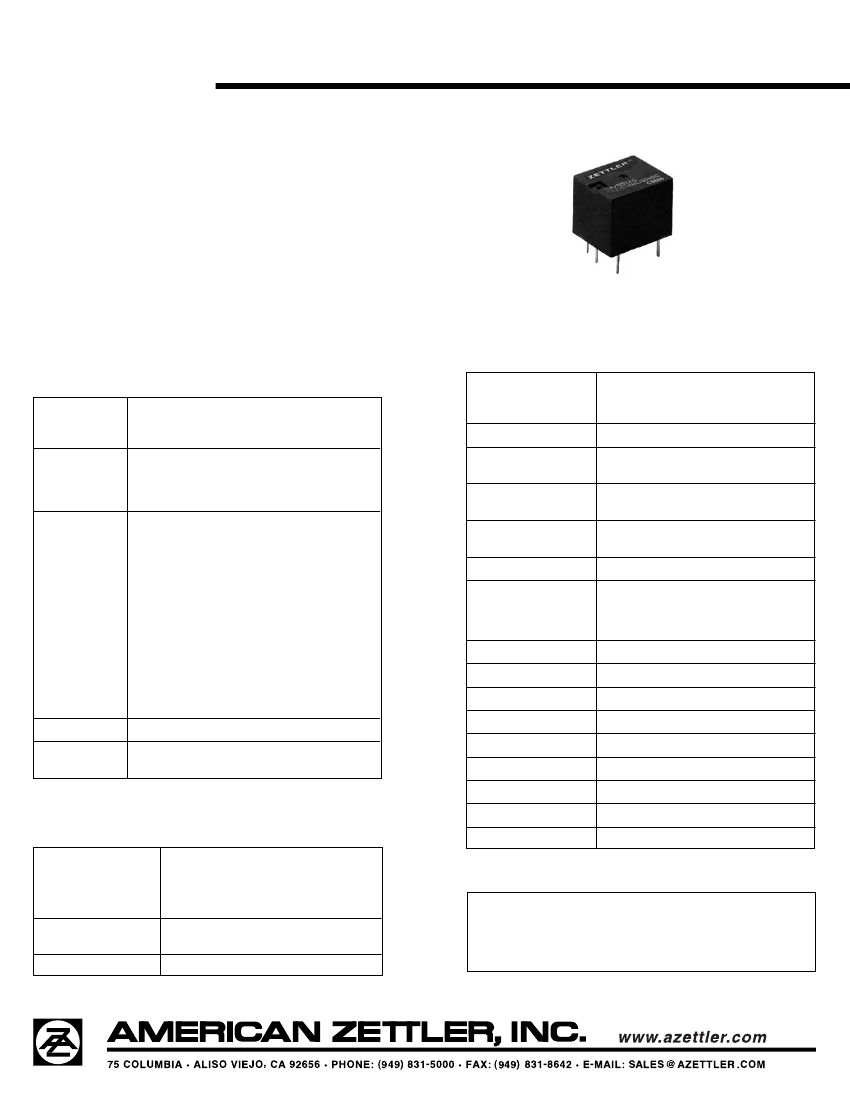

AZ932
AZ
15 AMP
MINIATURE
PC BOARD RELAY
FEATURES
•
•
•
•
•
•
High performance
Low seated height
Flux tight and sealed versions available
Class F insulation (155°C) system available
Class B Insulation (130°C) standard
UL, CUR file E43203
GENERAL DATA
CONTACTS
Arrangement
SPST (1 Form A)
SPST NC (1 Form B)
SPDT (1 Form C)
Form A, B and C
Max. switched power: 210 W or 2400 VA
Max. switched current: 15 A AC, 7 A DC
Max. switched voltage: 30 VDC or 300 VAC
1 Form A
15 A at 120 VAC
TV - 5 120 VAC
1 Form B NC
8.3 A at 120 VAC
3.6 A at 277 VAC
1000 VA, 90°C Ballast
1 Form B NC
15 A at 120 VAC
6.5 A at 277 VAC
1800 VA, 25° C Ballast
1 Form C
10 A at 120 VAC 100,000 cycles N.O.
10 A at 120 VAC 50,000 cycles N.C.
Material
Resistance
Silver tin oxide (gold plating available)
< 100 milliohms initially
(6 V, 1 A voltage drop method)
Life Expectancy
Mechanical
Electrical
Operate Time
Release Time
1x10
6
1 x 10
5
at 10 A 120 VAC Res.
10 ms max.
5 ms max.
(with no coil suppression)
Ratings
Dielectric Strength
1500 Vrms contact to coil
(at sea level for 1 min.)
1000 Vrms across contacts
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
100 megohms min. at 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C(-40°F) to 80°C(176°F)
-40°C(-40°F) to 130°C(266°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (500°F)
5 seconds
80°C (176°F)
30 seconds
10 g
Rated Load
UL/CUR
COIL
Power
At Pickup Voltage
Max Continuous
Dissipation
Temperature Rise
(at nominal coil voltage)
Weight
203 mW
.6 W at 20°C (68°F)
27°C (49°F)
Max. 130°C (266°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Unsealed relays should not be dip cleaned.
4. Specifications subject to change without notice.
Temperature
2/20/08W
